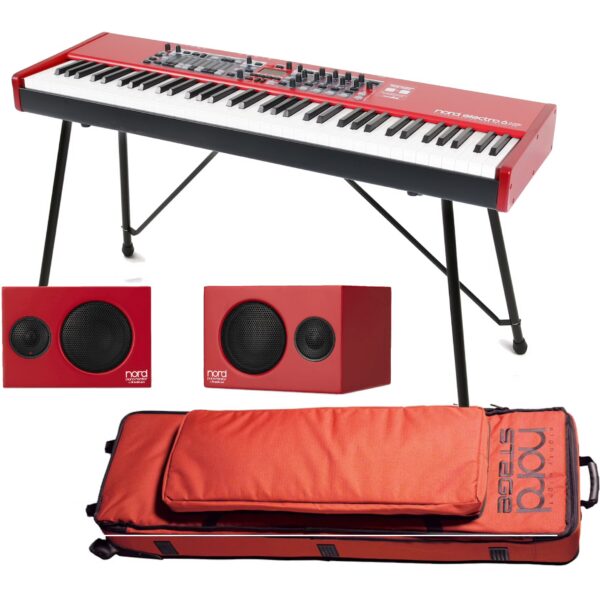

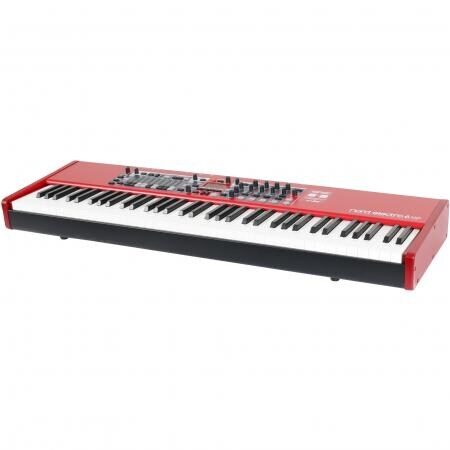

Clavia Nord Electro 6 HP Stage Keyboard 1x Clavia Nord Electro 6 HP Stage Keyboard
Nord Electro’s 6 HP is a stage keyboard with piano, sample synth and organ sections that can be switched between flawlessly thanks to the Seamless Transition feature. It has a number of built-in effects and is easy to use as well.
Product features
Number of keys 73
Drawbar function no
Weight 10 – 14.9 kg
Includes chassis no
Includes pedals no
Built-in amplifier not applicable
Colour housing red
MIDI I/Oin, out, USB in / out
Pitch and modulation wheel no
Polyphony (max.)120
Sequencer / recorder no
Type of display OLED
Keyboard type hammer action
Weight and dimensions including packaging
Weight (incl. packaging)16.3 kg
Dimensions (incl. packaging)134.0 x 51.0 x 26.0 cm
Product specifications
Nord Electro 6 stage keyboard
model: Electro 6 HP (with 73 weighted hammer action keys)
three sections:
organ
piano
sample synth
keyboard:
Fatar keybed
73 keys
6 octaves (E – E)
weighted hammer action
velocity-sensitive
Seamless Transitions
3 part multi-timbral
split and layer for all 3 sections with optional split point crossfades
OLED display
Organize mode
piano section:
1 GB memory for Nord Piano Library
piano filters
polyphony: 120 voices
sympathetic string resonance
4 dynamic curves
sample synth section:
memory: 512 MB for Nord Sample Library
polyphony: 30+ voices
dedicated sample synth section
organ section:
B3 Tonewheel, B3 Bass, Vox and Farfisa simulations
2 pipe organs
Dual Organ mode
Model 122 Vintage Rotary speaker
effects:
wide range of adjustable stereo effects based on classic stomp boxes
reverb with bright mode
connectors:
line outputs L/R: 2x unbalanced mono jack
monitor input: stereo mini jack
headphone output: stereo jack
control pedal: stereo jack (compatible with Yamaha FC7, Roland EV-7, EV-5, Korg EXP2, XVP10 among others)
sustain pedal: jack (compatible with Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 among others)
rotary speaker speed switch pedal input: jack
MIDI I/O (5-pin DIN)
USB (type B), for USB MIDI and transferring sounds
dimensions: 1074 x 121 x 344mm
weight: 11.4 kg
included: manual, power cable
Clavia Nord Keyboard Stand EX for various Nord models 1x Clavia Nord Keyboard Stand EX for various Nord models
The Nord keyboard stand was designed to offer maximum stability and comfort while you play. The legs mount to the bottom plate of your instrument, so your instrument won’t move around, like it might with regular stands.
Product features
Keyboard stand levels1
Keyboard stand weight capacitynot specified
Colourblack
Type of keyboard standstand for a specific model
Weight and dimensions including packaging
Weight (incl. packaging)4.4 kg
Dimensions (incl. packaging)82.7 x 20.0 x 6.0 cm
Product specifications
rugged keyboard stand
easy to set up and collapse
height: 650 mm
rubber feet
Suitable for:
Nord C1 Combo Organ
Nord Electro 3 HP
Nord Electro 4 HP
Nord Electro 5 HP
Nord Electro 6 HP
Nord Piano 88
Nord Piano 2 HA 88
Nord Piano 2 HP
Nord Piano 3
Nord Stage Classic 76 & 88 revision B and C
Nord Stage EX 76 & 88
Nord Stage 2 HA76 & 88
Nord Stage 2 EX HP76 & 88
Nord Stage 3 HP76 & 88
Clavia Nord Case for Stage 76 / Electro HP / Piano 2 HP 1x Clavia Nord Case for Stage 76 / Electro HP / Piano 2 HP
The plush interior of this case gladly accommodates any Stage 76, Piano 2 PH and Electro HP Nord Clavia models. With fitted rugged wheels and an extra handle, this case is also easy on the back.
Product features
Accessory compartmentyes
Interior width35 – 39 cm
For number of keys76
Interior height15 – 19 cm
Interior length> 124 cm
Type of protectionbag
Method of transporthandle, wheels
Weight and dimensions including packaging
Weight (incl. packaging)8.0 kg
Dimensions (incl. packaging)135.0 x 47.0 x 30.0 cm
Product specifications
extra storage compartment for cables and accessories (incuding Keyboard Stand EC and Music Stand EX)
rugged wheels and two handles fitted
shock-absorbant, lined interior
colour: red
interior dimensions: 1150 x 350 x 150 mm
exterior dimensions: 1340 x 450 x 280 mm
top case weight: 8 kg
also compatible with:
Nord Electro 3 HP
Nord Electro 4 HP
Nord Electro 5 HP
Nord Electro 6 HP
Nord Piano 2 HP
Nord Stage Classic 76
Nord Stage EX 76 & 88
Nord Stage 2 HA76 & 88
Nord Stage 2 EX HP76
Nord Stage 3 HP76
Clavia Nord Piano Monitor V2 2x 80 Watt Stage Piano Speaker System 1x Clavia Nord Piano Monitor V2 2x 80 Watt Stage Piano Speaker System
Specially designed to amplify any Clavia Nord piano in all its glory, the Piano Monitor V2 two nearfield speaker system delivers the sound and character your piano only deserves.
Product features
ConnectorsAux-in
Number of speakers2
Weight5 – 9.9 kg
Built-in effectsnone
Speaker diameter4 inches
Stereo amplifieryes
Power in Watts76 – 100 Watts
Can be powered by batteryno
Weight and dimensions including packaging
Weight (incl. packaging)6.9 kg
Dimensions (incl. packaging)40.0 x 33.0 x 27.0 cm
Product specifications
Clavia Nord Piano Monitor V2
speaker system for stage piano
compatible with all Nord models
left speaker (active), right speaker (passive)
technical information
woofer: 4.5 in
tweeter: 0.75 in
output: 2x 80 W
aux volume control
connectors:
2x input (jack, L/R)
aux in: mini-jack
sub out (RCA)
speaker out: jack
power cable
speaker in (jack; right speaker)
weight: 5.5 kg (total)
included: brackets
