Number of keys 73
Drawbar function no
Weight 10 – 14.9 kg
Includes chassis no
Includes pedals no
Built-in amplifier not applicable
Colour housing red
MIDI I/Oin, out, USB in / out
Pitch and modulation wheel no
Polyphony (max.)120
Sequencer / recorder no
Type of display OLED
Keyboard type hammer action
Weight and dimensions including packaging
Weight (incl. packaging)16.3 kg
Dimensions (incl. packaging)134.0 x 51.0 x 26.0 cm
Product specifications

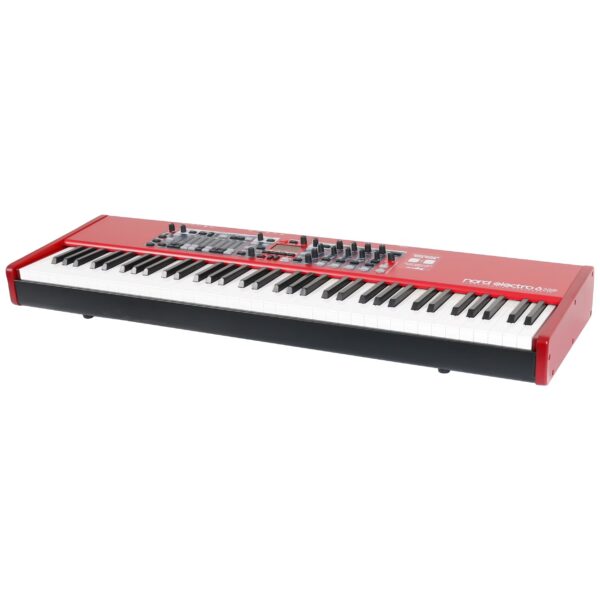

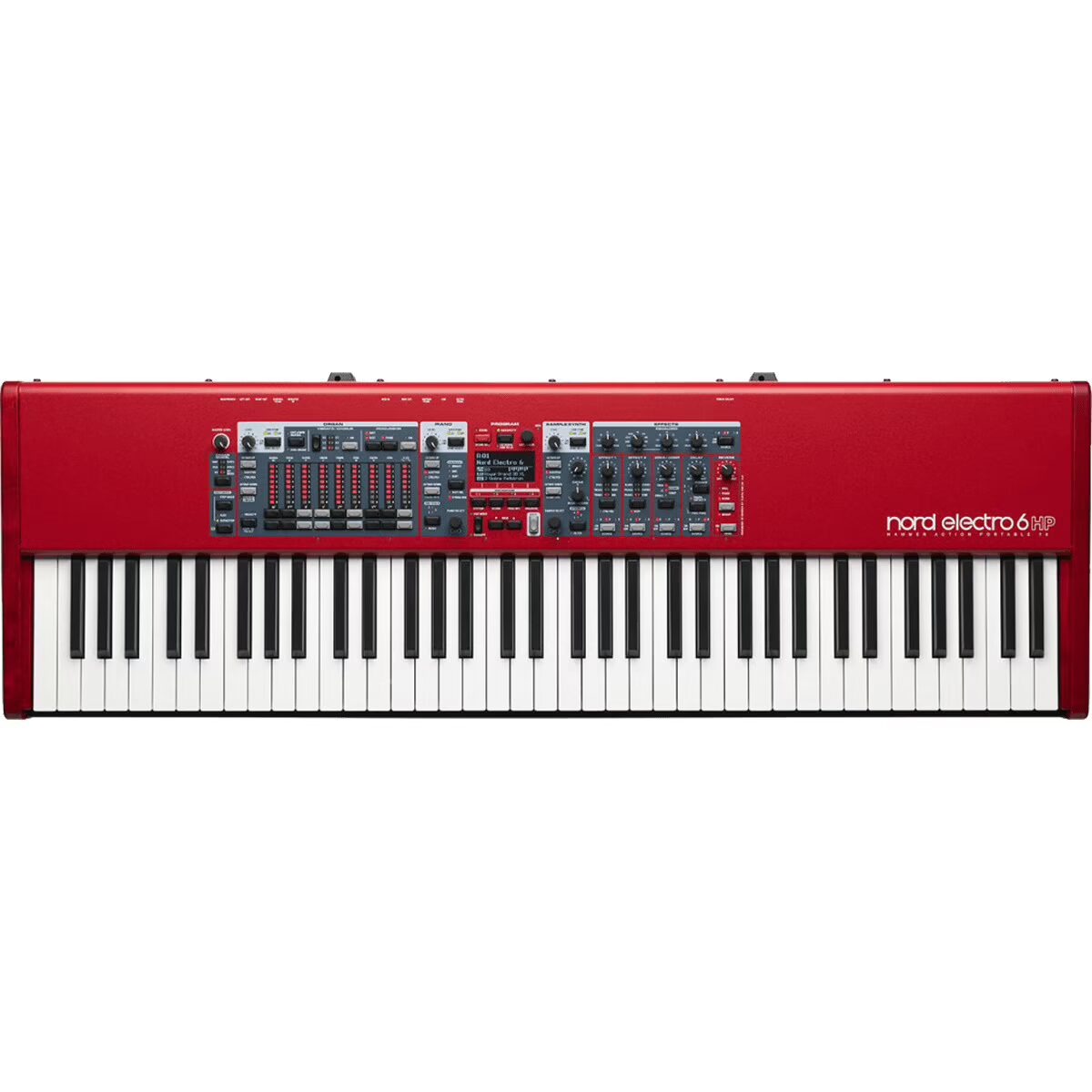

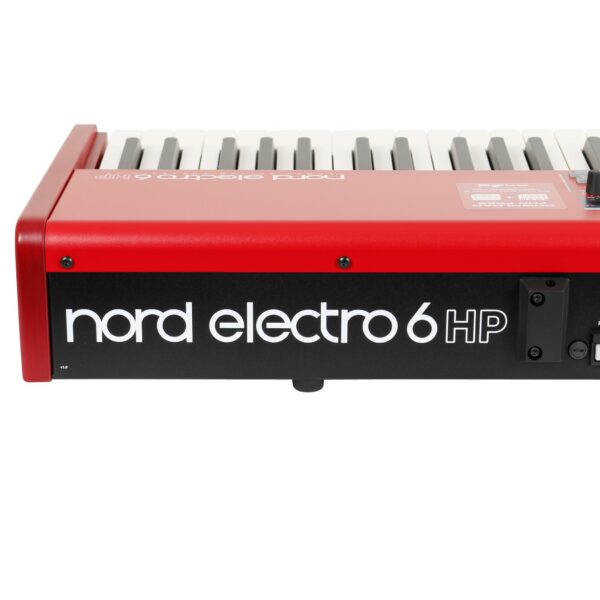

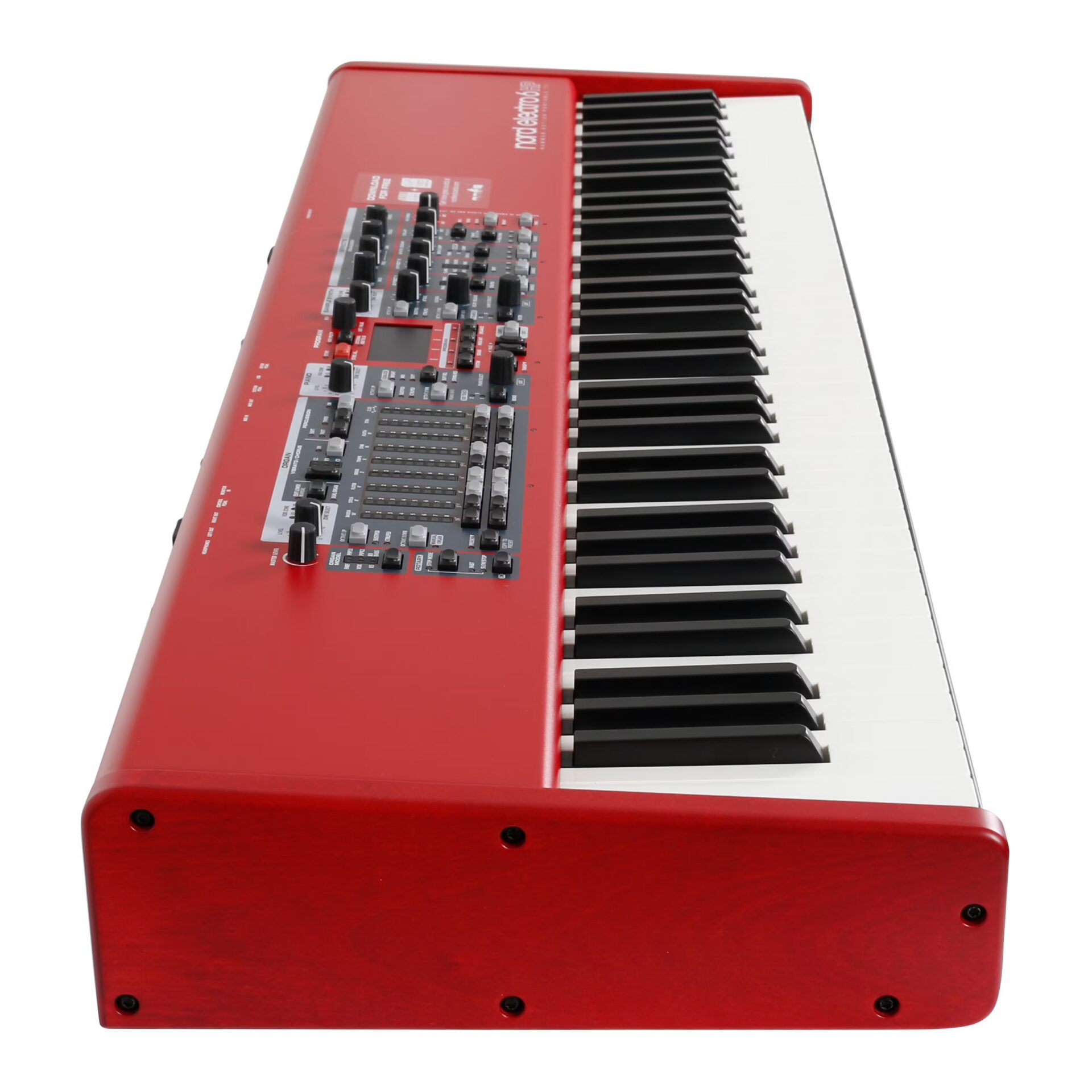

Nord Electro 6 stage keyboard

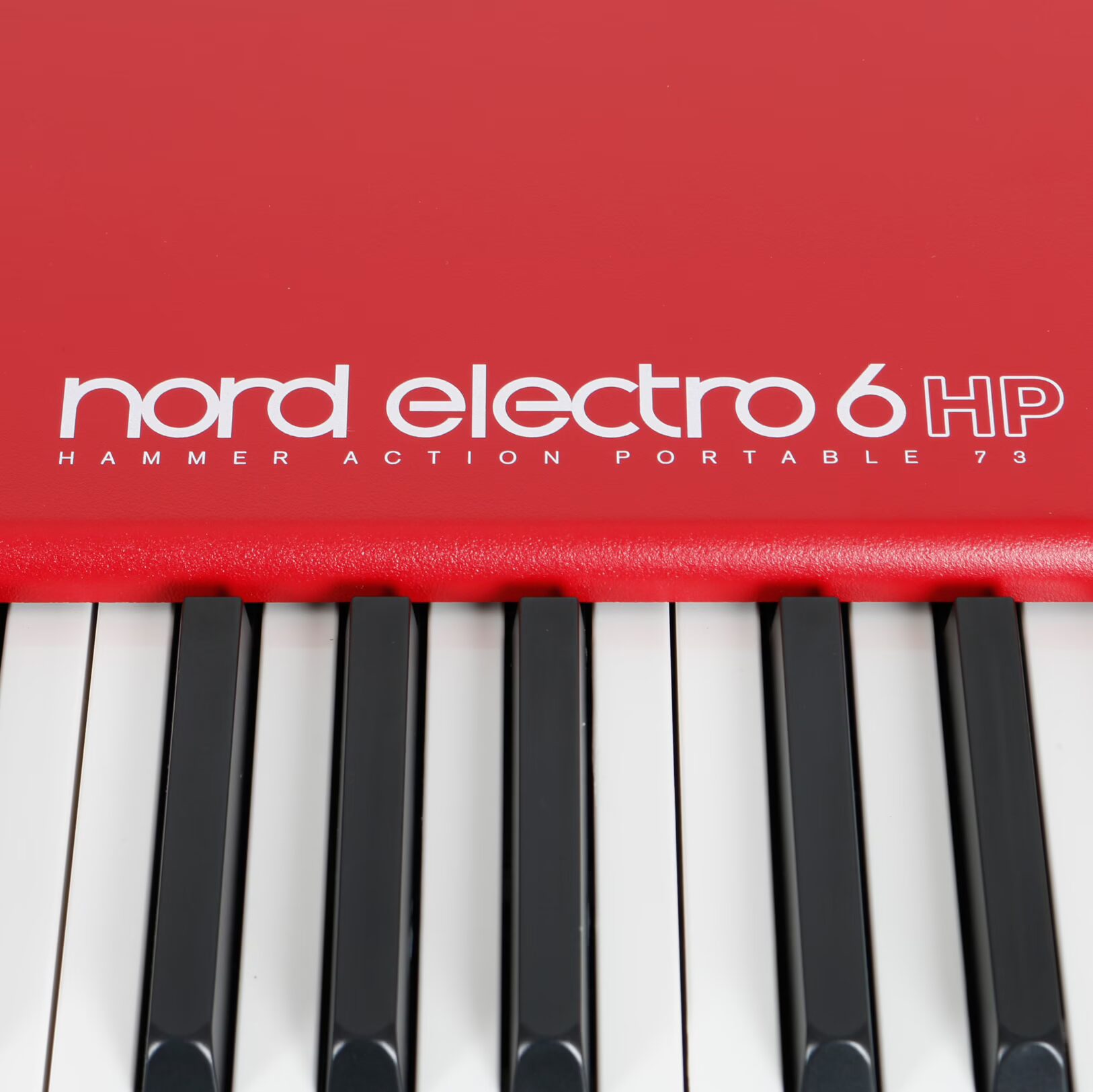

model: Electro 6 HP (with 73 weighted hammer action keys)
three sections:
organ
piano
sample synth
keyboard:
Fatar keybed
73 keys
6 octaves (E – E)
weighted hammer action
velocity-sensitive
Seamless Transitions
3 part multi-timbral
split and layer for all 3 sections with optional split point crossfades

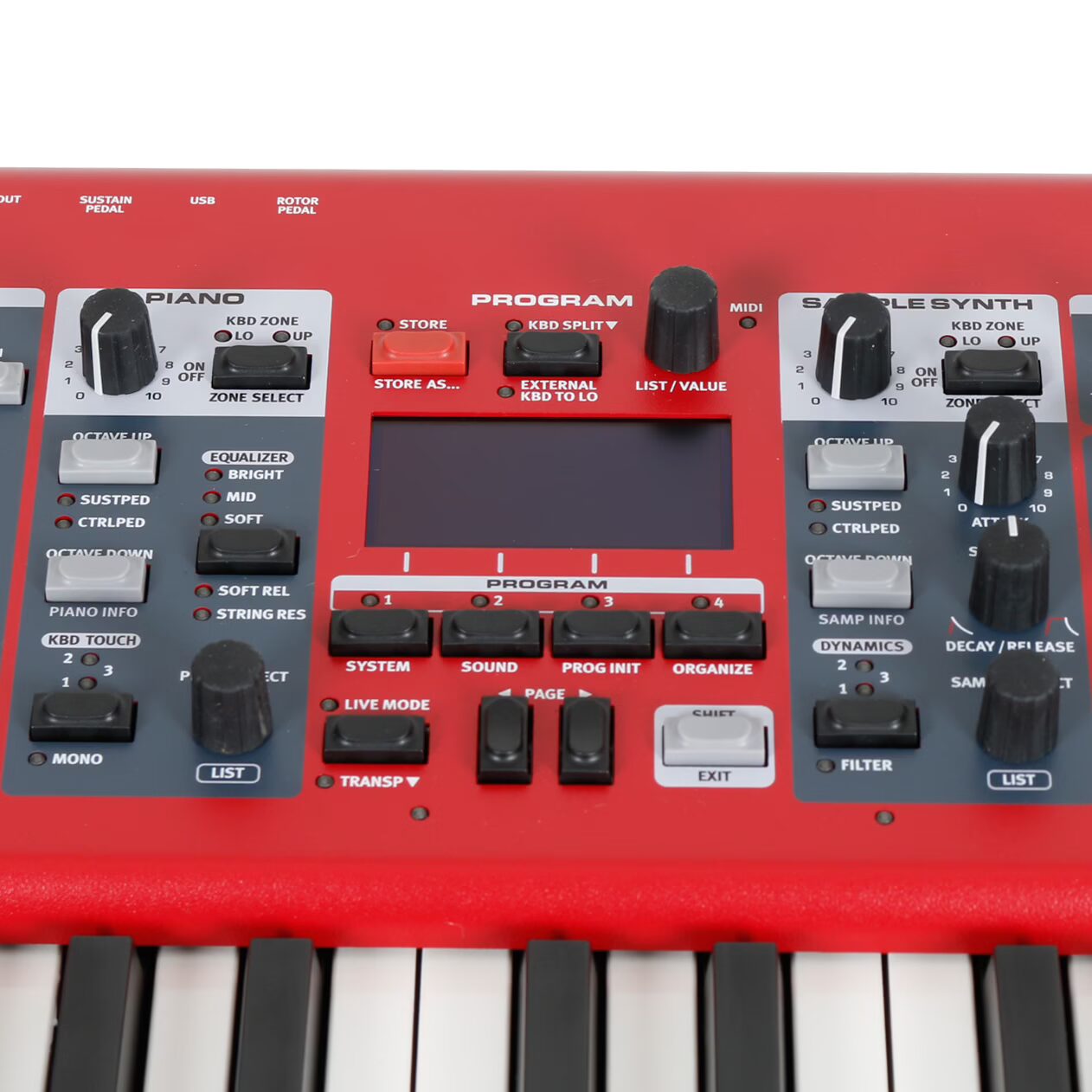

OLED display
Organize mode
piano section:
1 GB memory for Nord Piano Library
piano filters
polyphony: 120 voices
sympathetic string resonance
4 dynamic curves
sample synth section:
memory: 512 MB for Nord Sample Library
polyphony: 30+ voices
dedicated sample synth section

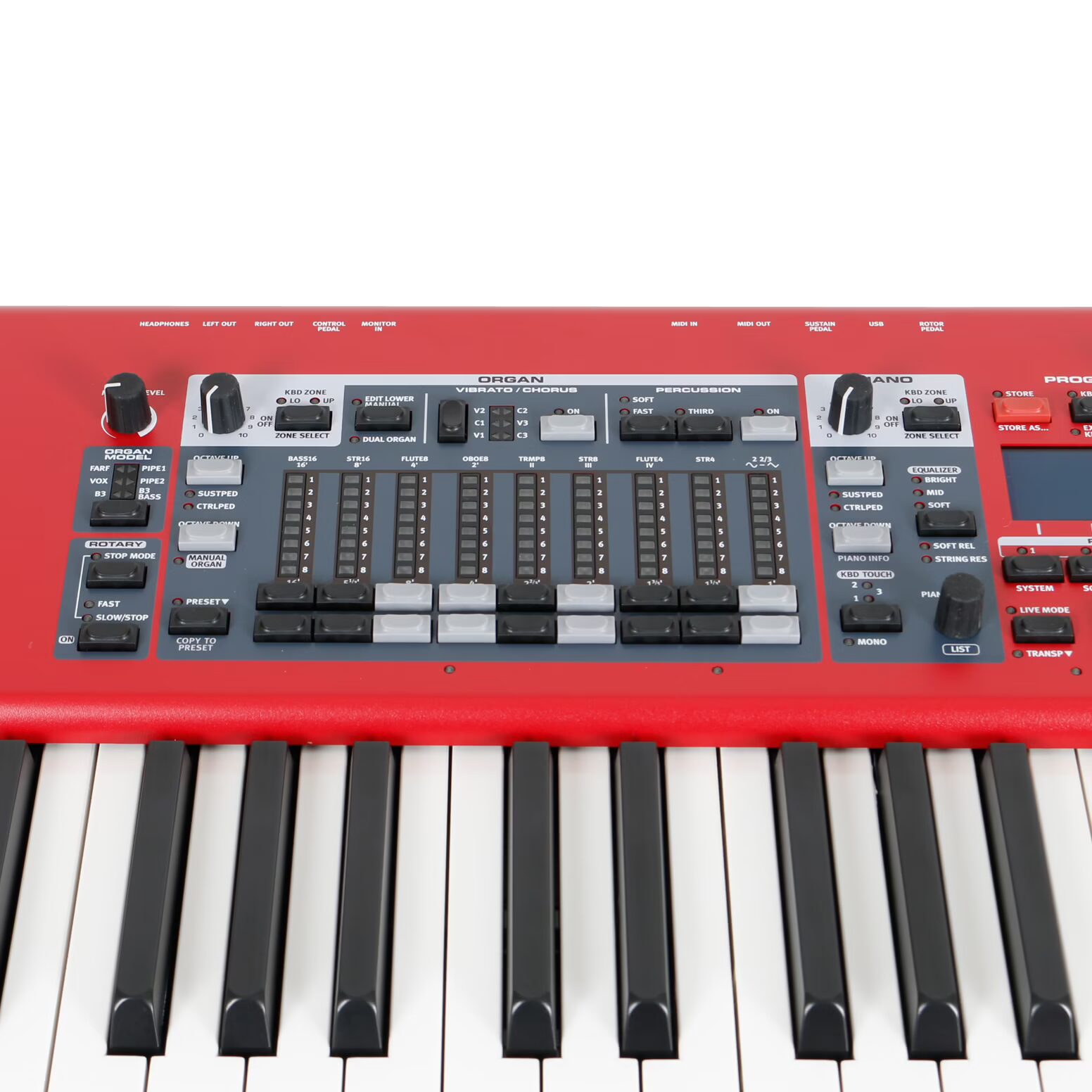

organ section:
B3 Tonewheel, B3 Bass, Vox and Farfisa simulations
2 pipe organs
Dual Organ mode
Model 122 Vintage Rotary speaker

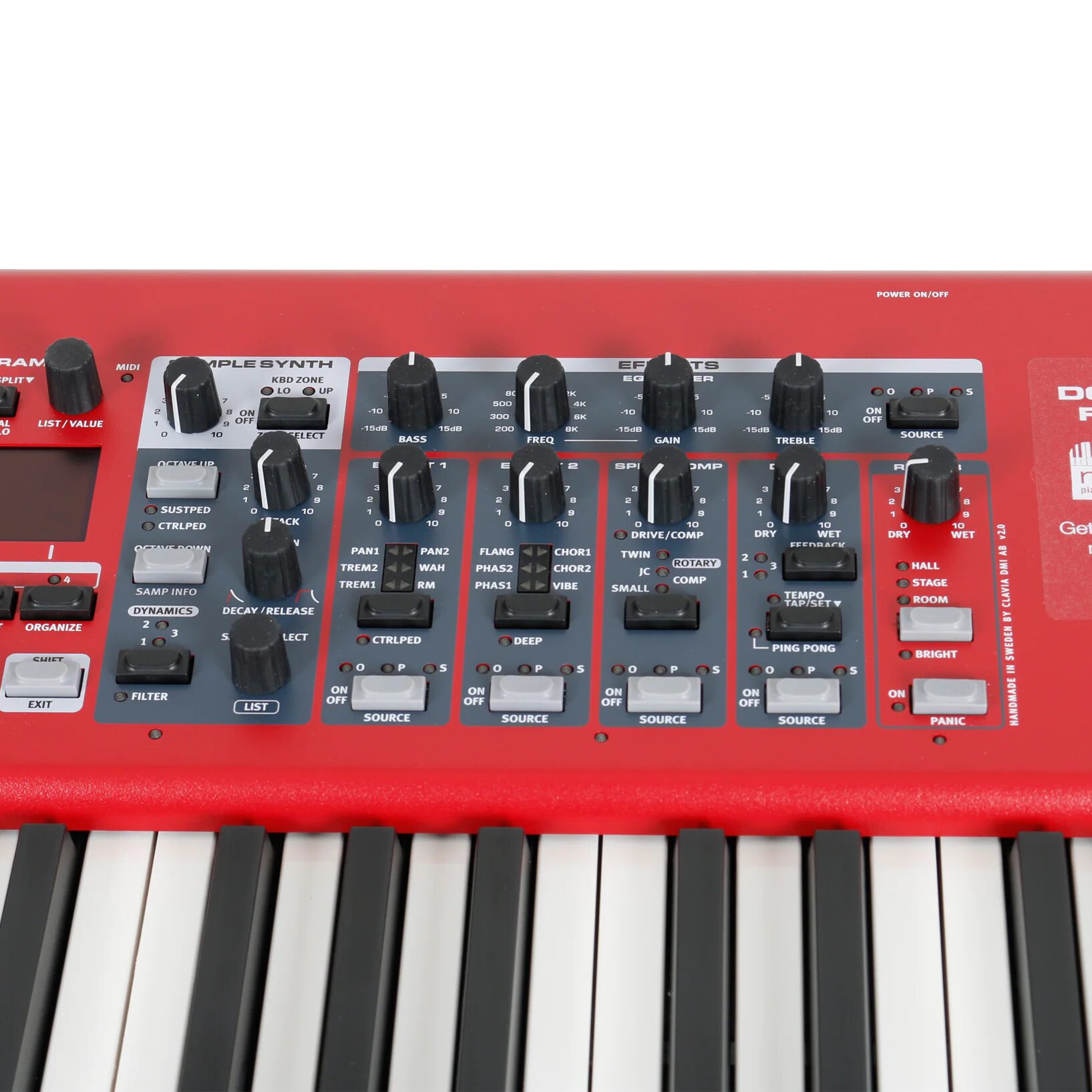

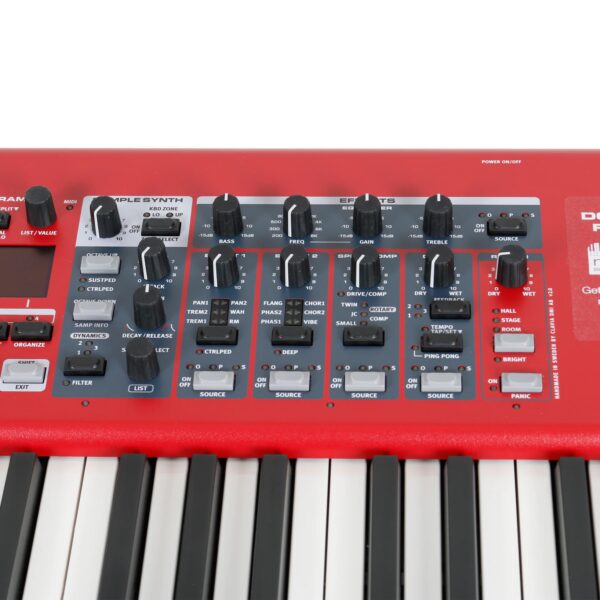

effects:
wide range of adjustable stereo effects based on classic stomp boxes
reverb with bright mode

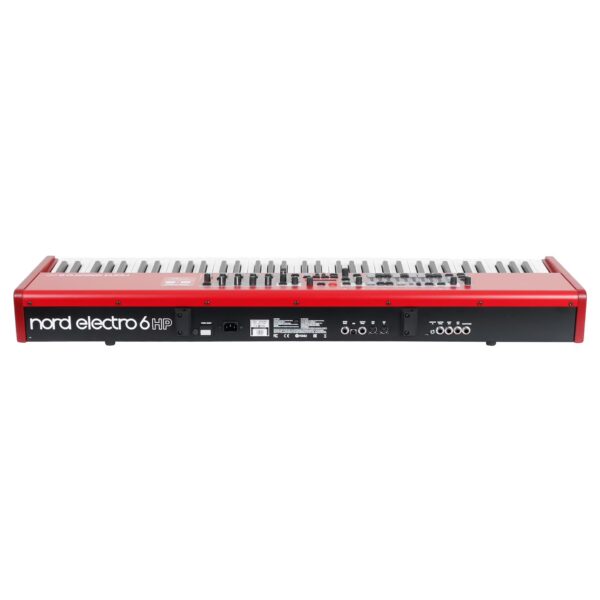

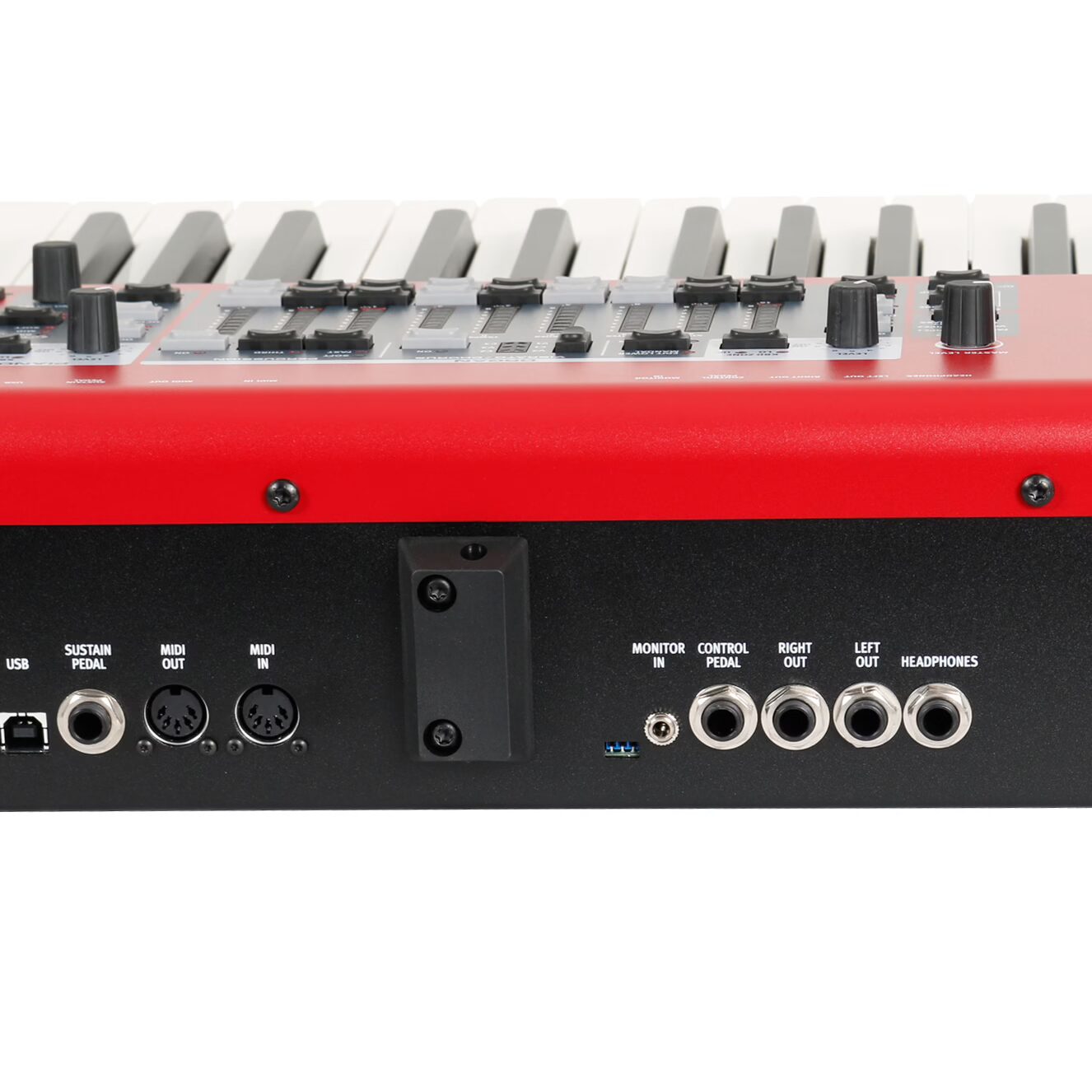

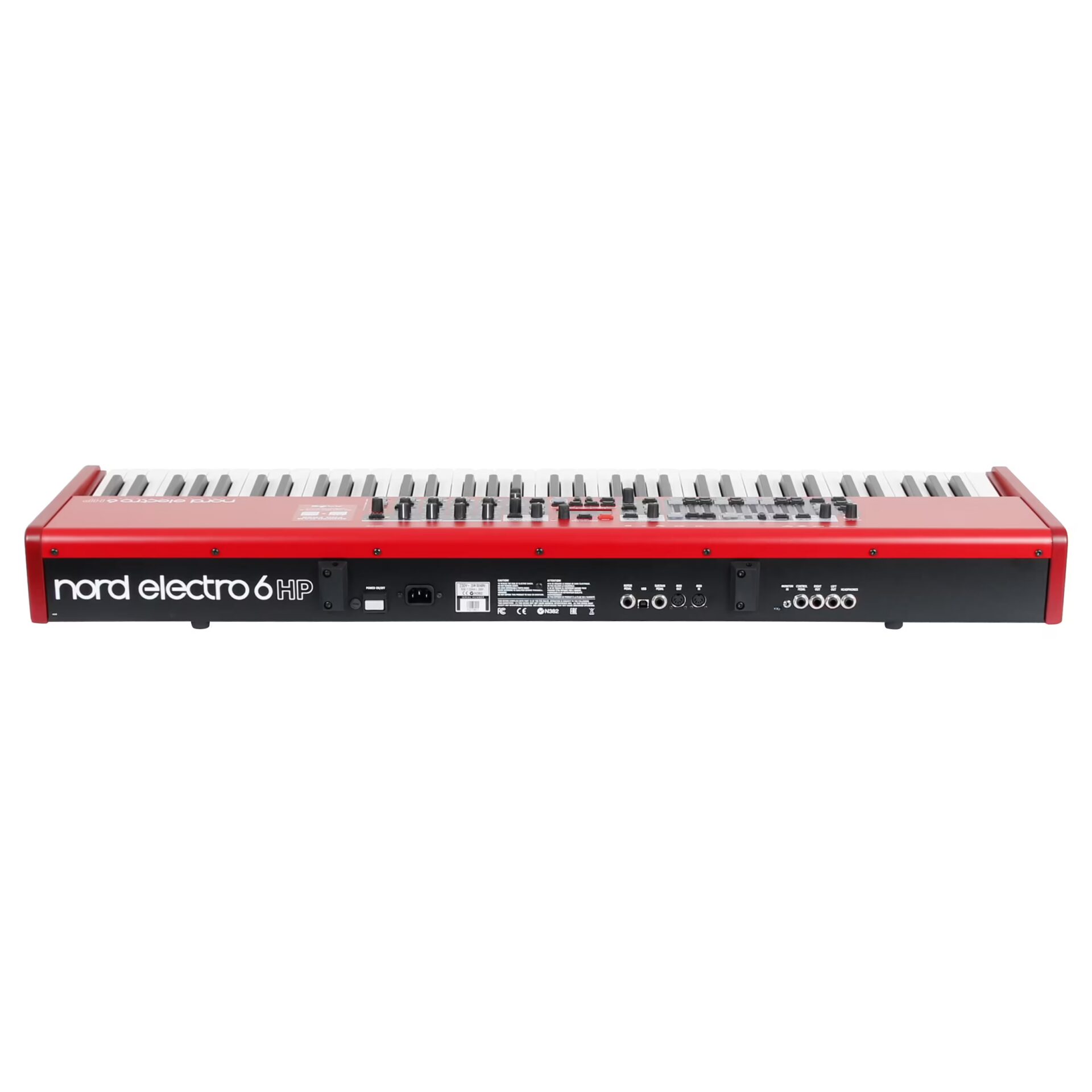

connectors:
line outputs L/R: 2x unbalanced mono jack
monitor input: stereo mini jack

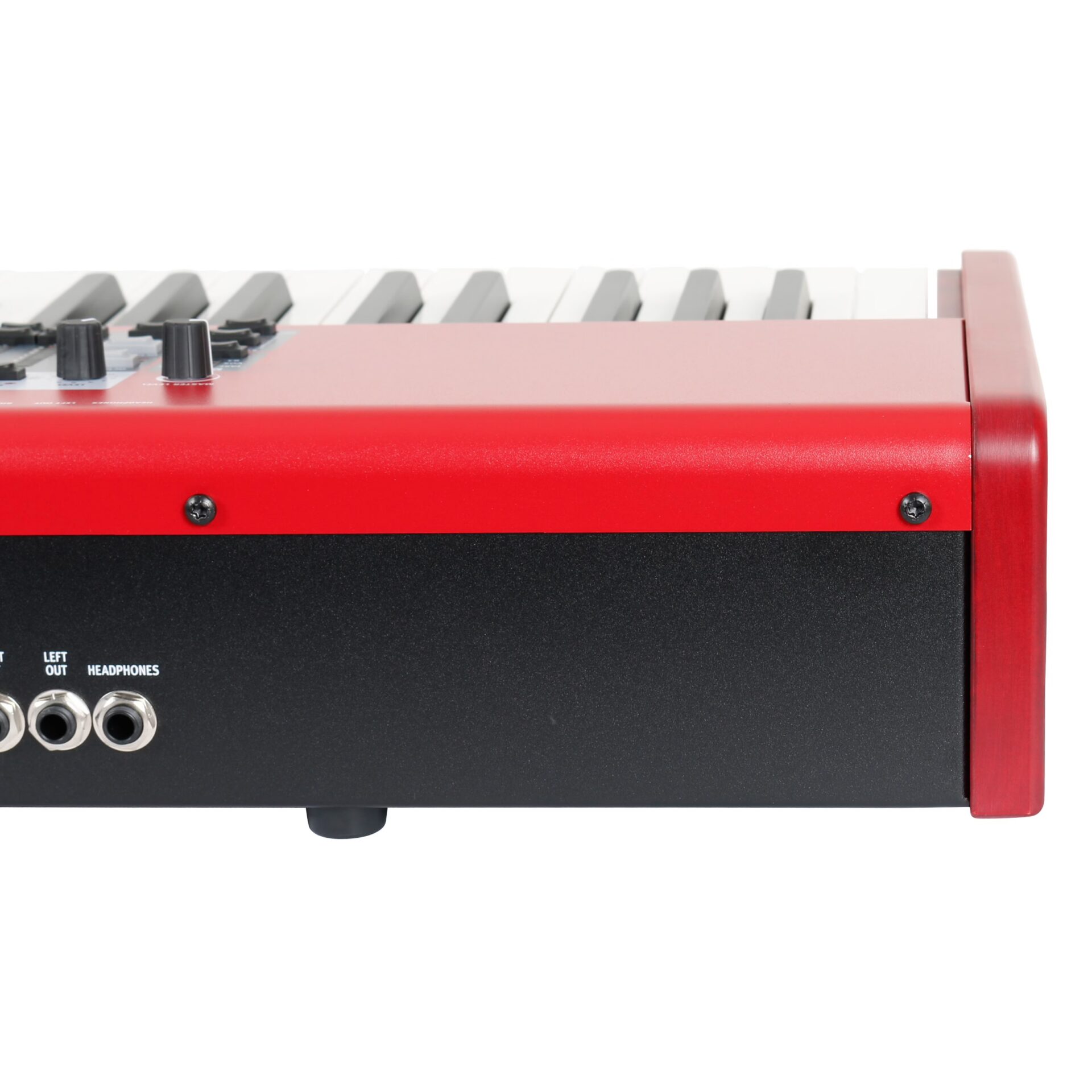

headphone output: stereo jack
control pedal: stereo jack (compatible with Yamaha FC7, Roland EV-7, EV-5, Korg EXP2, XVP10 among others)
sustain pedal: jack (compatible with Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 among others)
rotary speaker speed switch pedal input: jack

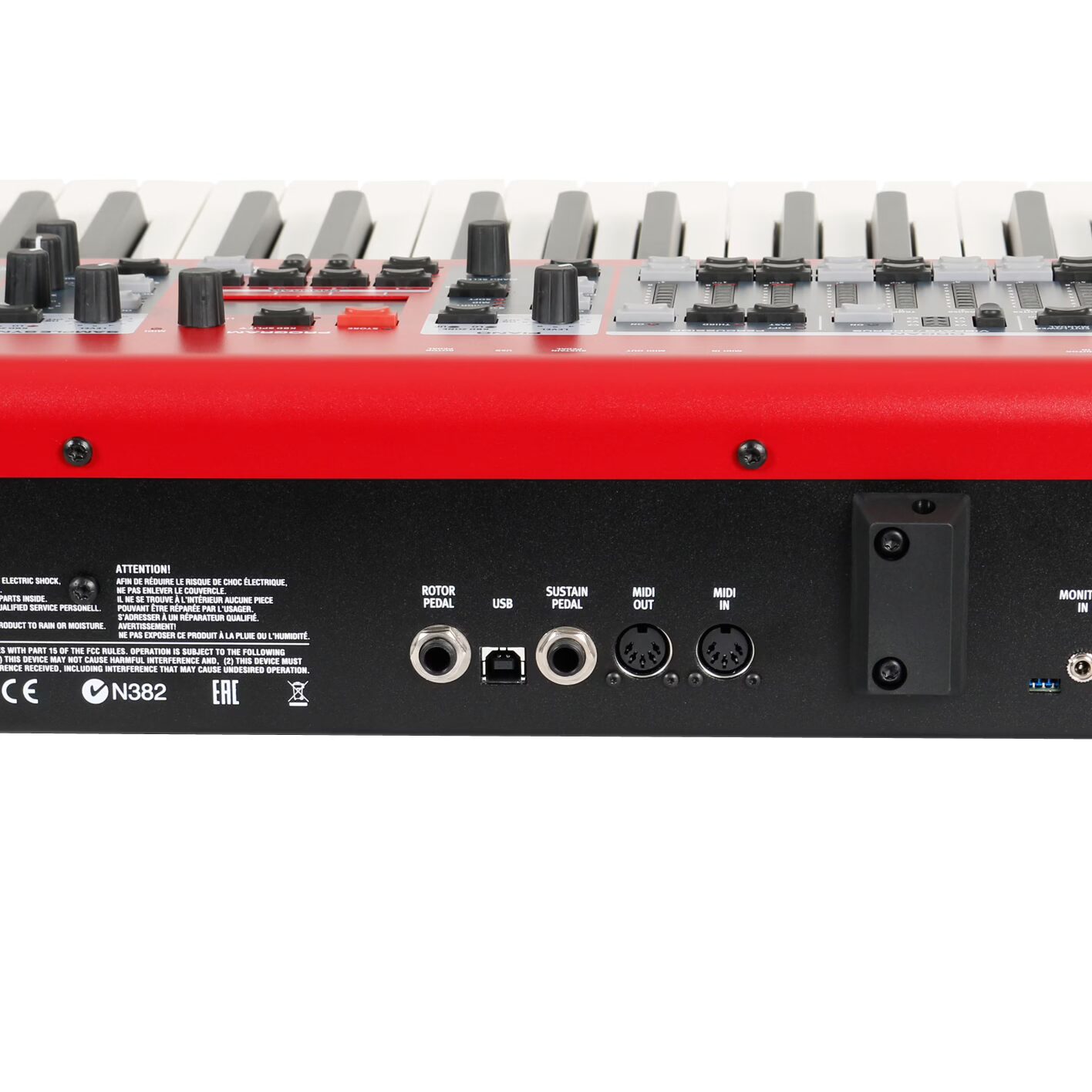

MIDI I/O (5-pin DIN)
USB (type B), for USB MIDI and transferring sounds
dimensions: 1074 x 121 x 344mm
weight: 11.4 kg

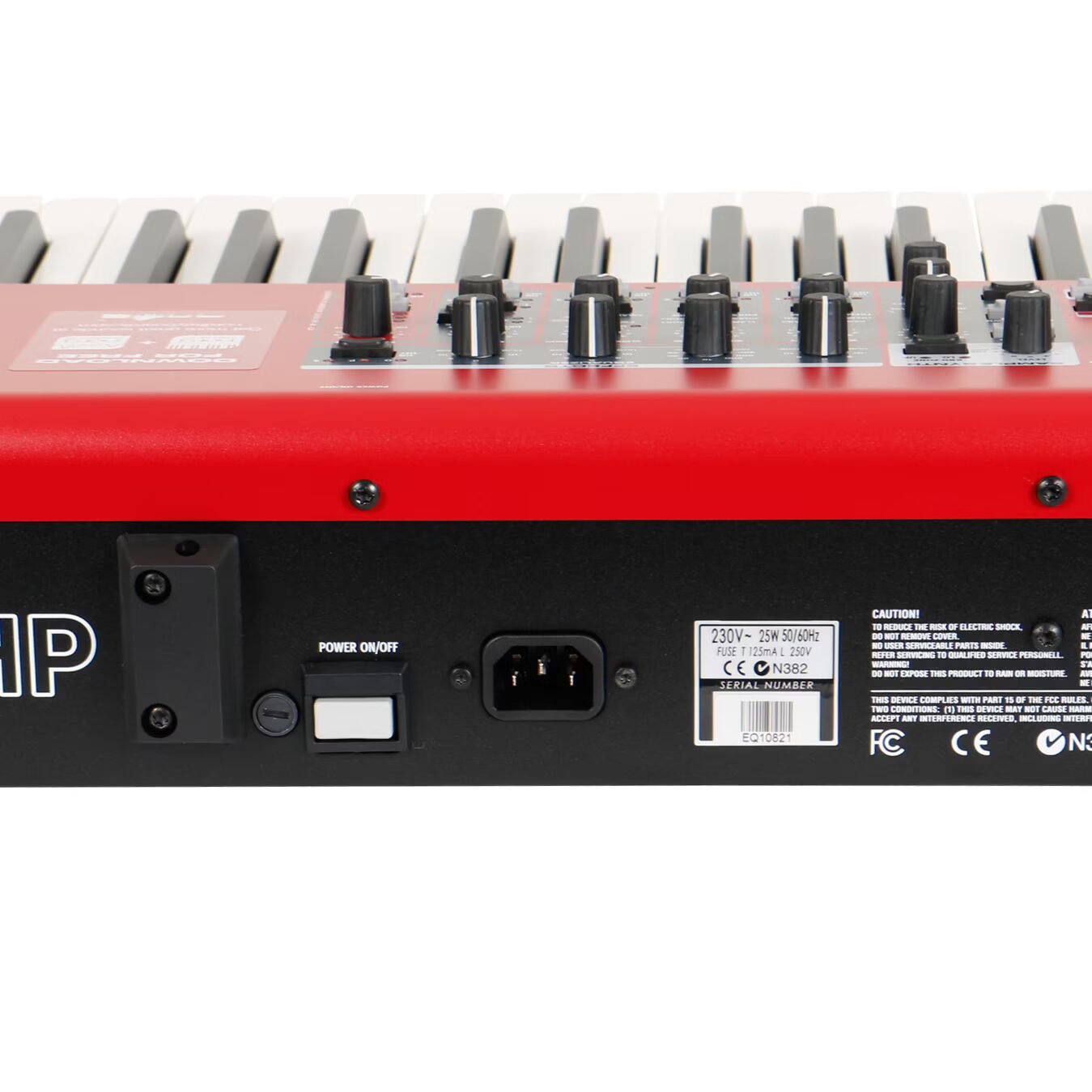

included: manual, power cable
