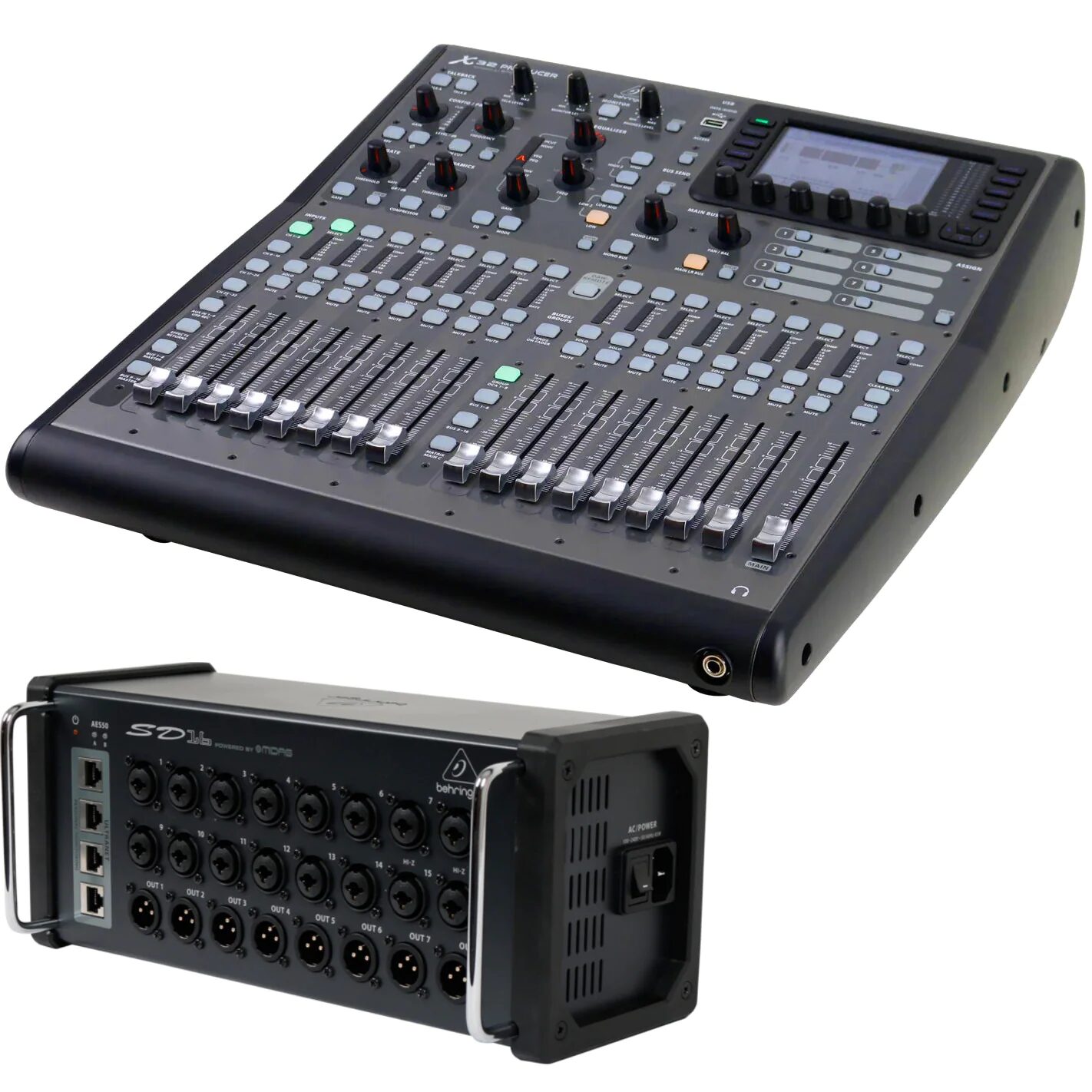

Behringer X32 Producer Digital Mixer 1x Behringer X32 Producer Digital Mixer
Armed with a bank of seventeen motorised faders, a 5 inch colour display screen, a battalion of effects and expansion options, the Behringer X32 Producer is a more-than solid pro and home production tool.
Product features
19 inches 19-inch rack mount (included)
Number of analogue input channels 9 – 16
Number of analogue output channels 8
Number of channels 17-32
Number of microphone inputs 13 – 16
Category Sound & PA
Digital inputs AES50
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), AES50, Ultranet
Dynamics compressor, expander, gate
Equalize r4-band parametric, Master EQ
Input connector jack (6.3 mm), RCA, XLR
Built-in audio interface USB (multi track)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters LED VU meter, via built-in display
Remote control via iPad, via iPhone, via Ethernet, via Wi-Fi
Connector position back
Type of display TFT, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card, USB interface expansion card, digitale snake, personal monitoring system
Output connector jack (6.3 mm), RCA, XLR (3-pin)
Mixer power power cable
Volume control motorised faders
Weight and dimensions including packaging
Weight (incl. packaging)16.0 kg
Dimensions (incl. packaging)63.0 x 58.0 x 29.2 cm
Product specifications
Behringer X32 digital mixer
number of channels:
32x input channels
8 aux channels
8 FX return channels
16x aux buses
6 matrices
main LRC
internal effects stereo/mono: 8/16
number of scenes (inc. preamp and Fader): 100
signal processing: 40-bit
A/D-D/A conversion: 24-bit at 44.1 / 48 kHz, 114dB dynamic range
local latency: 0.8 ms
network latency: 1.1 ms
connections:
XLR inputs: 16x (programmable MIDAS preamps)
XLR Talkback-input: 1x
RCA inputs/outputs: 2/2x
XLR outputs: 8x
TRS monitors: 2x (balanced)
TRS aux inputs/outputs: 6/6x
TRS headphone: 1x
AES50 SuperMAC: 2x
expansion slot: 32 channel audio input/output
P-16 Ultranet: 1x
MIDI inputs/outputs: 1/1x
RJ45 Ethernet: 1x
USB-A for audio and data: 1x
microphone ports:
MIDAS preamp
max. input level: 23 dBu
phantom power, switchable: 48V
equivalent input noise level: -128dBu
frequency response: 10Hz – 22kHz
display:
display screen: 5 inch, 800 x 480, 262k colour TFT
Main-meter: 18-segments (-45dB to clip)
power: 100-240V (50/60Hz)
Power consumption: 70 W
operating temperature: 5°C – 40°C (41°F – 104°F)
dimensions (W x D x H): 50.6 x 49 x 16.3cm
weight: 11.4 kg
Behringer SD16 Digital Snake I/O multi 1x Behringer SD16 Digital Snake I/O multi
The Behringer SD16 I/O stage box is for operating remote-controlled Midas preamps at a distance. It has 8 outputs, an EAS50 network connection and an Ultranet personal monitoring hub.
Product features
19-inch rack size4U
Number of analogue input channels9 – 16
Number of analogue output channels8
Weight and dimensions including packaging
Weight (incl. packaging)4.3 kg
Dimensions (incl. packaging)38.4 x 21.1 x 19.0 cm
Product specifications
I/O box
16x remote-controlled Midas preamps
8x analogue XLR outputs
2x AES-3 network ports (AES/EBU)
remote operation up to 100m via CAT-5E cable (not included)
AES50 port
Klark Teknik SuperMAC for low latency
4-port Ultranet distribution hub
USB connector for system updates via PC
very robust housing
full-metal chassis
digital audio and control connectivity for Turbosound IQ speaker system
rack handles and shockproof bumpers for installation and mobile applications
