Description
Specifications

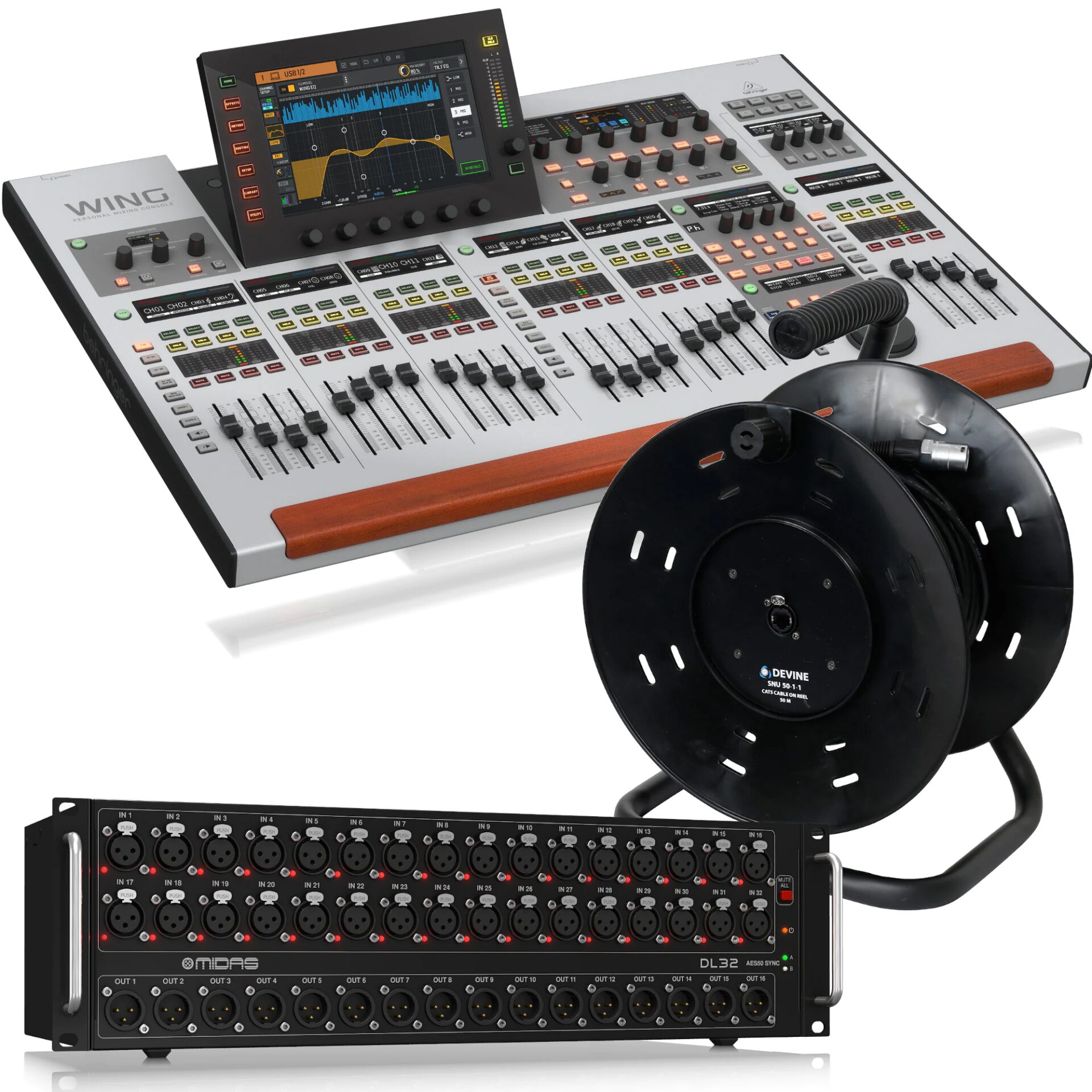

Behringer Wing Digital Mixer 1x Behringer Wing Digital Mixer
The Behringer Wing is an extensive 48 channel mixer complete with a stack of analogue and digital ports. While this audio workhorse comes with endless potential, Behringer knows how to keep things simple.
Product features
19 inches no
Number of analogue input channels 8
Number of analogue output channels 8
Number of channels 33-64
Number of microphone inputs 5 – 8
Digital inputs AES/EBU (AES3)
Digital snake yes, available separately
Digital outputs AES/EBU (AES3)
Dynamics compressor, expander, gate, limiter
Equalize r6-band parametric
Input connector jack (6.3 mm), XLR
Built-in audio interface USB (multi track)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters via built-in display
Remote control via iPad, via iPhone
Connector position back
Type of display touch screen, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card
Output connector XLR (3-pin)
Mixer power power cable
Volume control motorised faders, via iPad / iPhone / iPod, via touchscreen
Weight and dimensions including packaging
Weight (incl. packaging)32.0 kg
Dimensions (incl. packaging)99.0 x 69.0 x 34.0 cm
Product specifications
Behringer Wing
digital mixer
8 Midas microphone preamplifiers
24 motorised faders in 3, freely assignable groups
digital connectors:
3 x AES
StageCONNECT
AES/EBU
2x ethernet with built-in switch for remote network control
many optional possibilities including MADI, ADAT and DANTE
10-inch colour touch screen
48 x 48 audio interface via usb
two SD card slots
standard FX rack with Behringer effects
premium FX rack effects including TC Electronic and Lexicon effects
dimensions: 201 x 870 x 575 mm
weight: 24 kg
Devine SNU-50-1-1 CAT5 Cable on Reel, 50m 1x Devine SNU-50-1-1 CAT5 Cable on Reel, 50m
Devine’s SNU-50-1-1 is a 50-metre long CAT5 Ethernet cable that comes on a reel. It features a Neutrik NE8FAH lockable RJ-45 port on the reel itself and a male etherCON Neutrik NE8MC-1 plug at the end of the cable.
Product features
Length50.00 m
Type of data connectorRJ-45 EtherCON (not the regular RJ45!)
Type of UTP cableCAT5
Weight and dimensions including packaging
Weight (incl. packaging)3.0 kg
Dimensions (incl. packaging)37.0 x 30.0 x 22.5 cm
Product specifications
Devine CAT5 cable on reel
type of cable: CAT5 Ethernet
connectors:
1x female RJ45, Neutrik NE8FAH
1x male etherCON, Neutrik NE8MC-1
colour: black
length: 50m
Midas DL32 digital snake with AES50 32-in and 16-out 1x Midas DL32 digital snake with AES50 32-in and 16-out
The Midas DL32, the DL16’s bigger sibling, is a digital snake and break-out box with 32 inputs and 16 outputs. It’s especially useful as part of a complete M32 system!
Product features
19-inch rack size3U
Number of analogue input channels25 – 32
Number of analogue output channels9 – 16
Weight and dimensions including packaging
Weight (incl. packaging)6.4 kg
Dimensions (incl. packaging)55.0 x 32.0 x 22.0 cm
Product specifications
digital snake & stage box
32 inputs
XLR female, lockable
switchable 48V phantom power
with Midas preamps
16 outputs
XLR male
balanced
low impedance
characteristics
ultra-low latency
Ultranet connectivity for in-ear applications
2x AES50 SuperMAC ports for cascading multiple DL32s
automatic AES50 stage-split mode when connected between MIDAS M32 Series FOH and monitor consoles
two ADAT connectors for 16-channel digital outputs
2x AES-3 ports (AES/EBU) for direct connection to a PA system
remote operation up to 100 metres using a CAT5 cable
Mute All feature for quiet patching on stage
MIDI In/Out for direct communication between M32 consoles and MIDI devices
only Neutrik connectors
auto-ranging universal switch-mode power supply, 110V-230V
housing
width: 19 inches
height: 3U
material: metal
