Description
Specifications
Product features
Connectors External speaker(s), Footswitch, Headphone, Line-out, MIDI, USB
Number of channels 3
Number of speaker outputs 5
Amp modelling no
Category Guitar
Effects loop yes
Weight 20 – 24.9 kg
Speaker output impedance 16 ohms, 8 ohms, 4 ohms
Built-in tuner no
Built-in effects reverb (digital)
Colour black
Power attenuator yes
Type of power amp tube 6L6
Amplifier type tube
Power in Watts 101 – 150 Watts
Weight and dimensions including packaging
Weight (incl. packaging)26.6 kg
Dimensions (incl. packaging)81.5 x 43.5 x 38.0 cm
Product specifications

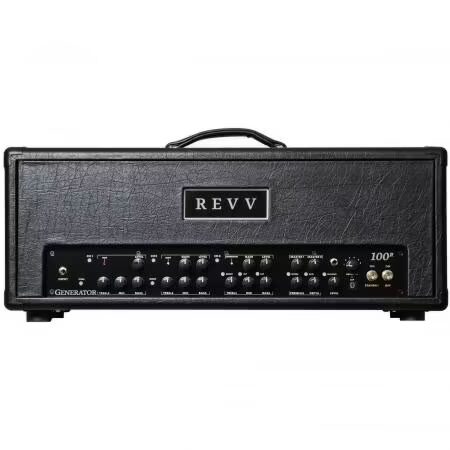

Revv Amplification guitar amplifier top
model: FLP318SBLH:
amplifier type: valve
output power: 120 Watt
number of channels: 3 (clean, crunch, high gain)
preamp tubes: 5x 12AX7
power amplifier tubes: 4x 6L6GC
controls:
channel 1 ‘Blue’: wide, level, treble, mid, bass
channel 2 ‘green’: drive, gain, level, treble, mid, bass, bright
channel 3 ‘red’: aggression, gain, level, treble, mid, bass, bright, cut, fat
master 1, master 2, presence, depth, reverb, gate, pre/post, level
built-in digital reverb with reverb level control on rear
built-in noise gate with gate threshold control on rear
Two notes Torpedo Virtual Cab selector: 1-6
Two notes can be edited via Bluetooth
backlit acrylic logo (changing colour)
internal load: automatically activated when no speaker cabinet is connected
bias test point with faulty tube indication
attenuator: 120W / 10W

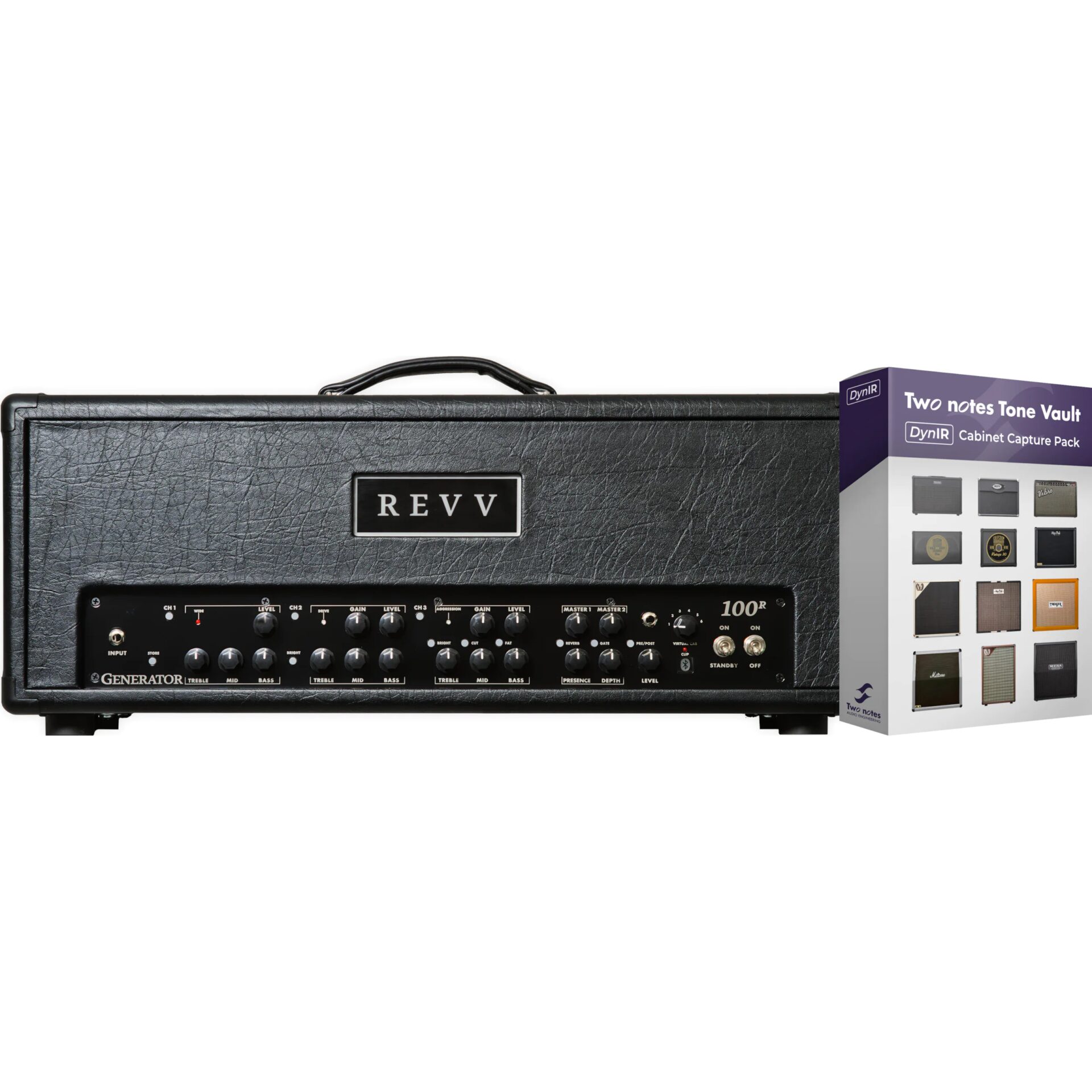

Tone Vault DynIR collection:
Official Mesa Lone Star 2×12 inch (loaded with Celestion© C90s)
Jubil V30 4×12 inch (loaded with Celestion Vintage 30)
Official Victory Duchess 4×12 inch (loaded with Celestion© G12M-65s)
Official Celestion Blue 2×12 inch (loaded with Celestion© Alnico Blue)
Official REVV 1×12 inch (loaded with Warehouse Guitar Speakers© ET90)
Official Mesa Recto Standard 4×12 inch (loaded with Celestion© Vintage 30)
BassBeast (loaded with Celestion© BN10-200X)
Official Celestion V30 1×12 inch (loaded with Celestion© Vintage 30)
Vibro Utah (loaded with Fender© Utah)
ShortStack (loaded with Celestion© G12T-75)
Tanger 30 (loaded with Celestion© G12H)
Official Victory Copper 2×12 inch (loaded with Celestion© Alnico Gold)
dimensions: 67.3 x 25.4 x 26.6cm
weight: 20.86kg
included: footswitch
made in Canada

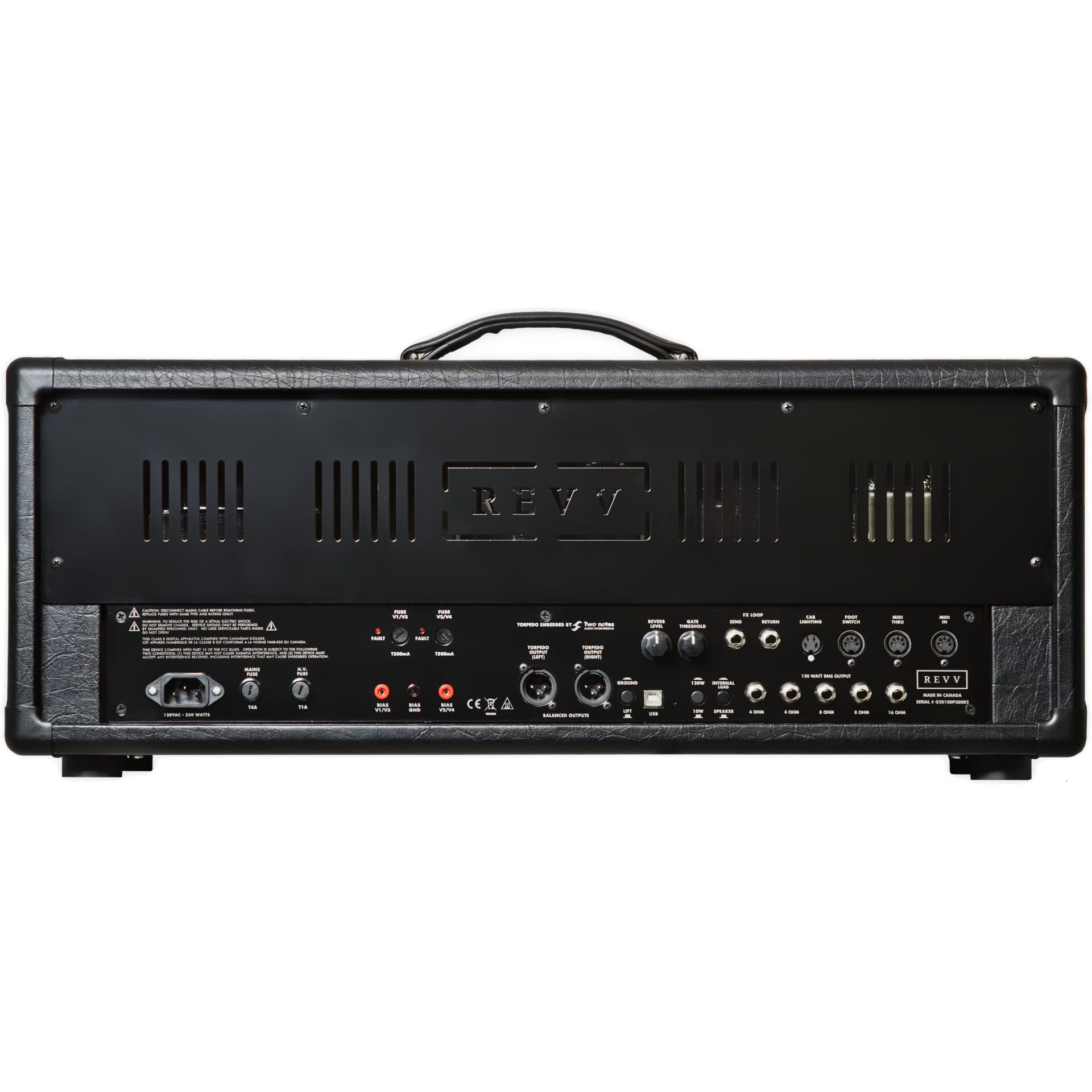

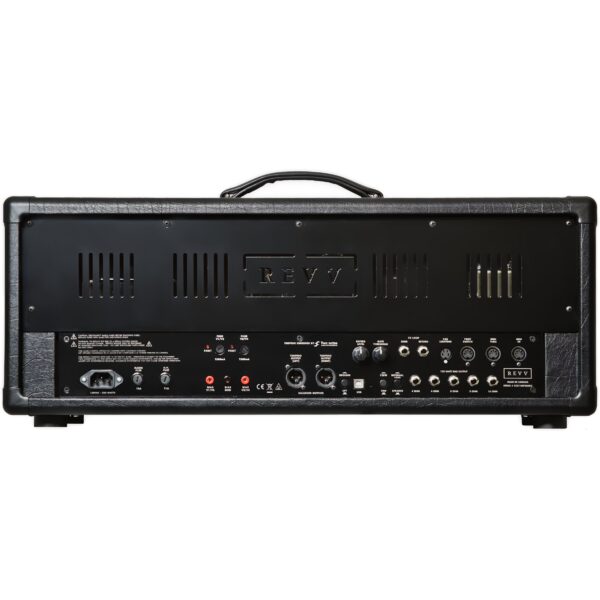

connections:
input: mono jack
headphone output: 6.3mm stereo jack
transparent serial effects loop (send/return)
Two notes Torpedo balanced XLR out (left/right), with ground lift
external speaker cabinet ports:
2 x 4 Ohms
2 x 8 Ohms
1 x 16 Ohms
cab lighting: lights up logo badge of compatible Revv speaker cabinets
MIDI thru / MIDI in
footswitch
USB
