Motu 112D AVB/USB audio interface

Name: Motu 112D AVB/USB audio interface
SKU: 1756
Availability: InStock

Original price was: €1,480.Current price is: €995.

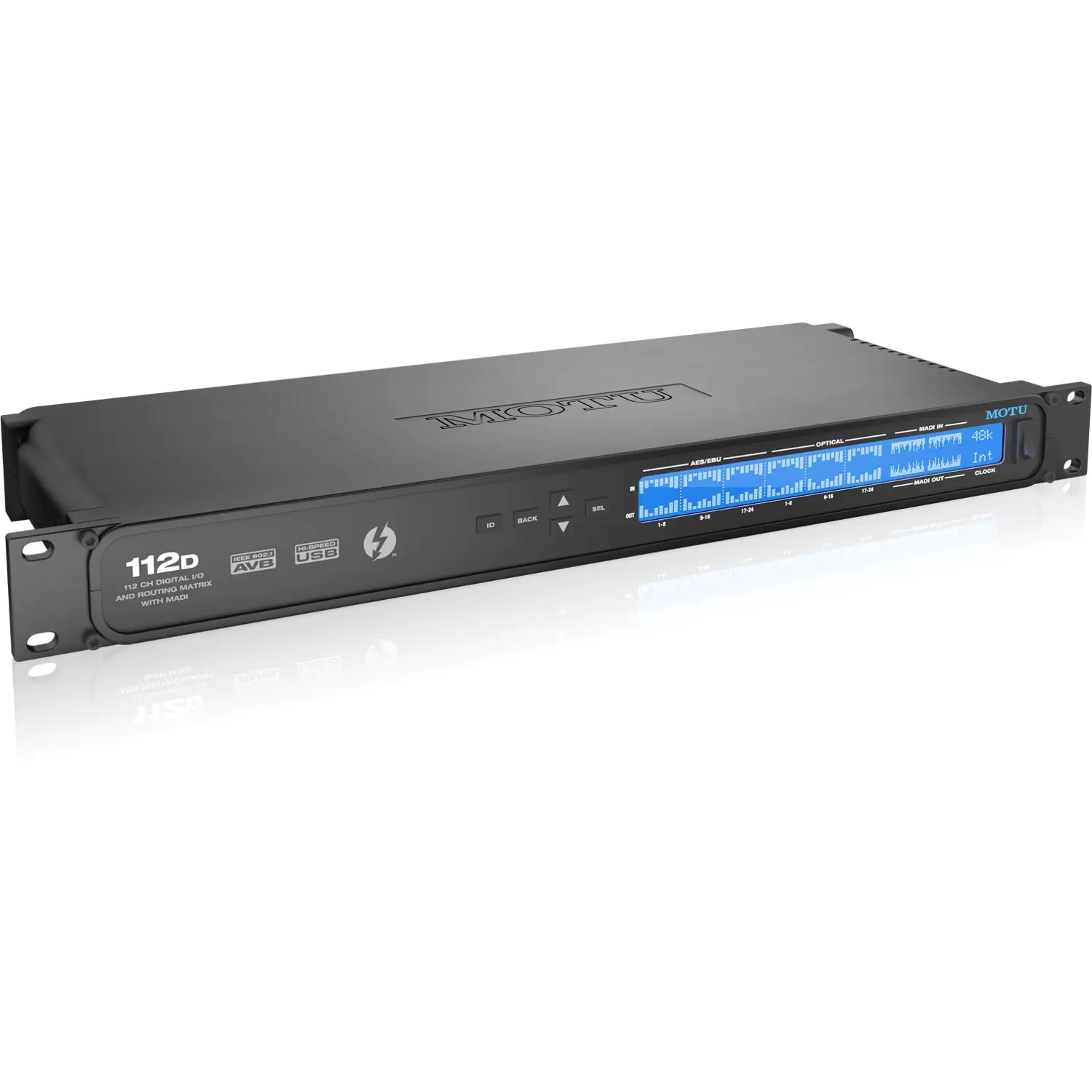

Its 19″ 1U housing doesn’t give it away at first glance, but the Motu 112D AVB/USB audio interface harnesses virtually unbelievable power. It’s like a Swiss Army Knife for people who want to connect the world to their PC or Mac! BNC/MADI, AES/EBU and ADAT, as well as USB, AVB and Thunderbolt, the 112D has it all. This low-latency interface allows you set up any connection you want – from MADI to ADAT, from Thunderbolt to AES/EBU, you name it!

Characteristics of the Motu 112D

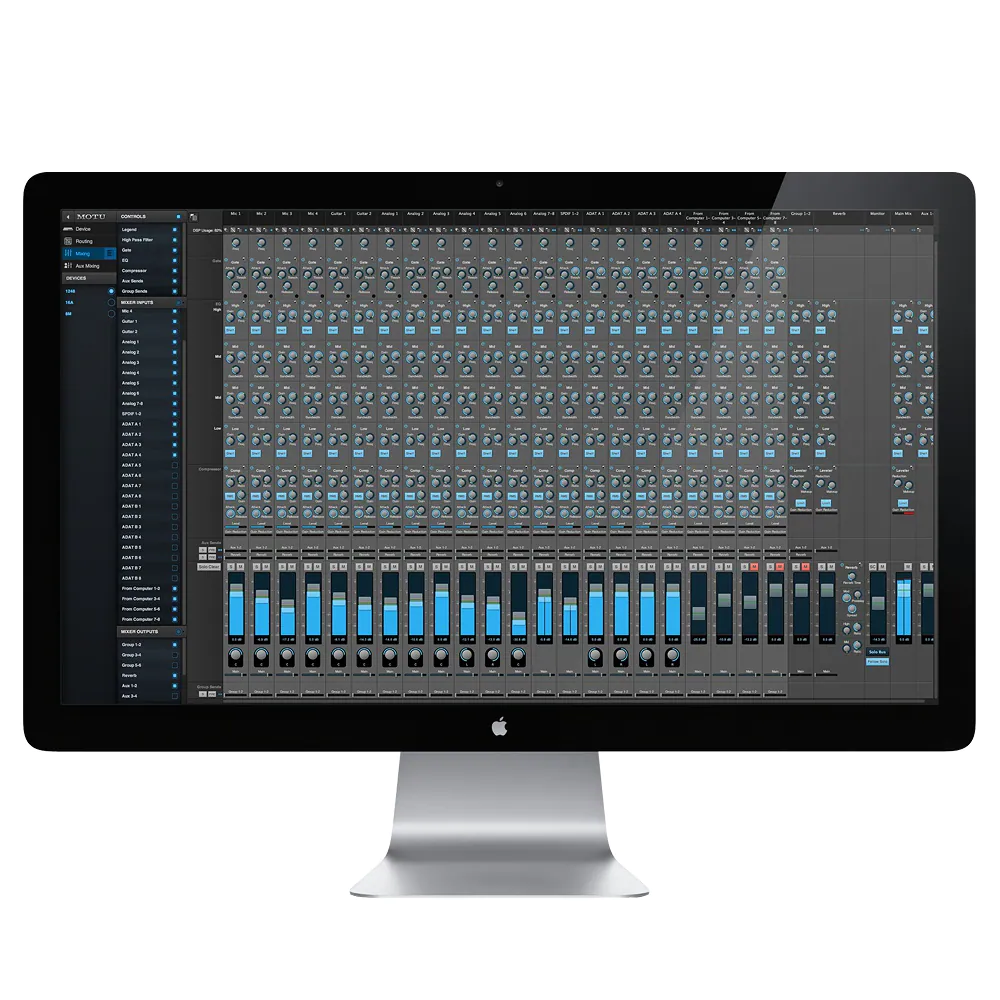

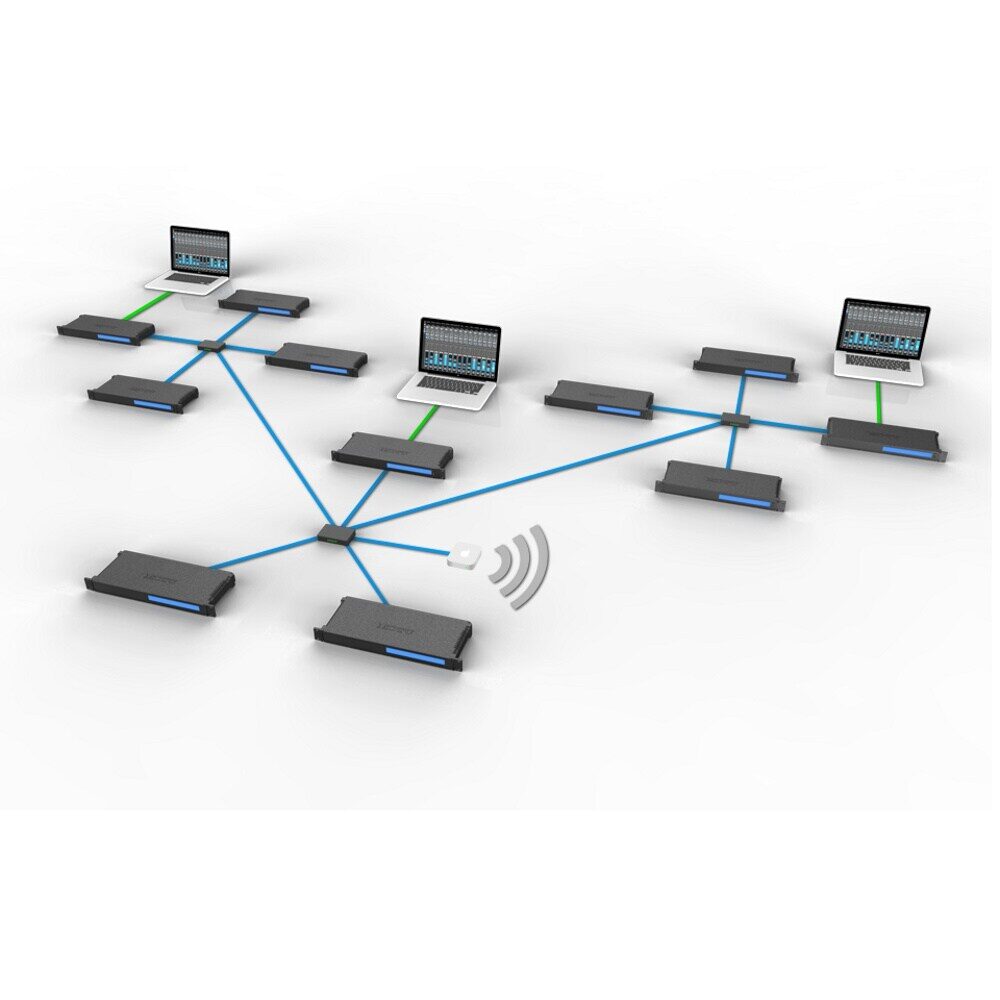

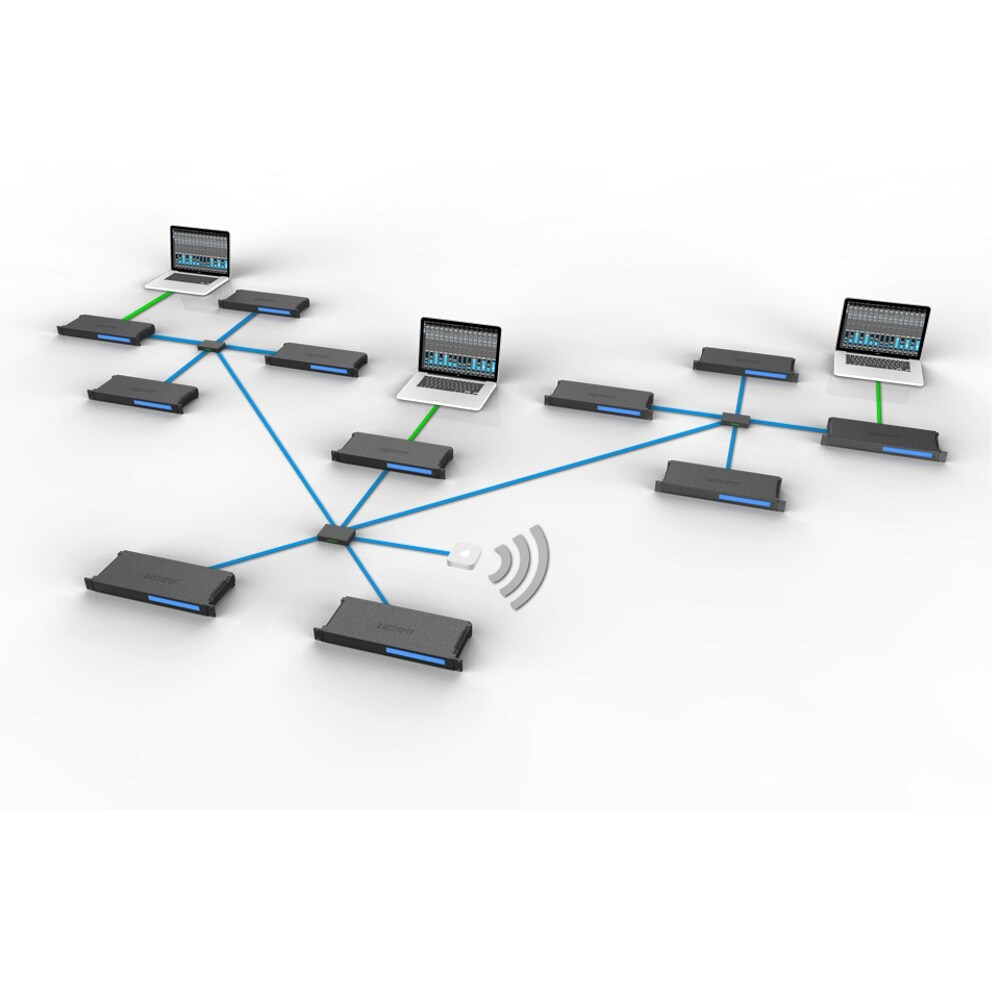

Add up all of the Motu 112D interface’s digital channels, and you’ll get to an astonishing total of 112 at a sample rate of 48 kHz. If you’re prepared to trade in a few of those channels, however, you’ll be able to achieve sample rates up to 192 kHz. Are you working on a project of monstrous proportions, and find yourself in danger of running out of channels? In that case, it’s possible to link up to five MOTU AVB interfaces in a network, opening up a host of new possibilities. Fortunately, the 112D makes it easy to manage your setup; you can simply use a web app in your browser. Besides your PC, it’s possible to use your laptop, smartphone or tablet, as long as they are wired. However, you can also connect a Wi-Fi router or Apple Airport to the 112D, which makes working wirelessly an option as well.

Tips or comments about this product
Please note:

To use the AVB network you need a recent Mac with OS X Yosemite (10.10).
The number of BNC MADI, AES/EBU and ADAT channels decreases as the sample rate increases.
Only the interface (1 U, 19″ rack) will be delivered. All other pictured products serve illustrative purposes only and are not included.

Categories: Audio Interface, External Audio Interface Tag: Motu

Description

Description

Specifications

Product features
19 inchesyes
Number of analogue Inputs n/a
Number of analogue outputs n/a
Computer connectors USB, Thunderbolt
Digital inputs AES/EBU (AES3), ADAT, AVB
Digital outputs AES/EBU (AES3), ADAT, AVB
Phantom powerno
Suitable for operating system Apple OSX / Mac OS, Microsoft Windows
Headphone output no
Input(s) with Hi-Z no
Maximum sample rate 192 kHz
Included data cable USB cable
Included software MOTU AudioDesk
Number of microphone inputs n/a
MIDI I/O (din connector)none
Software included yes, download
Weight and dimensions including packaging
Weight (incl. packaging)3.0 kg
Dimensions (incl. packaging)61.0 x 30.0 x 14.0 cm
Product specifications
USB audio interface
format: 19″ rack
rack height: 1 U
mixer and matrix
number of mixer channels: 48
number of stereo buses: 12
effects processing: 32 bits
effects include equalizer, reverb and compressor
low latency: 0.29 ms @ 48 kHz
sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

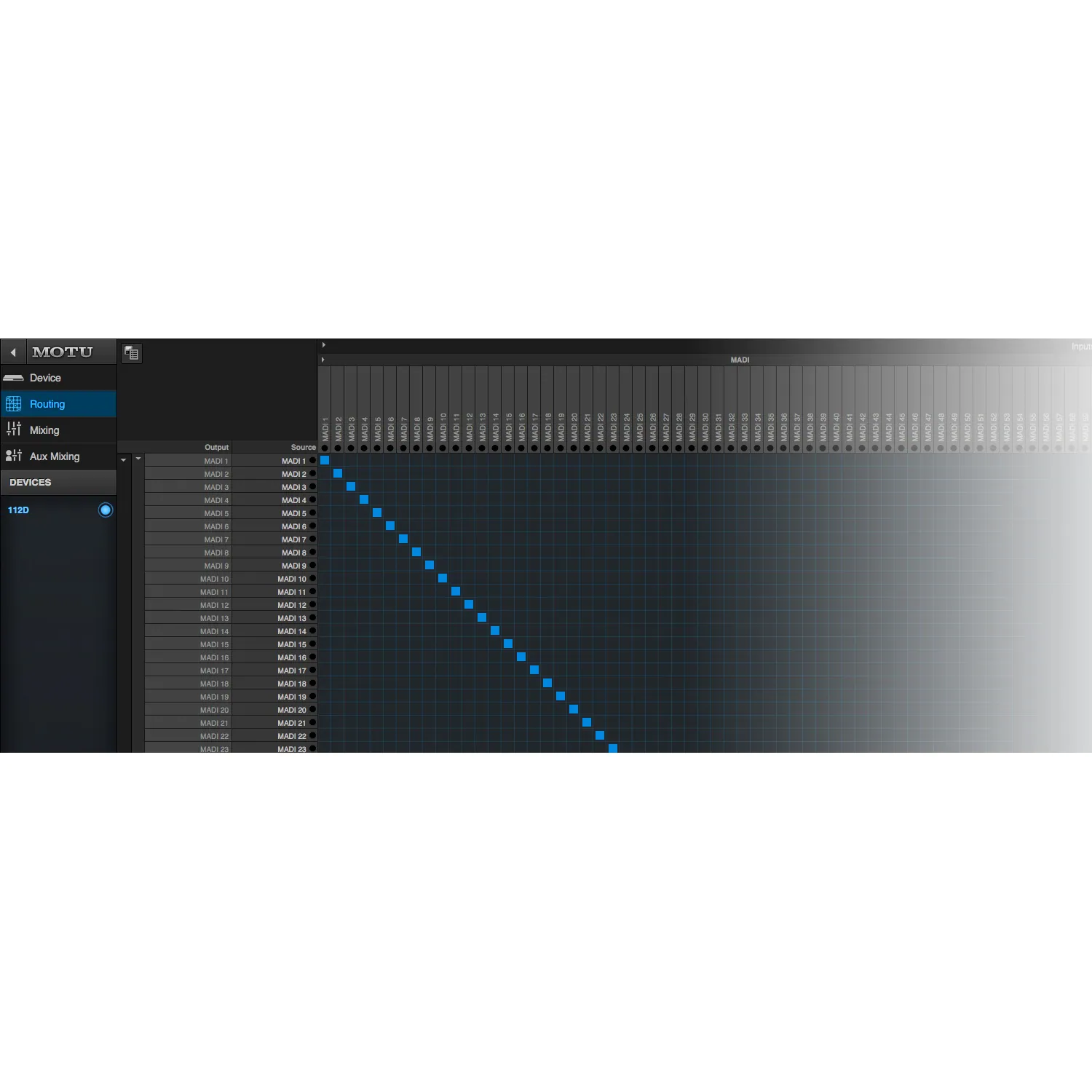

matrix allows you to route any input to any output
large LCD display (324 x 24 pixels) for a clear overview
built-in DSP, mixer, device setting and network routing can be controlled from a laptop, tablet of smartphone via a cable or Wi-Fi
supports Apple AirPort
includes AudioDesk software (PC, Mac)
includes ASIO and Wave drivers for Windows 7, 8
includes Core Audio drivers for Mac OS X
system can be extended up to five MOTU AVB interfaces via Ethernet
sources for matrix:
