Description
Specifications
Product features
Tube microphone yes
Microphone sensitivity (dBV/PA)-34
Microphone impedance 150-199 ohms
Low-cut filter yes
Maximum SPL 150 dB – 159 dB
Maximum frequency 20 – 20.9 kHz
Microphone accessories shock mount, windshield, cable, case, power
Minimum frequency 20 – 21 Hz
Pad switch yes
Polar pattern cardioid, super cardioid, figure-8 / bi-directional, multi pattern
Stereo no
Weight and dimensions including packaging
Weight (incl. packaging)8.1 kg
Dimensions (incl. packaging)48.5 x 42.0 x 17.0 cm
Product specifications
acoustic operational principle: pressure gradient transducer, externally polarised
transducer: 25.4 mm
directional character: omnidirectional, broad cardioid, cardioid, supercardioid, figure 8, plus four additional directional characteristics selectable via remote control
frequency range: 20 Hz – 20,000 Hz
sensitivity: 23 mV / Pa (-33 dBV), cardioid, 20 mV / Pa (-34 dBV), omni, 23 mV / Pa (-33 dBV), figure 8
signal/noise ratio (FET): 86 dB-A
signal/noise ratio (tube): 82 dB-A
equivalent noise ratio (FET): 8 dB-A, cardioid, 9 dB-A, omni, 8 dB-A, figure 8
equivalent noise ratio (tube): 12 dB-A, cardioid, 13 dB-A, omni, 12 dB-A, figure 8
dynamic range FET mic.: 135 dB-A
dynamic range tube: 128 dB-A
max. SPL at 0.5 % THD (FET): 143 dB, 0 dB attenuation, 149 dB, 6 dB attenuation, 155 dB, 12 dB attenuation, 161 dB, 18 dB attenuation
max. SPL at 0.5% THD (tube): 140 dB, 0 dB attenuation, 146 dB, 6 dB attenuation, 152 dB, 12 dB attenuation, 158 dB, 18 dB attenuation
attenuation pad: 6 dB, 12 dB, selectable via remote control
bass-cut filter: 12 dB / octave at 40 Hz, 6 dB / octave at 150 Hz, 6 dB / octave at 300 Hz, selectable via remote control
nominal impedance: < 200 ohms
nominal load impedance: > 1,000 ohms
power supply: custom power supply unit, 230 V, 50 Hz, 110 V, 60 Hz
current consumption: 170 mA
plug: gold-plated 11-pin XLR
cable: 8 m, 11-pin audio cable, oxygen-free copper
dimensions (mic): 192 x 60 x 46 mm

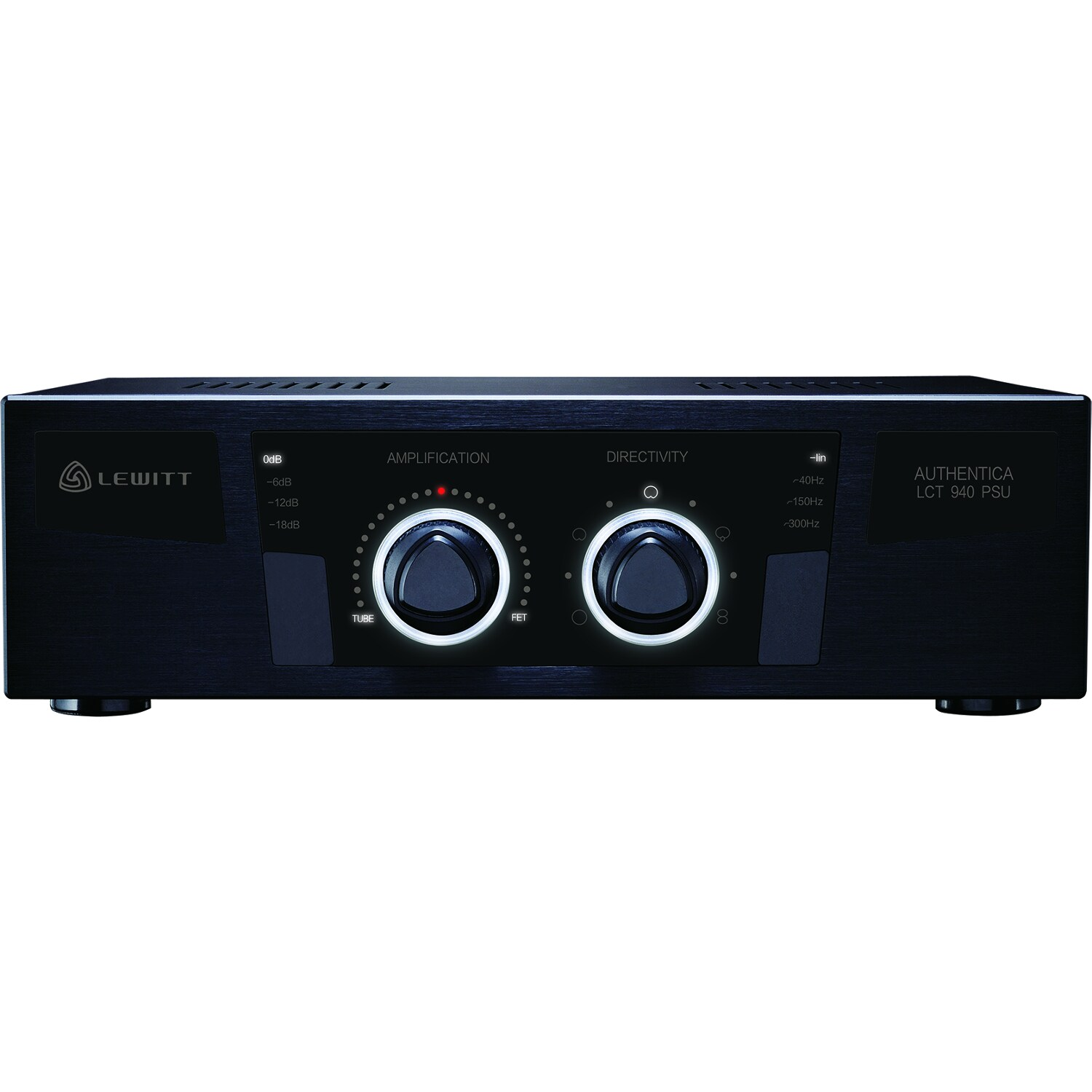

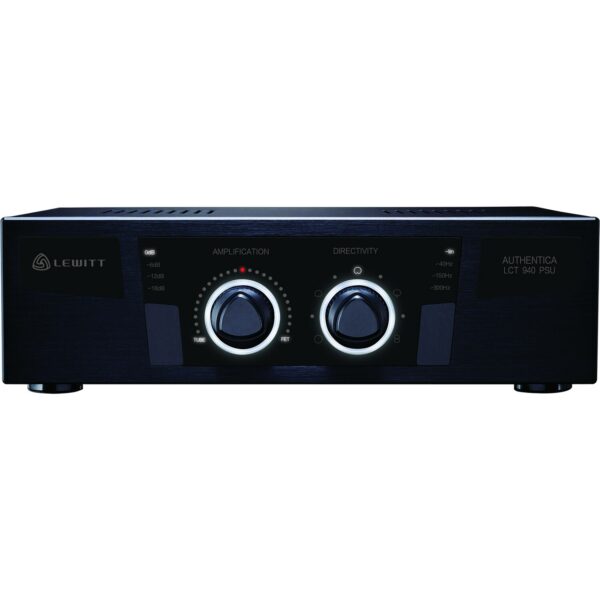

dimensions (PSU): 250 x 150 x 70 mm
nett weight (mic): 662 g
nett weight (PSU): 1,930 g

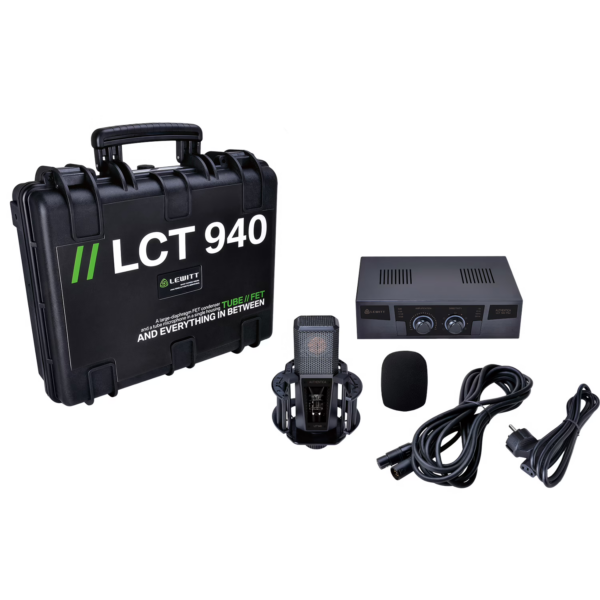

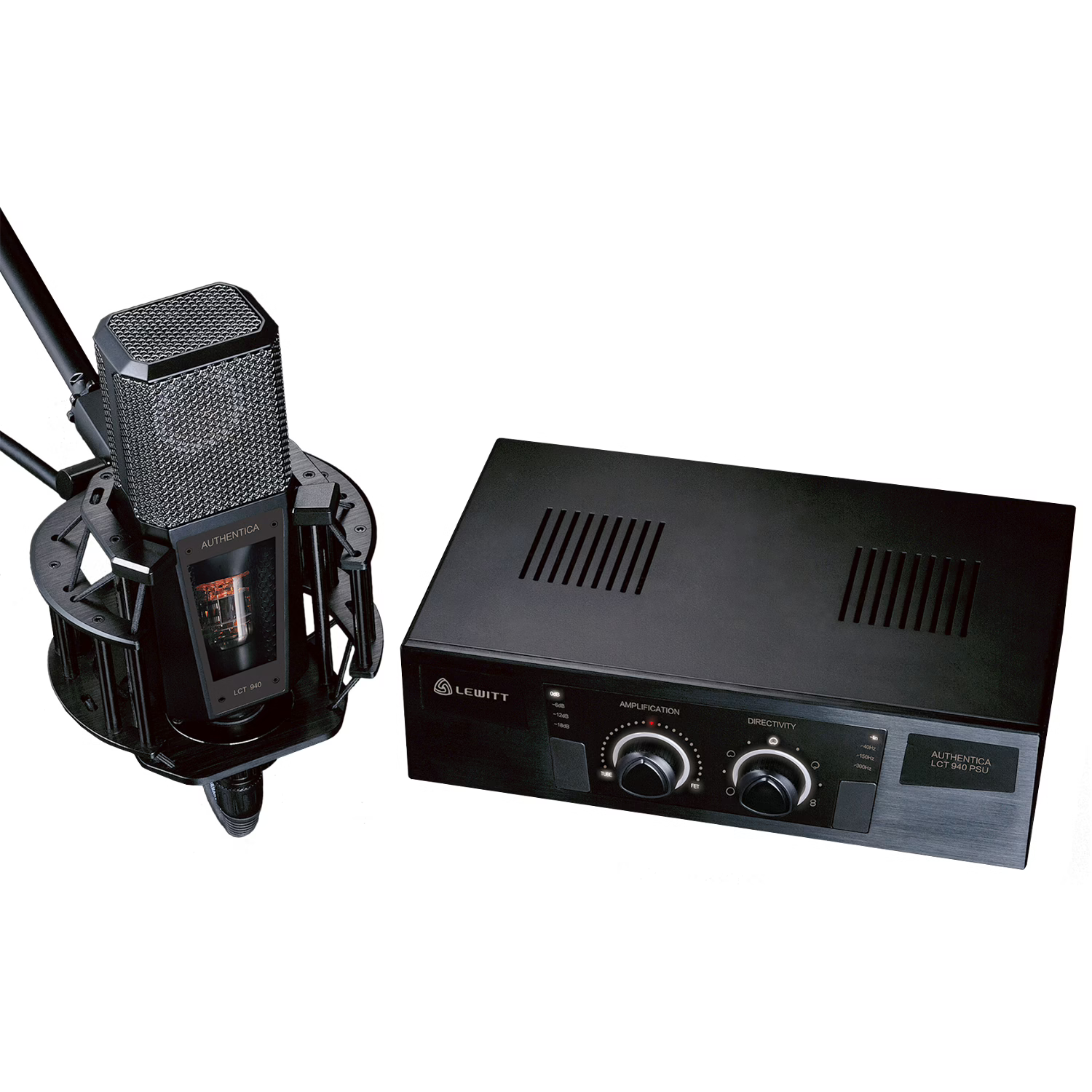

included: PSU 940 power supply/remote control, LCT 40 SHxx shock mount, LCT 40 Tr 11-pin XLR cable and LCT 40 windshield
