Description
Specifications
Product features
Number of keys 88
Drawbar function yes
Weight 15 – 19.9 kg
Includes chassis no
Includes pedals yes, 1
Built-in amplifier not applicable
Colour housing red
MIDI I/Oin/out, USB in / out
Pitch and modulation wheel yes
Polyphony (max.)120
Sequencer / recorder no

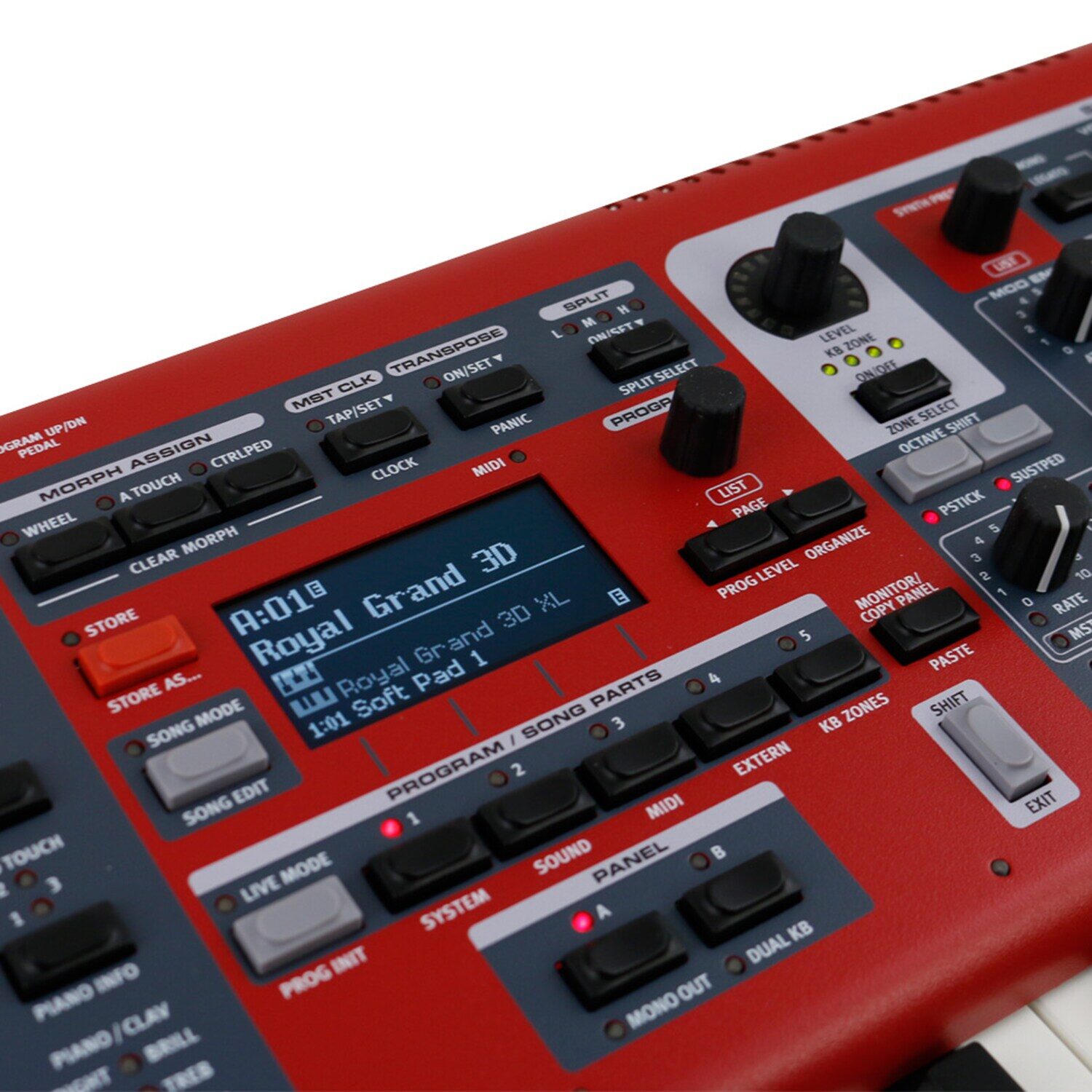

Type of display OLED
Keyboard type hammer action
Weight and dimensions including packaging
Weight (incl. packaging)23.8 kg
Dimensions (incl. packaging)151.0 x 50.0 x 26.0 cm
Product specifications

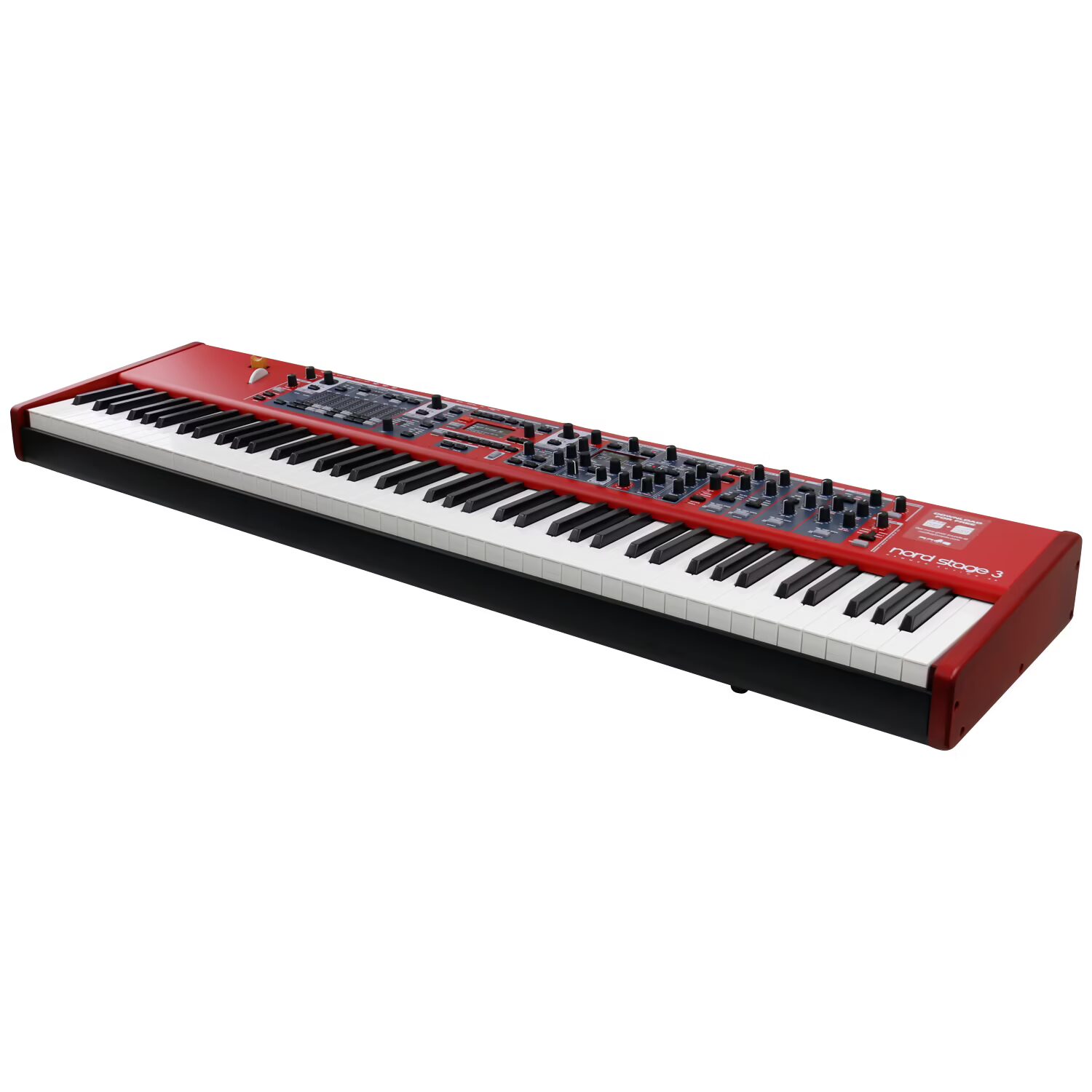

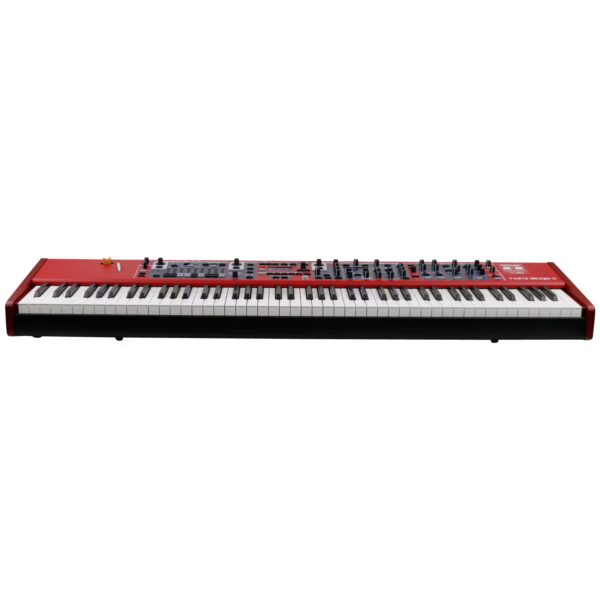

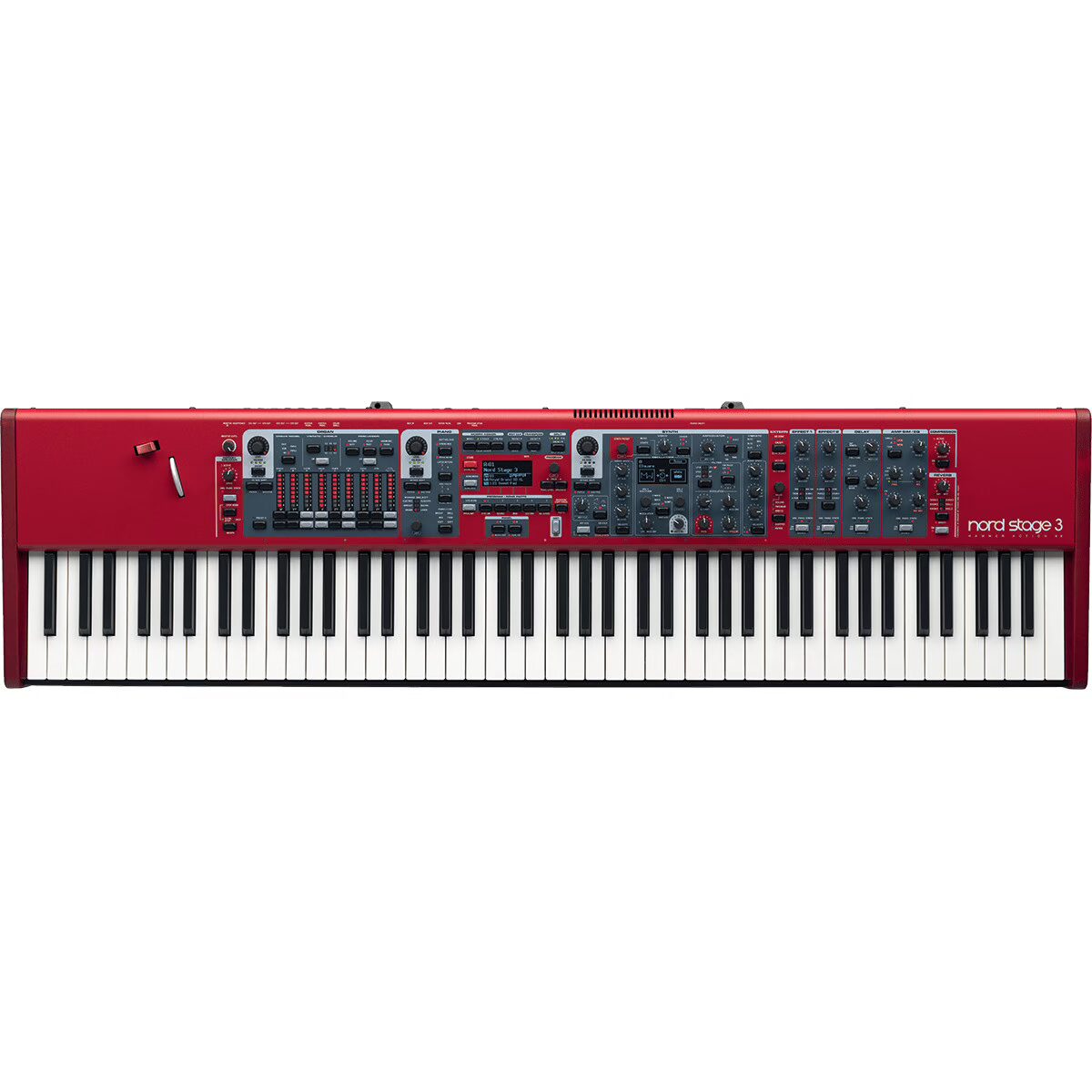

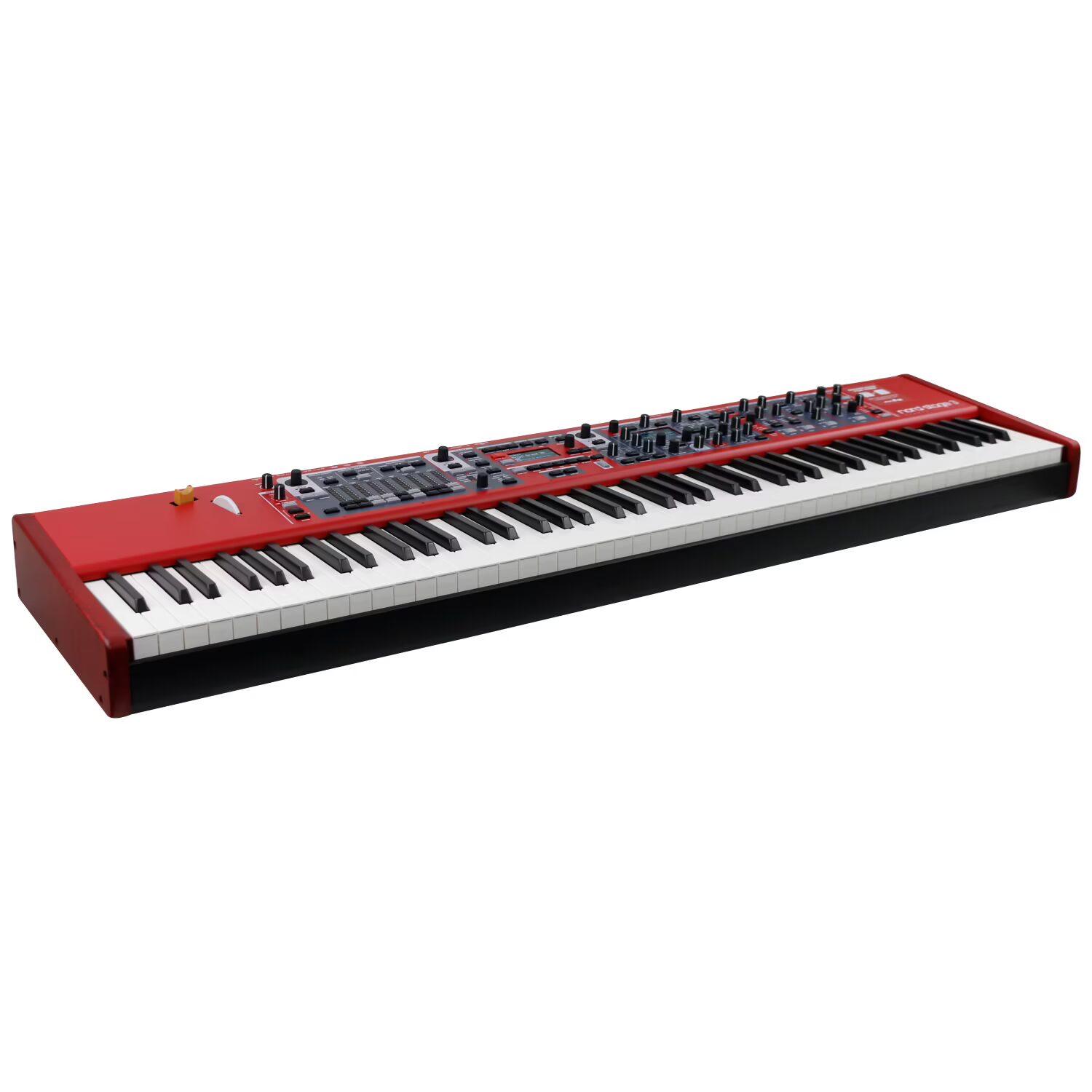

Nord stage piano
model: Stage 3 88
keyboard:
type: Hammer Action Complete, fully-weighted
88 keys
velocity-sensitive
range: A – C

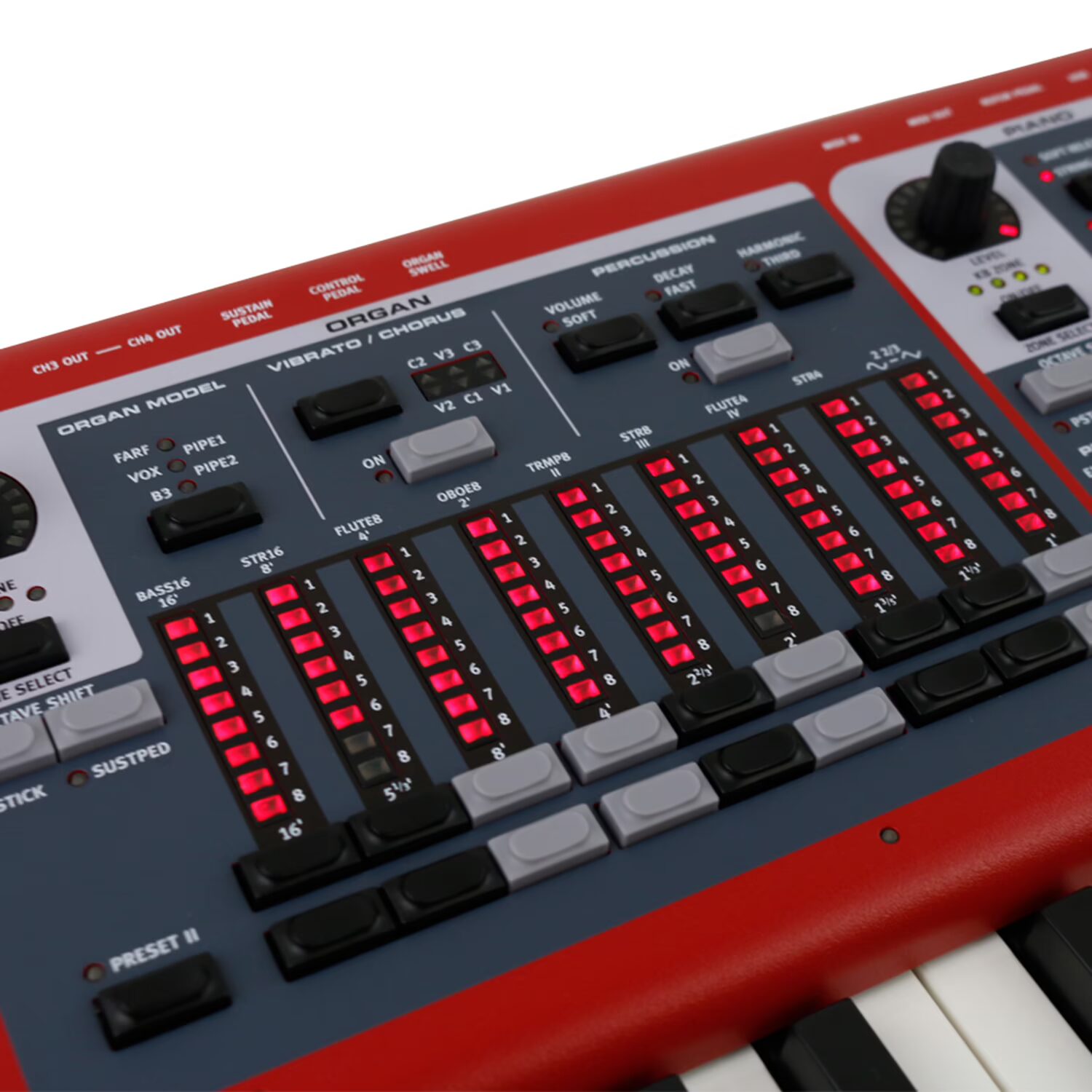

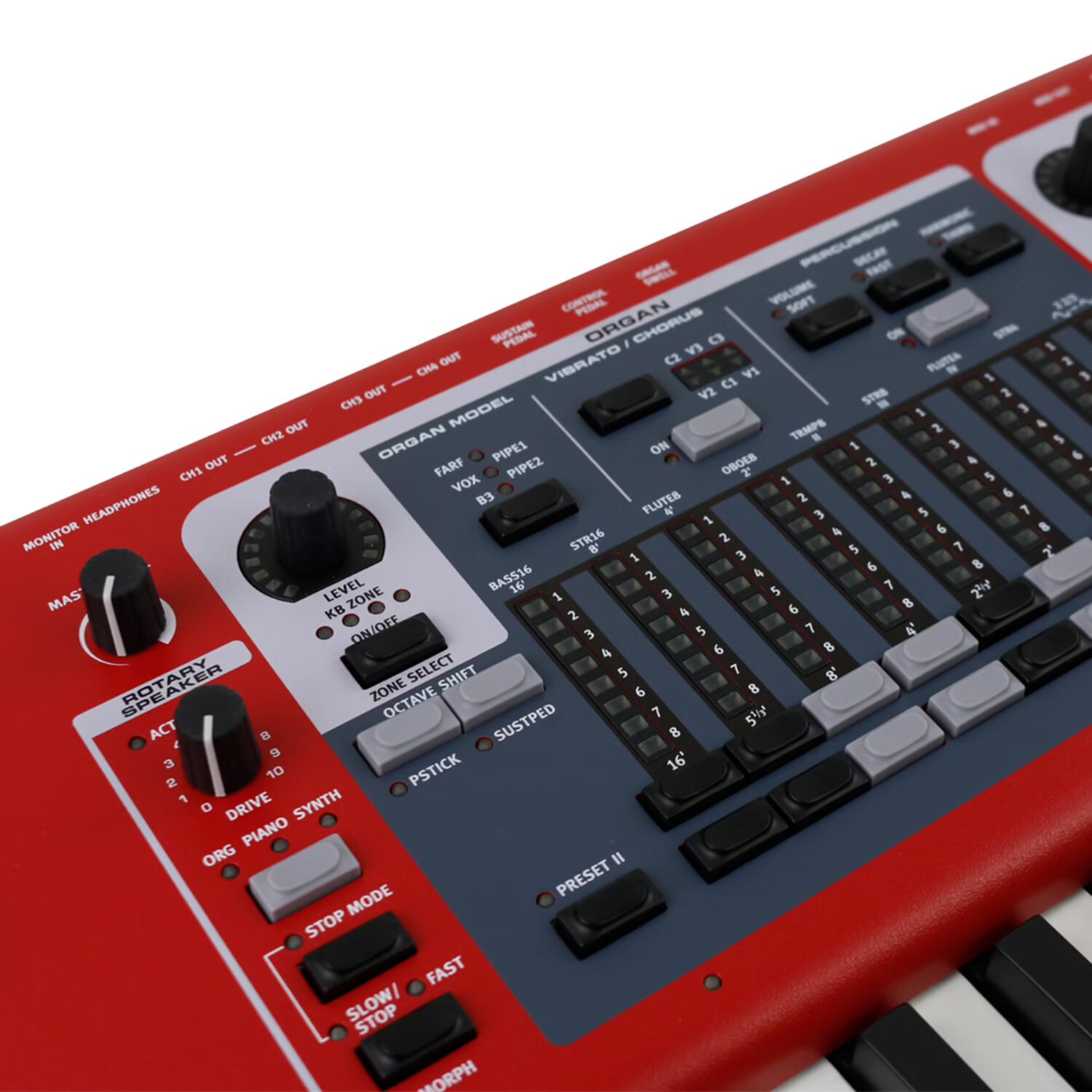

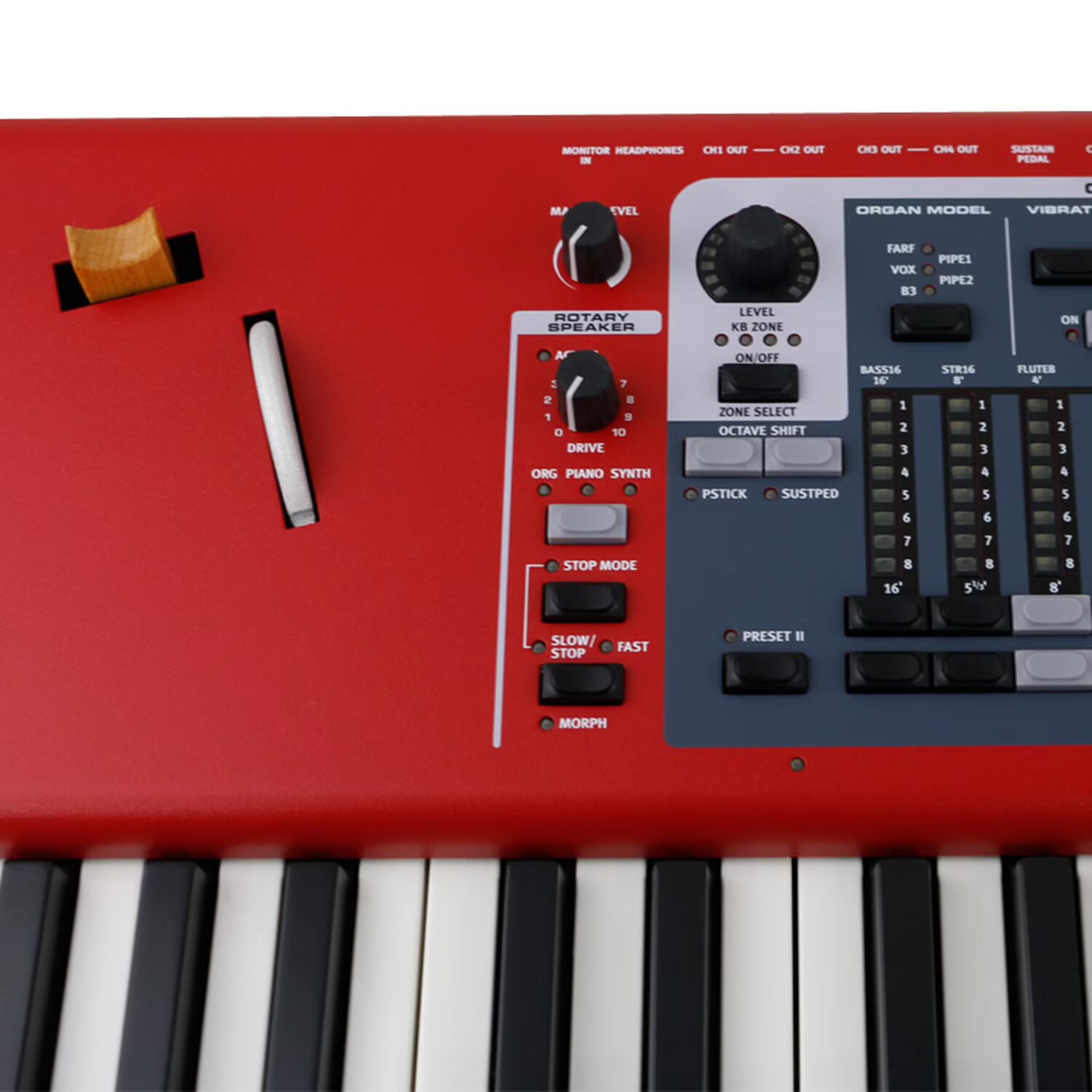

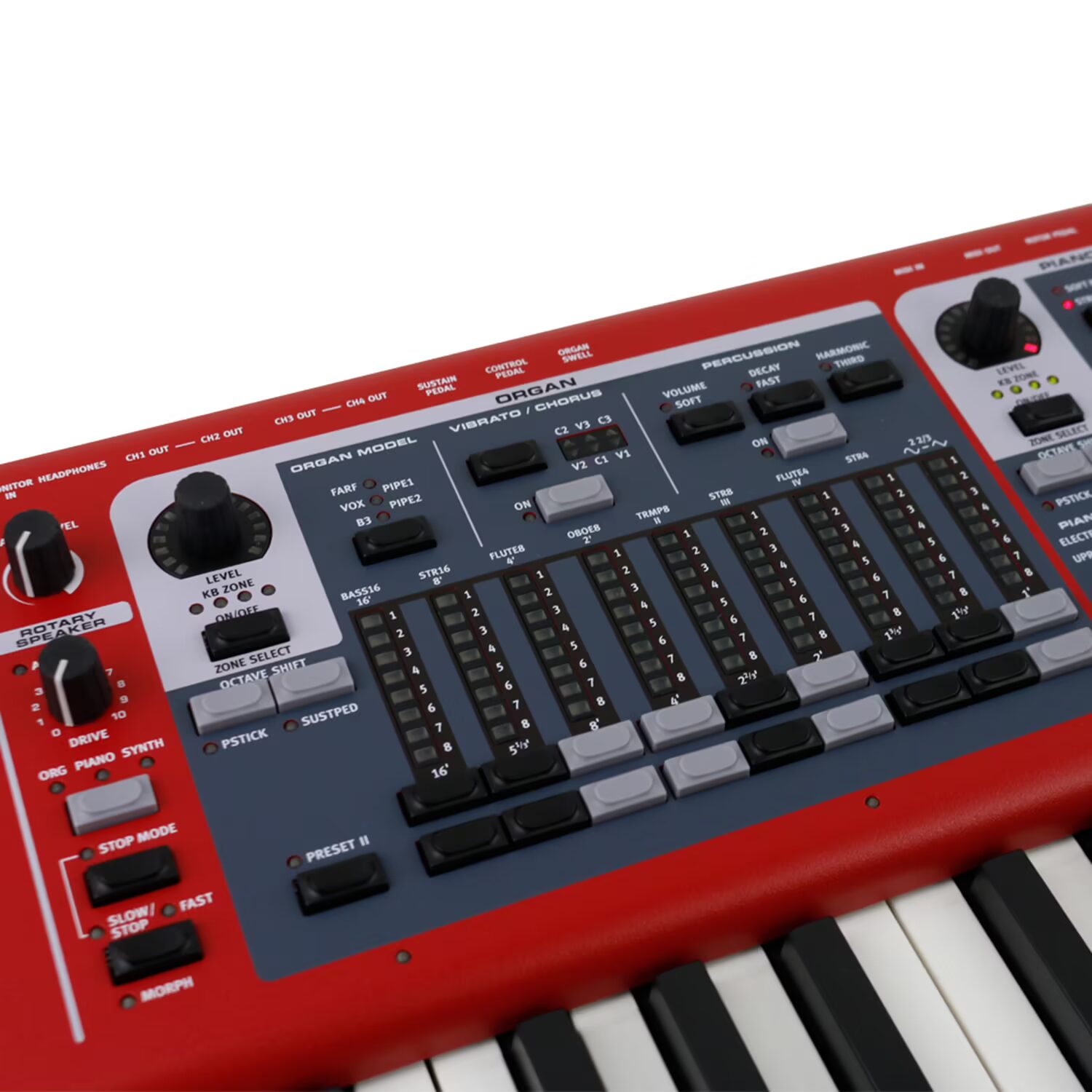

organ section:
Nord C2D B3 tone wheel simulation
Vox Continental
Farfisa
digital LED drawbars

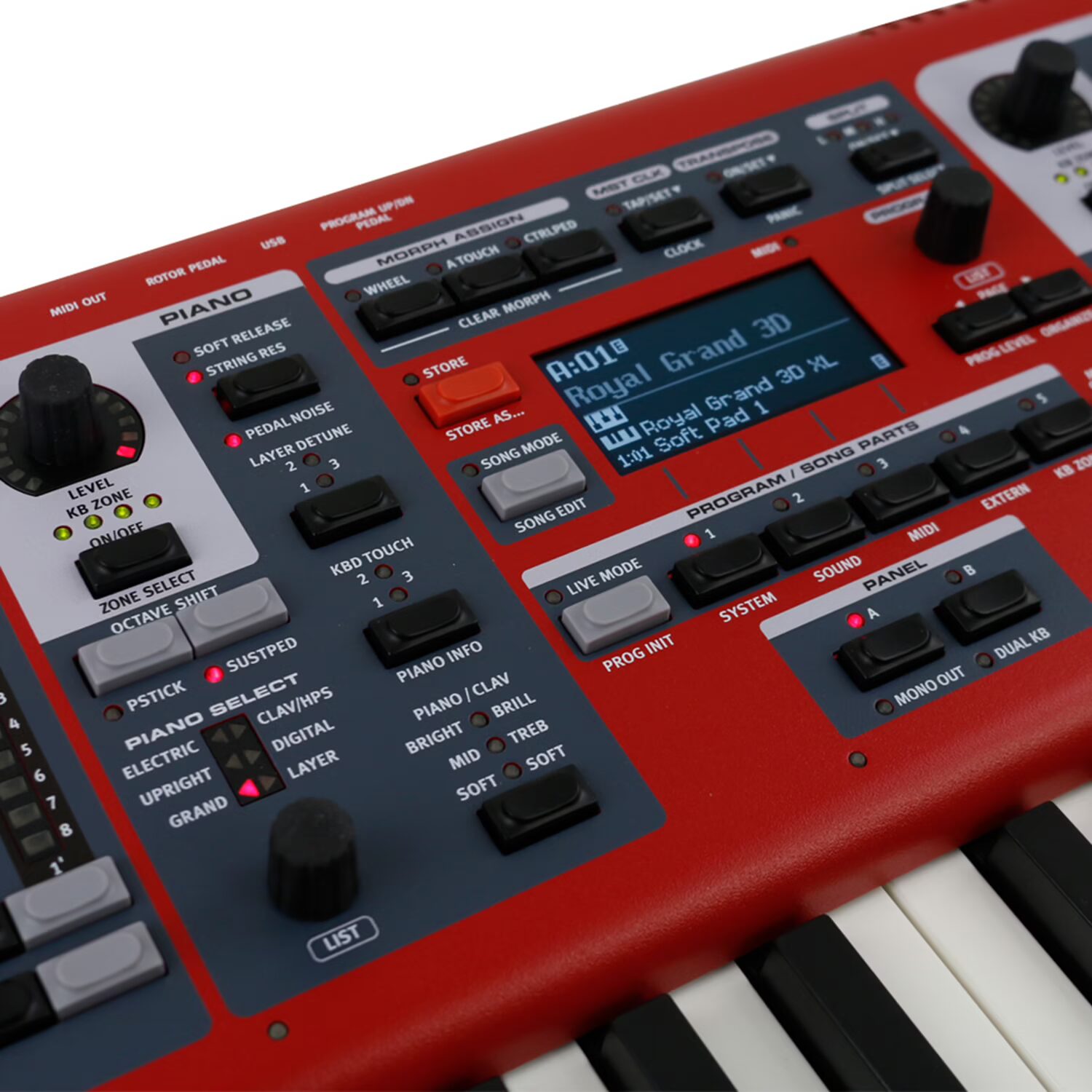

piano section:
2 GB piano memory
all sounds can be replaced using Nord Sound Manager (Mac/PC)
polyphony: 120 voices
String Resonance (Gen. 2)
Pedal Noise (with Nord Triple Pedal, sold separately)

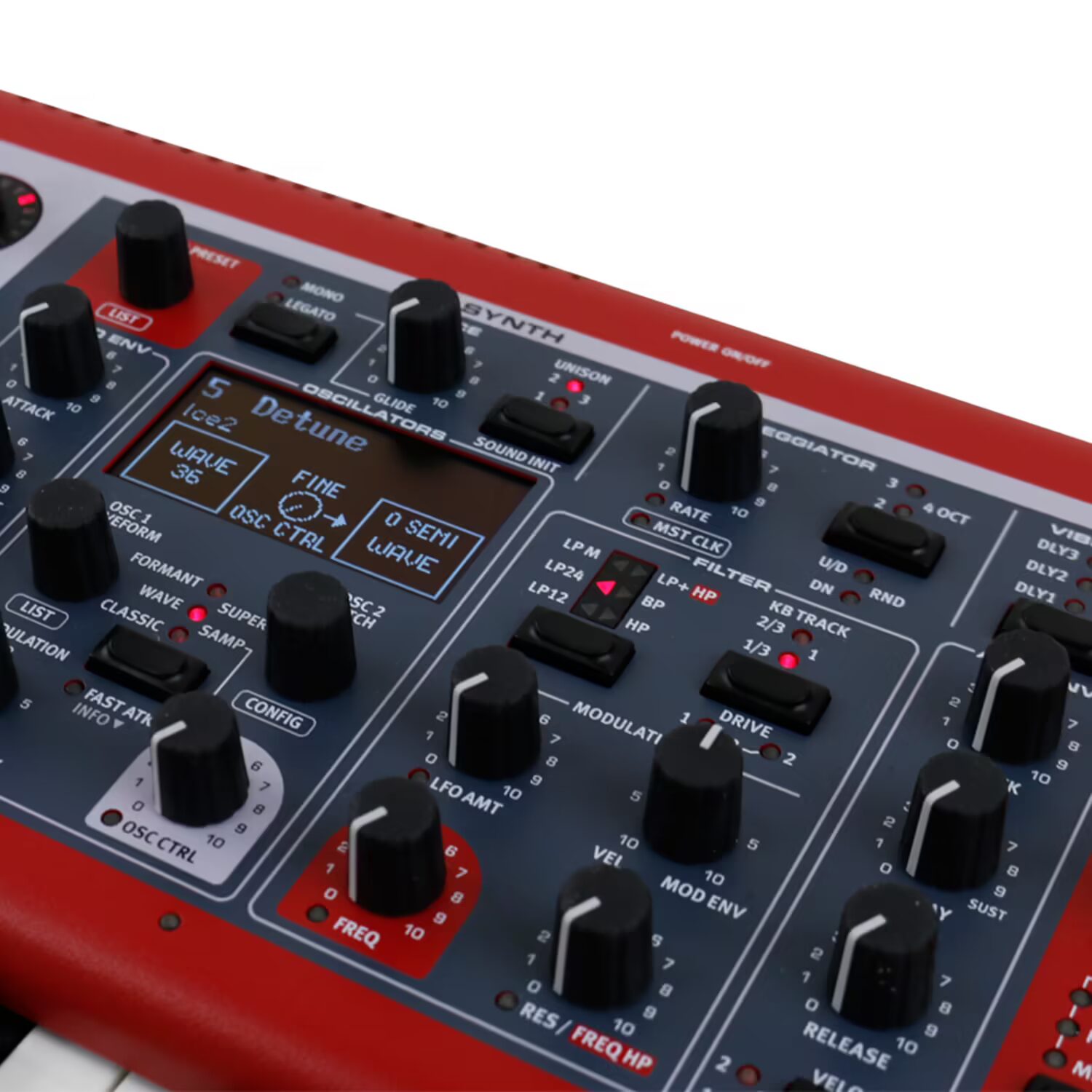

synth section:
Nord Lead A1 Synth Engine
OLED display for oscillator section
480 MB memory for Nord Sample Library
all sounds can be replaced using Nord Sound Manager (Mac/PC)
polyphony: 34 voices
400 synth preset locations

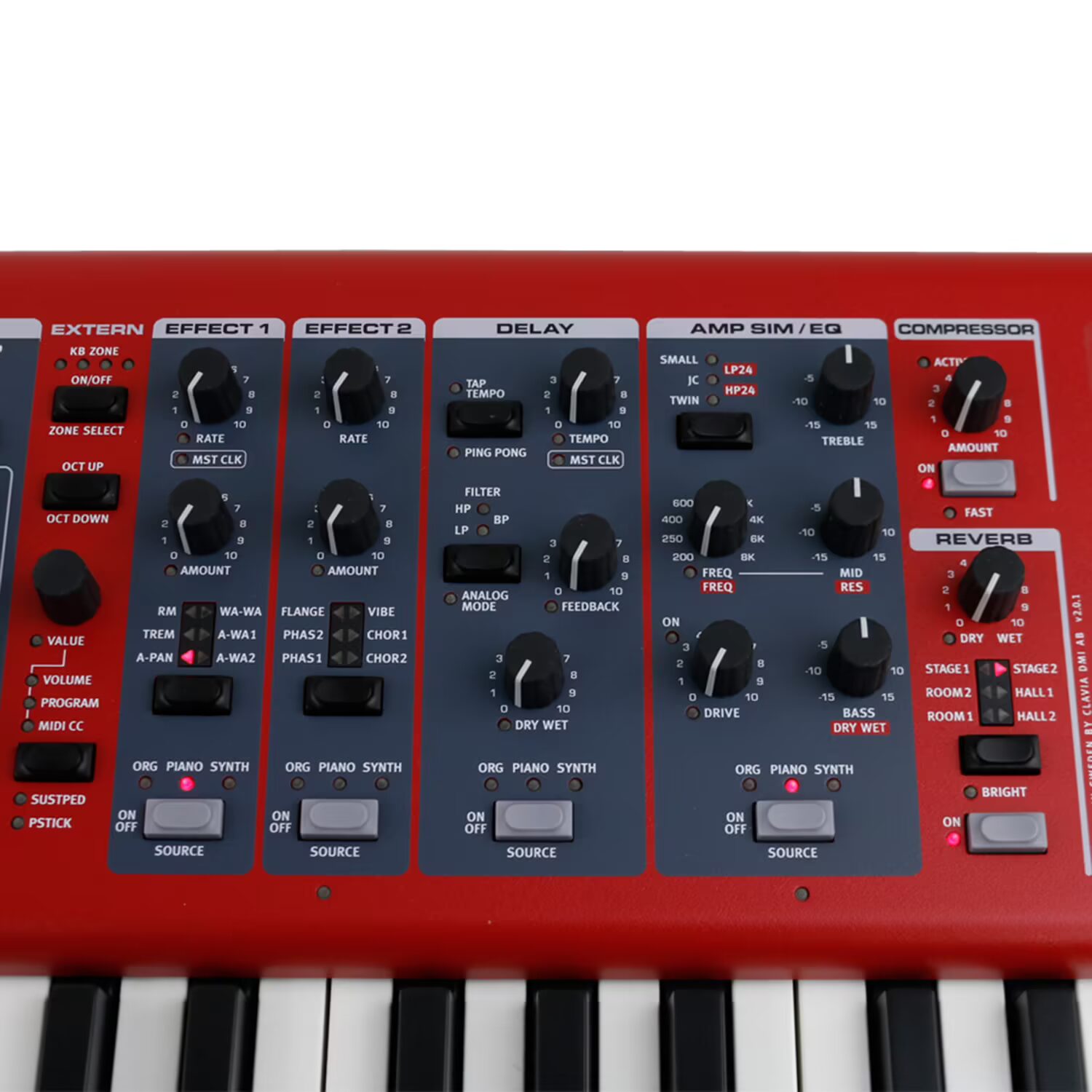

effects:
effect 1: Ring Modulator, Tremolo, Auto Pan, Wah-Wah, AutoWah 1, Autowah 2
effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
comprehensive delay section
speaker simulations
3-band EQ
compressor
reverb (6 algorithms)
wooden pitch control
modulation wheel
aftertouch
400 programs (8 banks, 10 pages, 5 locations)
song mode (8 banks, 50 songs, 5 programs)
5 live buffers
2 slot setups
3 morph sources (modulation wheel, control pedal, aftertouch)
3 split points (4 keyboard zones) with LED indicators
sounds and sofware can be downloaded via: https://www.nordkeyboards.com/

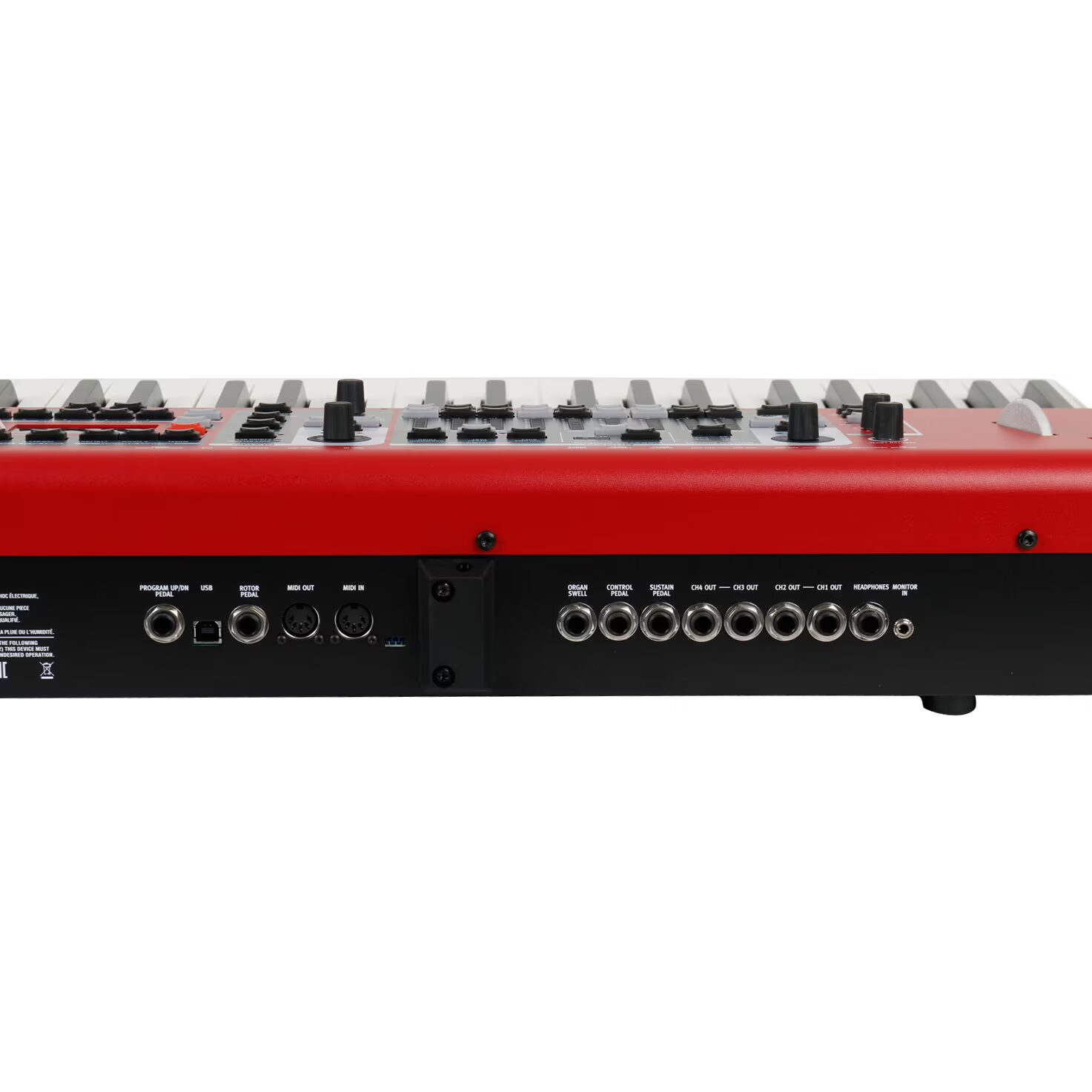

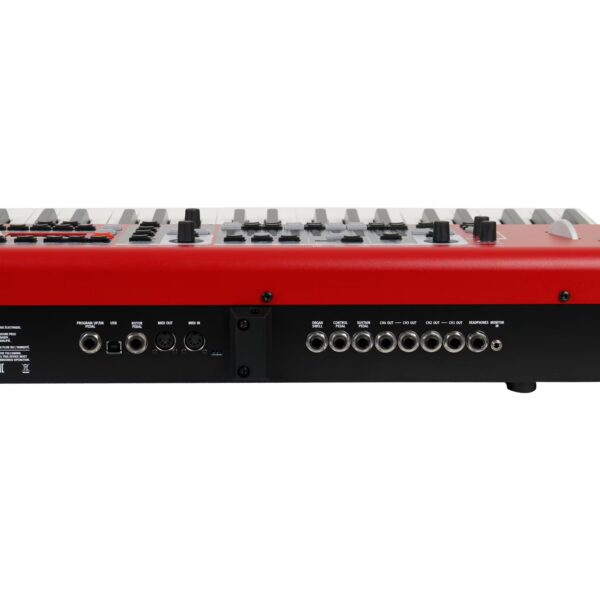

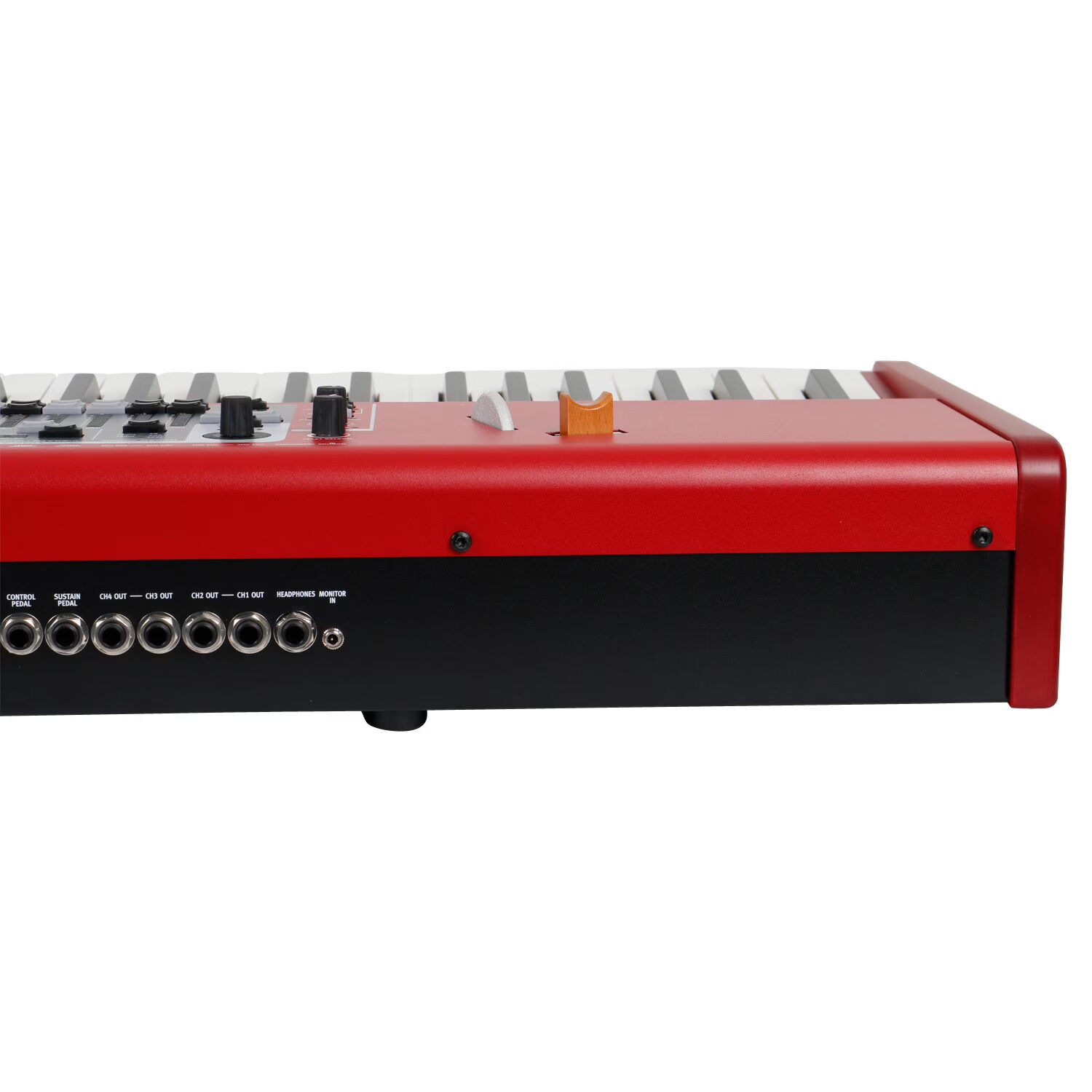

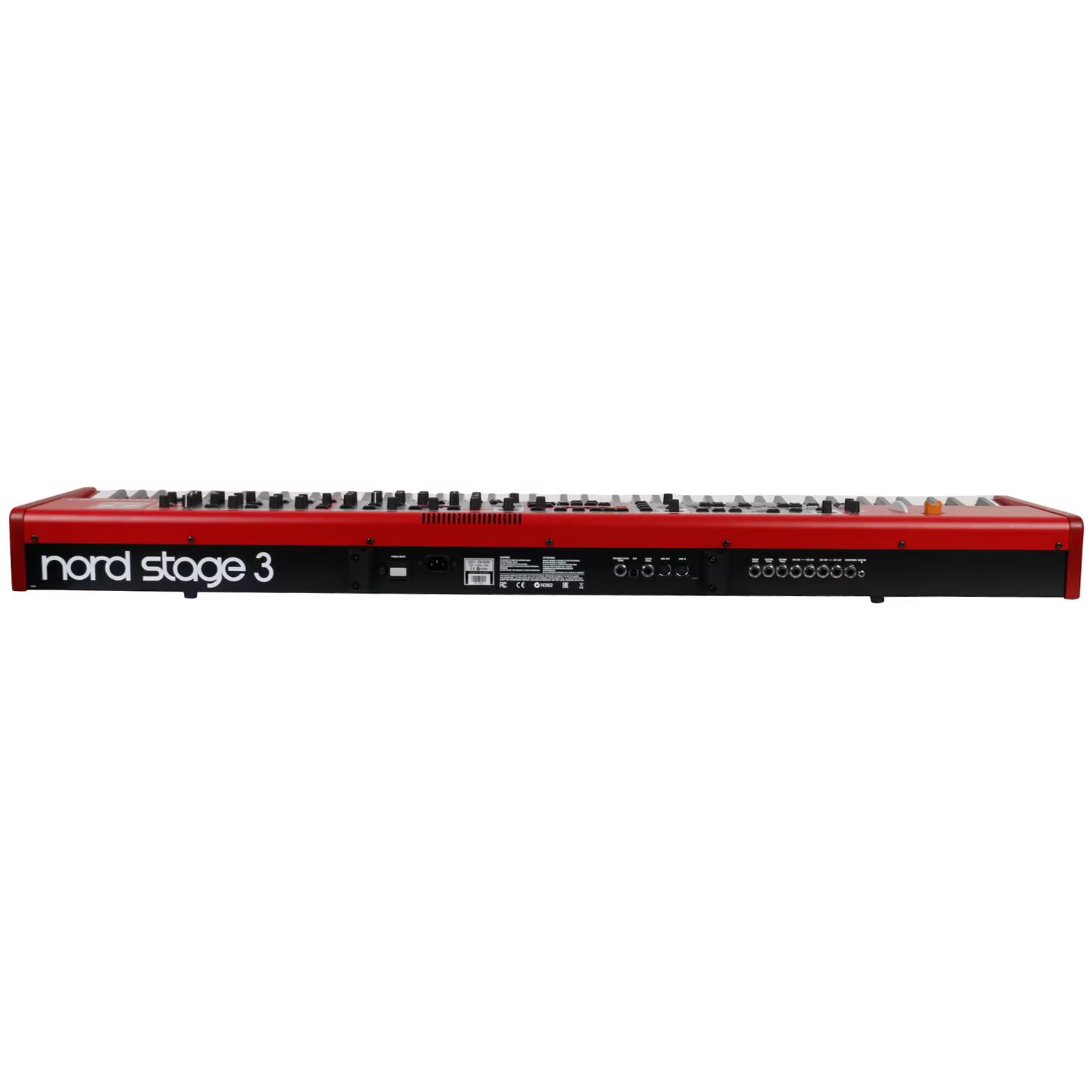

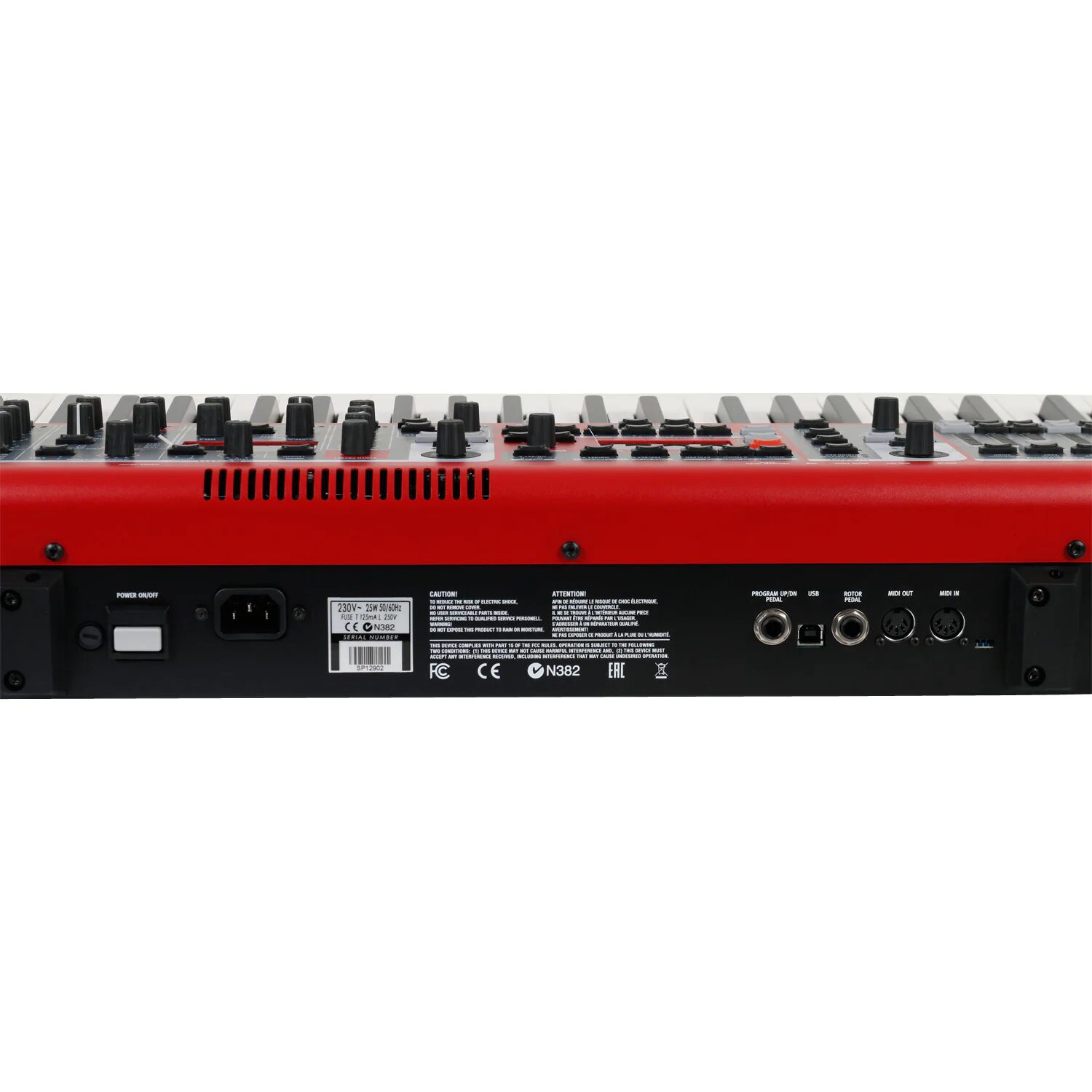

connectors:
4 assignable line outputs: jack, unbalanced
headphone: stereo jack
monitor input: stereo mini jack
sustain pedal: jack (compatible with Nord Triple Pedal, sold separately)
rotary pedal: jack (momentary or switch type)
organ swell pedal: TRS jack (control/expression type)
program change pedal: jack (2-button momentary type)
MIDI in/out: 5-pin DIN
USB (type B) for USB MIDI, software updates and Sound Transfer
dimensions: 1287 x 118 x 334mm
weight: 19 kg
includes:
user manual
power cable
USB cable
sustain pedal
