Description
Specifications
Product features
ConnectorsExternal speaker(s), Foot switch, Headphone, Line-out, MIDI, USB
Number of channels 4
Number of speaker outputs 2
Amp modelling no
Effects loop yes
Weight 15 – 19.9 kg
Speaker output impedance 16 ohms, 8 ohms
Built-in tuner no
Built-in effects reverb (digital)
Colour black
Power attenuator yes
Type of power amp tube not applicable
Amplifier type transistor
Power in Watts 101 – 150 Watts
Weight and dimensions including packaging
Weight (incl. packaging)15.0 kg
Dimensions (incl. packaging)68.0 x 42.0 x 35.0 cm
Product specifications

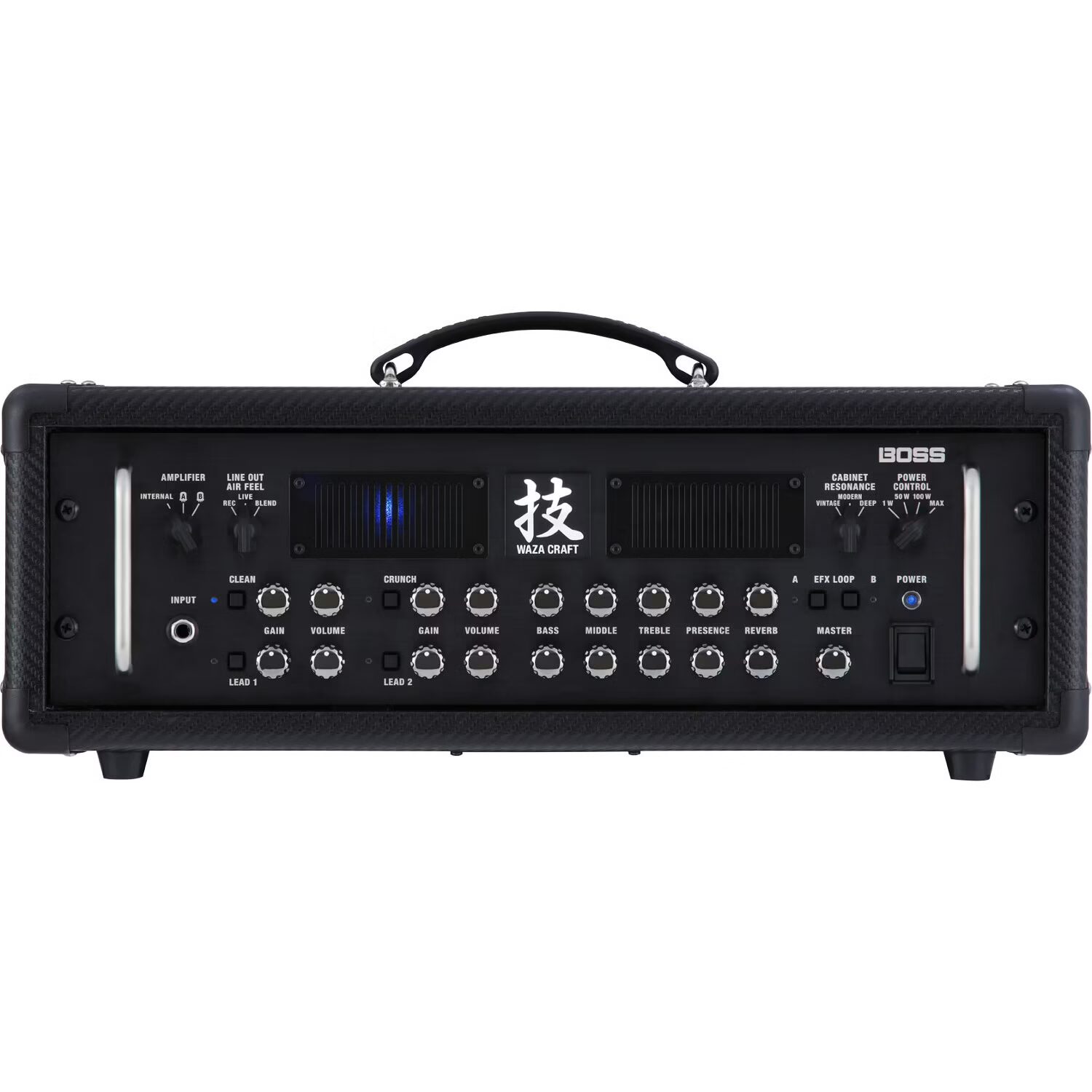

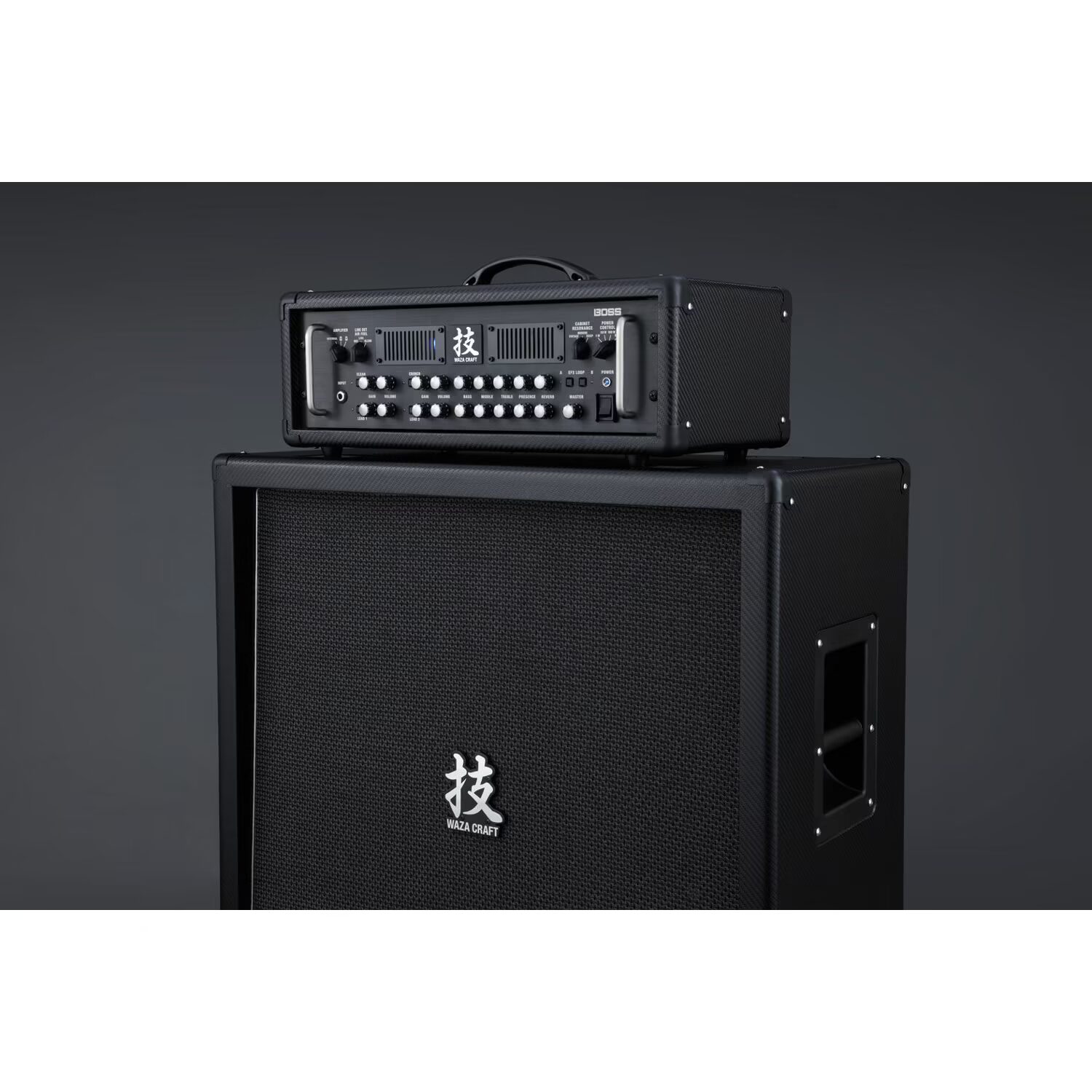

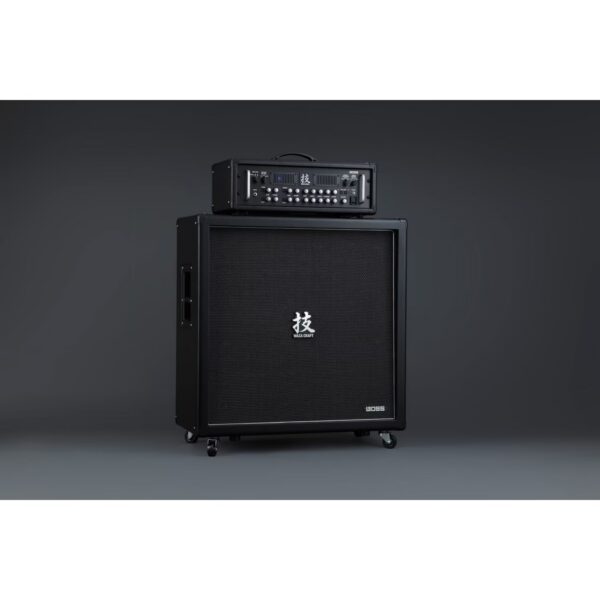

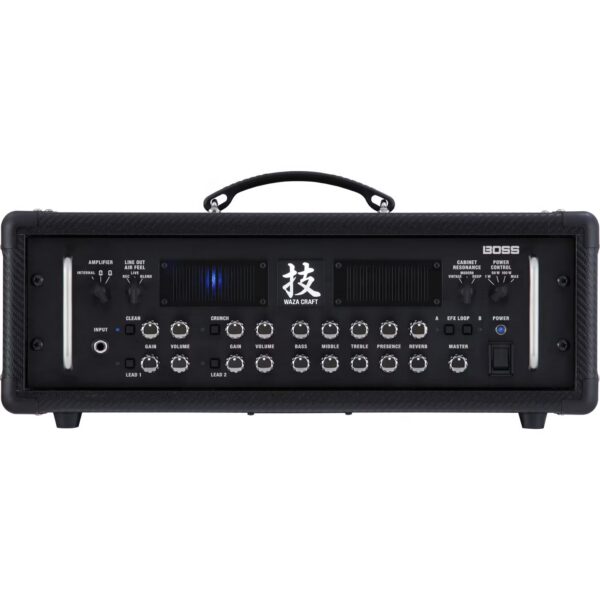

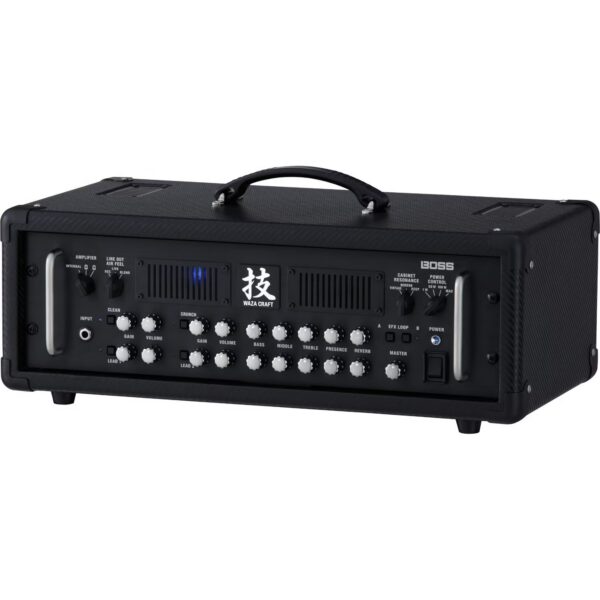

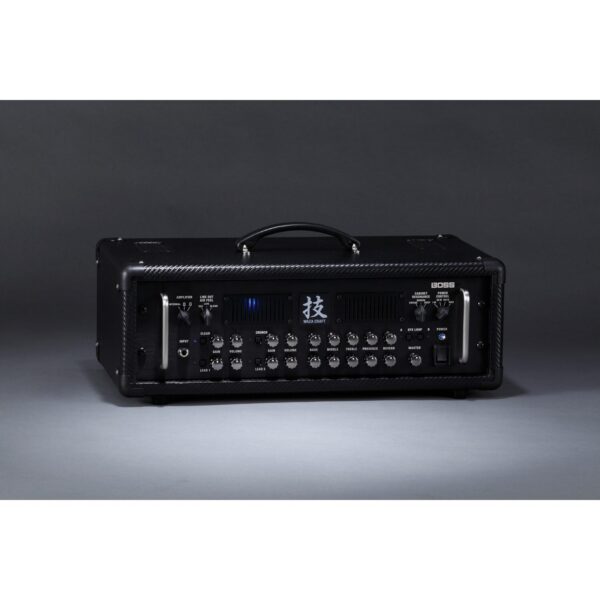

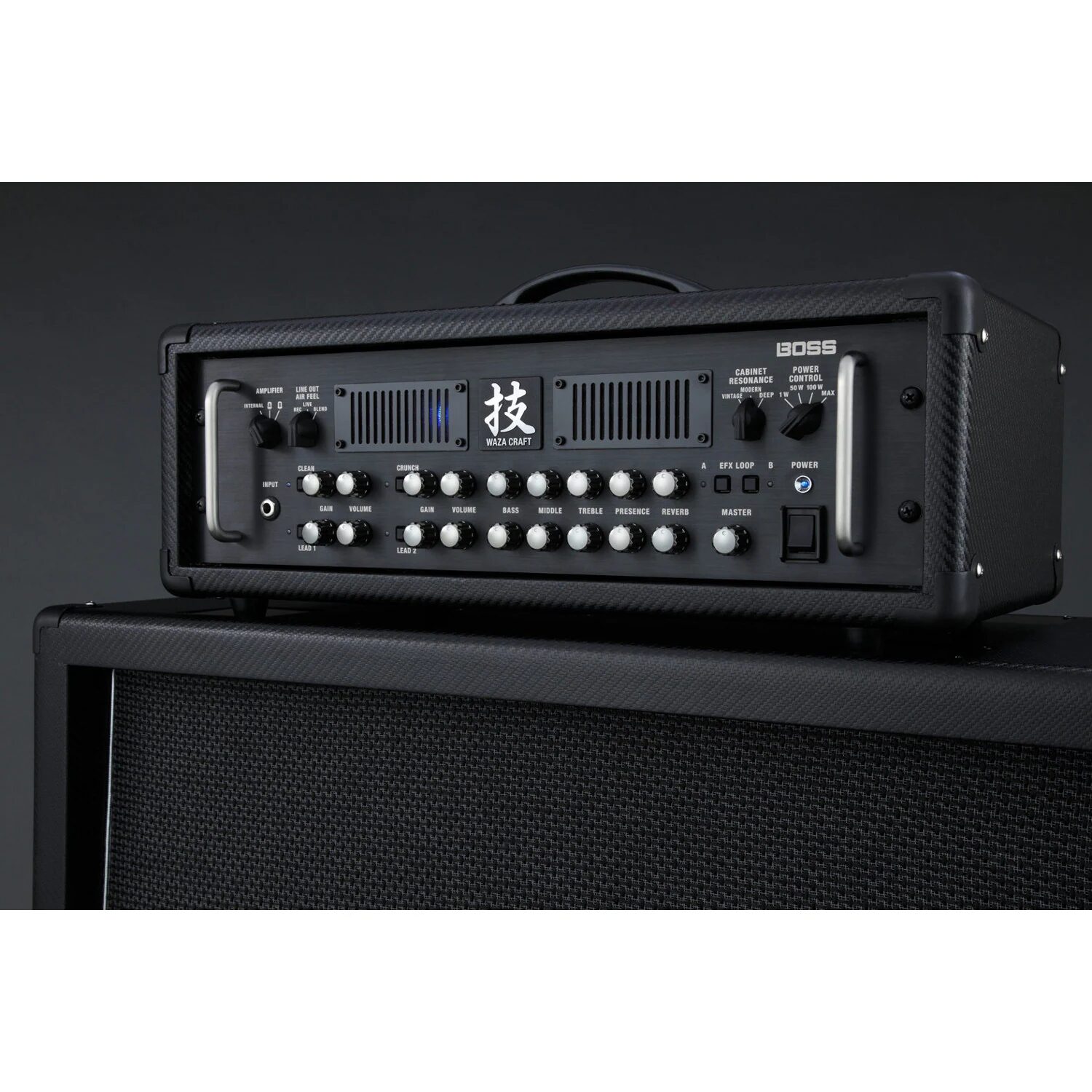

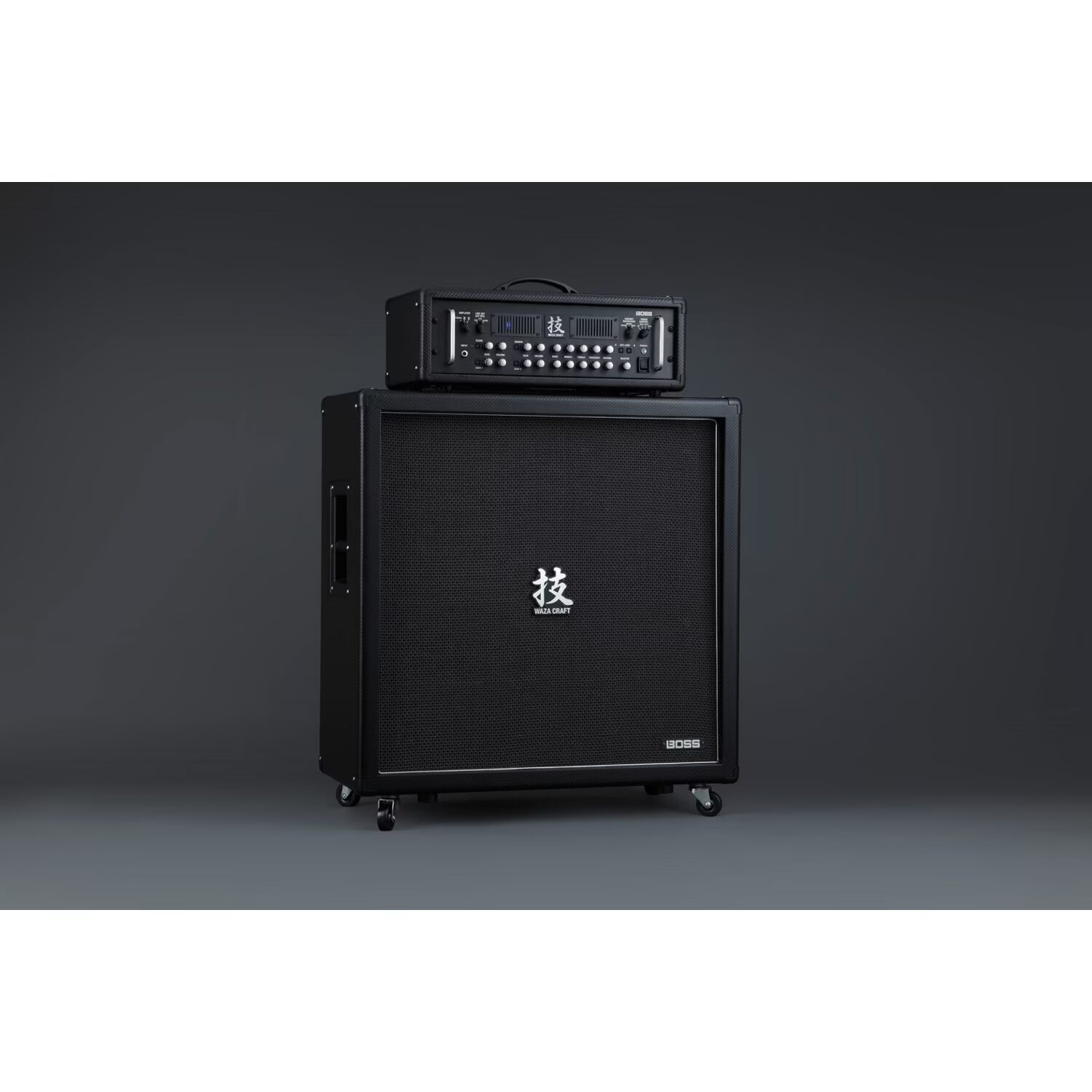

Boss Waza Craft transistor guitar amplifier
output capacity: 150 W
input level:
input: -10 dBu (1 mOhm)
EFX Loop A Return: -10 dBu
EFX Loop B Return: -10 dBu
controls:
on/off switch
Clean – channel – selection – switch
Crunch – channel – selection – switch
Lead 1 – channel – selection – switch
Lead 2 – channel – selection – switch
amplifier switch: internal, A, B
loop switch: serial, parallel
​
Clean channel:
gain control
volume control
Crunch channel:
gain control
volume control
Clean/Crunch channel EQ:
bass control
middle control
treble control
presence control
​
Lead 1 channel:
gain control
volume control
Lead 2 channel:
gain control
volume control
Lead 1 / Lead 2 channel EQ:
bass control
middle control
treble control
presence control
​
effect:
EFX Loop A button
EFX Loop B button
Clean / Crunch channel Reverb knob
Lead 1 / Lead 2 channel Reverb knob
Master:
Master control
line out Air Feel switch: Rec, Live, Blend
Cabinet Resonator switch: Vintage, Modern, Deep
Power Control switch: 1 W, 50 W, 100 W, max (150 W)
line output:
GDN lift switch
​
Indicators:
Clean channel
Crunch channel
Lead 1 channel
Lead 2 channel
EFX Loop A
EFX Loop B
Power
​

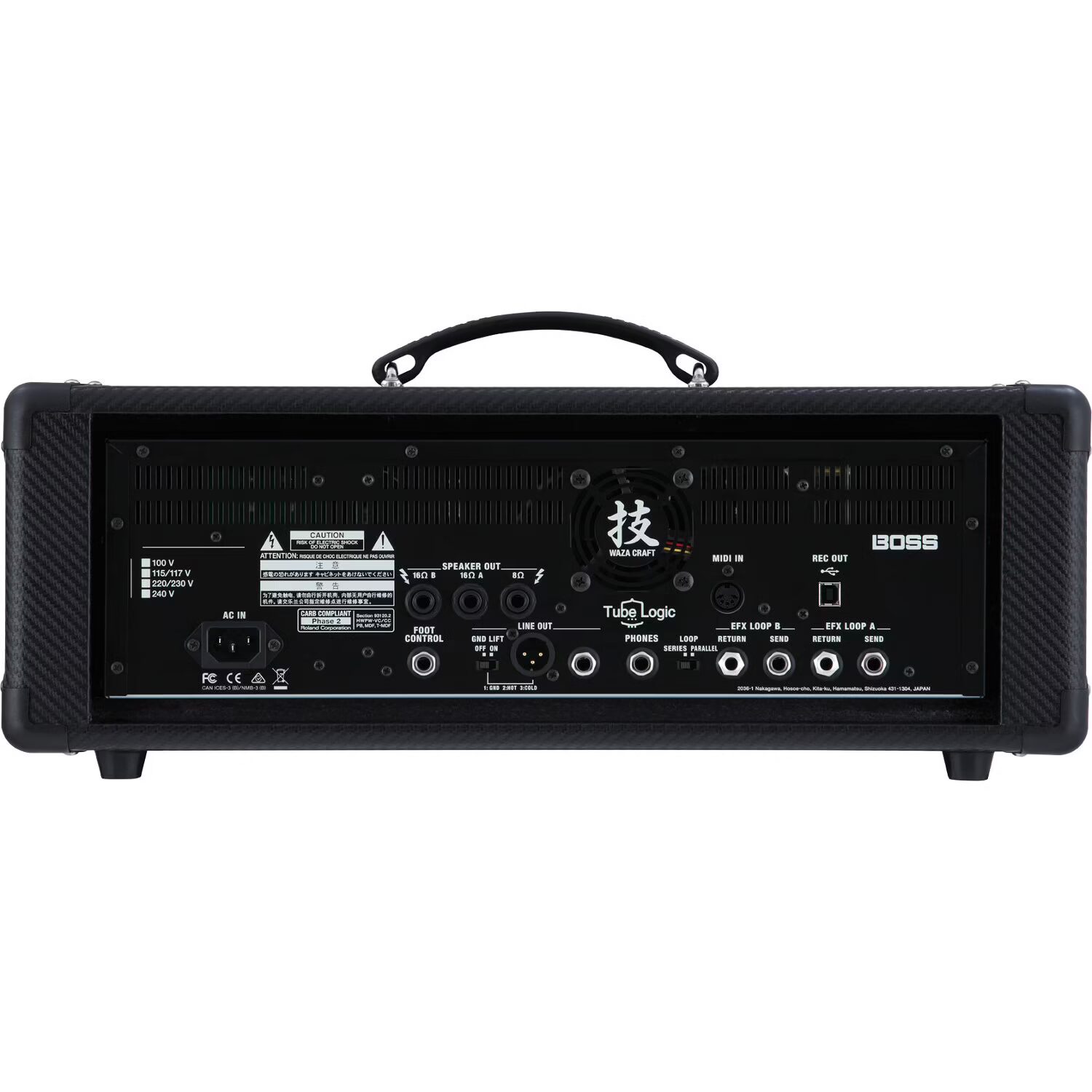

connectors:
input: jack
line input: jack
line output: XLR
headphone output: stereo jack
foot controller: jack
EFX Loop A Send: jack
EFX Loop A Return: jack
EFX Loop B Send: jack
EFX Loop B Return: jack
recording output: USB type B
MIDI in: jack
speaker output: 16 ohms A jack
speaker output: 16 ohms B jack
speaker output: 8 ohms jack
AC in: jack
power consumption: 110 W
​
accessories:
tone capsule (pre-installed)
user manual
power cable
speaker connector cable
foot controller
foot controller connector cable: stereo
​
dimensions:
width: 529 mm
depth: 302 mm
height: 225 mm
weight: 15 kg
