Description
Specifications
Product features
Functionsencoder(s), master section / transport, multi-coloured backlit buttons / pads
Included software none
MIDI & CV/gateMIDI in, MIDI out, MIDI over USB
Software included yes, download
For software not applicable
Standalone yes
Power adapter ungrounded flat Euro plug
Weight and dimensions including packaging
Weight (incl. packaging)6.2 kg
Dimensions (incl. packaging)64.0 x 54.0 x 21.0 cm
Product specifications
standalone music workstation

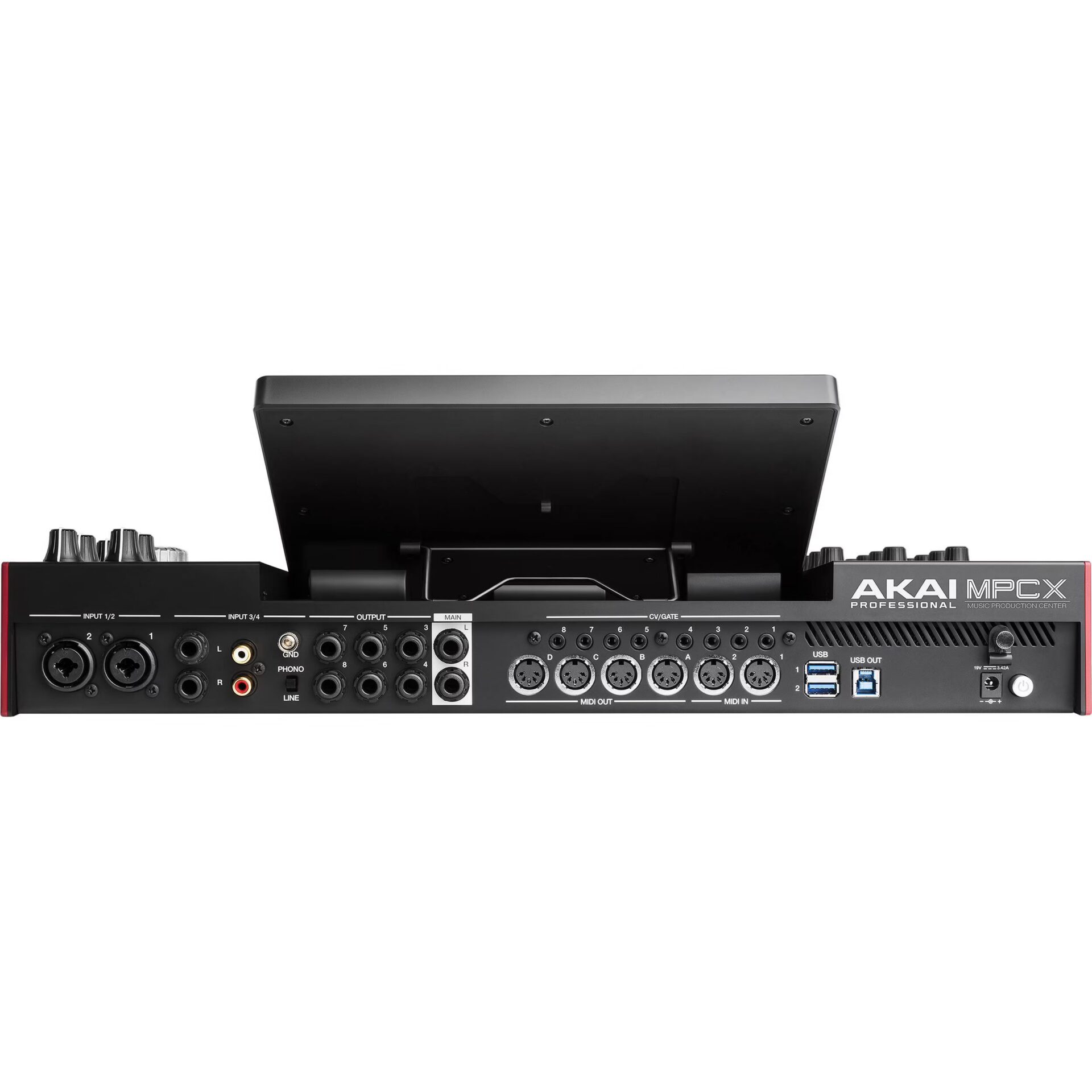

inputs:
4 x combo jack / XLR connectors
+48V phantom power supply
2 x TRS jack connectors (1 stereo pair)
2 x TS jack foot switch inputs
RCA
2x 5-pin MIDI
2 x USB A (3.0)
SD card slot
power adapter: 19V, 3.42 A, centre-positive, included
outputs:
8x balanced TRS jack connectors
1x jack 1x mini jack stereo headphones
4x 5-pin MIDI
USB B
maximum recording resolution:
standalone mode: 24-bit, 44.1 kHz
standalone mode: 24-bit, 96 kHz
also functions as platform for MPC 2.0 software on Mac or PC
Bluetooth 4.0
16GB on-board storage capacity (incl. CR2, Toolroom, loopmasters, Capsun Pro Audio, etc.)
possible expansion with 2.5-inch SATA (SSD or HDD)
10.1-inch colour touchscreen (supports tap, double-tap, drag and pinch)
power supply: rechargeable lithium ION battery or power adapter (both included)
16 Q-link controls with OLED displays
transport: record, overdub, stop, play and play/start
dial: scroll wheel to navigate through menu options
master volume: total volume control
CPU: processor: 1.8 Ghz quad-core ARM. Cortex. A17 processor
RAM: 2 GB
system requirements when MPC Software is used as plugin:
Mac: dual-core CPU, 2.5 GHz or higher and 4 GB RAM (8 GB recommended)
Windows: dual-core CPU, 2.5 GHz or higher and 4 GB RAM (8 GB recommended)
storage: 2GB free space for MPC Software
dimensions:
50.5 x 42.4 x 8.7 cm (display down)
50.5 x 38.8 x 21.4 cm (display up)
weight: 5.66 kg
