Description
Specifications

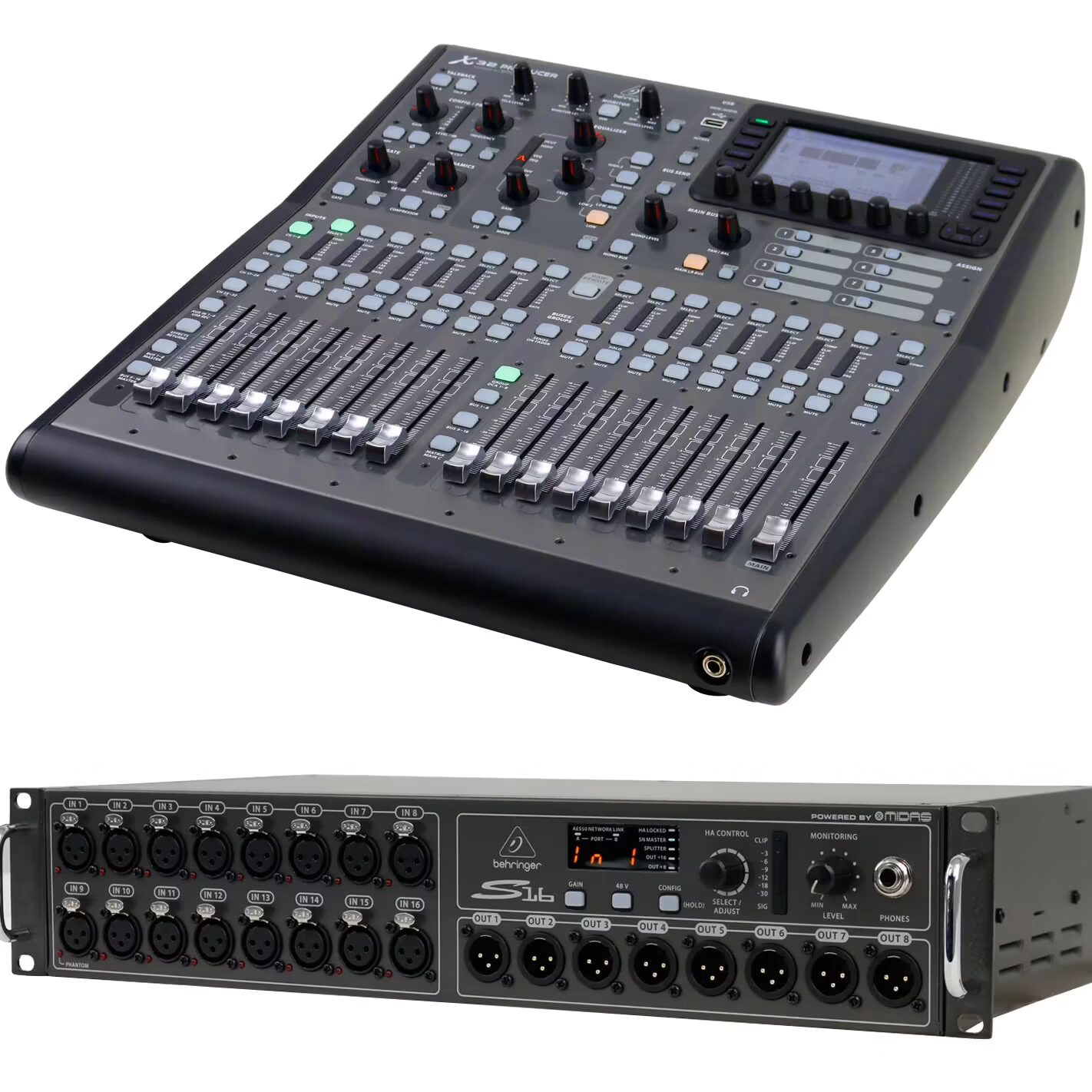

Behringer X32 Producer Digital Mixer 1x Behringer X32 Producer Digital Mixer
Armed with a bank of seventeen motorised faders, a 5 inch colour display screen, a battalion of effects and expansion options, the Behringer X32 Producer is a more-than solid pro and home production tool.
Product features
19 inches 19-inch rack mount (included)
Number of analogue input channels 9 – 16
Number of analogue output channels 8
Number of channels 17-32
Number of microphone inputs 13 – 16
Category Sound & PA
Digital inputs AES50
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), AES50, Ultranet
Dynamics compressor, expander, gate
Equalizer 4-band parametric, Master EQ
Input connector jack (6.3 mm), RCA, XLR
Built-in audio interface USB (multi track)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters LED VU meter, via built-in display
Remote control via iPad, via iPhone, via Ethernet, via Wi-Fi
Connector position back
Type of display TFT, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card, USB interface expansion card, digitale snake, personal monitoring system
Output connector jack (6.3 mm), RCA, XLR (3-pin)
Mixer power power cable
Volume control motorised faders
Weight and dimensions including packaging
Weight (incl. packaging)16.0 kg
Dimensions (incl. packaging)63.0 x 58.0 x 29.2 cm
Product specifications
Behringer X32 digital mixer
number of channels:
32x input channels
8 aux channels
8 FX return channels
16x aux buses
6 matrices
main LRC
internal effects stereo/mono: 8/16
number of scenes (inc. preamp and Fader): 100
signal processing: 40-bit
A/D-D/A conversion: 24-bit at 44.1 / 48 kHz, 114dB dynamic range
local latency: 0.8 ms
network latency: 1.1 ms
connections:
XLR inputs: 16x (programmable MIDAS preamps)
XLR Talkback-input: 1x
RCA inputs/outputs: 2/2x
XLR outputs: 8x
TRS monitors: 2x (balanced)
TRS aux inputs/outputs: 6/6x
TRS headphone: 1x
AES50 SuperMAC: 2x
expansion slot: 32 channel audio input/output
P-16 Ultranet: 1x
MIDI inputs/outputs: 1/1x
RJ45 Ethernet: 1x
USB-A for audio and data: 1x
microphone ports:
MIDAS preamp
max. input level: 23 dBu
phantom power, switchable: 48V
equivalent input noise level: -128dBu
frequency response: 10Hz – 22kHz
display:
display screen: 5 inch, 800 x 480, 262k colour TFT
Main-meter: 18-segments (-45dB to clip)
power: 100-240V (50/60Hz)
Power consumption: 70 W
operating temperature: 5°C – 40°C (41°F – 104°F)
dimensions (W x D x H): 50.6 x 49 x 16.3cm
weight: 11.4 kg
Behringer Digital Snake S16 digital IO break-out box 1x Behringer Digital Snake S16 digital IO break-out box
The Behringer S16 Digital Snake is a digital break-out box with which signals can be transferred to a stable, disturbance-free network connection via AES50. It has 16 inputs and 8 outputs!
Product features
19-inch rack size2U
Number of analogue input channels9 – 16
Number of analogue output channels8
Weight and dimensions including packaging
Weight (incl. packaging)5.9 kg
Dimensions (incl. packaging)54.6 x 30.6 x 15.0 cm
Product specifications
– digital snake for the X32 mixer, among others
– works via AES50 protocol
– 16 input with microphone preamps, remote-controllable
– 8 output, servo-balanced
– AES50 protocol via Klark Teknik SuperMac technology
– very low latency (fit for in-ear monitoring)
– distances of up to 100 metres achievable via CAT-5e
– no routers required, extra outputs for several S-16 or AES50 devices
– several S-16 snakes can be used simultaneously (for 32 in, 16 out applications)
– precise LED VU meter for on-stage signal checking
– headphones output, assignable to each of the 8 outputs
– equipped with connector for Behringer P-16 system
– double ADAT outputs for use in splitter mode and stand-alone multi-core use
– MIDI in and output for bidirectional communication between FOH console and MIDI equipment
– USB connector for system updates via computer
– ‘Planet earth’ switching power supply, 100-240V AC, noise-free, stable, energy efficient
– robust housing
– 19-inch, 2U build-in height
