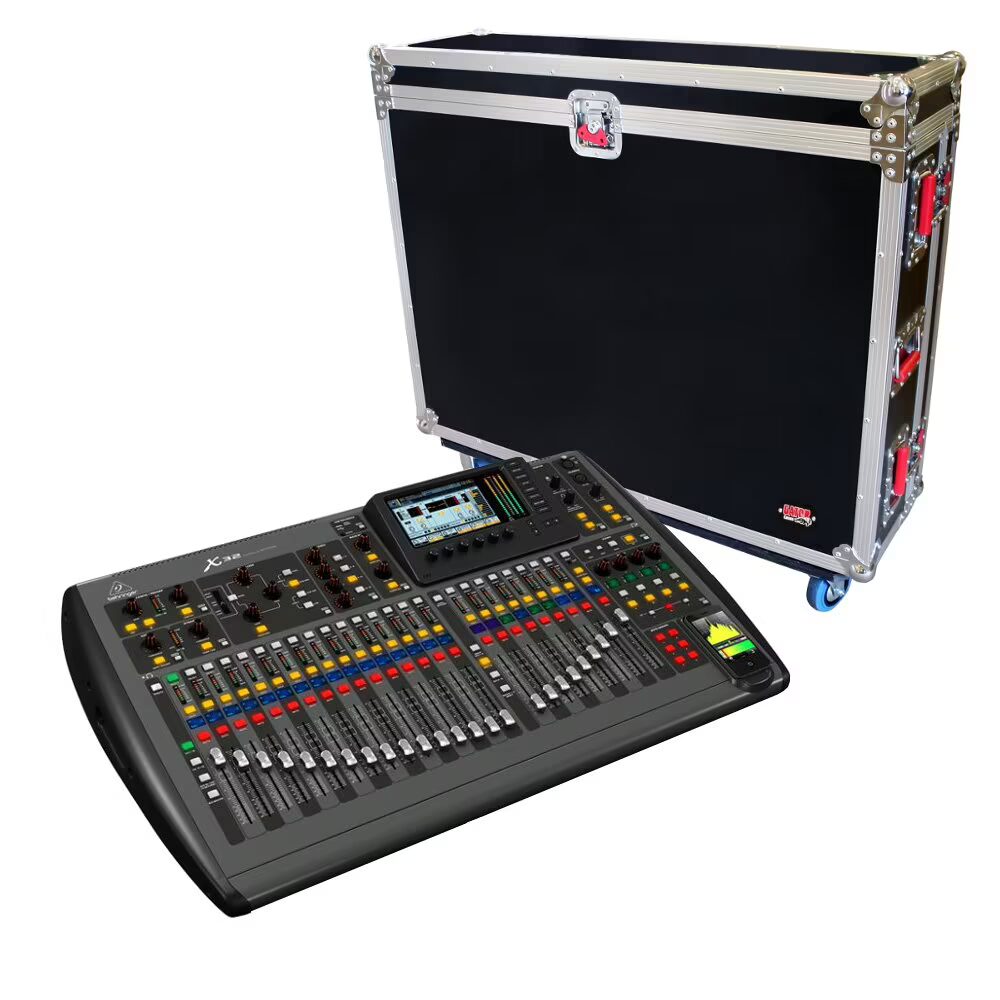

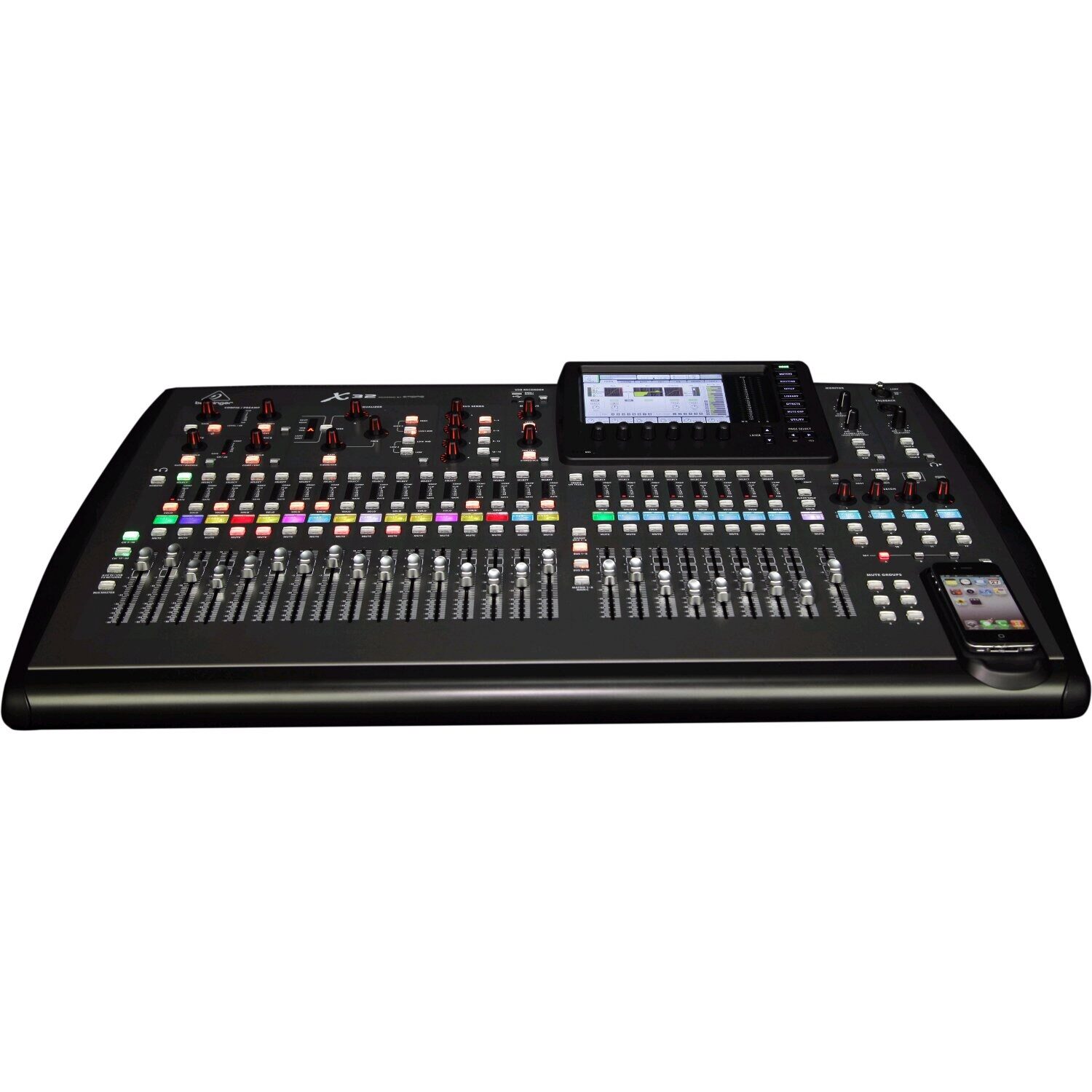

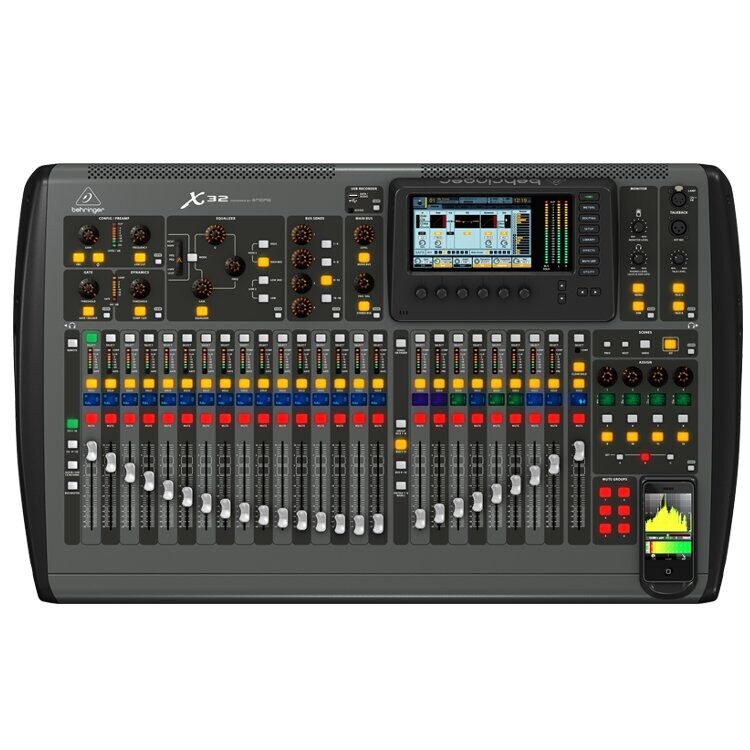

Behringer X32 digital mixer and USB MIDI controller 1x Behringer X32 digital mixer and USB MIDI controller
The Behringer X32 is a 32-channel, 16-bus, digital mixer for studio and live purposes. It has everything you desire: 32 analogue inputs, 6 aux, motorized faders, and more. It also functions as a MIDI controller.
Product features
19 inches no
Number of analogue input channels 25 – 32
Number of analogue output channels 17 – 24
Number of channels 17-32
Number of microphone inputs 17 – 32
Digital inputs AES50
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), AES50, Ultranet
Dynamics compressor, expander, gate
Equalizer 4-band parametric, Master EQ
Input connector jack (6.3 mm), RCA, XLR
Built-in audio interface USB (multi track), FireWire
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters LED VU meter, via built-in display
Remote control via iPad, via iPhone, via Ethernet, via Wi-Fi
Connector positiontop
Type of display TFT, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card, USB interface expansion card, digitale snake, personal monitoring system
Output connector jack (6.3 mm), RCA, XLR (3-pin), XLR AES/EBU
Mixer power power cable
Volume control motorised faders
Weight and dimensions including packaging
Weight (incl. packaging)28.7 kg
Dimensions (incl. packaging)102.0 x 66.0 x 32.0 cm
Product specifications
– digital mixer
– 32 channels
– fully programmable high-end microphone preamplifiers
– 16 mix buses, configurable as sub groups
– main LCR and all 16 mix buses feature inserts and 6-band parametric EQs
– dynamics processing per mix bus including main LCR

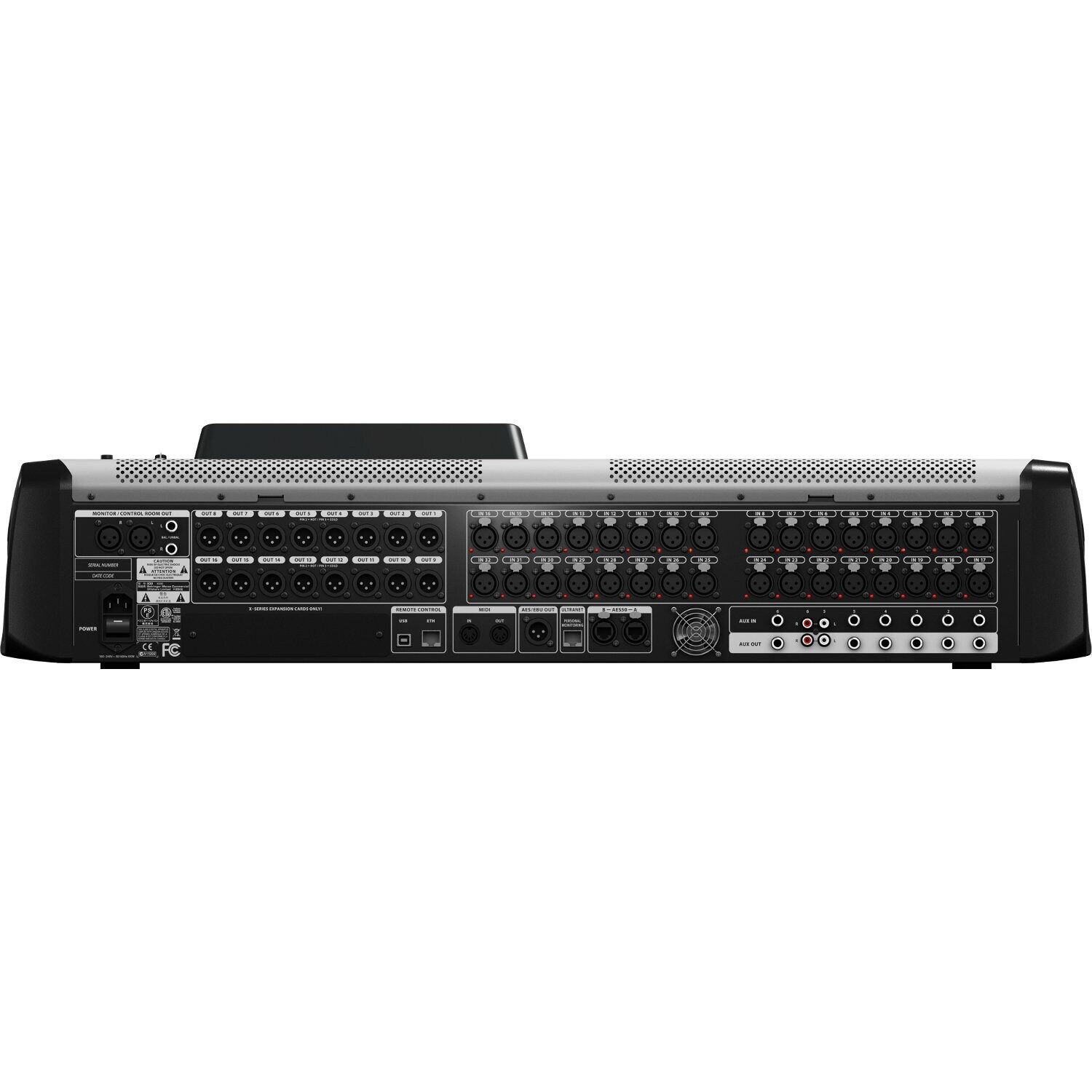

– 16 analogue XLR outputs plus 6 additional line in- and outputs
– 2 headphone outputs
– talkback section with integrated or external microphone
– suited for 48-channel digital snake via AES50 ports
– Klark Teknik’s SuperMAC networking capability
– built-in expansion slot for Firewire/USB/ADAT card
– suited for 16-channel stand-alone recorder or other networking interfaces
– virtual effect rack with 8 stereo FX slots
– high-grade simulations of famous external gear
– Klark Teknik DN780 and EMT250 simulations included
– 40-bit floating-point DSP with ‘unlimited’ dynamic range
– AD/DA conversion: 24-bit (44.1/48 kHz)
– no internal overload and near-zero latency between in- and outputs
– 6 mute groups and 8 DCA groups on 8 assigned 100 mm motorised faders
– user-friendly interface and assigned channel strip section
– direct access to all buttons for intuitive use
– 7-inch coloured TFT with high resolution
– associated buttons and individual RGB-illuminated graphic LCDs for every channel
– 25 motorised 100 mm faders
– elaborate channel strip plus assigned, user-definable control section
– USB flash connector for file storage of uncompressed recordings
– show presets and system updates via USB
– connectivity for Behringer Powerplay 16
– AES/EBU stereo digital output
– MIDI
– 6 independent matrix mix buses with inserts, 6-band parametric EQ
– dynamic processing on the matrix mix buses
– adjustable line delays available for every physical in- and output
– network control or show setups with Remote Editor software via USB and Ethernet (included)
– powerful scene management for simplifying complex productions
– power consumption: 120 watts
– weight: 20.6 kg

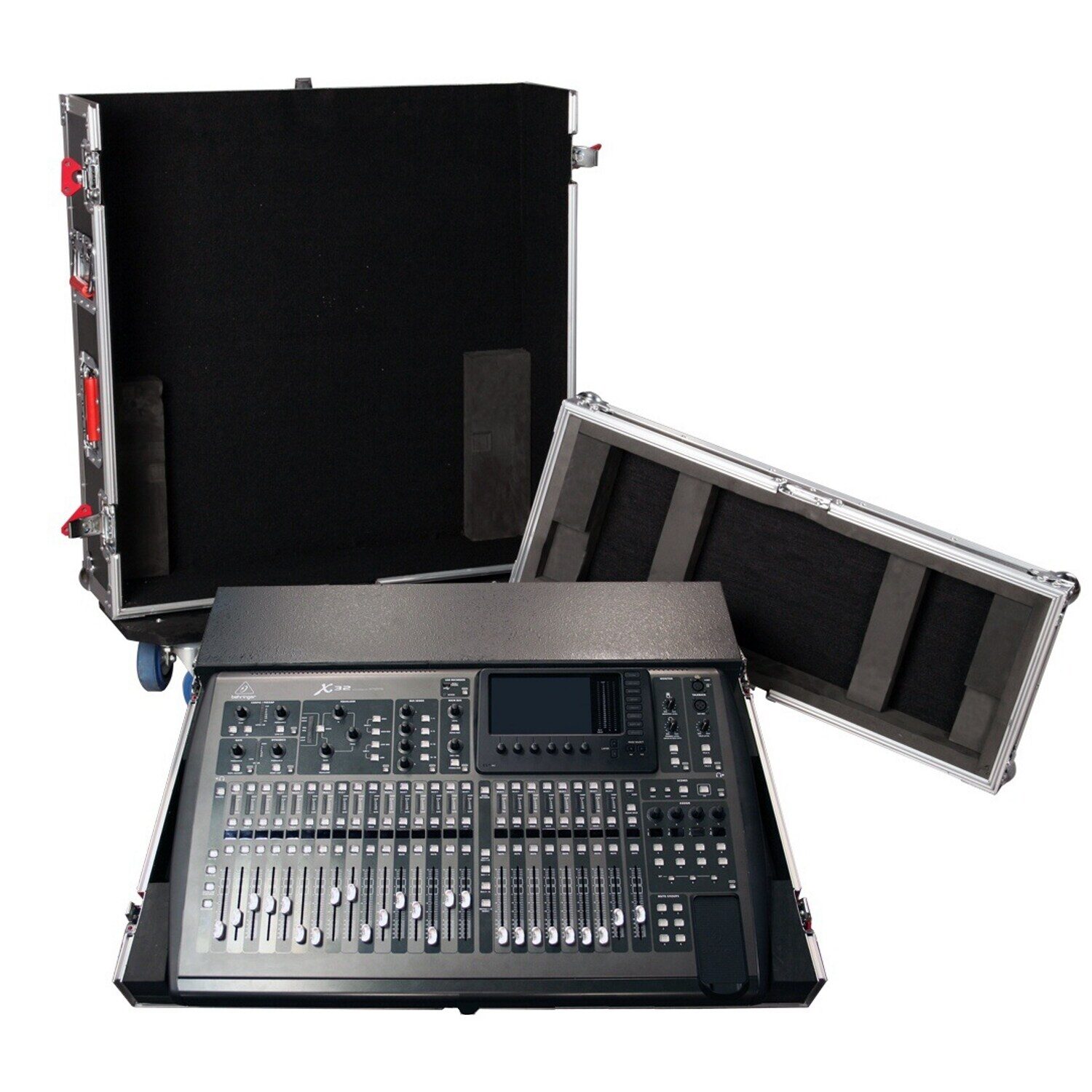

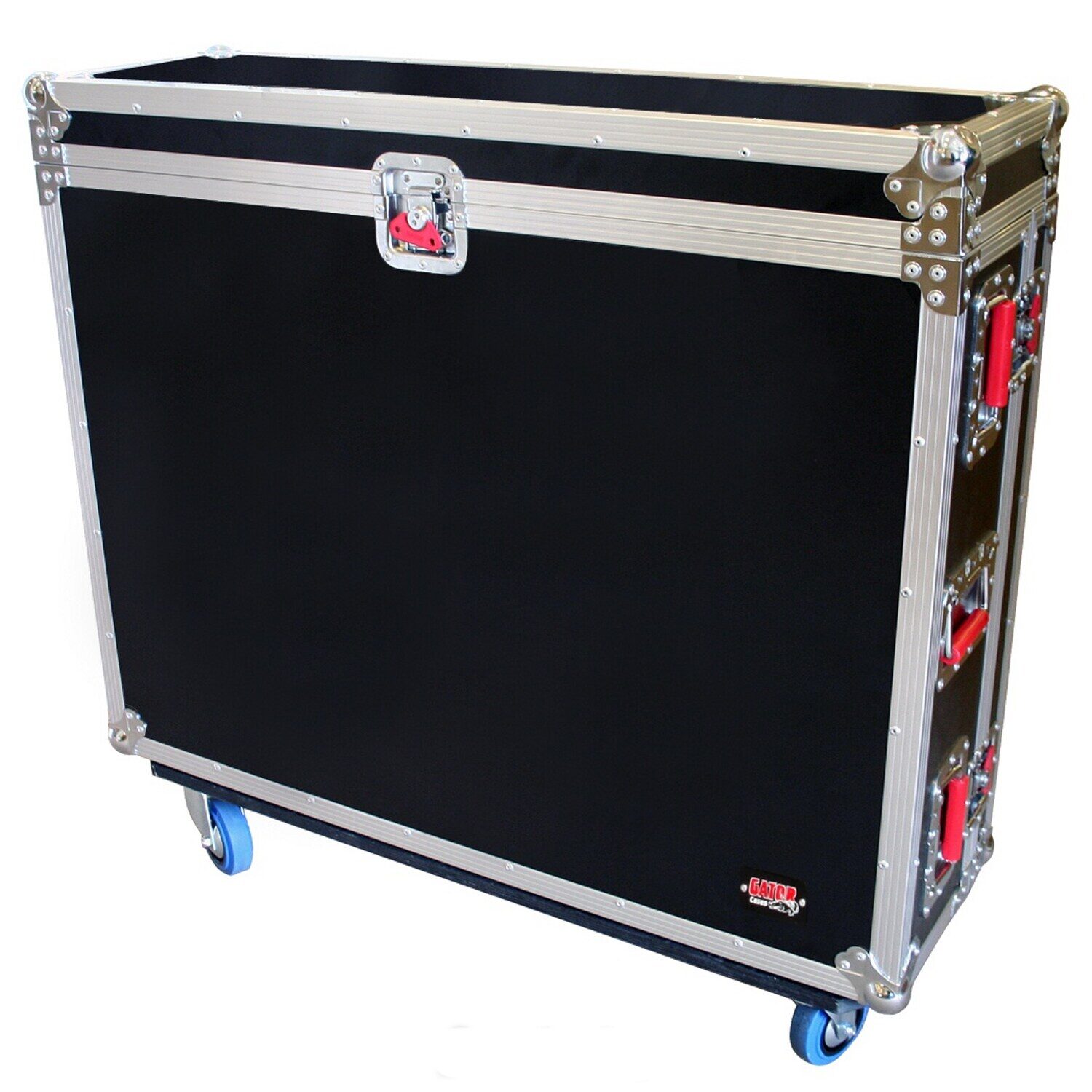

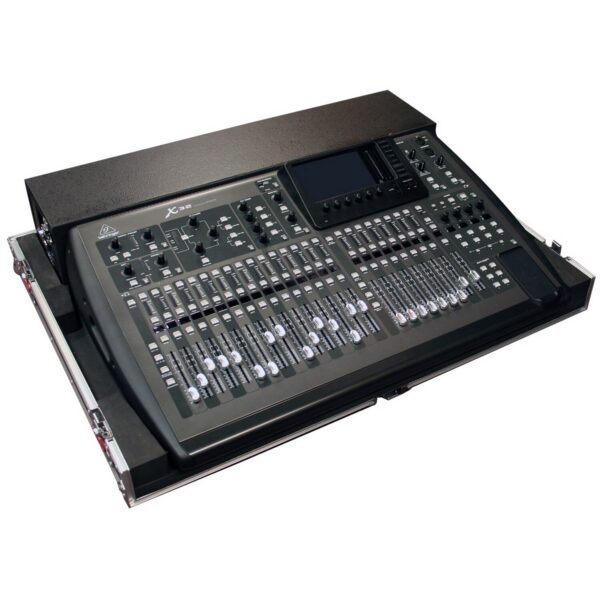

Gator Cases G-TOUR X32 Flight Case for X32 1x Gator Cases G-TOUR X32 Flight Case for X32
The highly durable Gator G-TOUR X32 is a safe haven for your valuable Behringer X32 digital mixer. This sizeable flight case is made-to-measure, highly robust and fitted with wheels.
Weight and dimensions including packaging
Weight (incl. packaging)45.1 kg
Dimensions (incl. packaging)106.0 x 87.5 x 38.0 cm
Product specifications
durable flightcase for Behringer X32
perfect fit
housing of 9mm plywood

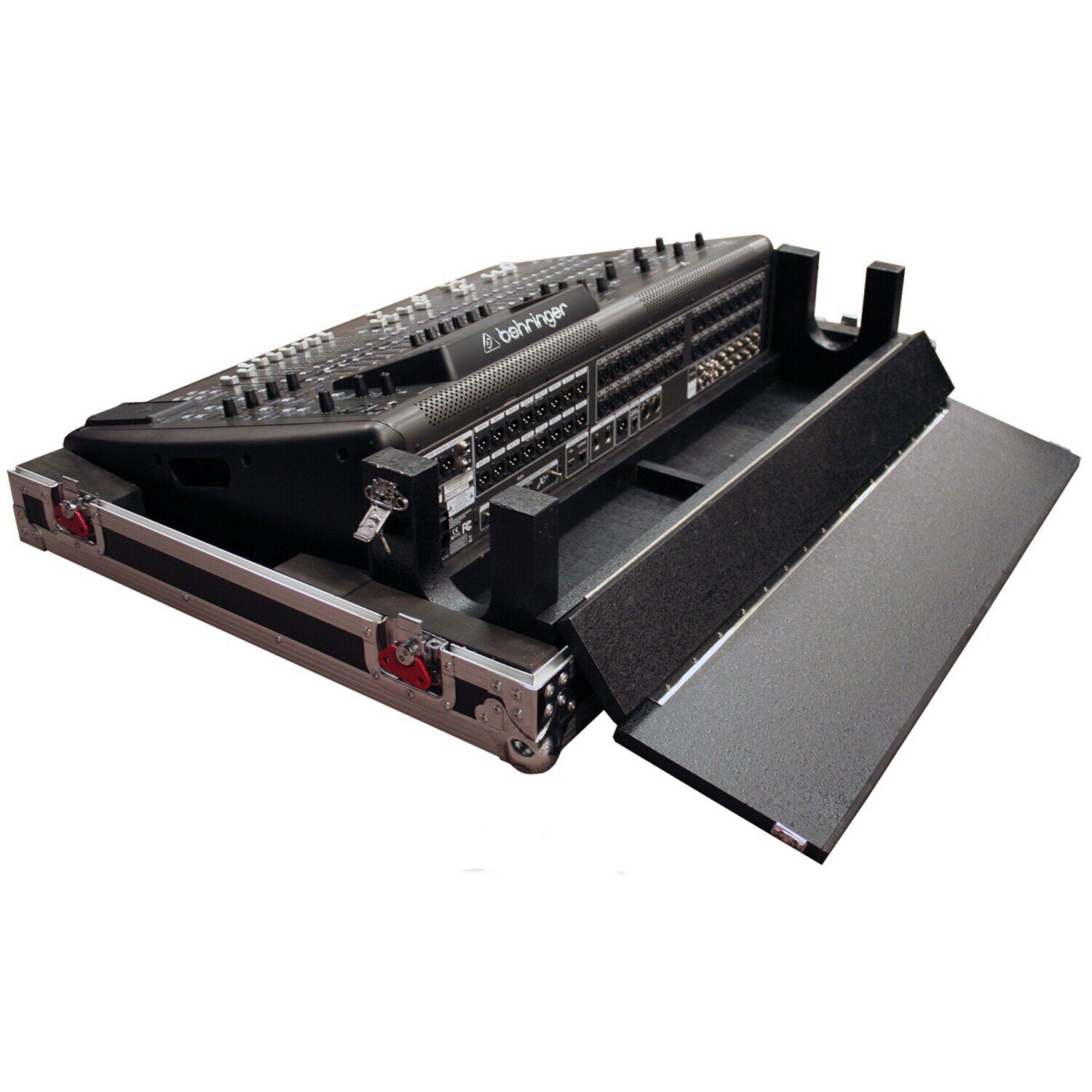

rear can be folded open to connect cables
supply rotating wheels for easy transport
interior with soft Ultra-Dur EVA foam
colour: black
interior dimensions: 902 x 531 x 203 mm
exterior dimensions: 927 x 1008 x 279 mm
weight: 44.45 kg
