Description
Specifications
Product features
Tube microphone yes
Microphone sensitivity (dBV/PA)-34
Microphone impedance 200-249 ohms
Low-cut filter no
Maximum SPL 150 dB – 159 dB
Maximum frequency 20 – 20.9 kHz
Microphone accessories shock mount, power
Minimum frequency 20 – 21 Hz
Pad switch no
Polar pattern cardioid
Stereo no
Weight and dimensions including packaging
Weight (incl. packaging)2.0 kg
Dimensions (incl. packaging)30.0 x 30.0 x 15.0 cm
Product specifications

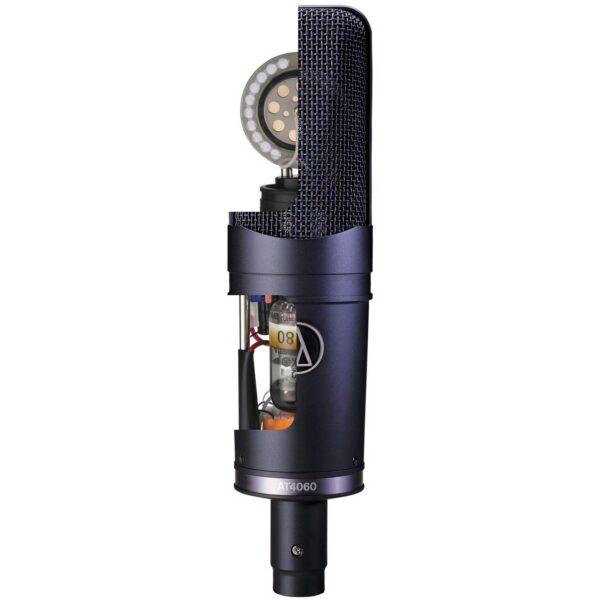

condenser tube microphone
pickup pattern: cardioid
diaphragm:
frequency range: 20 Hz – 20 kHz
sensitivity (+/- 34 dB): -44 dB (0 dB = 1V/pa, 1 kHz)
maximum sound pressure (SPL): 150 dB
dynamic range: 131 dB
signal/noise ratio: 75 dB
impedance: 200 Ohms
output power supply: 3-pin XLR
microphone diameter: 53.4 mm
length microphone: 215 mm
dimensions power supply: 46 × 212 × 131.5 mm
weight microphone: 645 g
weight power supply: approx. 1.3 kg
delivery includes:

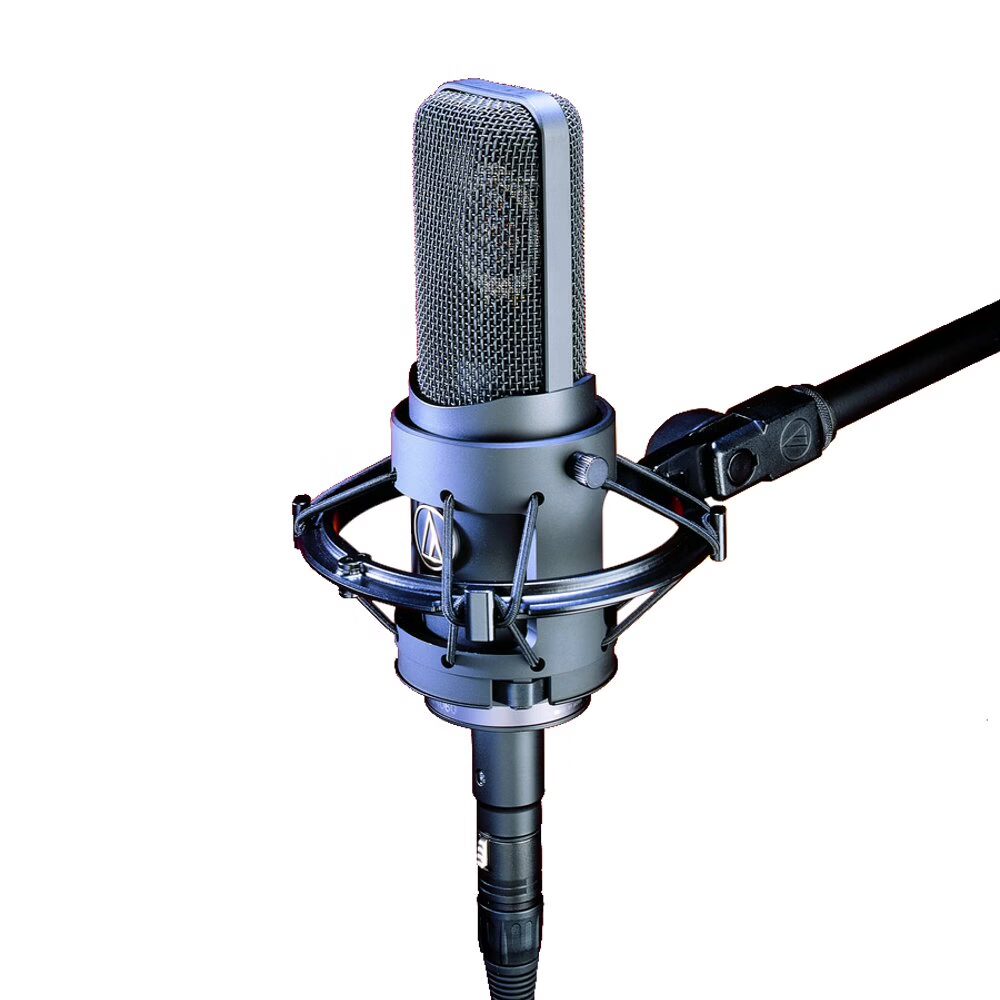

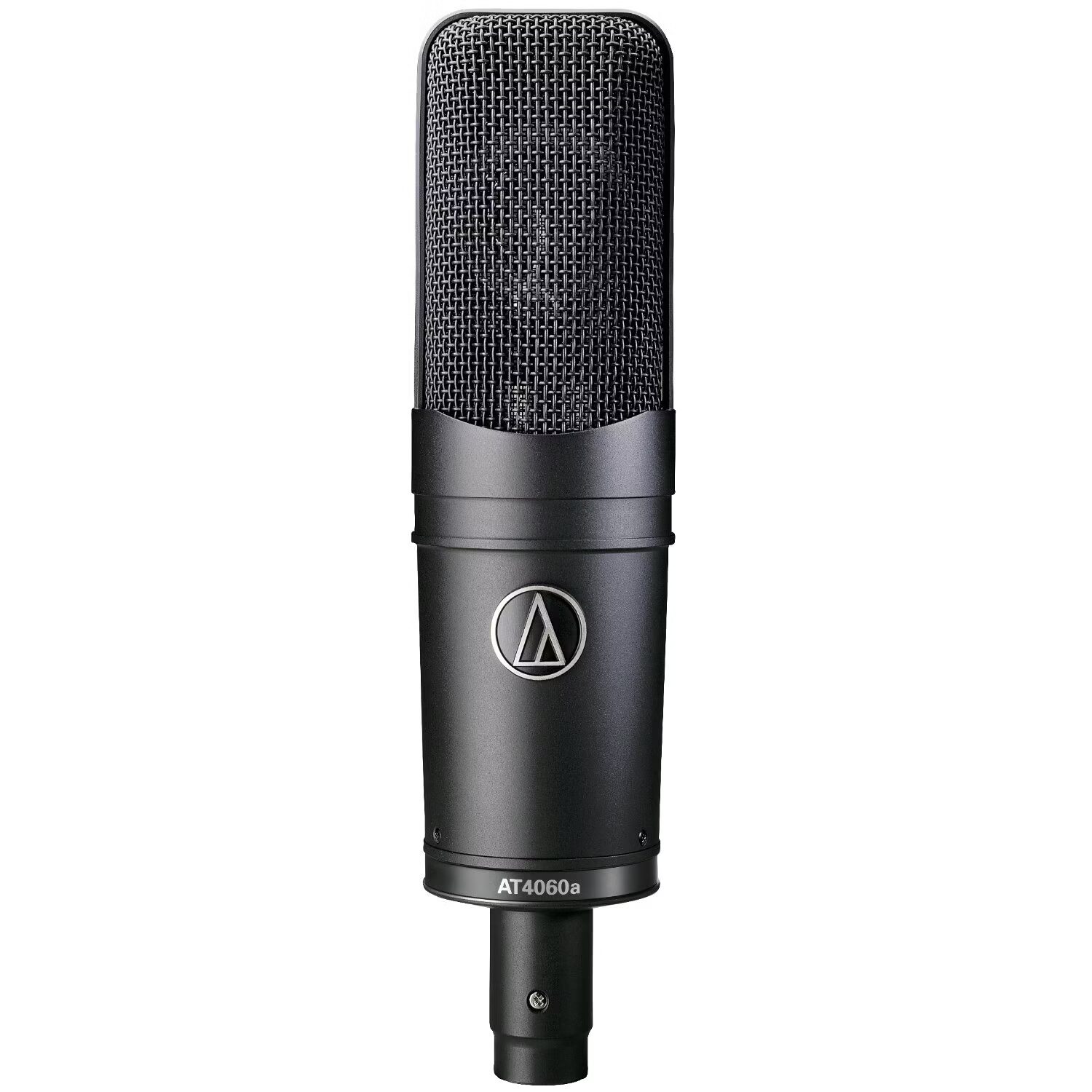

Audio Technica AT4060a tube microphone
Audio Technica AT8560 power supply with rackmount kit
Audio Technica AT8447 shockmount with screw thread adapter
6-pin XLR cable (length: 10 metres)
robust aluminium storage case
