Description
Specifications
Product features
19 inchesno
Number of analogue Inputs 8
Number of analogue outputs 8
Computer connectors USB, Thunderbolt 3 (USB C)
Deals forproducers, every one
Digital inputsS/PDIF, ADAT
Digital outputsS/PDIF, ADAT
Phantom poweryes
Suitable for operating system Apple OSX / Mac OS, Microsoft Windows
Headphone output yes
Input(s) with Hi-Z yes
Maximum sample rate 192 kHz
Included data cable USB cable
Included software none
Number of microphone inputs 4
MIDI I/O (din connector)none
Software includedyes, download
Power adapterungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)3.3 kg
Dimensions (incl. packaging)30.0 x 22.5 x 17.0 cm
Product specifications

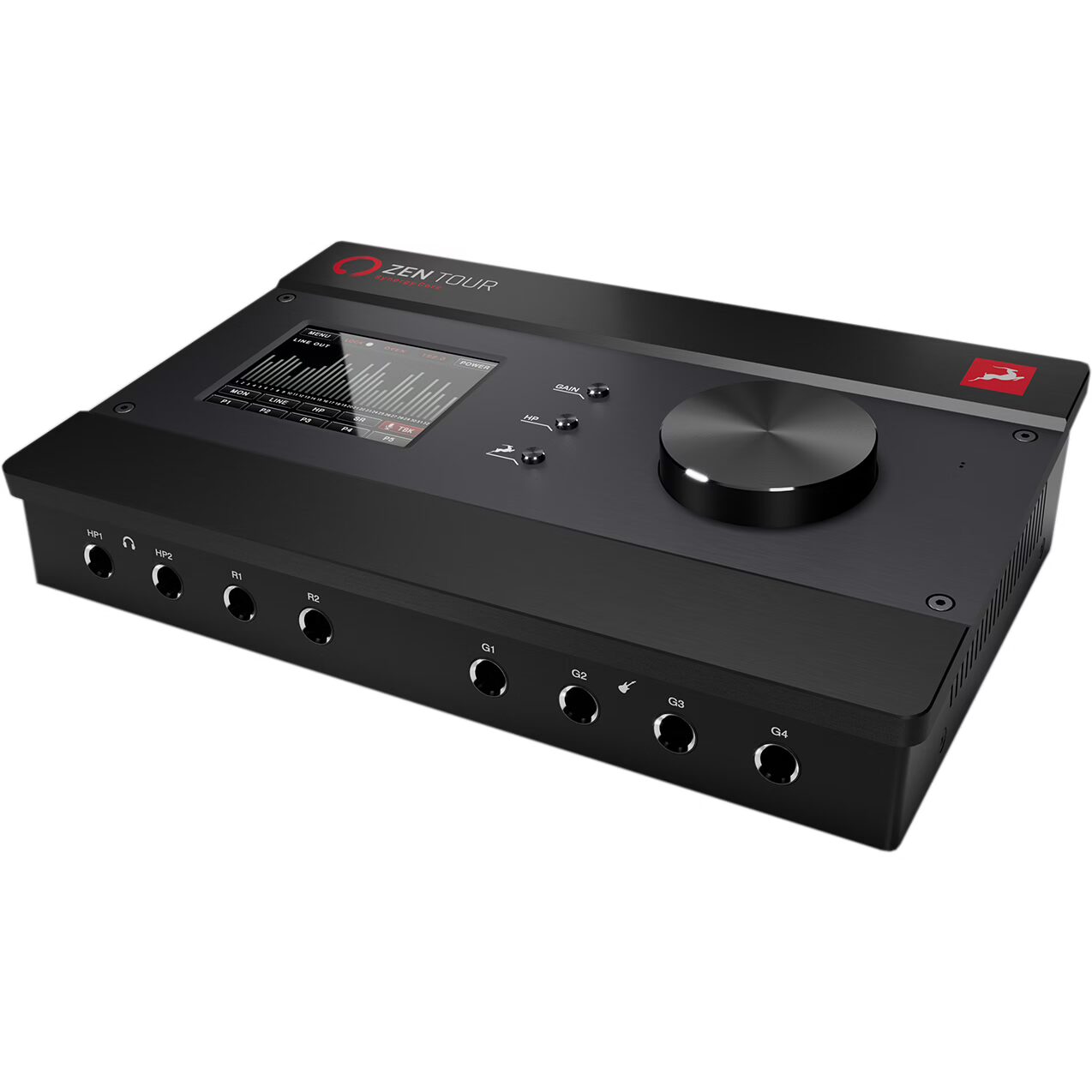

Thunderbolt 3 and USB 2.0 Audio Interface

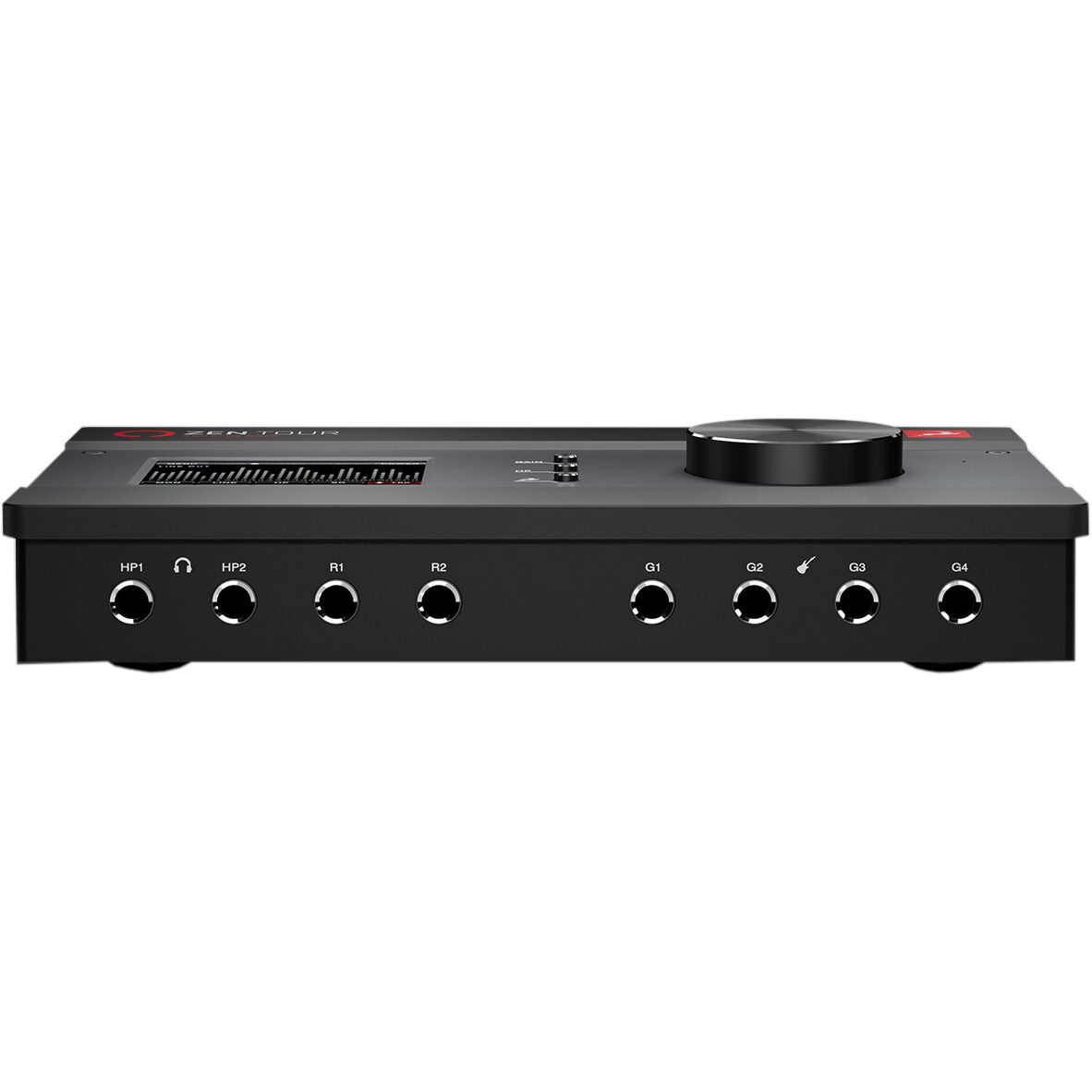

analogue inputs:
4x instruments/line (TRS)

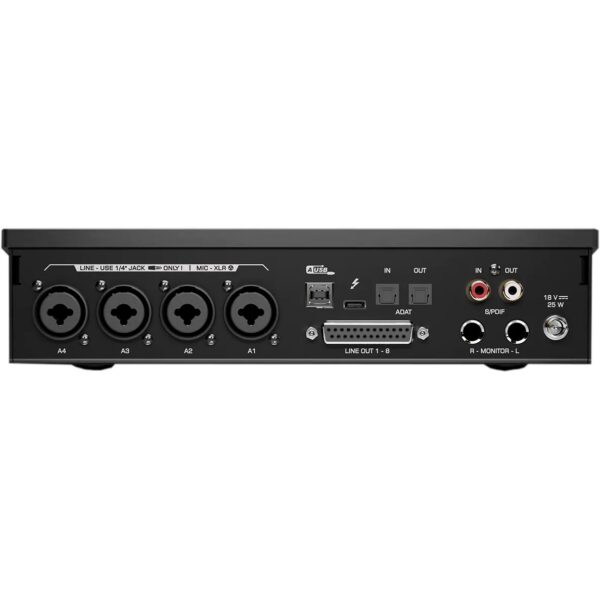

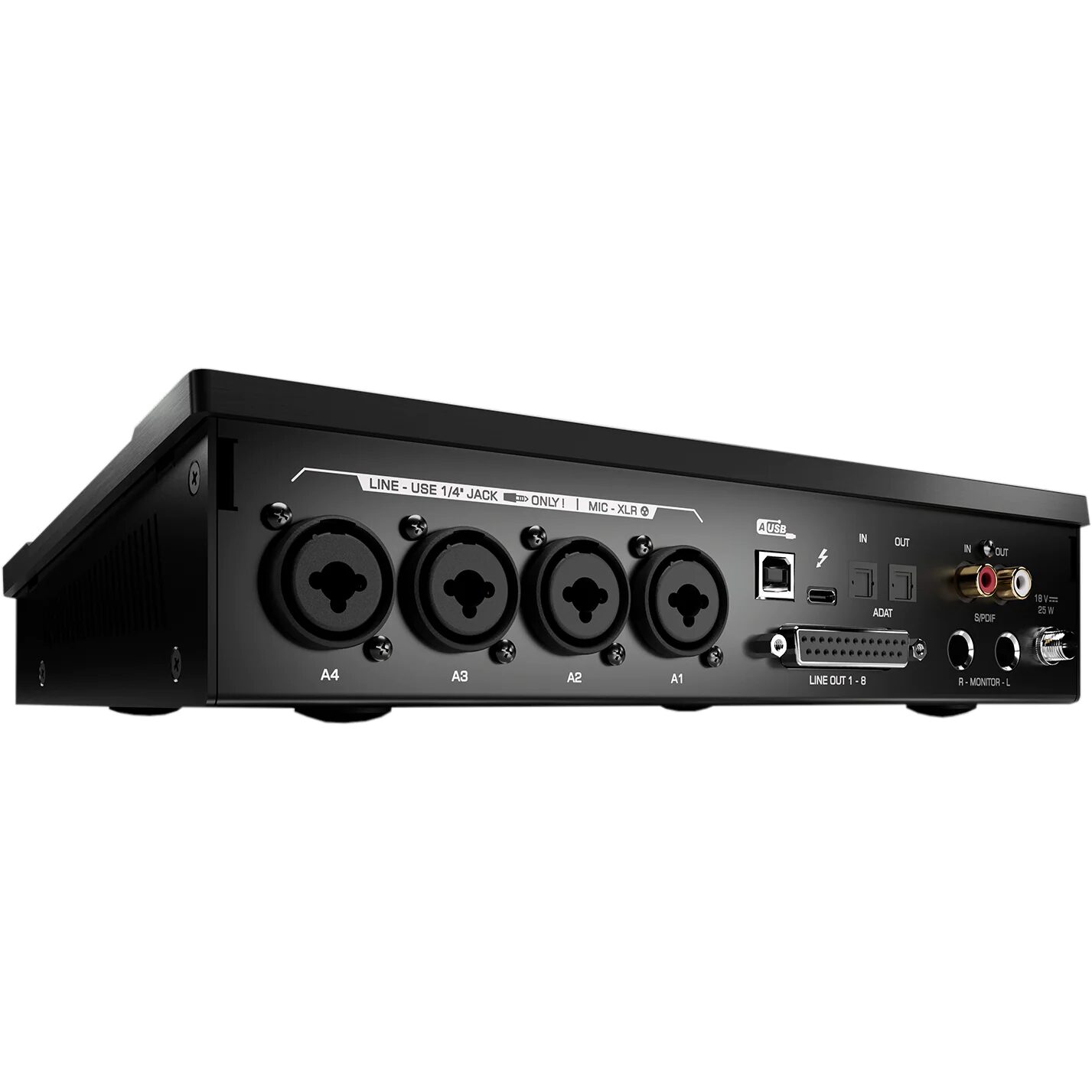

4x microphone/line (TRS/XLR combo jack)
analogue inputs:
8x line (DB25)
2x monitor (TRS jacks)
2x headphone (TRS)
2x ‘transformer based’ re-amp outputs (TRS jack)
all line outputs are ‘DC-coupled’ and support CV apllications
digital:
ADAT: 44.1/48kHz – 8 inputs / 8 outputs
88.2/96kHz – 4 inputs / 4 outputs
176.4/192kHz – 2 inputs / 2 outputs
S/PDIF:
44.1 to 192 kHz – 2 inputs / 2 outputs
USB: USB-B 2.0
Thunderbolt 3: type C port (up to 32 channels)
microphone preamps:
EIN: -128dBu
dynamic range: 121dB
THD: -106dB
maximum input: -20dBu
maximum gain: 75dB
A/D-conversion:
124dB DNR
-110 THD+N
D/A-conversion:
127dB DNR
-100 THD+N
D/A monitor converter:
130dB DNR
-115 THD+N
sample rates (kHz):
44.1, 48, 88.2, 176.4, 192kHz
clocking:
4th generation Acoustically Focused Clocking & Jitter Management
64-bit DDS
