Description
Specifications
Product features
19 inchesyes
Number of analogue Inputs 64
Number of analogue outputs 64
Computer connectorsThunderbolt 3 (USB C), HDX
Digital inputsS/PDIF, AES/EBU (AES3), MADI, DigiLink
Digital outputsS/PDIF, AES/EBU (AES3), MADI, DigiLink
Phantom powerno
Suitable for operating systemApple OSX / Mac OS, Microsoft Windows
Headphone outputyes
Input(s) with Hi-Zyes
Maximum sample rate 192 kHz
Included data cableThunderbolt cable
Included softwarenone
Number of microphone inputsn/a
MIDI I/O (din connector)not specified
Software includedno
Weight and dimensions including packaging
Weight (incl. packaging)8.7 kg
Dimensions (incl. packaging)64.0 x 34.5 x 15.0 cm
Product specifications

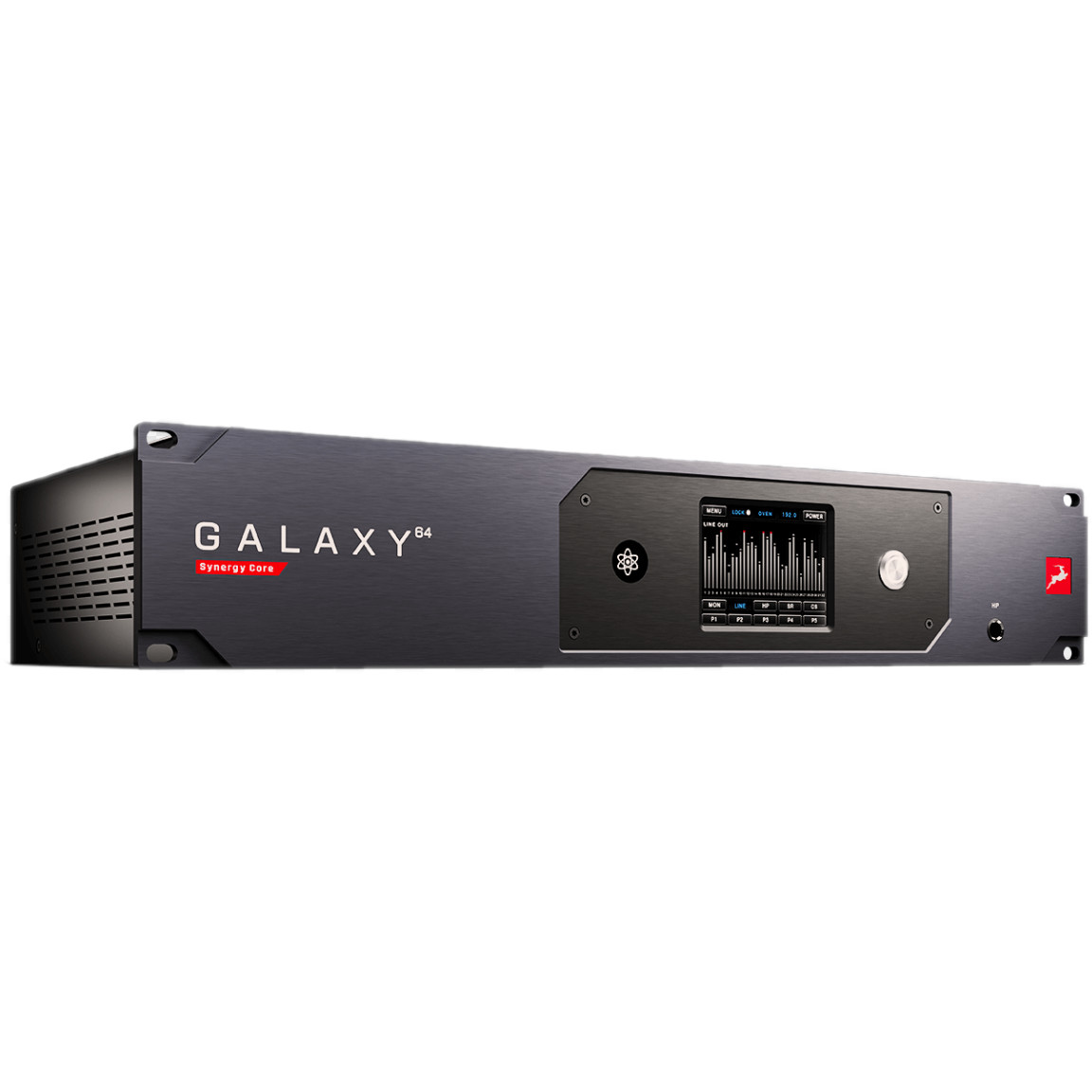

Dante, HDX, Thunderbolt 3 audio interface
digital and network connections:
2x Dante ports (audio over IP) up to 64 channels
2x Thunderbolt 3 ports, up to 64 channels
4x HDX ports for Pro Tools integration, up to 128 channels
AES, optical MADI and S/PDIF digital connection options
redundancy via Dante, Thunderbolt 3 and optical MADI
Synergy Core effect platform with 12x DSP + 2x FPGA processing

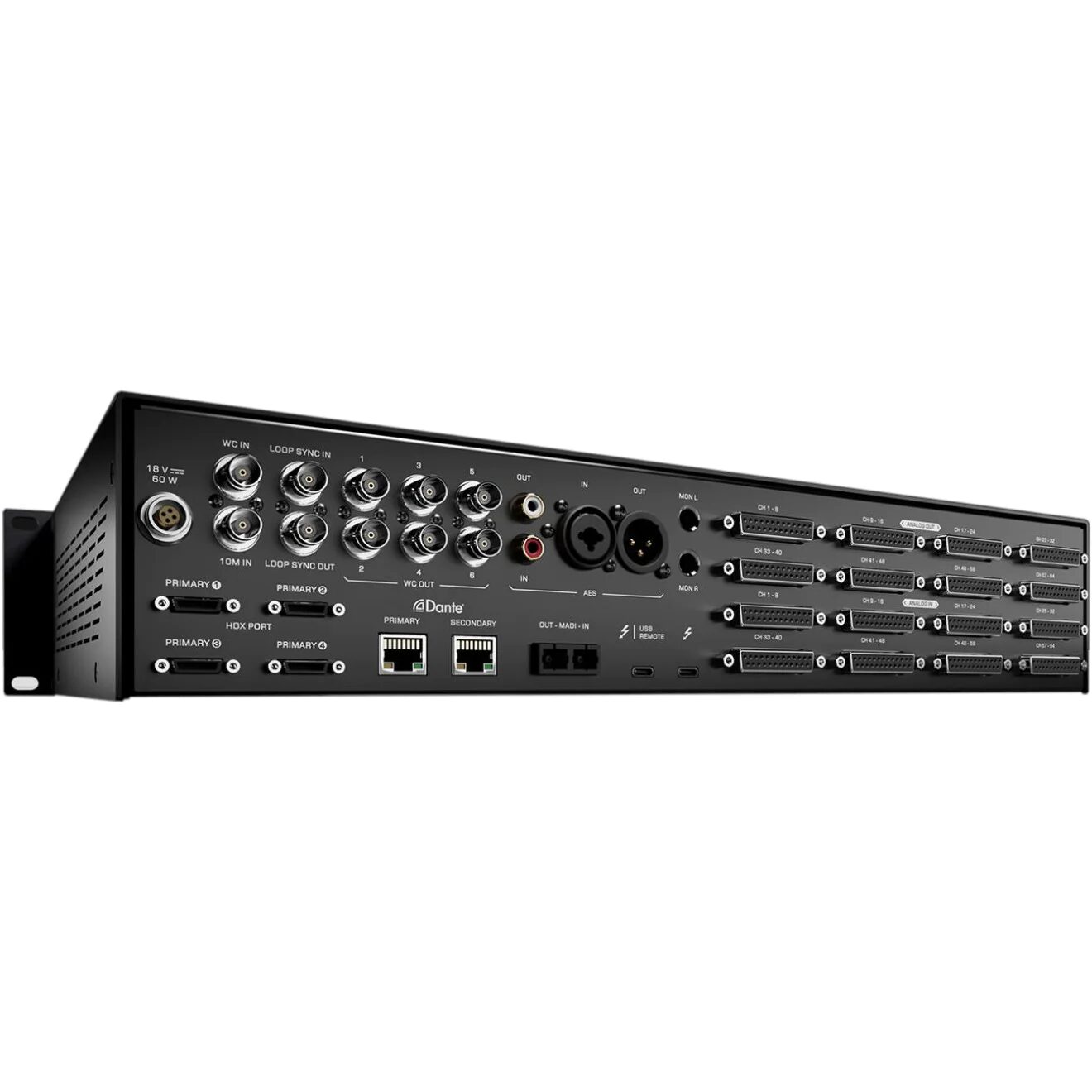

analogue connectors:
64 channels, analogue inputs over 8x D-SUB 25 connectors
64 channels, analogue outputs over 8x D-SUB 25 connectors
clocking system:
64-bit Acoustically Focused Clocking jitter management algorithm
10M reference input over BNC
loop-sync and word clock over BNC
