Description
Specifications
Product features
Number of amplifier channels 4
Guitar amplifier effects reverb, chorus, delay, effects loop
Extra amplifier functions ground lift, phantom power
Weight 10 – 14.9 kg
Amplifier inputs microphone (XLR/jack), line-in balanced (jack/XLR), stereo line-in / aux (RCA/mini jack)
Built-in tweeter no
Amplifier out puts direct out (TRS jack/XLR), headphones
Power in Watts 101 – 150 Watts
Can be powered by battery no
Weight and dimensions including packaging
Weight (incl. packaging)14.0 kg
Dimensions (incl. packaging)45.0 x 40.0 x 35.0 cm
Product specifications

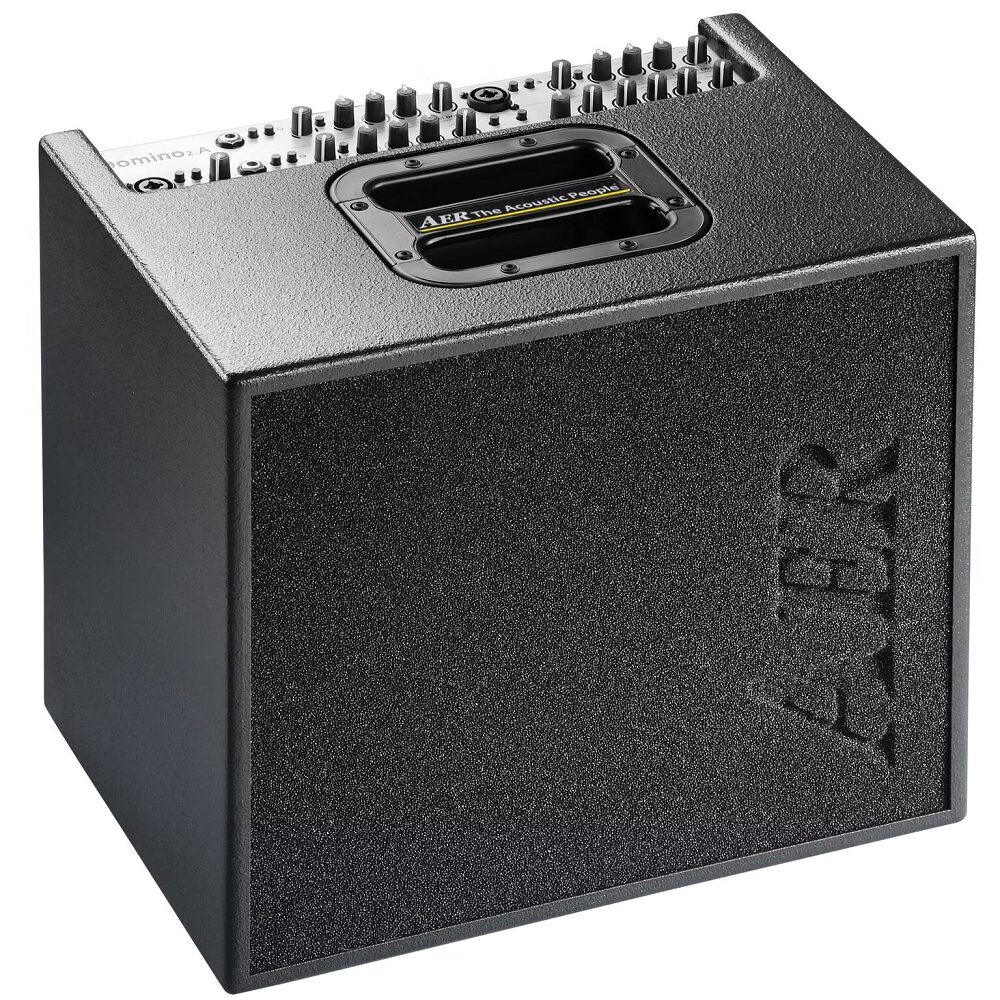

AER acoustic guitar amplifier combo
4 independent channels (bass, bass/vocals)
power capacity: 2x 60 Watts (4 Ohm)
32-bit effects processor with 16 presets
with software tool for Windows to connect your laptop to:
adjust the effect parameters
create and store your own effects
digital effects:
ambience (3x)
reverb (5x)
delay (3x)
chorus
delay with reverb
reverb with delay
chorus with reverb
reverb with chorus
speaker: 2x 8-inch neodymium woofer
controls per channel:
gain
bass
middle
treble
eff. send
controls:
master
eff. level
pre out
aux input
effect select ch 1/2
effect select ch 3/4
DI level
switches:
power on
line/mic (4x)
pad (4x)
colour(4x)
mute (4x)
phantom power (9V ch. 1, 9V ch. 3, 48V)
ground lift
inputs:
input per channel (4x 6.35 mm mono-jack/XLR)
return (FX loop, mono jack)
insert 2x mono jack)
footswitch (2x 6.35 mm mono-jack)
aux in (RCA)
USB in
outputs:
headphones (stereo jack)
2x mono jack output)
DI (XLR)
return (FX loop, mono jack)
tuner (mono jack)
send (mono jack)
active speaker (6.35 mm mono-jack)
rec output (RCA)
USB lamp
dimensions: 360 x 410 x 290 mm
weight: 12.8 kg
