Description
Specifications
Product features
Number of cymbals (excl. hi-hat) 2
Number of toms 2
Includes bass drum pedal no
Includes cymbals yes
Includes drum stool no
Includes drum sticks no
Includes headphones no
Includes rack not applicable
Built-in speakers no
Mesh-head drum pads yes, snare drum + toms
Also acoustic no
Type electronic drum kit full-size
Power adapter ungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)42.0 kg
Dimensions (incl. packaging)170.0 x 140.0 x 120.0 cm
Product specifications

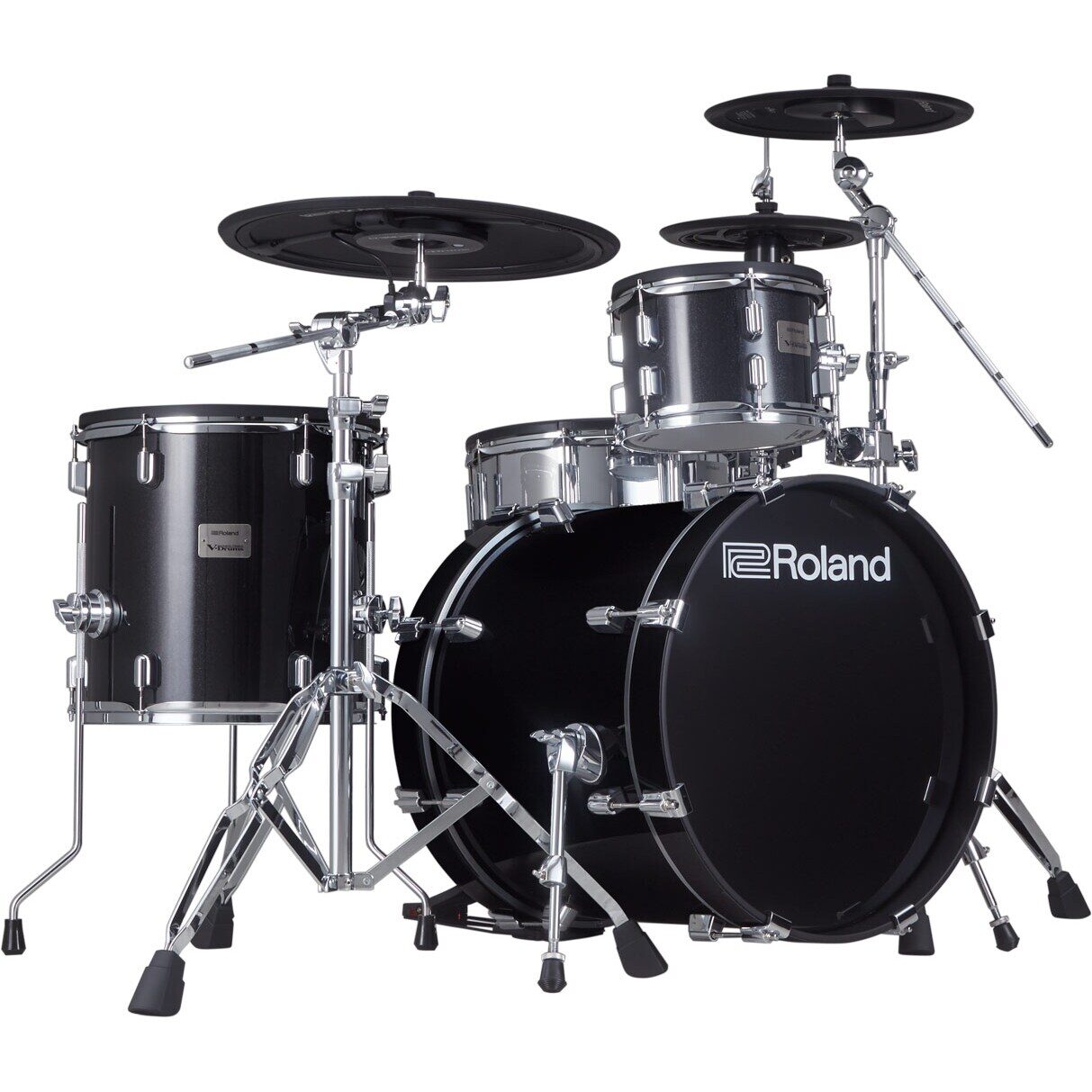

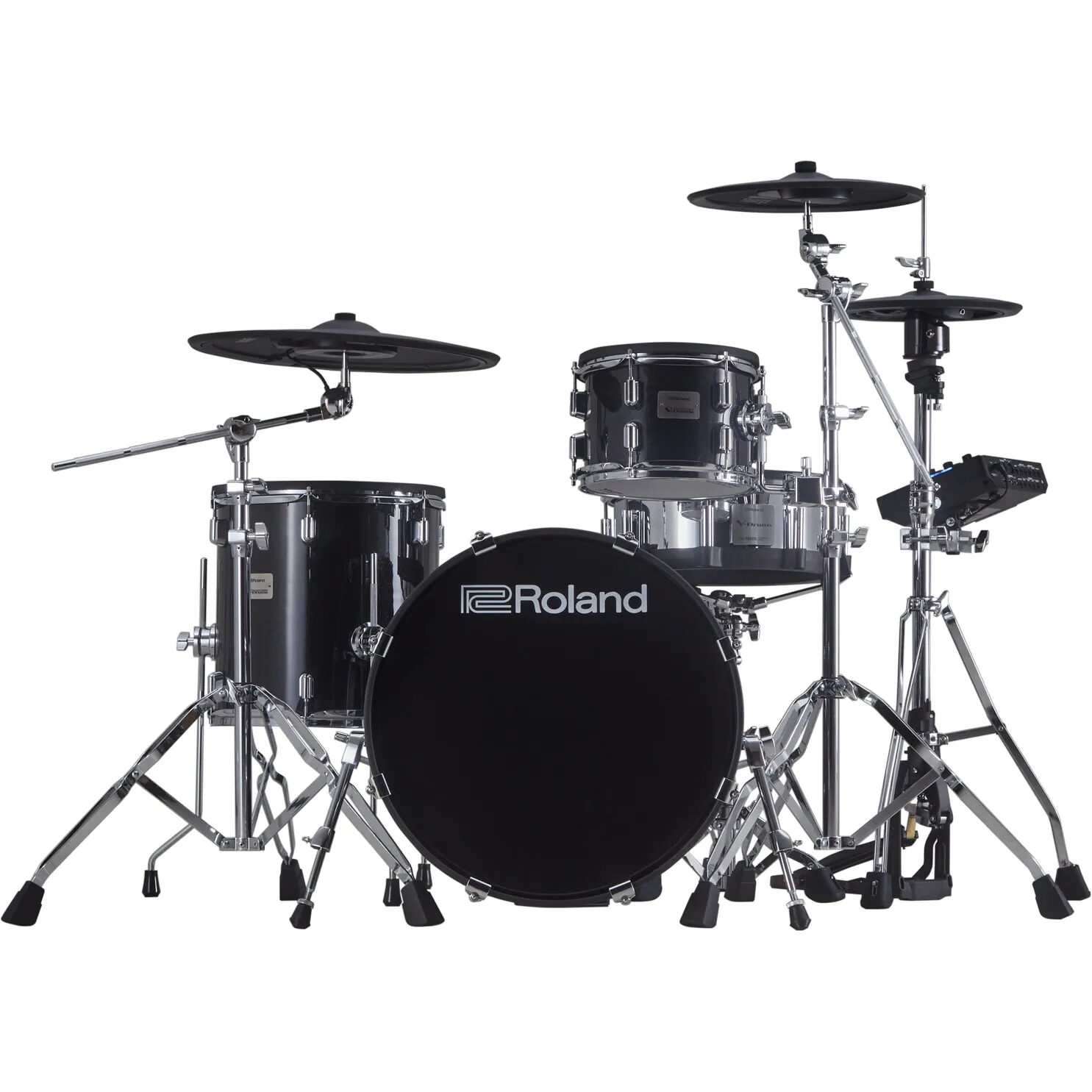

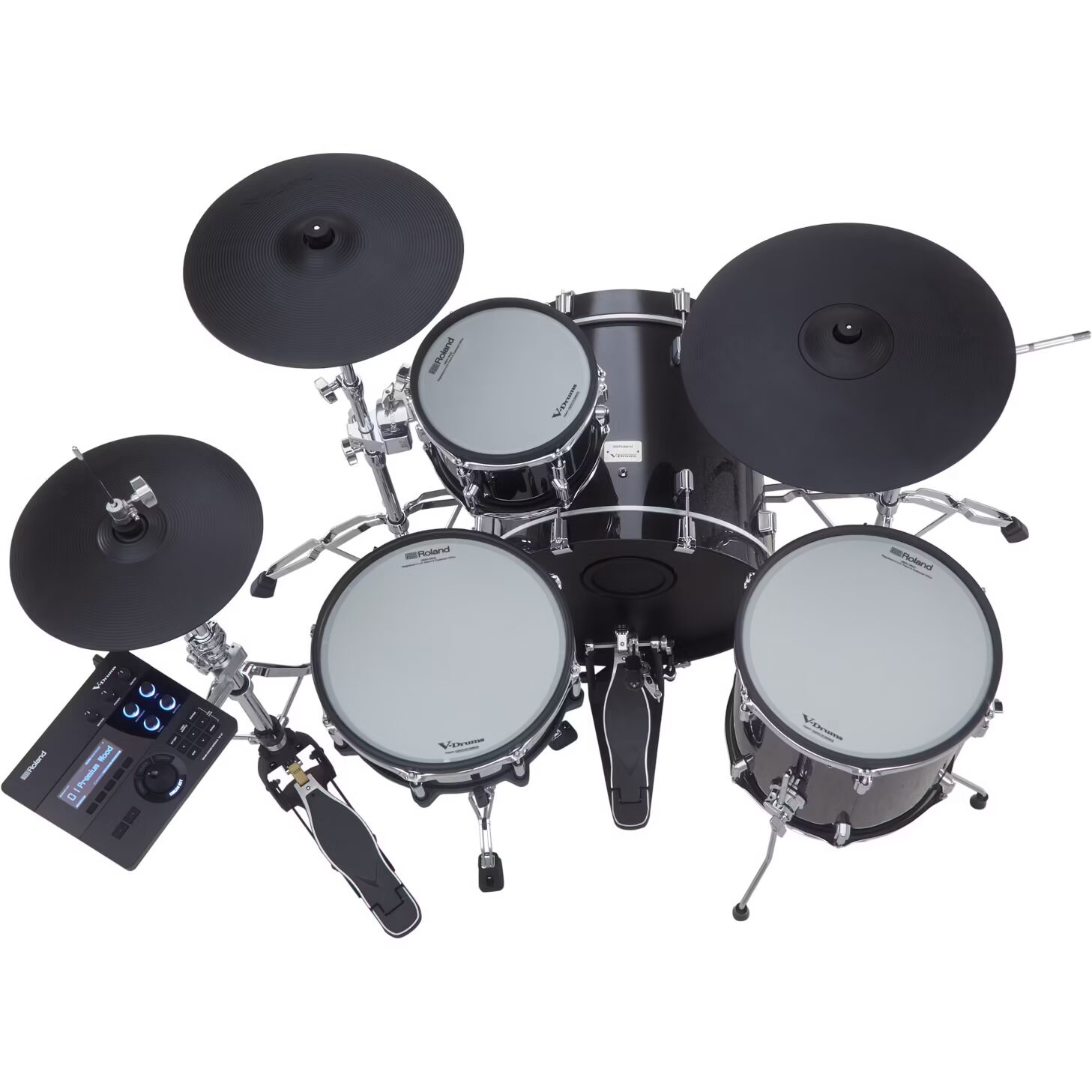

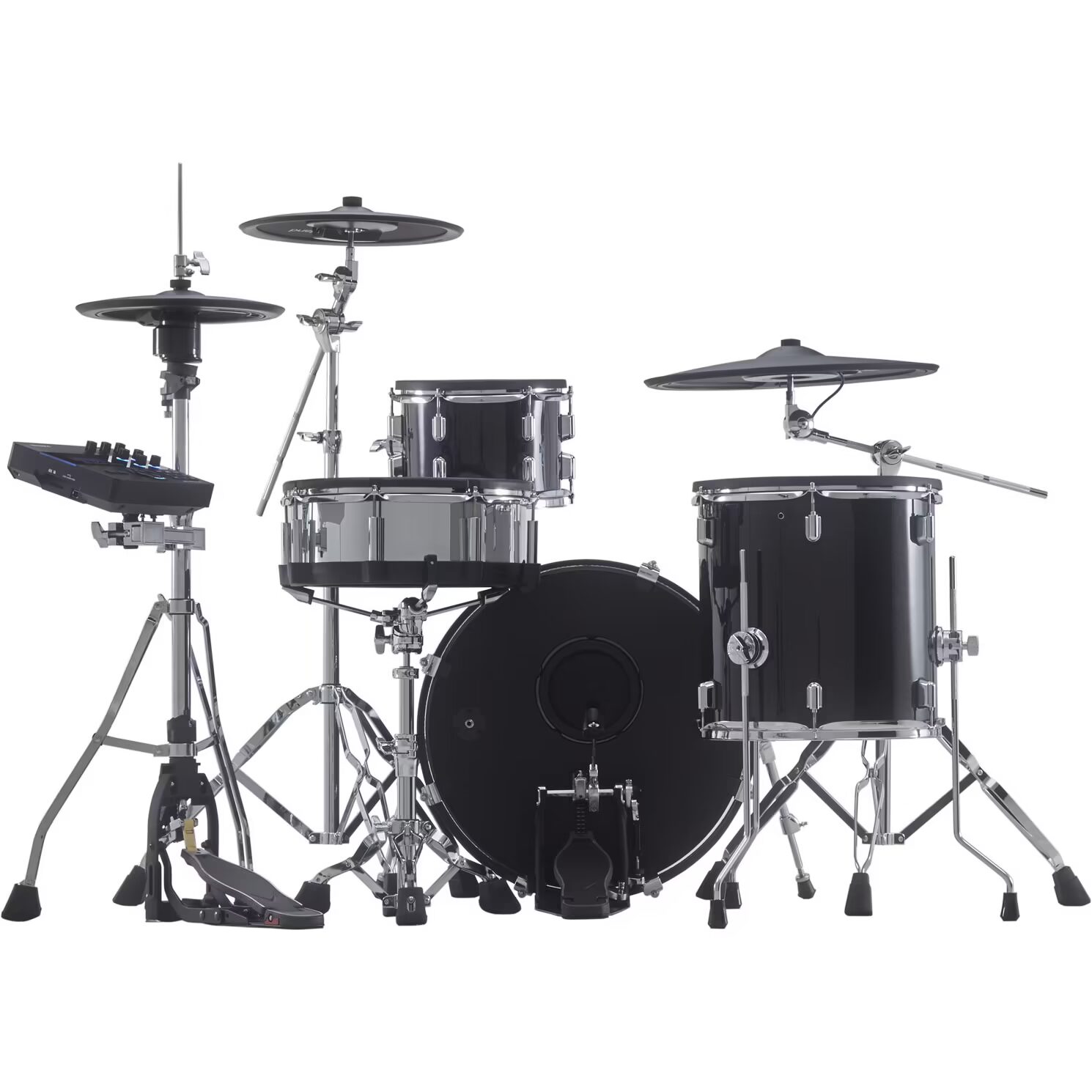

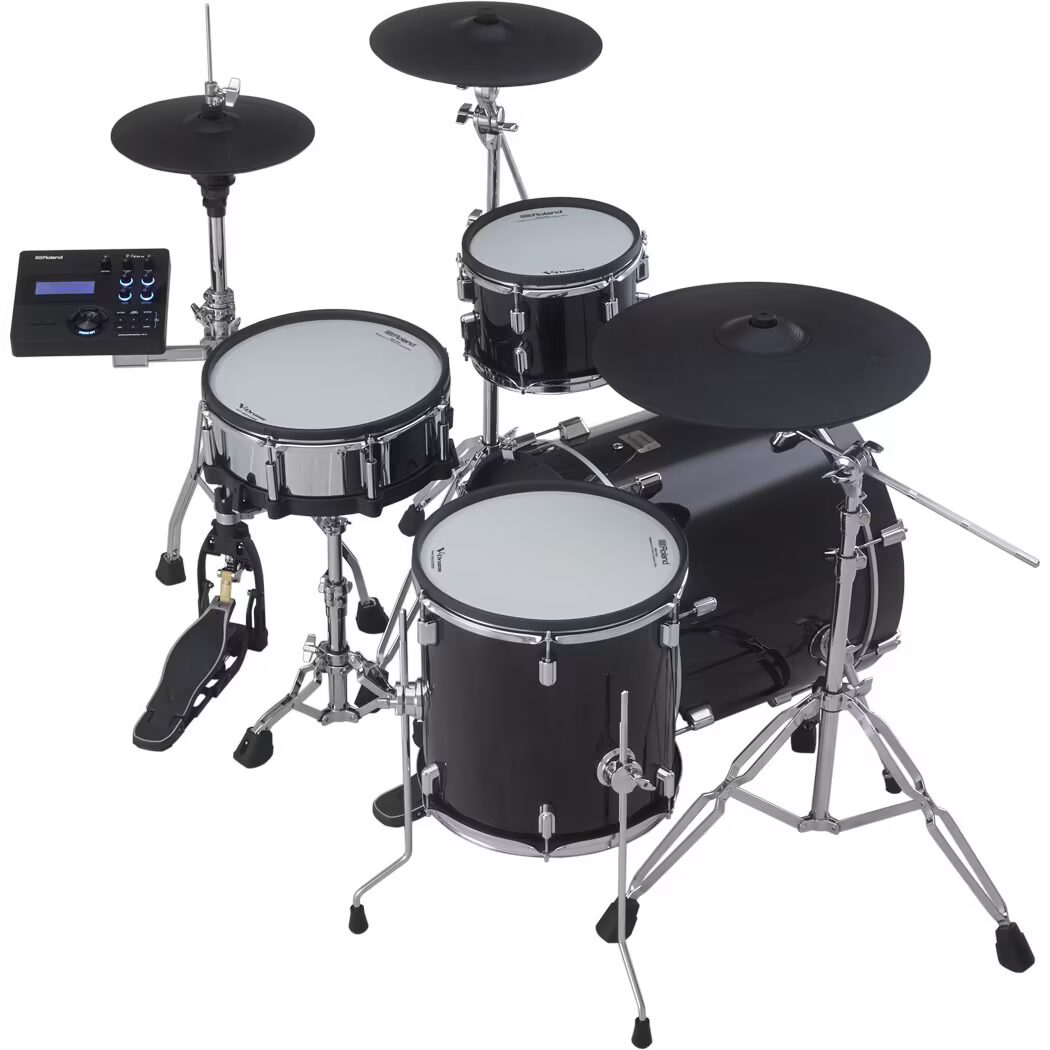

Roland VAD503 Acoustic Design V-Drums
electronic drum kit

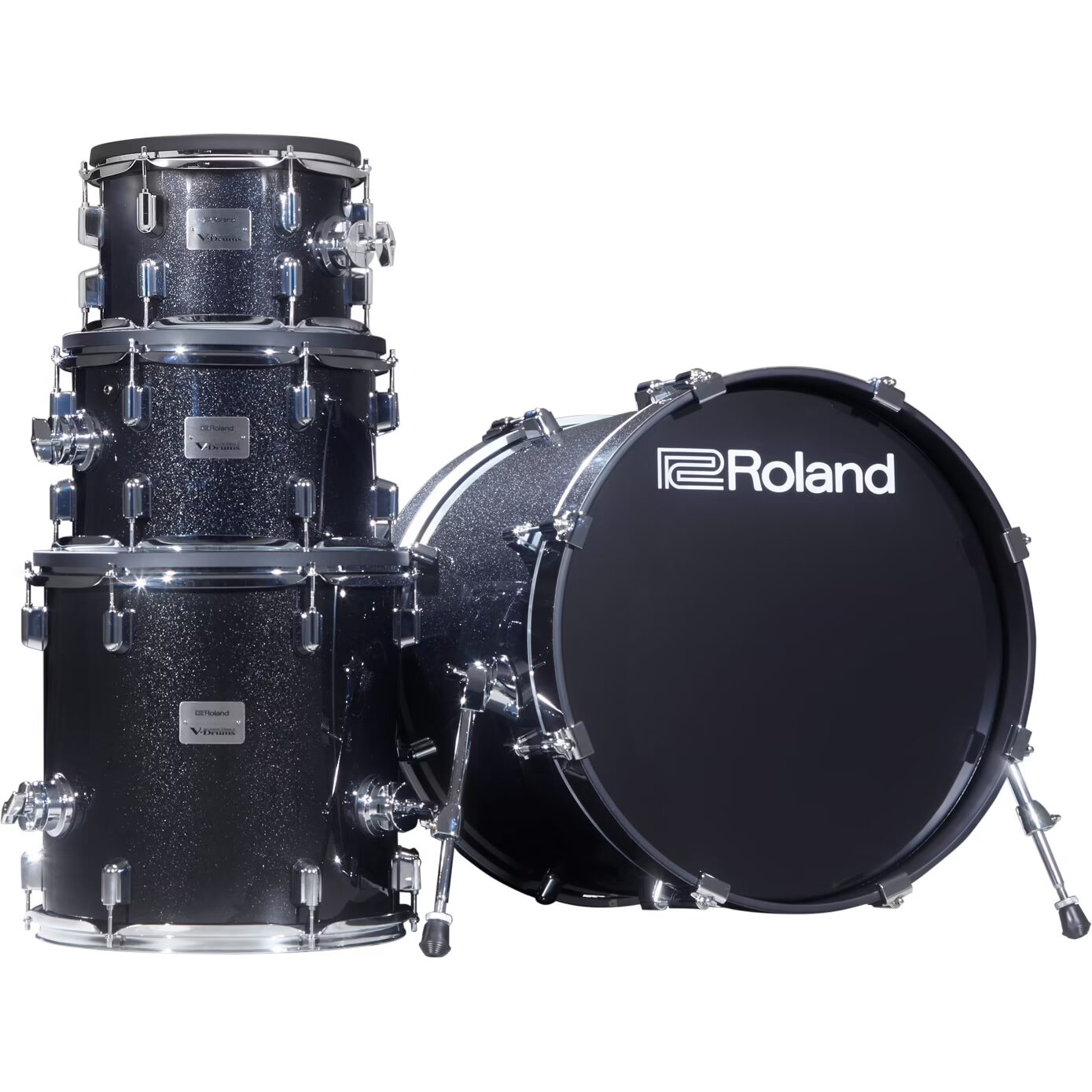

configuration:
snare: PD-140DS x 1
tom1: PDA100-MS x 1
tom3 (floor tom): PDA140F-MS x 1
hi-hat: VH-10 x 1
crash: CY-14C-T x 1
ride: CY-18DR x 1
kick: KD-200-MS x 1
1x ‘Drum Combination’ stand DCS-10
1x boom stand DBS-10
1x universal clamp APC-10

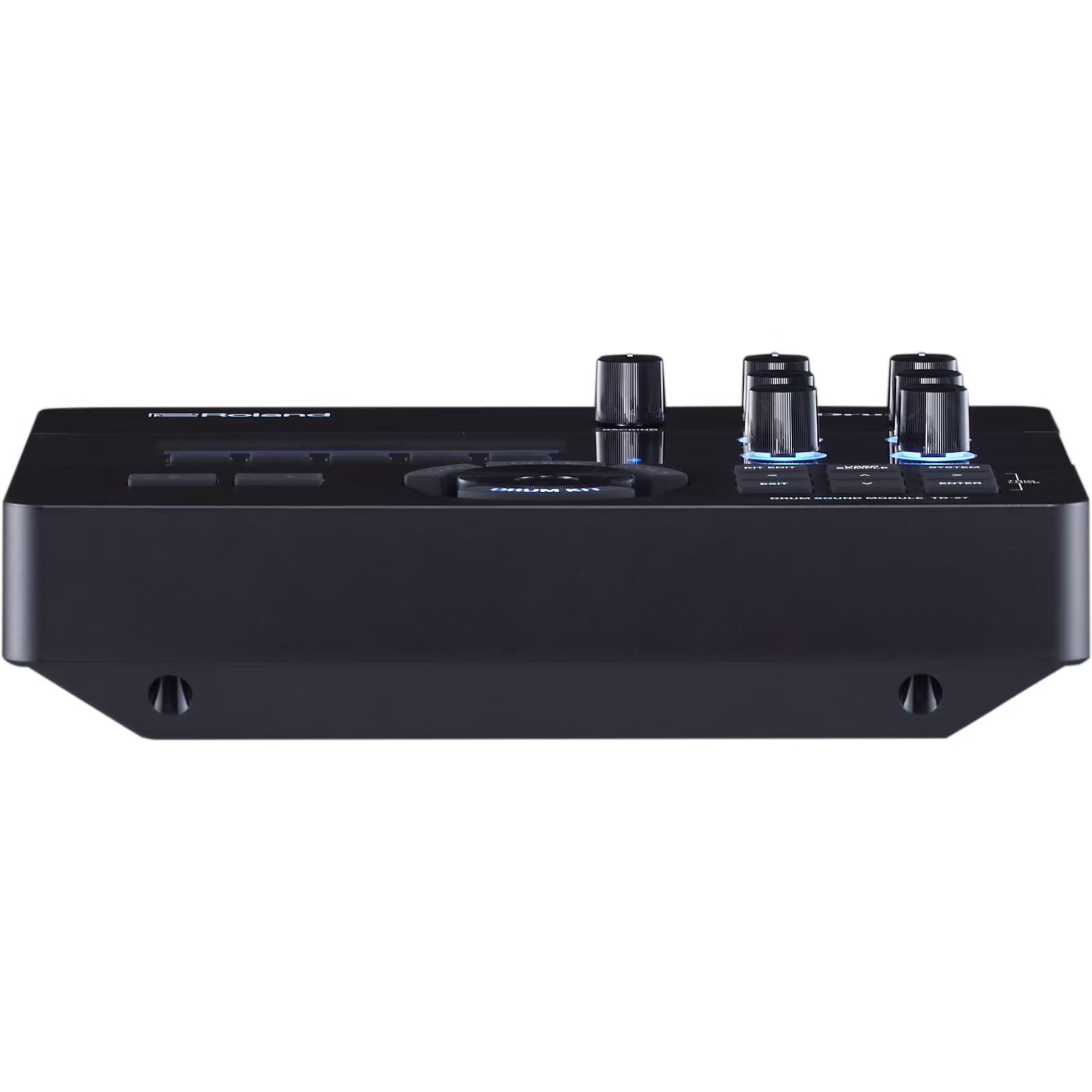

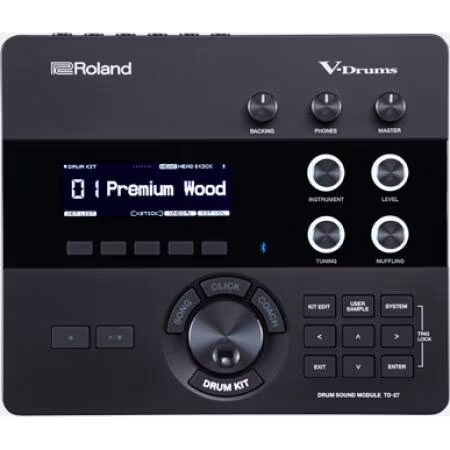

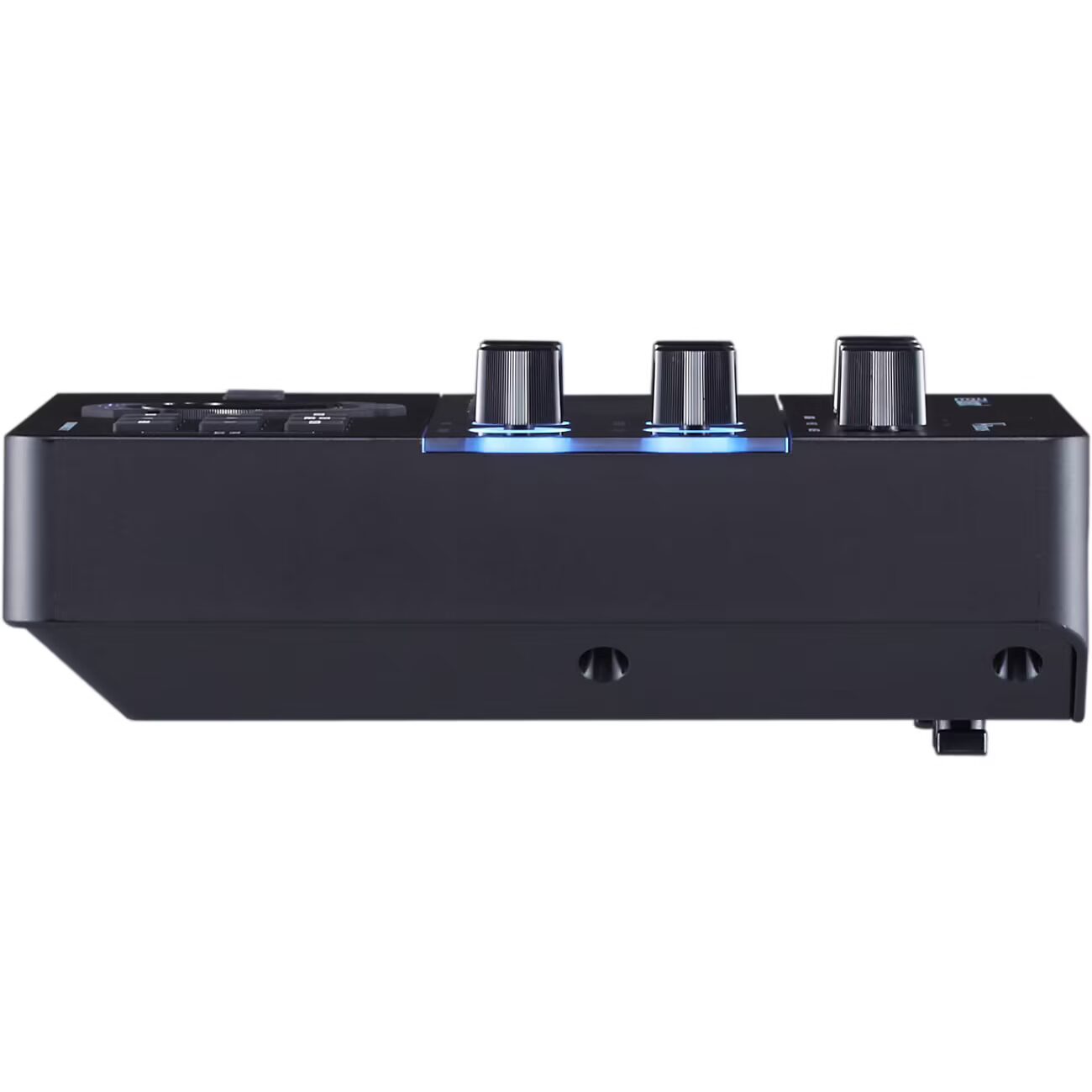

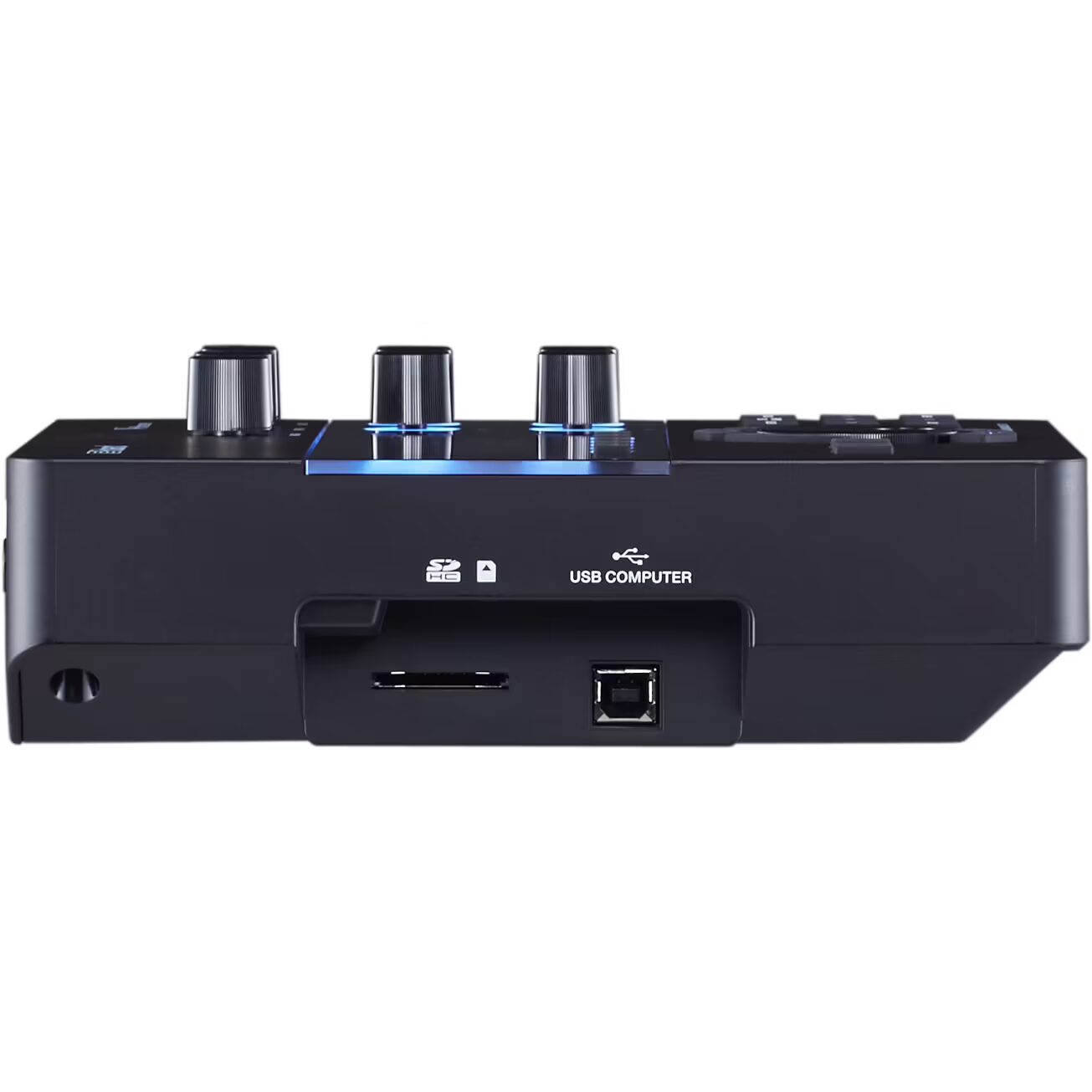

module: Roland TD-27

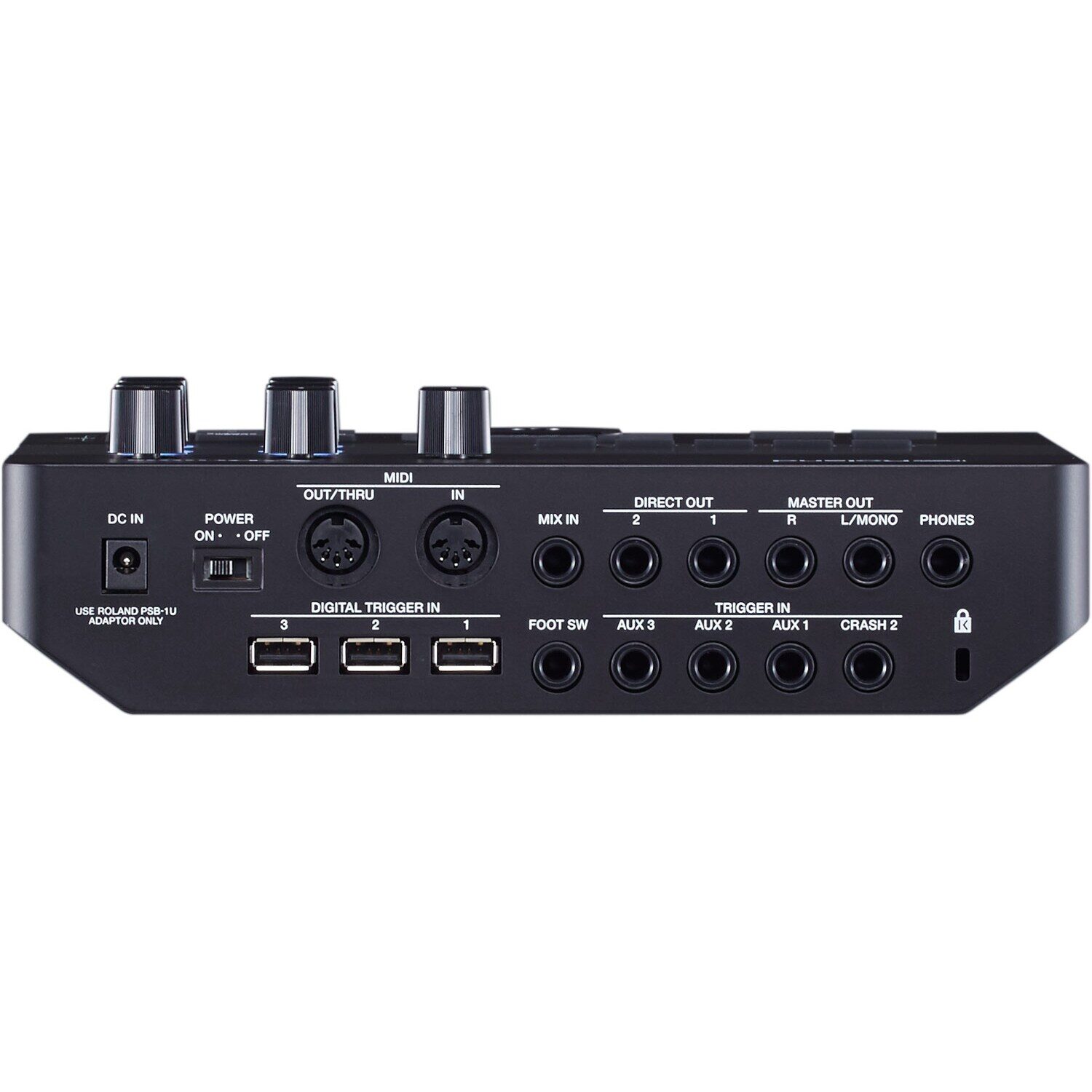

connections:
1x trigger input connector DB-25 (for kick, snare, tom1, tom2, tom3, hi-hat, crash1, ride, ride bell, hi-hat)
4x trigger-in jack sockets
3x digital trigger-in sockets (USB-A)
master outputs
direct outputs
headphone output
mix-in AUX input (jack connector)
MIDI I/O/THRU ports
USB computer port: USB B
Foot SW jack port
DC-in power input
drum kits: 100 (55 presets)
instruments: 728
max. user-samples: 500 (including factory samples)
user-sample file format: WAV (44.1 kHz, 16/24 bits)
effects:
pad compressor
pad equalizer
overhead mic simulator
room/reverb
multi-effects : 3 systems, 30 types
master compressor
master equalizer
bluetooth: supported version 4.2, profiles: A2DP & GATT, Codec: SBC
media player (SD-card): supports WAV (44.1 kHz, 16/24 bits) & MP3
recorder: records in real-time, max. recording time of 60 minutes, exports in WAV 44.1 kHz, 16 bits
display: LCD, 256 x 80 dots
external memory: SD-card (SDHC also supported)
USB audio:
possibility to record up to 28 channels
sample rate: max. 44.1 KHz
sample rate with converter: 96 kHz, 48 kHz
playback: 4x channels
power supply (DC 9 V)
included accessories:
sound module mounting clamp
power supply
special connection cable
drum key
assembly manual
user manual
