Description
Specifications
Product features
Number of cymbals (excl. hi-hat) 3
Number of toms 3
Includes bass drum pedal no
Includes cymbals yes
Includes drum stool no
Includes drum sticks no
Includes headphones no
Includes rack not applicable
Built-in speakers no
Mesh-head drum pads yes, snare drum + toms
Also acoustic no
Type electronic drum kit full-size
Power adapterungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)35.3 kg
Dimensions (incl. packaging)130.0 x 120.0 x 120.0 cm
Product specifications

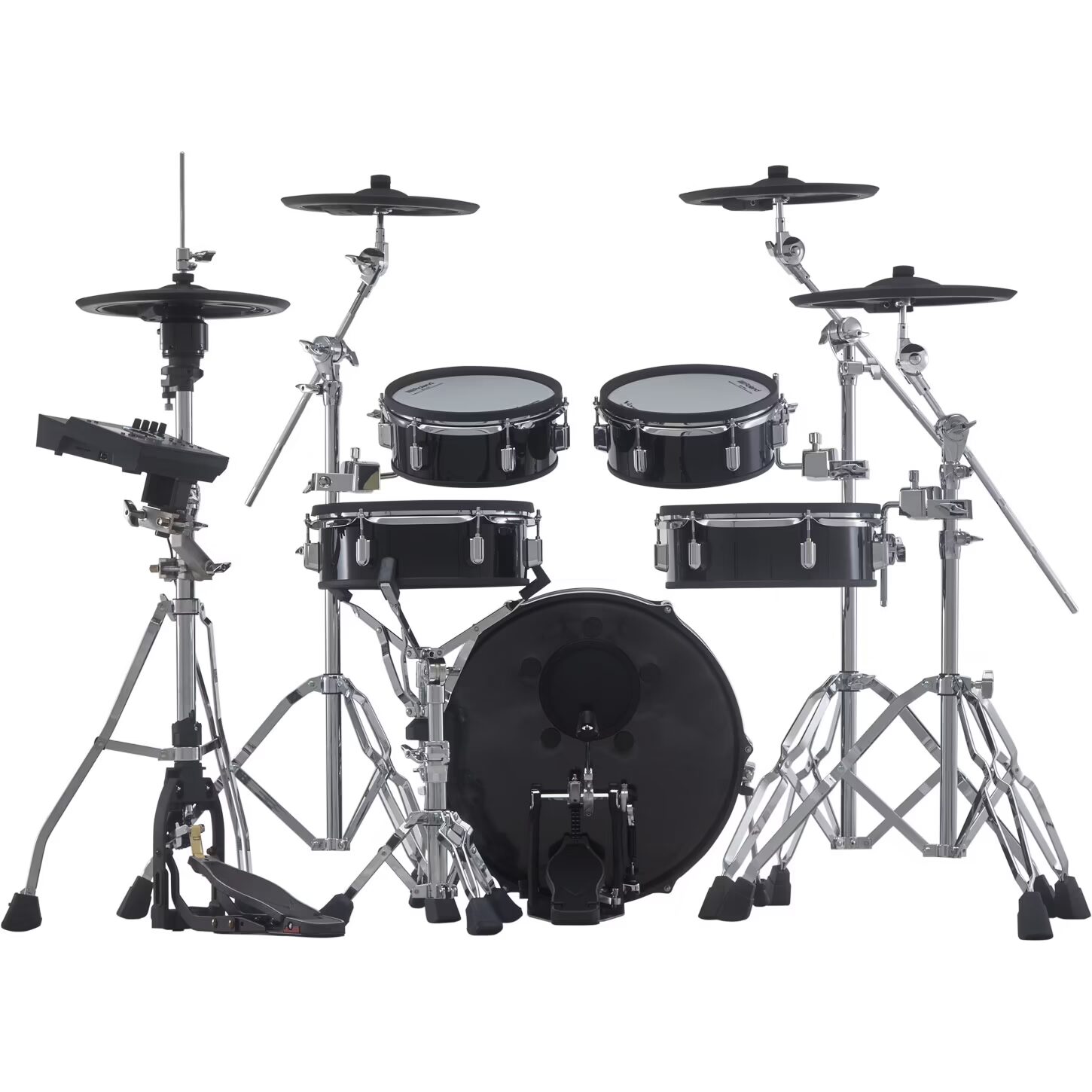

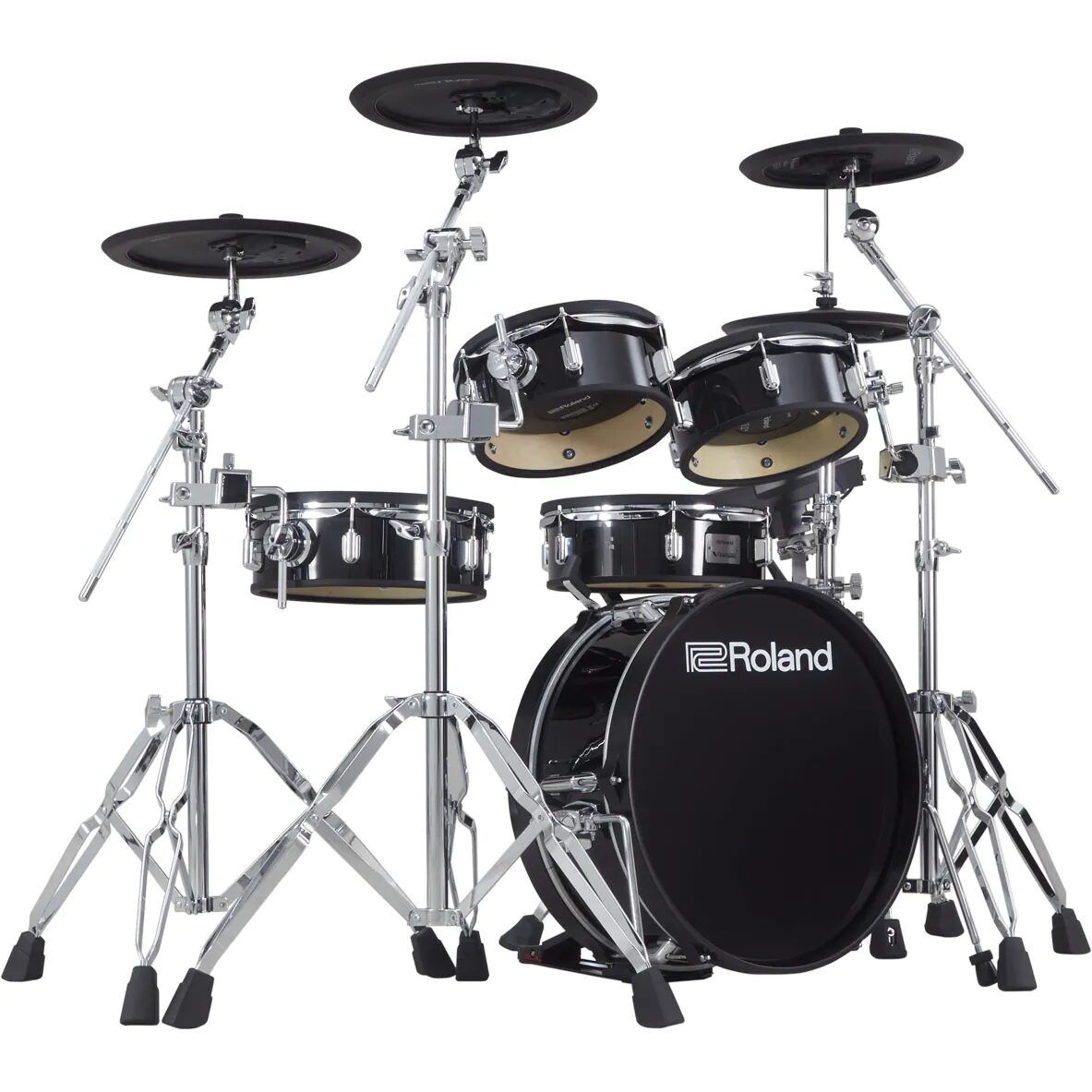

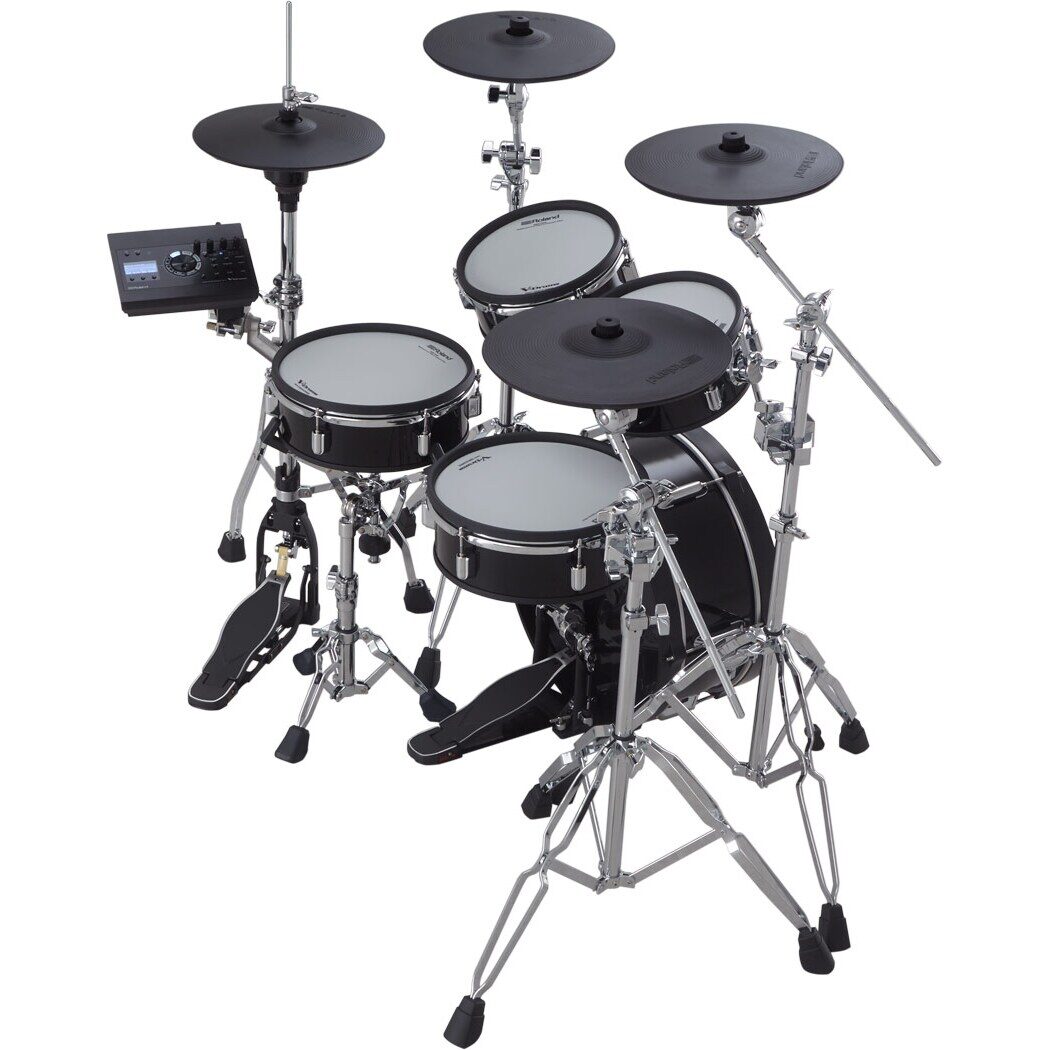

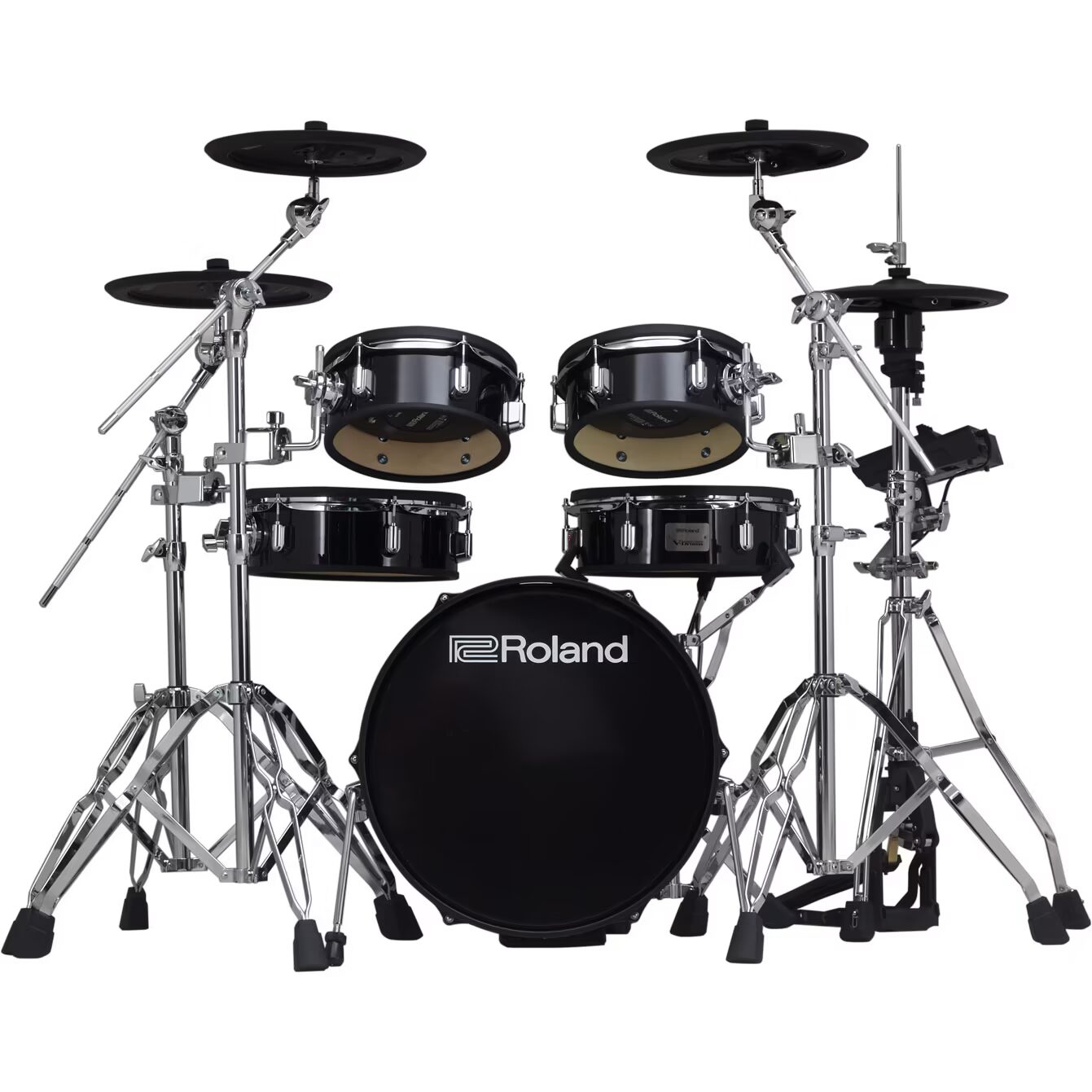

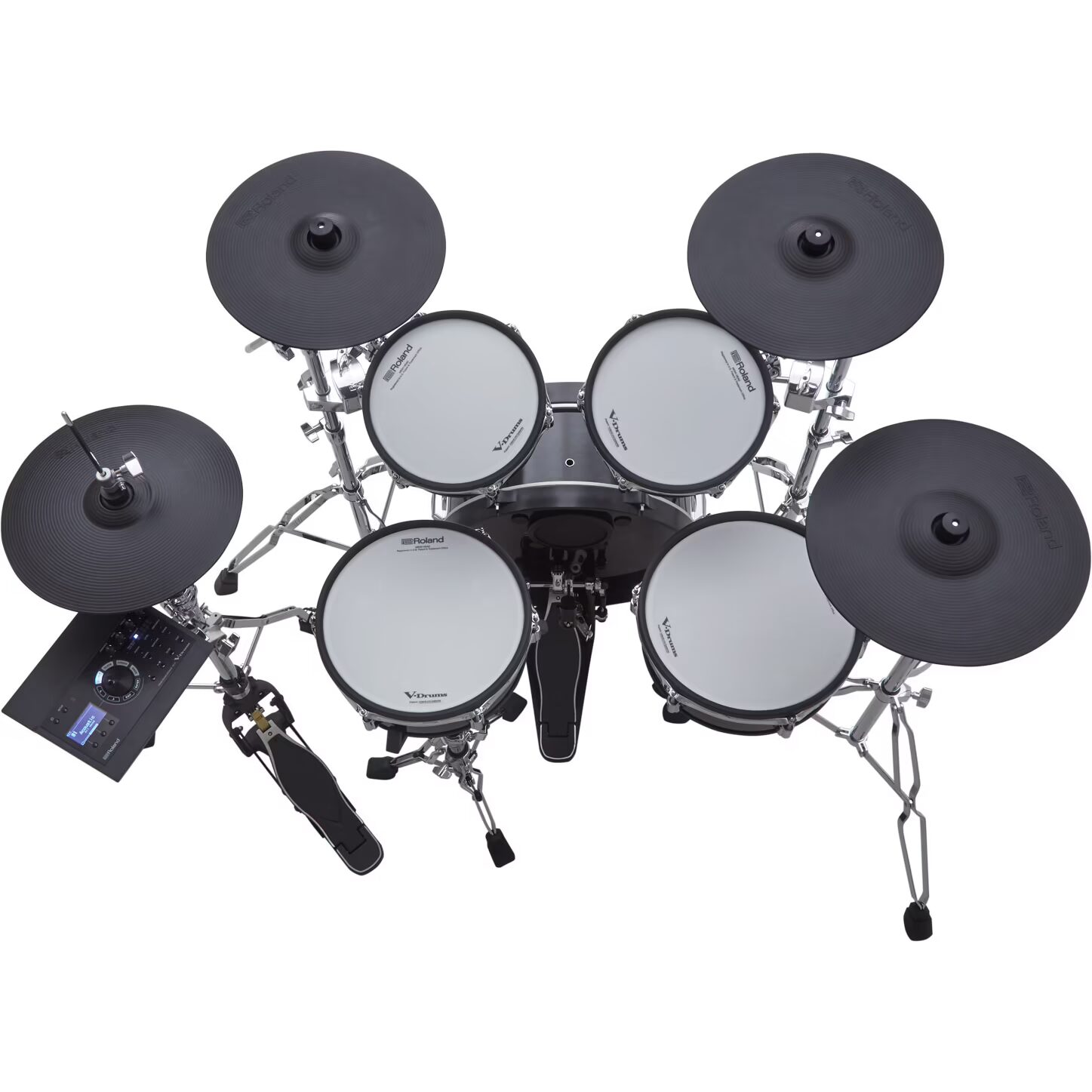

Roland VAD306 Acoustic Design V-Drums
Electronic Drum Kit
configuration:
snare: PDA120LS-BK x 1
tom1: PDA100L-BK x 1
tom2: PDA100L-BK x 1
tom3: PDA120L-BK x 1
hi-hat: VH-10 x 1
crash: CY-12C- x 1
crash: CY-12C- x 2
ride: CY-13DR x 1
kick: KD-180L-BK x 1
3x DCS-10 multi-functional stands
1x multi-functional clamp APC-30

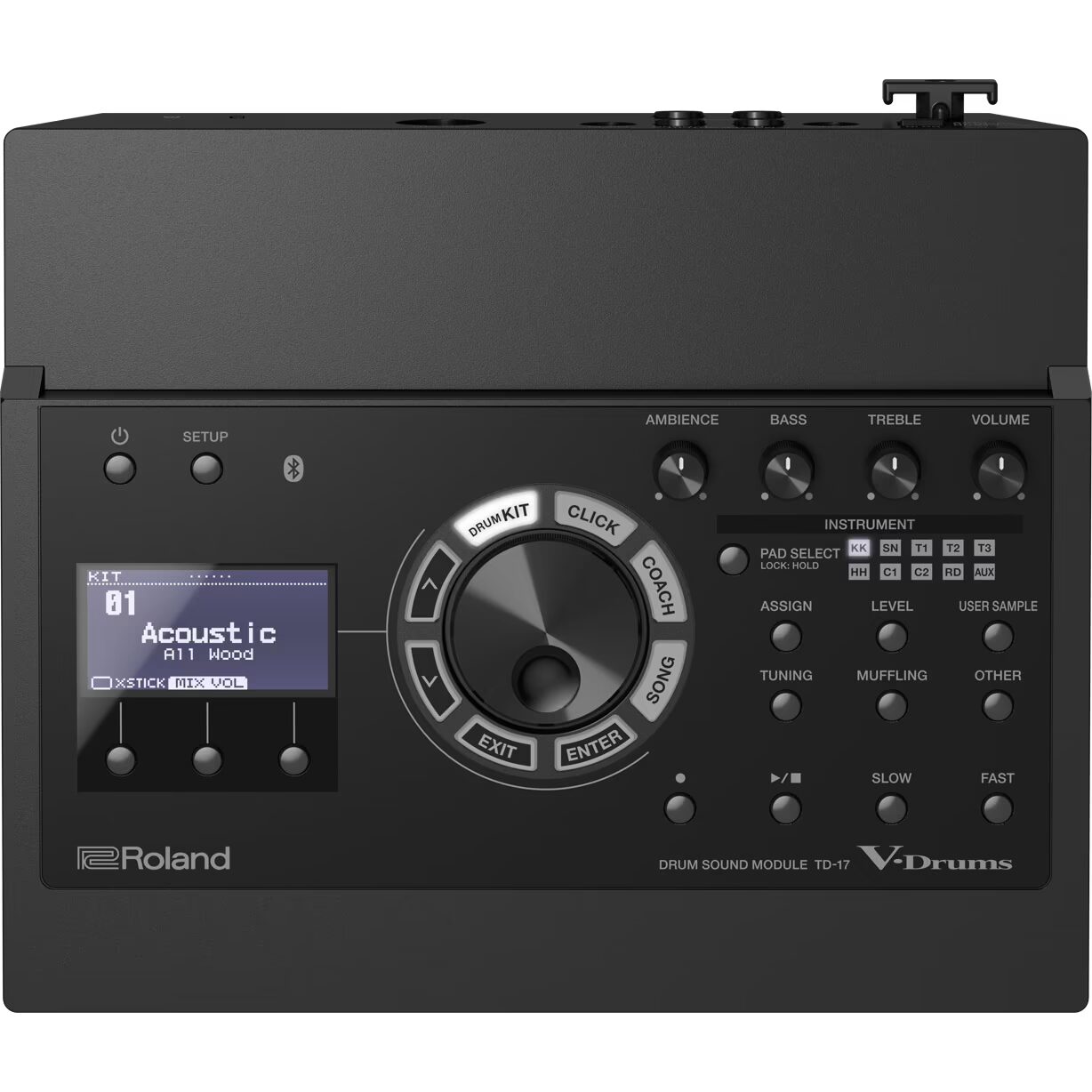

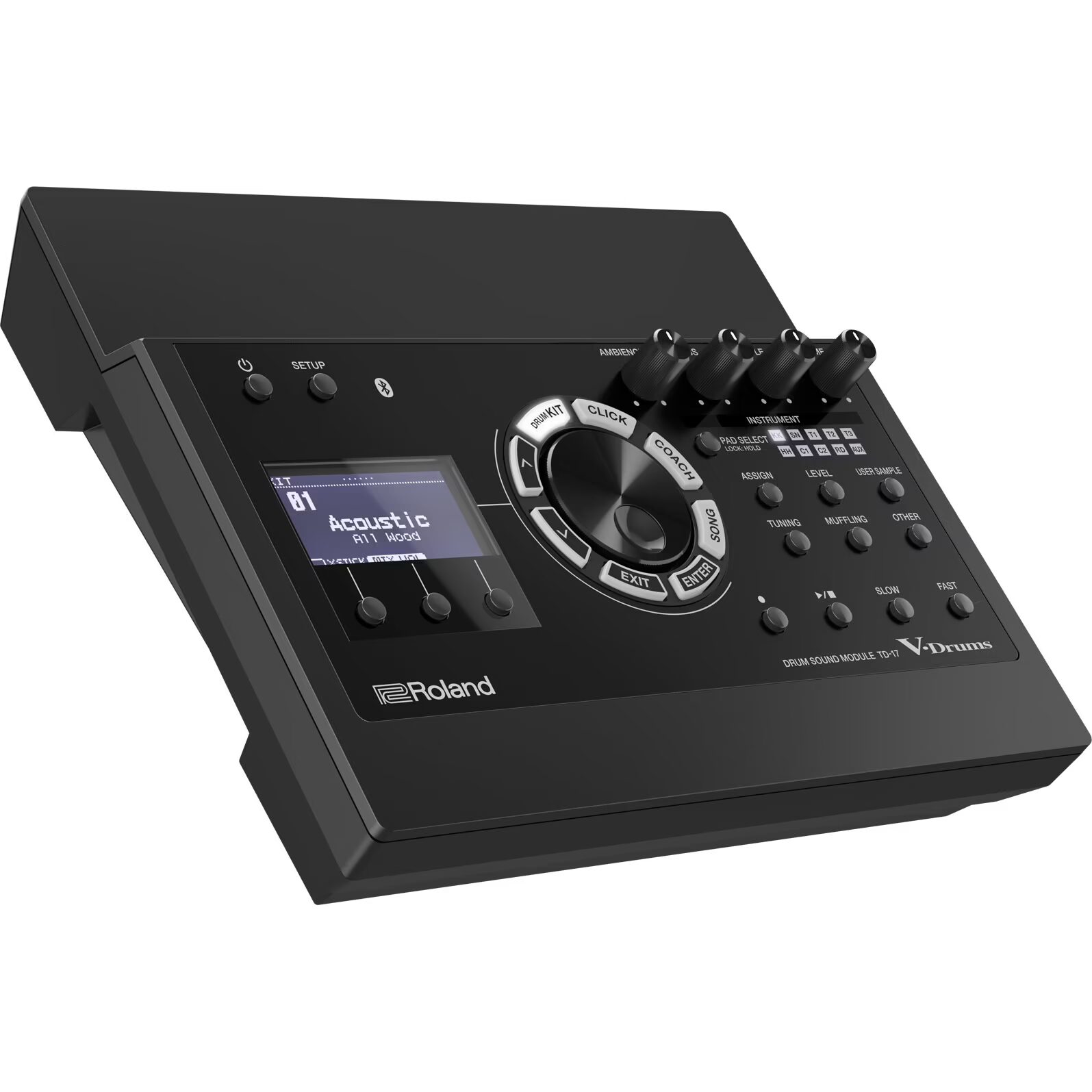

TD-17 drum module:
Prismatic Modelling for an authentic drum response
clear LCD display (128 x 64 dots)
drum kits: 50 + 50 user kits
sounds: 310
kit effects:
ambience: 25 types
multi effect: 30 types
pad equalizer: 2 bands
master equalizer: bass, treble
Bluetooth 4.2
internal songs: 7
song player: WAV, MP3 (playable from SD card)
recording function: 60 mins, WAV (44.1 kHz, 16-bit), SD card required
user sample:
32 MB memory
up to 100 samples
total length: 24 mins in mono, 12 mins in stereo
file format: WAV (44.1 kHz, 16/24-bit)

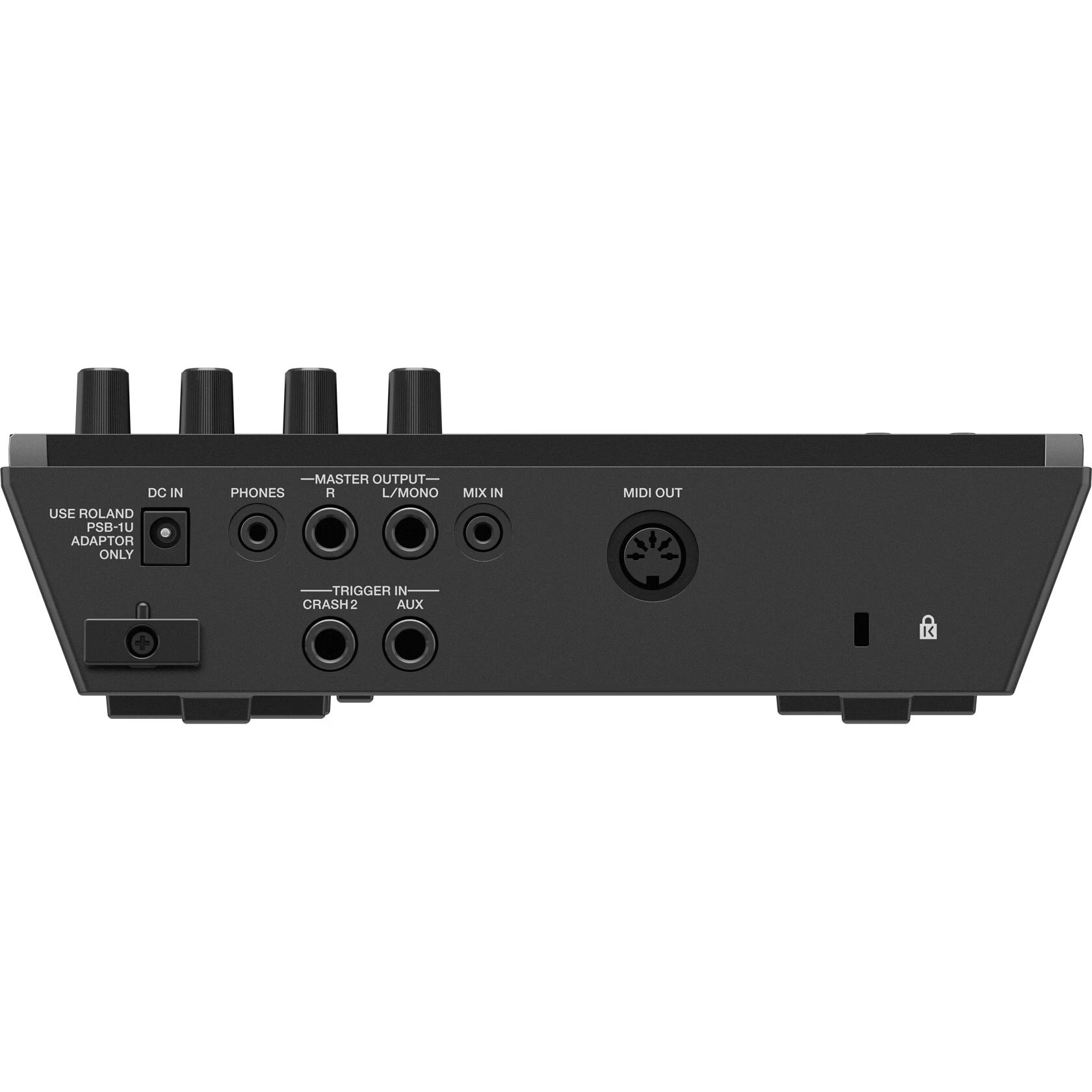

connectors:
trigger input connector for DB-25, connector for 10 triggers (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-hat Control)
2x trigger in: Crash 2, Aux, stereo jack
master output L/Mono, R, stereo jack
headphones: stereo mini jack
mix input: stereo mini jack
MIDI out

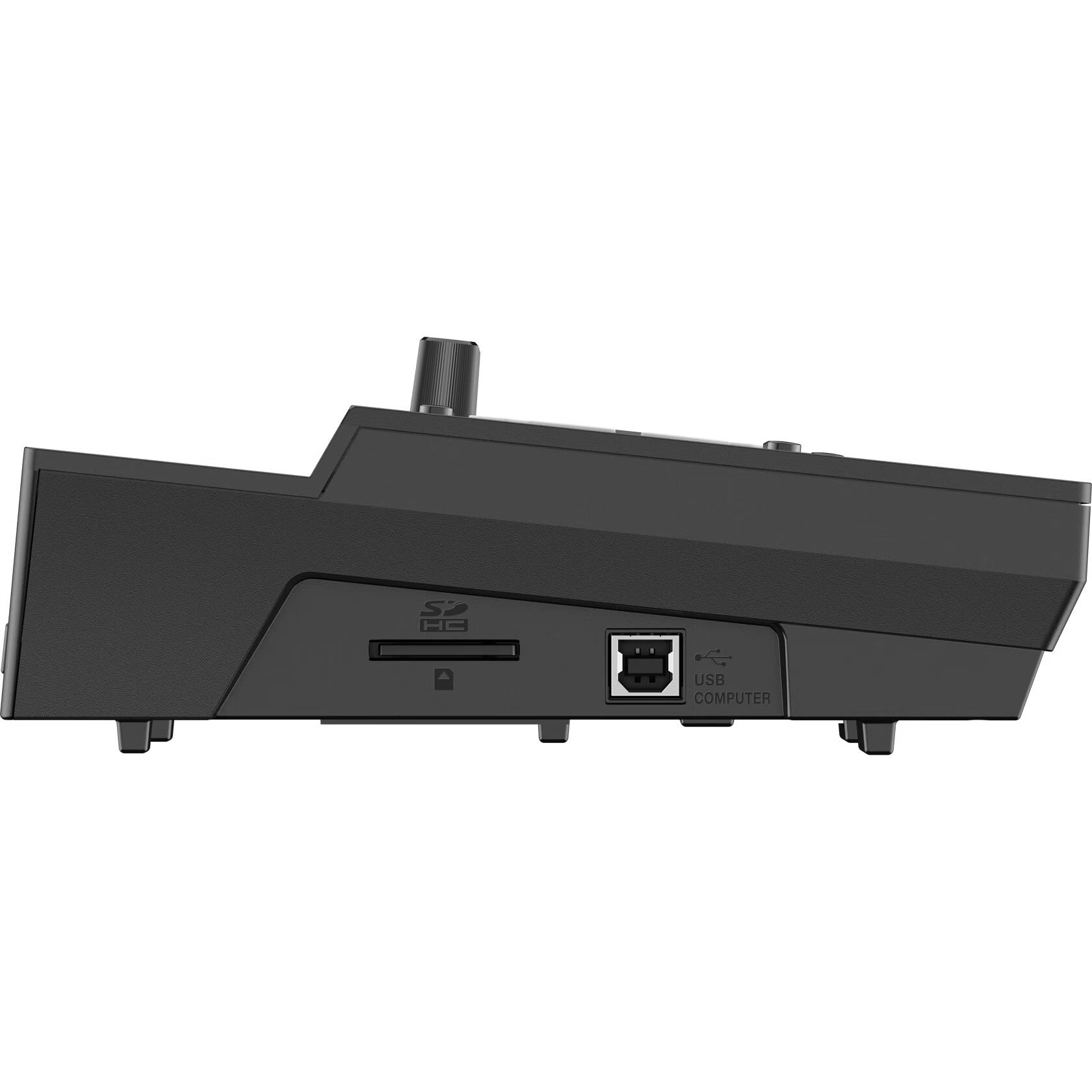

USB B
SD card slot
includes: 9V adapter (PSB-1U), mount, cable, manual
dimensions: 223 x 196 x 65 mm
weight: 0.9 kg
included accessories:
sound module mounting clamp
power supply
special connection cable
connection cable (Crash2)
drum key
assembly manual
user manual
