Description
Specifications
Product features
Speaker connections XLR / TRS combi input, out / link / thru
Woofer diameter 18 inches
Weight per speaker 48 kg
Maximum SPL 130 dB – 139 dB
Maximum subwoofer frequency 140 Hz
Minimum frequency 30 – 34 Hz
RMS power in watts 750 – 1,499 W
Locking speaker connectors no
Weight and dimensions including packaging
Weight (incl. packaging)50.0 kg
Dimensions (incl. packaging)81.0 x 73.0 x 65.0 cm
Product specifications

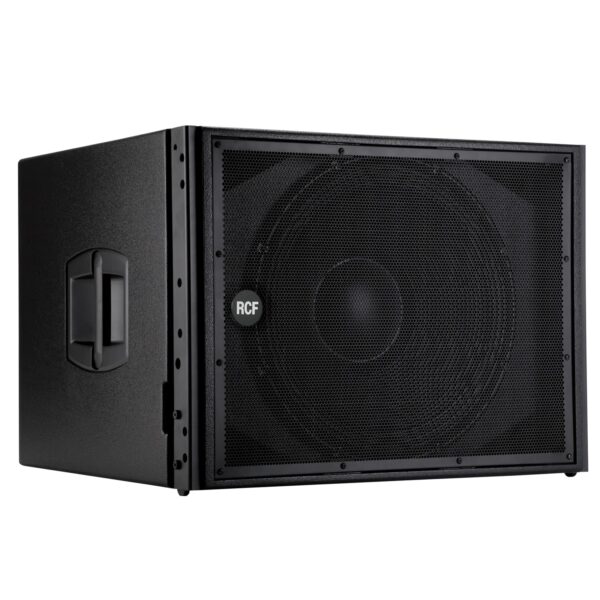

active 18-inch subwoofer
perfect match for HDL 20-A line array
subwoofer equipped with rigging hardware

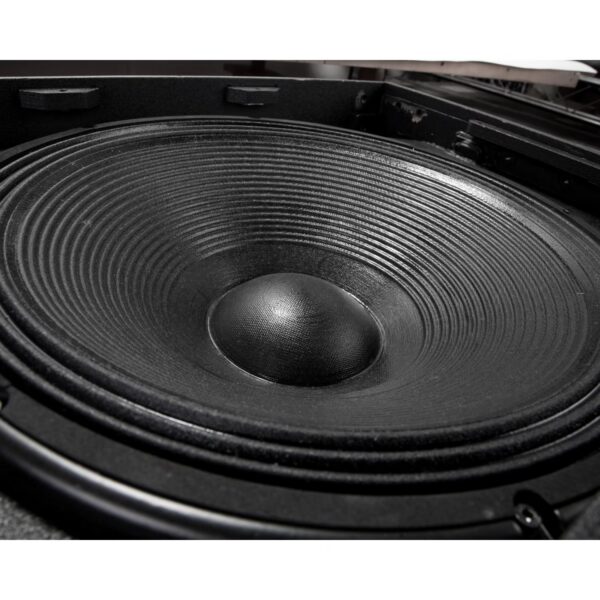

18-inch woofer with 4-inch voice coil

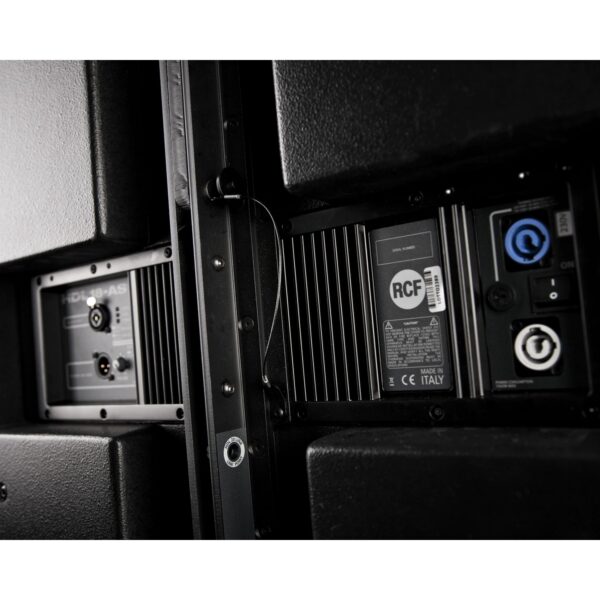

built-in amp module: 1,000W RMS
maximum SPL: 135 dB
frequency range: 30 to 140 Hz
DSP controller with various presets
touring-quality rigging hardware, compatible with HDL 20-A
Baltic birch construction with scratch-resistant lacquer
inputs: XLR
outputs: XLR
input sensitivity: -2 dBu / +4 dBu
protection: thermal, limiter
soft limiter
settings: volume, EQ, crossover
amp module with convection cooling
connections nett power: professional locking power in/out
2 handles on the sides
dimensions: 511.5 x 700 x 620 mm
weight: 48.4 kg
