Description
Specifications

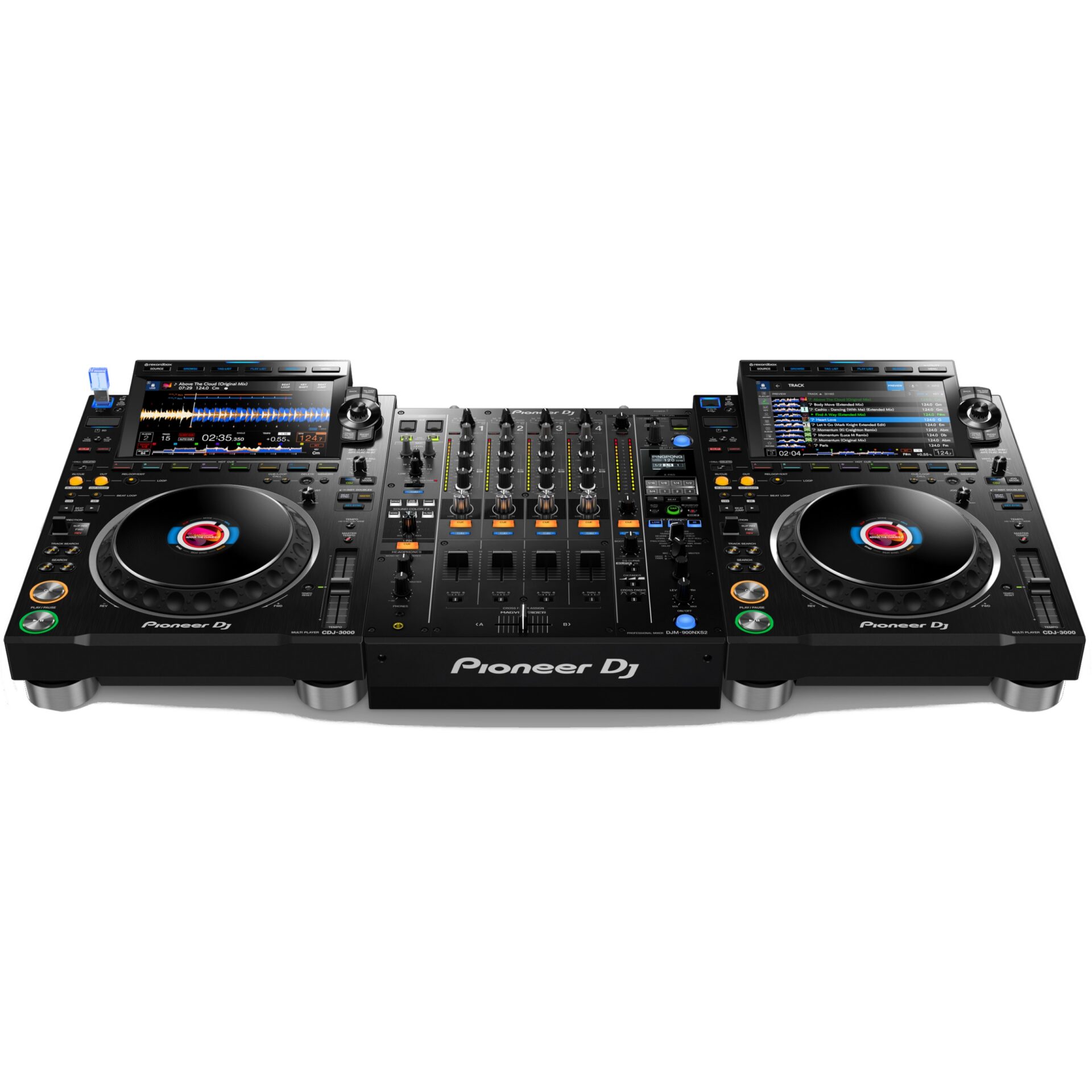

Pioneer CDJ-3000 2x Pioneer CDJ-3000
The first and most striking feature is the enlarged display, the re-positioning of eight physical hot-cues, and the convenient addition of a jogwheel display. The face of this ultra-modern player looks fully prepared to take on the future.
Product features
Touch-sensitive jogwheel Yes
Effects no
Fader start support yes
Motorised jog wheel no
Hot cues 8
Included software Rekordbox
Music database software Rekordbox
Outputs RCA
Pitch function yes
Supports relay playyes
Sync function yes
Control via tablet / smart phoneyes
Tap tempo function yes
Type CD player not applicable
Type of display touch screen, colour
Jog wheel illumination yes
Equipped with audio interface yes
Weight and dimensions including packaging
Weight (incl. packaging)9.2 kg
Dimensions (incl. packaging)56.0 x 49.5 x 25.0 cm
Product specifications
Pioneer CDJ-3000
multiplayer / media player
new functions:
touch cue
touch preview
stacked waveforms
3-band waveform
key sync
key shift
processor: MPU
display:
9″
touch sensitive
high resolution
150% better visibility (adjustable)
fully customisable
jogwheel:
on-wheel display
minimal touch delay
PRO DJ LINK
gigabyte ethernet connection
link up to x6 CDJ-3000 devices (with the DJM-V10, for example)
compatible media:
SD memory card
USB storage device
Pc/Mac
iPhone
compatible files:
WAV, AIFF, FLAC, Apple Lossless (sampling frequency: 44,1/48/88,2/96kHz, Bit depth: 16/24 bit)
MP3 (sampling frequency: 44,1/48kHz, Bit depth: 16 bit)
AAC (sampling frequency: 44,1/48kHz, Bit depth: 16 bit)
USB support
FAT16
FAT32
HFS+
software: rekordbox
frequency response: 4Hz tot 40kHz
signal to noise ratio: 115dB or more
total harmonic distortion: 0.0018% or less
audio output voltage: 2.0 Vrms
audio output terminal:
audio Out (RCA) x 1
digital Out (coaxial) x 1
USB ports
USB (type A) × 1
USB (type B) x 1
other ports: LAN (1000Base-T) x 1
power requirements: AC 100-240 V / 50/60Hz
power consumption: 40 Watts
dimensions: 329 x 453 x 118mm
weight: 5.5kg
included accessories:
power cable (V-Lock model; only compatible with European power plugs)
digital audio cable
analogue audio cable
LAN cable
quick start guide
Pioneer DJM-900NXS2 DJ Mixer 1x Pioneer DJM-900NXS2 DJ Mixer
Pioneer’s DJM-900NXS2 DJ mixer features a double sound card, which makes B2B DJ sets much easier. A 64-bit mixing processor and a nifty FX section with OLED display are just a few of this mixer’s great features.
Product features
Number of link channels4
Audio over USB4-channel
Booth outputyes
Adjustable crossfader curveyes
Crossfader assignmentyes
Effectsyes
EQ kill functionyes, only with MIDI
EQ line channels3-band
Fader start supportyes
DJ mixer size12 inches
Colourblack
Master channel 1knob
Master channel 2yes, based on master output 1
Microphone inputyes
MIDI I/OUSB in / out
OutputsRCA, 6.3mm TRS (jack), XLR, S/PDIF (digital)
Position of headphone connectortop
Position of microphone connectorback
Rackmount kit availableyes, optional
Bluetooth outputboth, separate
Type of headphone connector3.5mm mini jack, 6.3mm jack
Type of microphone connector6.3mm jack, XLR
Weight and dimensions including packaging
Weight (incl. packaging)10.1 kg
Dimensions (incl. packaging)52.0 x 45.0 x 24.0 cm
Product specifications
Pioneer DJ mixer
model: DJM-900NXS2
4 channels
64-bit mixing processor
built-in double 96kHz/24-bit sound card
Sound Color FX with parameter knob
Crush
Dub Echo
Filter
Noise
Sweep
Space
Beat FX with large X-Pad
Delay
Echo
Filter, Flanger
Helix
Phaser
Ping Pong
Pitch
Reverb
Roll
Slip Roll, Spiral
Trans
Vinyl Brake
FX Frequency
Rekordbox Quantize
independent Send/Returns
InterApp support (iPad connection for Send/Return)
crossfader:
Magvel Fader
CURVE Assignable
3 fader curves
4 phono inputs
DVS support
fully assignable MIDI controls
P-LOCK Fader Caps
Auto Standby
ProDJ Link
talkover with attenuator and 3-way switch
channels:
4 audio channels
2 microphone channels
inputs:
digital x 4 (coaxial)
line x 4 (RCA L/R)
phono x 4 (RCA L/R)
microphone x 2 (XLR/jack combo x 1 + TRS jack x 1)
outputs:
master x 2 (XLR L/R x 1, RCA L/R x 1)
booth (TRS jack L/R)
headphone x 1 (stereo jack + stereo mini jack)
rec x 1 (RCA L/R)
digital x 1 (coaxial)
other connectors:
send x 1 (TS jack)
return x 1 (TS jack)
USB (type B) x 2
USB (type A) x 1
Link (LAN) x 1
D/A converter: 32 bits
A/D converter: 24 bits
frequency response: 20 Hz – 40 kHz (line)
power consumption: 42 W
included: power cable, RCA cable, LAN cable, USB cable
dimensions: 333 x 414.2 x 107.9 mm
weight: 8 kg
New features compared to DJM-900NXS
64 bit mixing processor
96kHz/24-bit sound card, direct connection to digital output
2x USB port on top
fully redesigned power supply
improved phono preamps, with 2x mass connector for turntables
DVS support via Rekordbox DJ DVS Plus Pack
Rekordbox is accessible via USB connection; access to software with up to 4 connected players
enhanced gain, EQ and fader curves
Magvel crossfader
redesigned VU meters
intelligent peak limiter
Color FX:
extra parameter knob
larger controls
sweep filter (instead of Gate/Comp)
Beat FX:
new effects: Ping Pong, Vinyl Break, Pitch, Helix
improved Reverb
OLED display
Beat FX assignable per band (low/mid/high)
LED indicator per channel
Send/Return:
internal FX and external effects device can be used simultaneously
InterApp support (iPad connection with FX/Instrument apps)
