Description
Specifications
Product features
Connectors External speaker(s), Foots witch
Number of channels 5
Number of speaker outputs 2
Amp modelling no
Effects loop yes
Weight 15 – 19.9 kg
Speaker output impedance 16 ohms, 8 ohms, 4 ohms
Built-in tuner no
Built-in effects reveb (analogue)
Colour black
Power attenuator no
Type of power amp tube EL34
Amplifier type tube
Power in Watts 151 – 200 Watts
Weight and dimensions including packaging
Weight (incl. packaging)20.0 kg
Dimensions (incl. packaging)77.0 x 41.0 x 35.0 cm
Product specifications

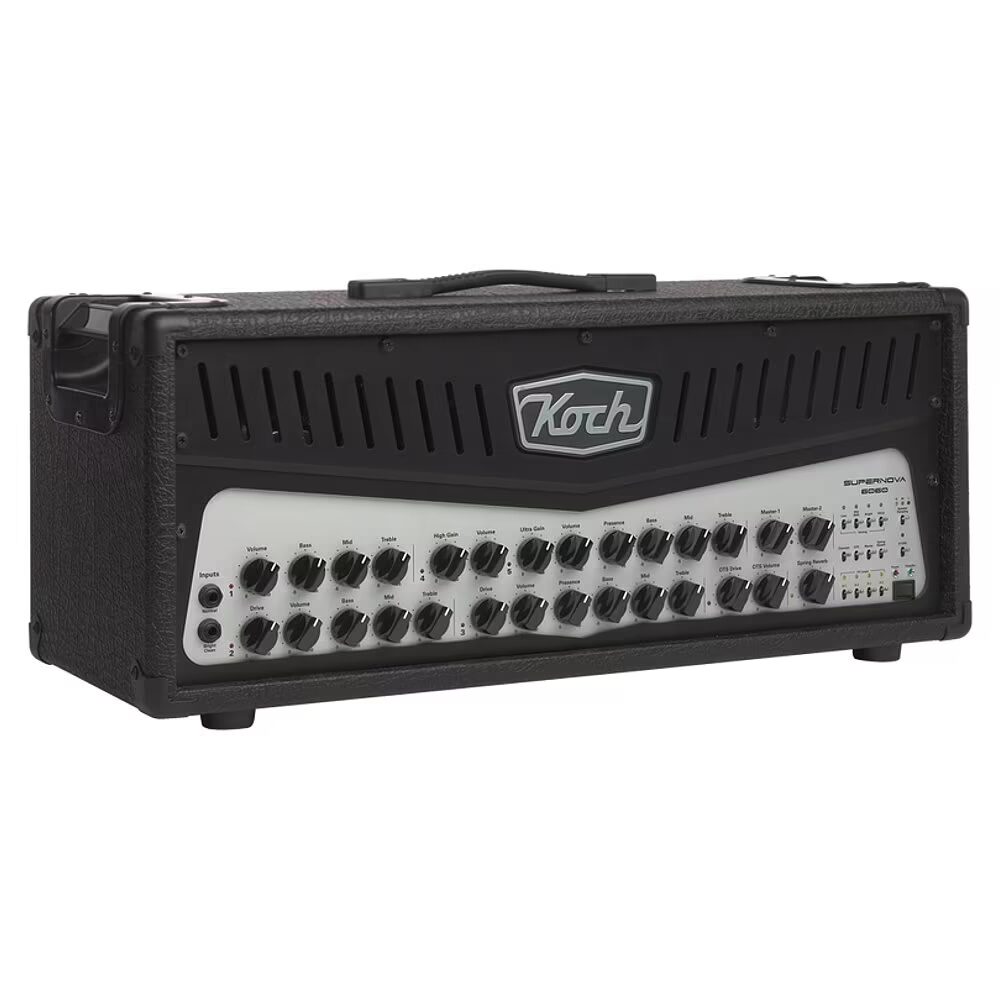

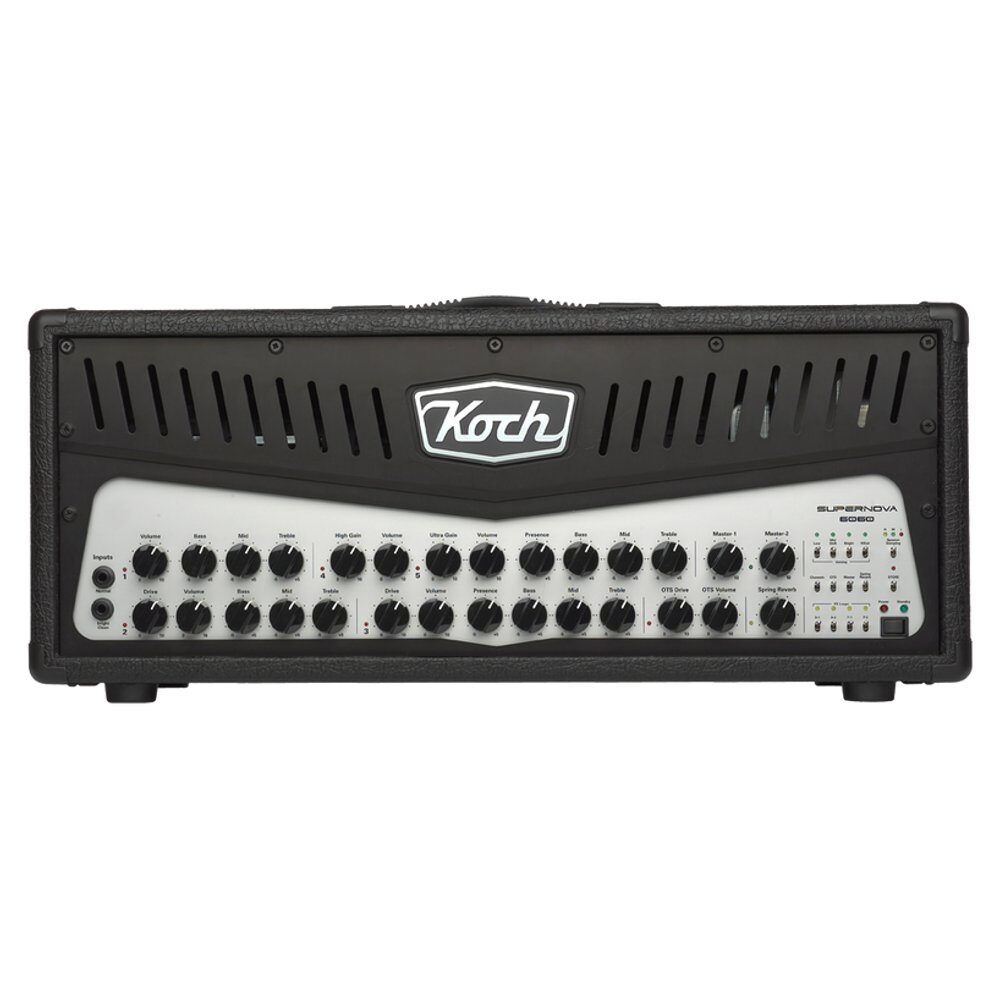

tube guitar amplifier head
power: 120 watts, mono
preamp tubes: 8x 12AX7
power amp valves: 4x EL34

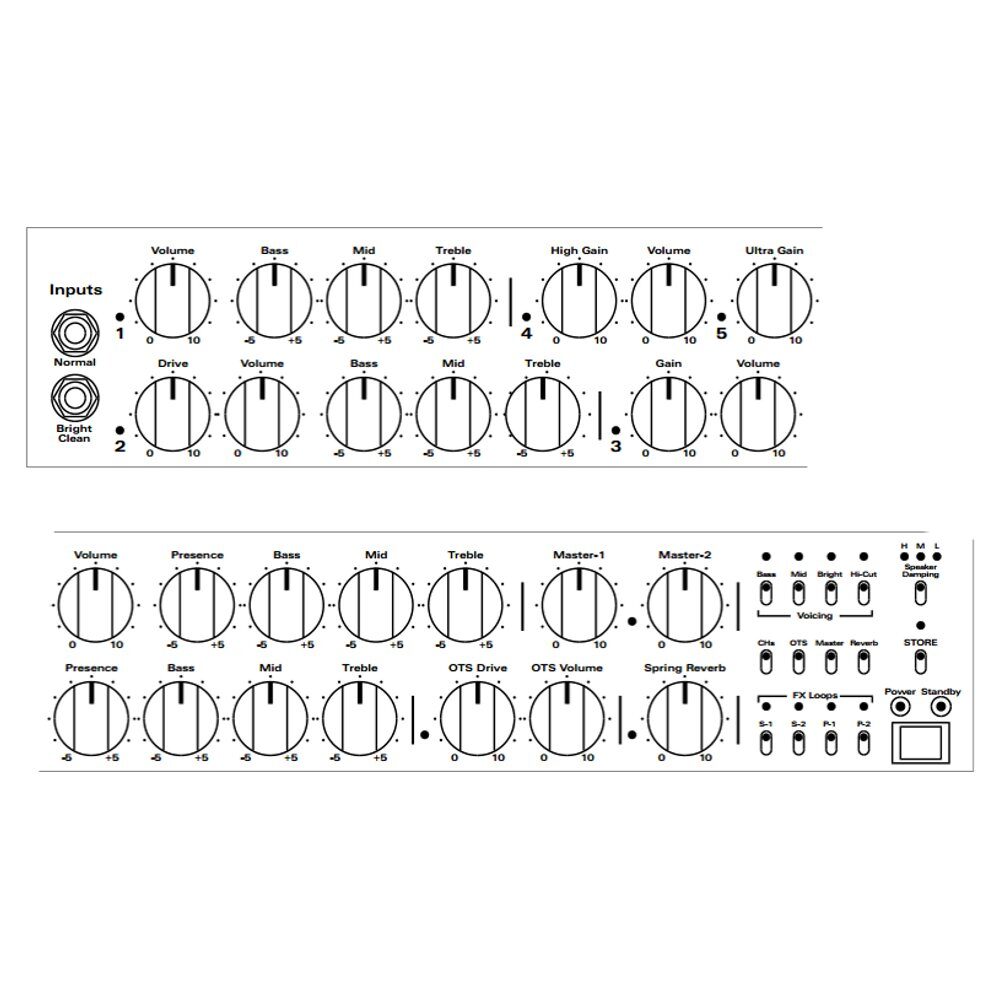

5 channels: clean, crunch, gain, high gain, ultra high gain
2 master volumes
4 voicing switches for all channels (low, mid shift, bright+, high cut)
2 parallel and 2 serial effects loops
classic long scale reverb
2 inputs: Normal and Bright Clean
3-way speaker damping: high, medium, low
OTS function (Output Tube Saturation)
128 savable presets
MIDI-controllable
optional FS6-SN foot switch: channel + master volume or preset choice
tuner output
optional FS2-SN-foot switch: mute (for voices), mute effects
MIDI-thru connection

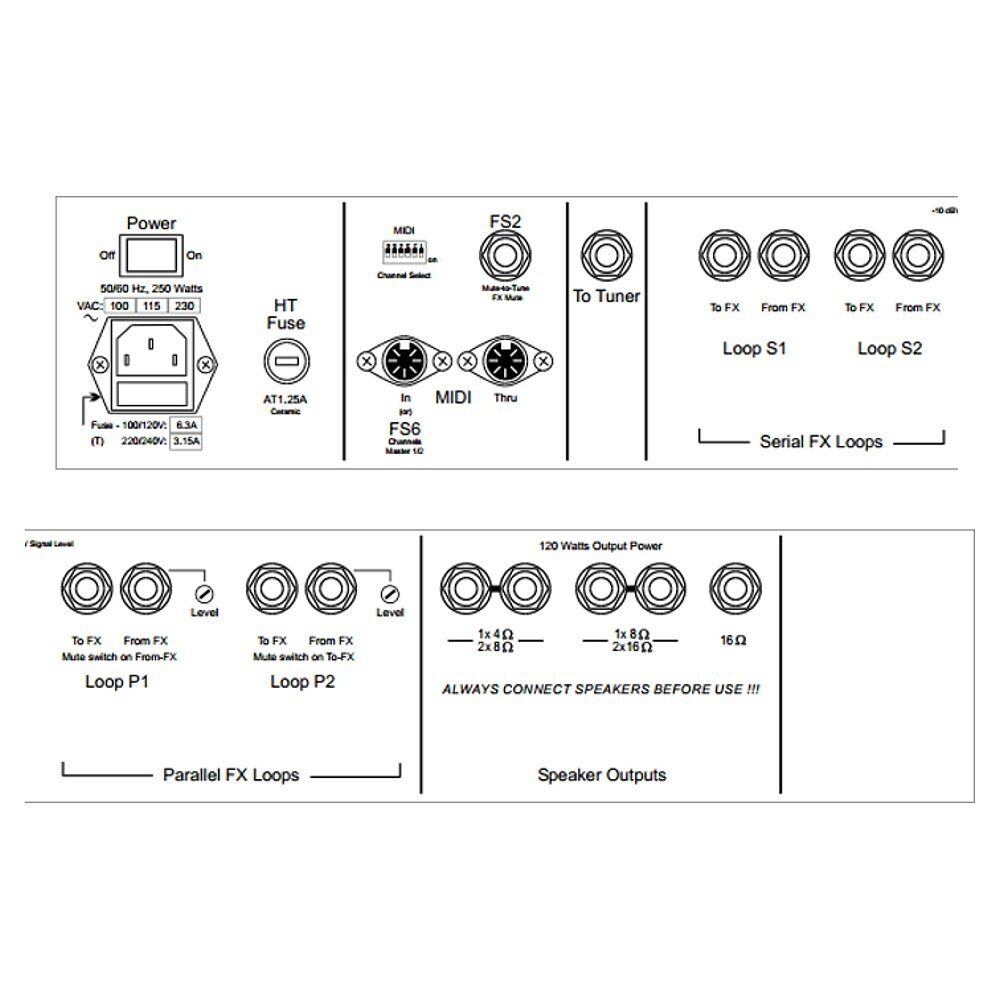

speaker connectors (60W): 1x 4 ohm, 1 or 2x 8 ohm, 1 or 2x 16 ohm
voltage: 100, 115, 230 (internally adjustable), 50 and 60 Hz
