Description
Specifications
Product features
Speaker connections XLR / TRS combi input, out / link / thru
Woofer diameter 2 x 12 inches
Weight per speaker 46 kg
Maximum SPL 130 dB – 139 dB
Maximum subwoofer frequency 120 Hz
Minimum frequency 35 – 39 Hz
RMS power in watts 750 – 1,499 W
Locking speaker connectors no
Weight and dimensions including packaging
Weight (incl. packaging)50.0 kg
Dimensions (incl. packaging)87.5 x 69.5 x 59.0 cm
Product specifications

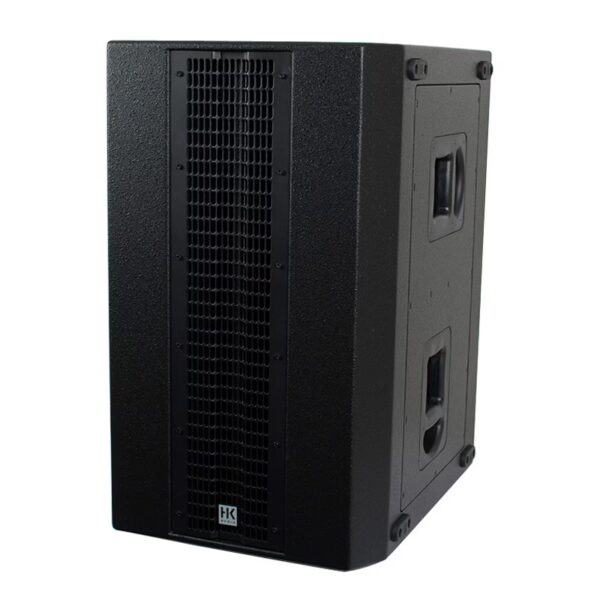

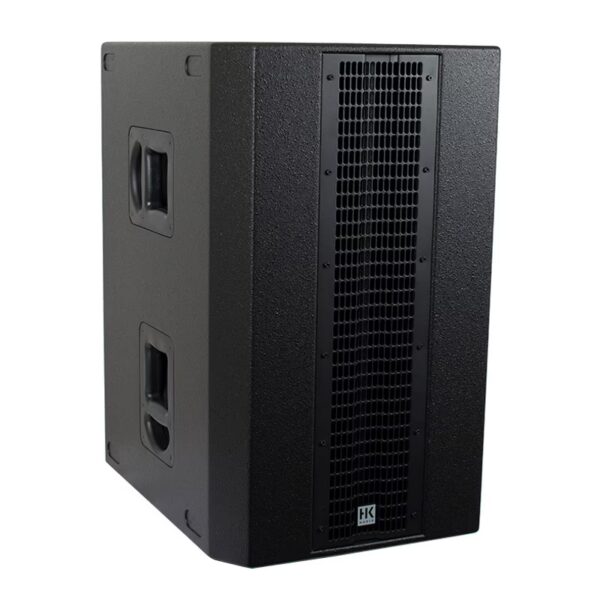

active 1,200W subwoofer
2x 12-inch
Frequency range (-3 dB): 49 Hz -crossover
frequency range (-10 dB): 39 Hz – crossover
Sensitivity low: 98 dB full-space, 104 dB half-space
Maximum sound pressure at 10% distortion: 132 dB
Maximum sound pressure peak at 10% distortion: 133 dB
Maximum sound pressure in theory: 135 dB
Amplifier: class-D
Amplifier power: 1,200W
Power low: 1,200 watts at 4 ohms
Protected from low power, thermal protection, short-circuit, too much power
Subsonic 24 dB/octave filter peak limiter

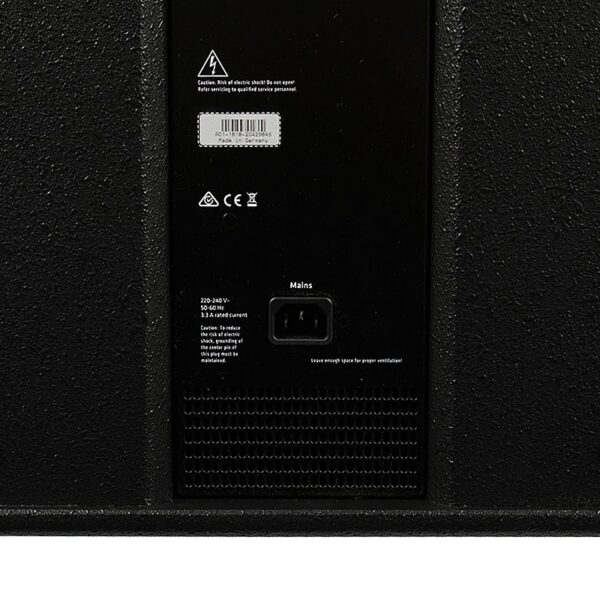

Power consumption: 3.3A at 230V

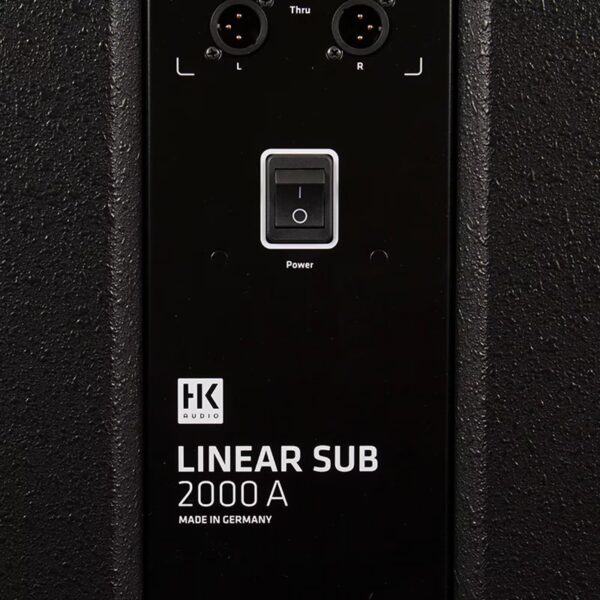

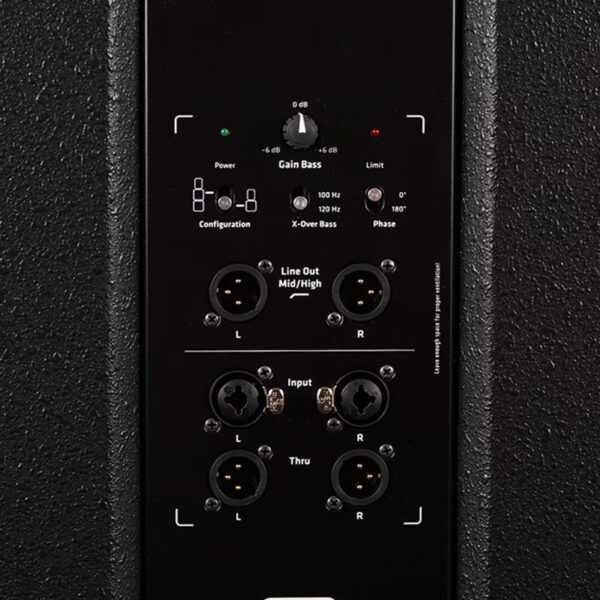

Connectors: 2x XLR in, 2x XLR through, 2x XLR Mix Out
Woofer: 2x 12-inch with 2.5-inch voice coil featuring Advanced Cooling
Built-in crossover: 100 Hz, 120 dB/octave

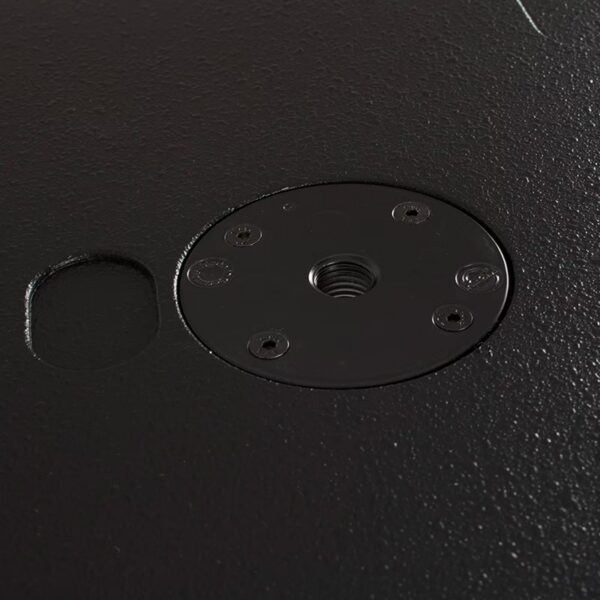

Built-in stand adapter: M20

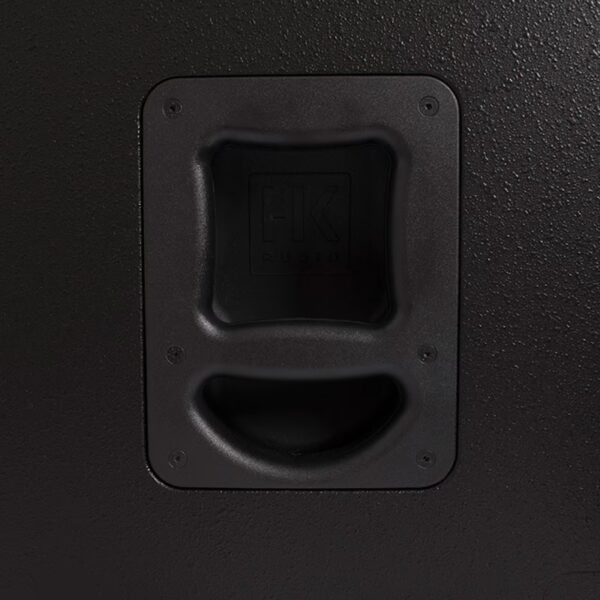

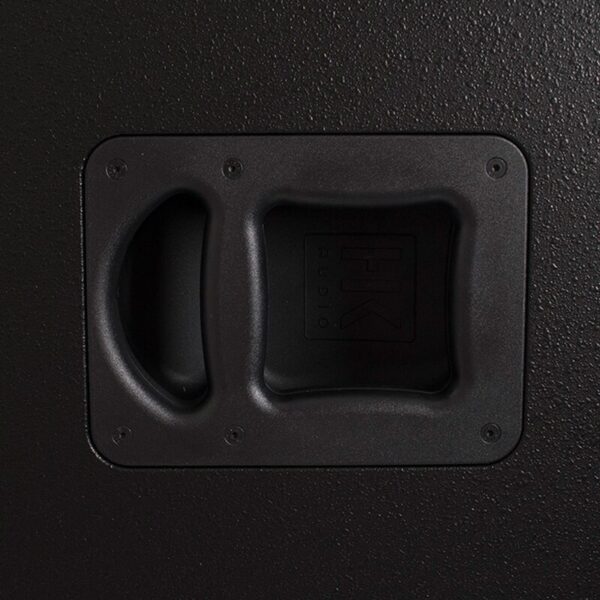

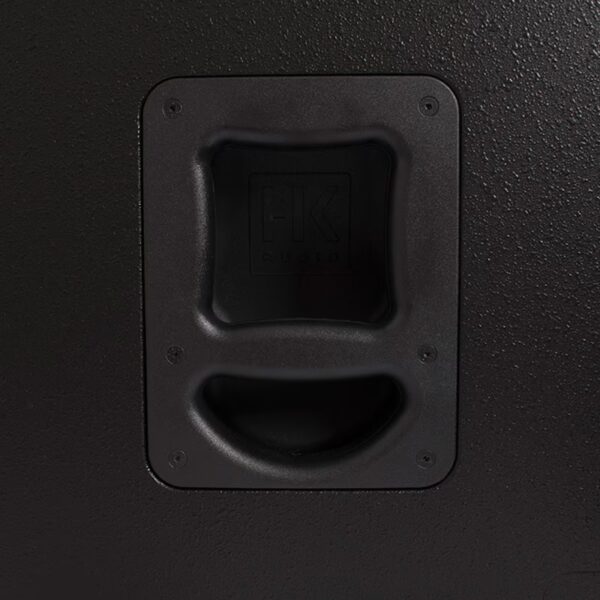

4 integrated handles
Housing: birch plywood

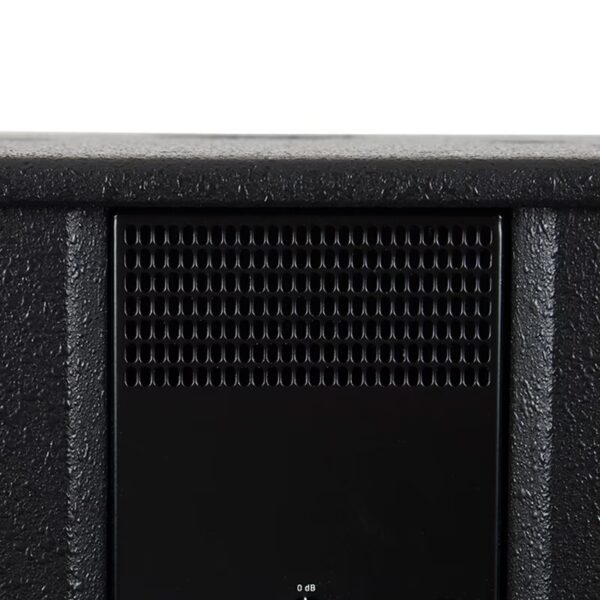

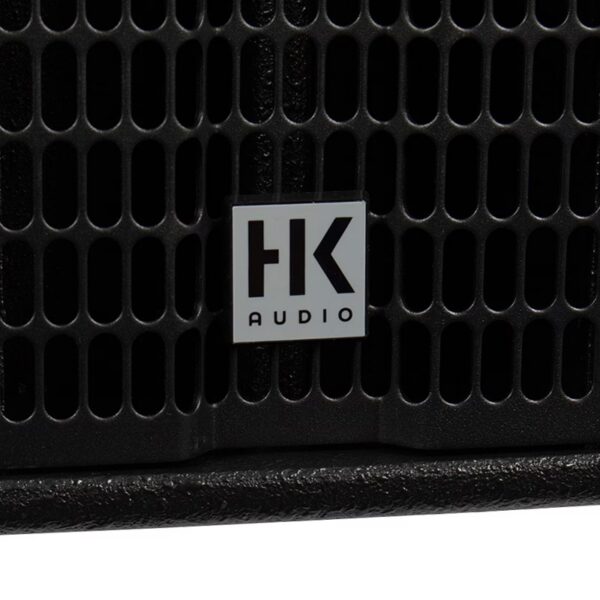

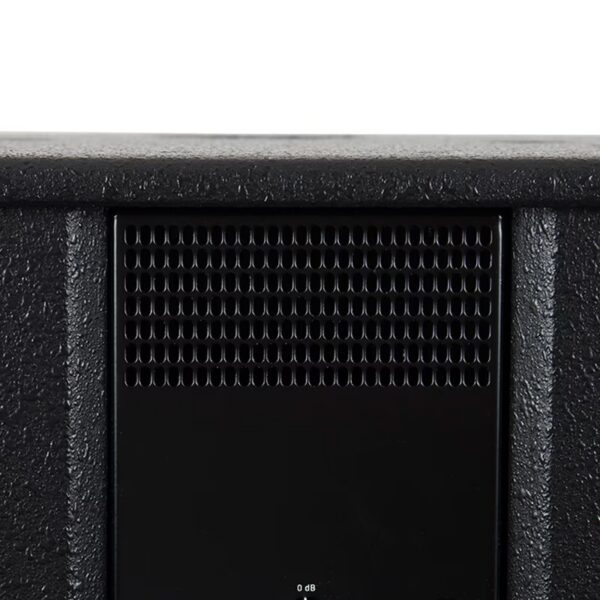

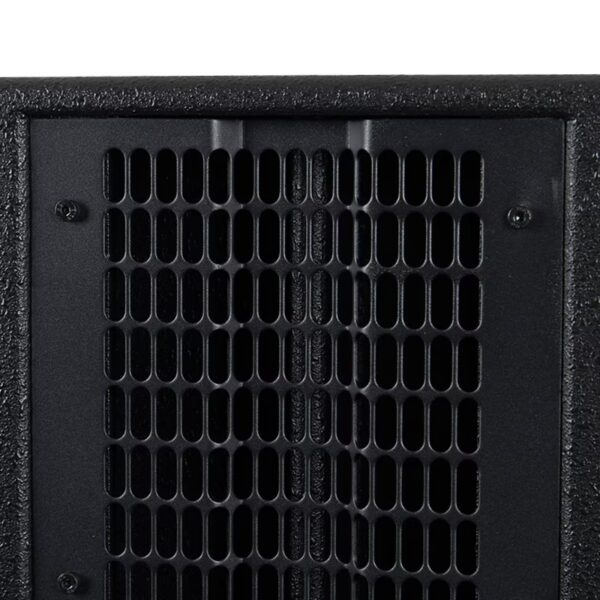

Grille: 2mm steel grille
Scratch proof black lacquer
Dimensions: 506 x 806 x 610 mm
Weight: 46.2 kg
