Description
Specifications
Product features
Number of link channels 8
Audio over USB 8-channel
Booth output yes
Adjustable crossfader curve yes
Crossfader assignment yes
Effects yes
EQ kill function no
EQ line channels 4-band
Fader start support no
DJ mixer size 12 inches
Colouraluminium / steel / silver, black
Master channel 1 knob
Master channel 2 yes, with own volume control
Microphone input yes
MIDI I/O out, USB in / out
OutputsRCA, 6.3mm TRS (jack), XLR
Position of headphone connectorfront, top
Position of microphone connector back
Rackmount kit available no
Bluetooth outputboth, separate
Type of headphone connector 3.5mm mini jack, 6.3mm jack
Type of microphone connector XLR
Weight and dimensions including packaging
Weight (incl. packaging)8.9 kg
Dimensions (incl. packaging)53.5 x 48.0 x 21.5 cm
Product specifications

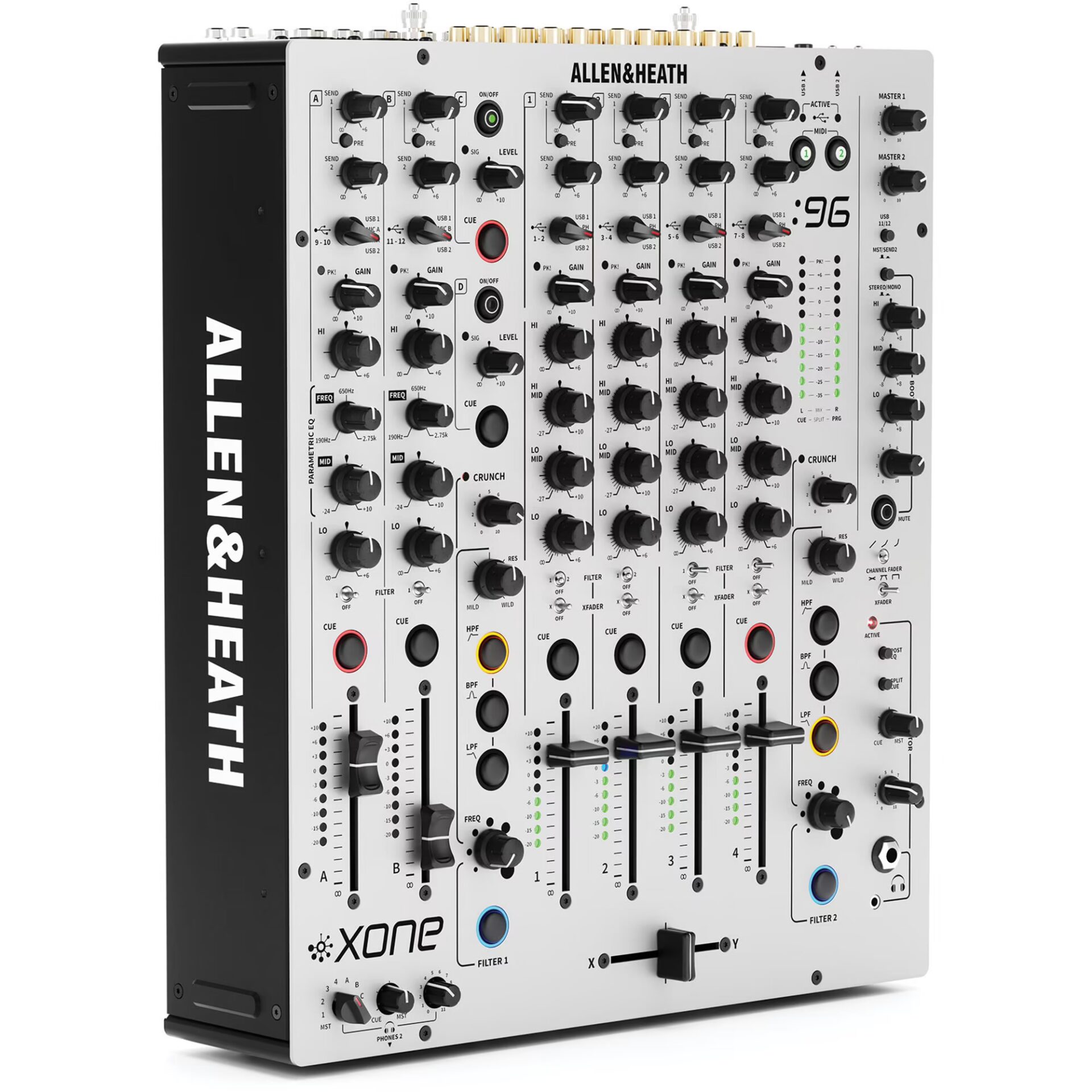

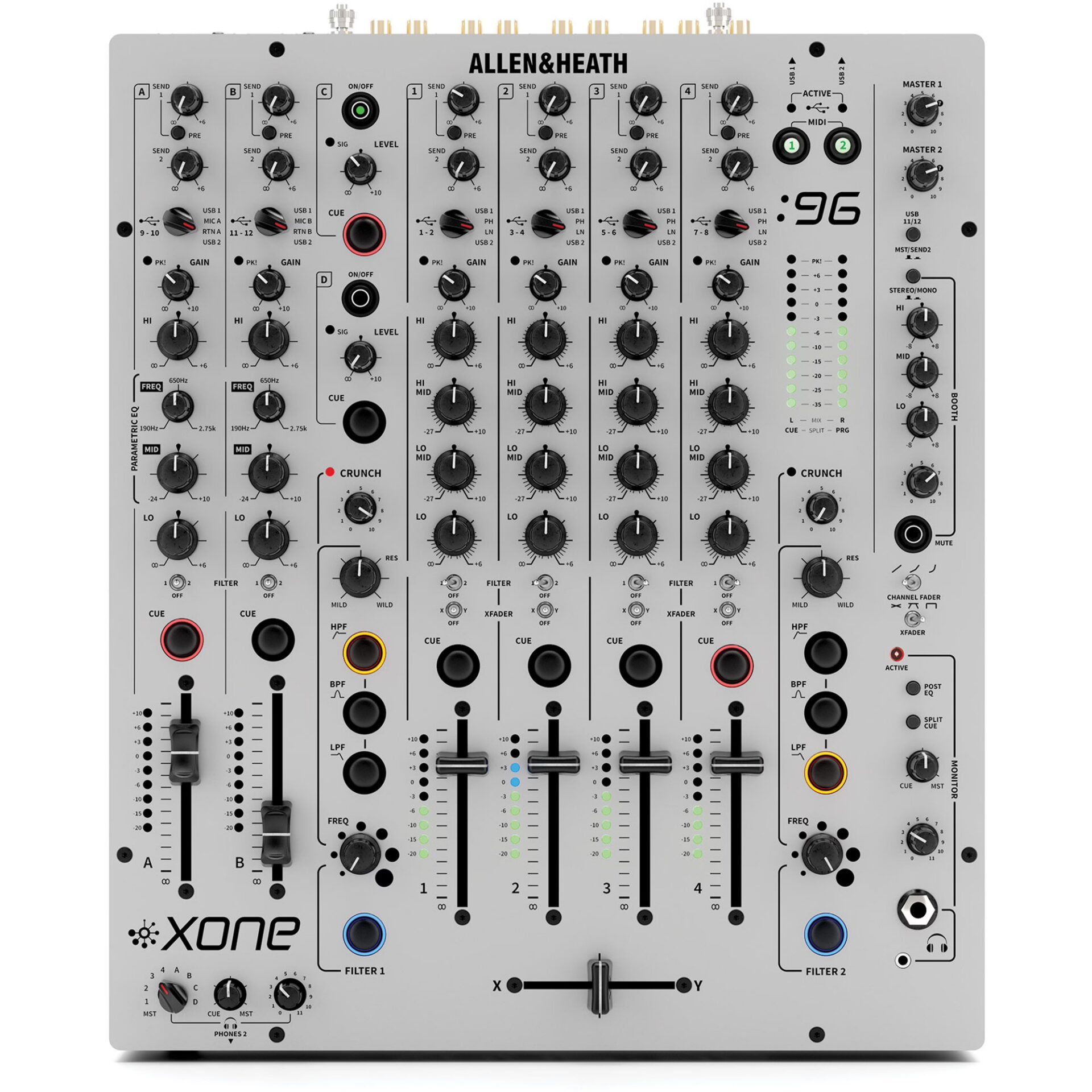

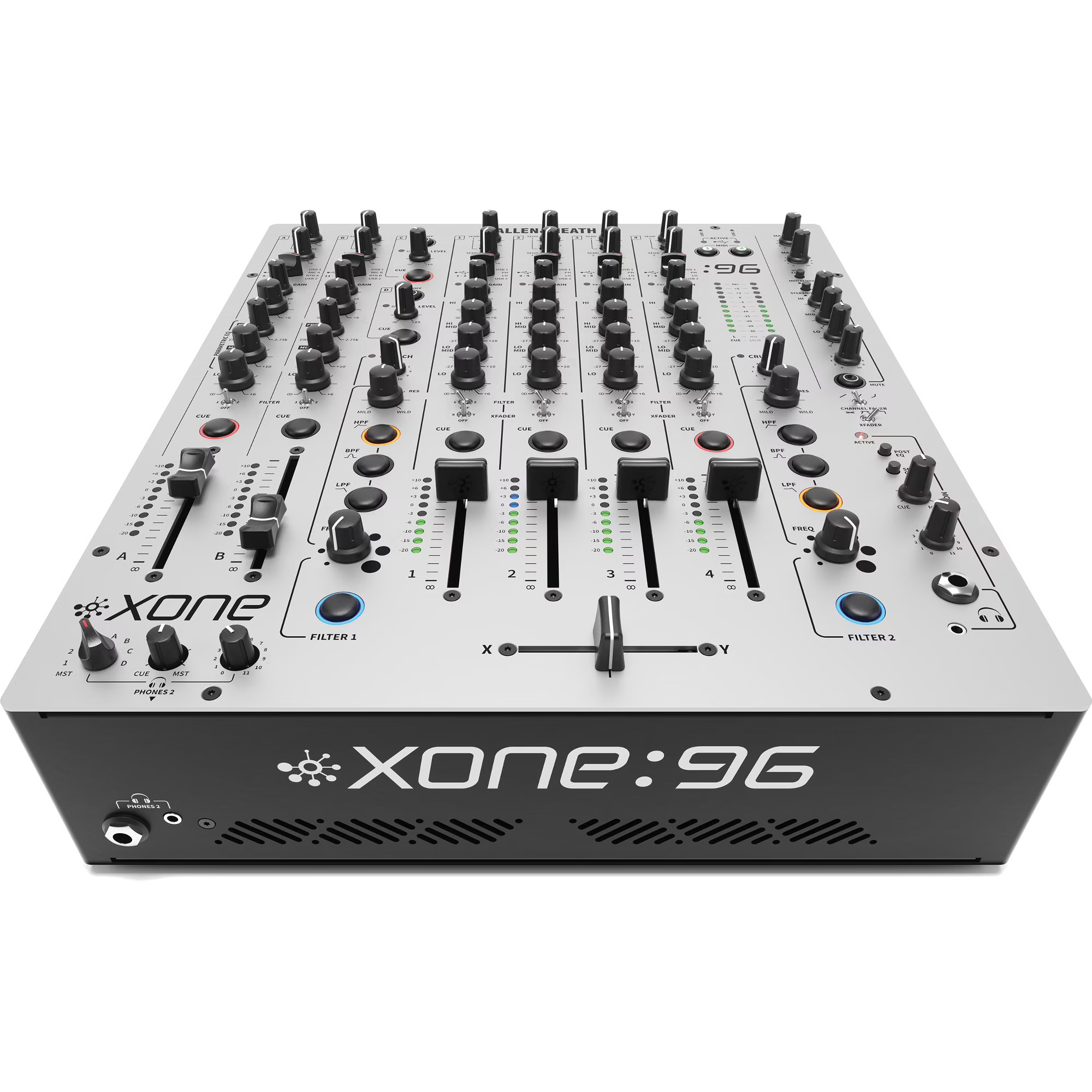

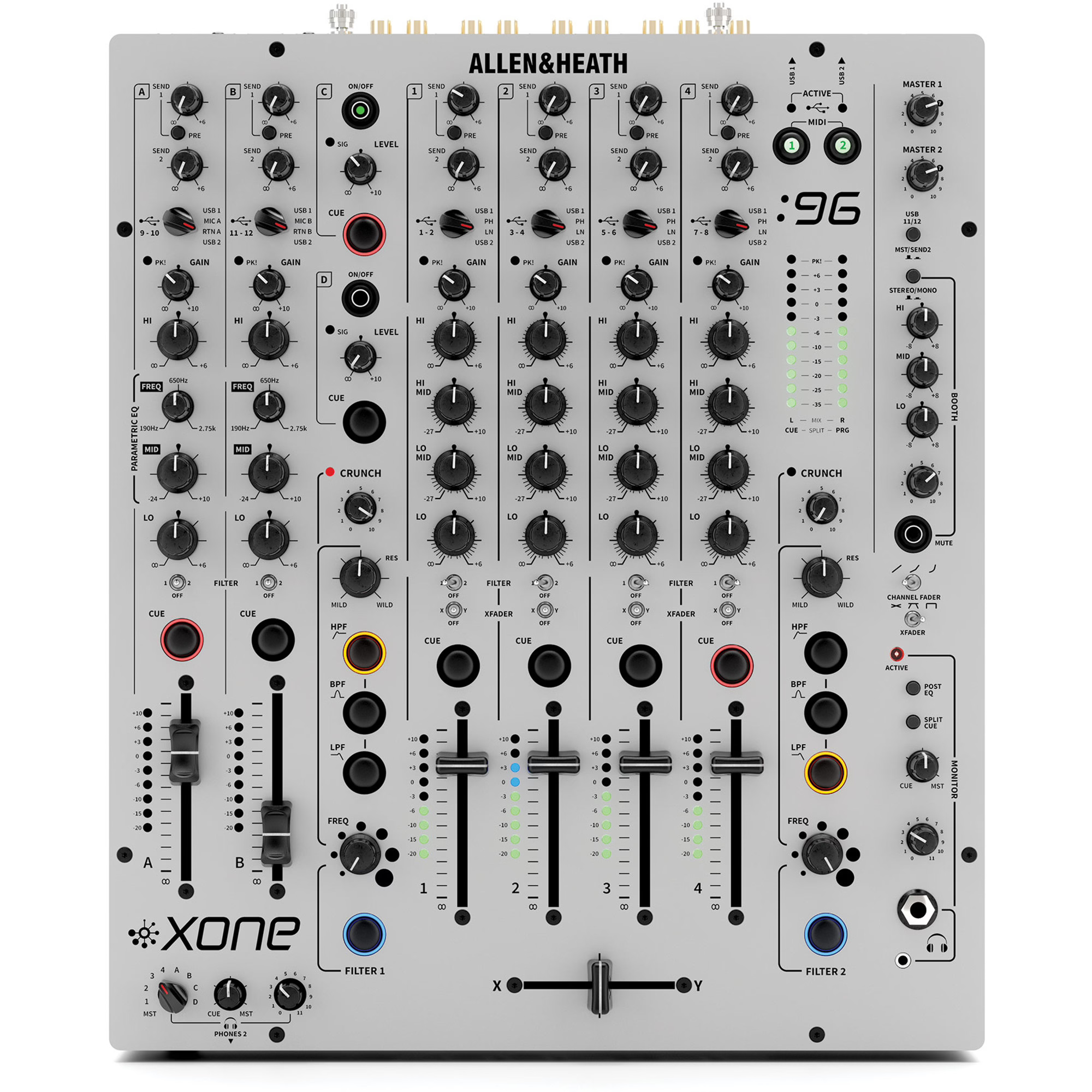

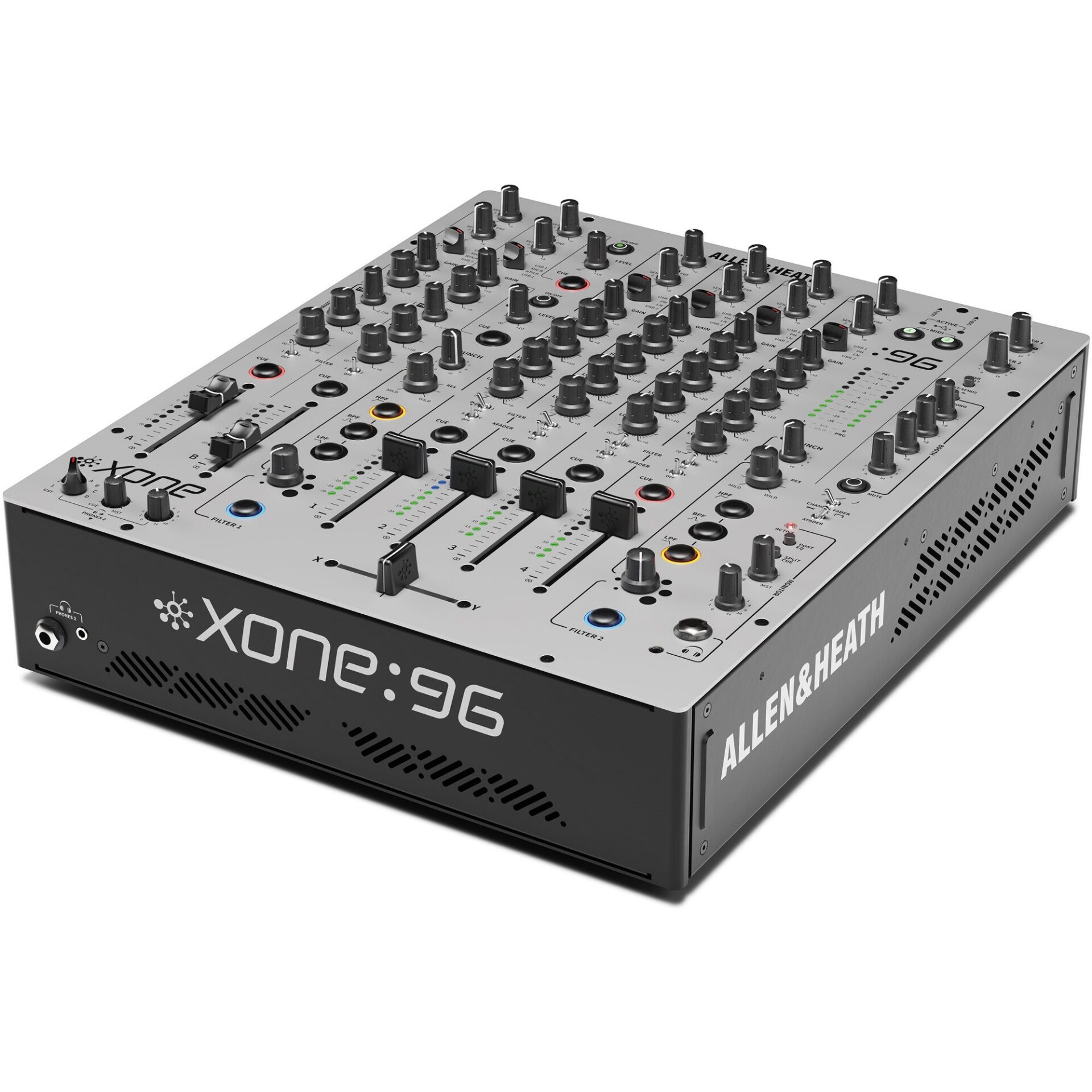

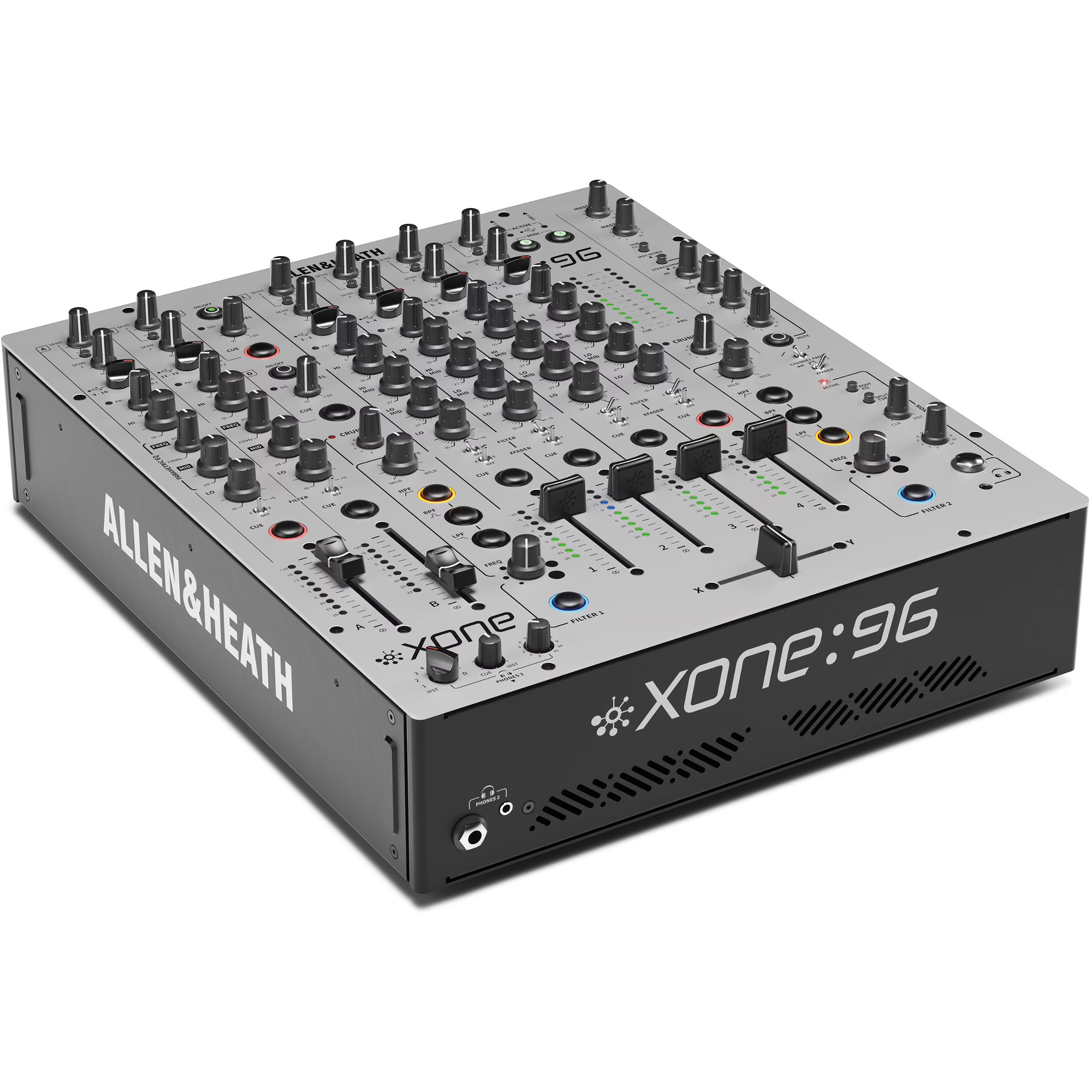

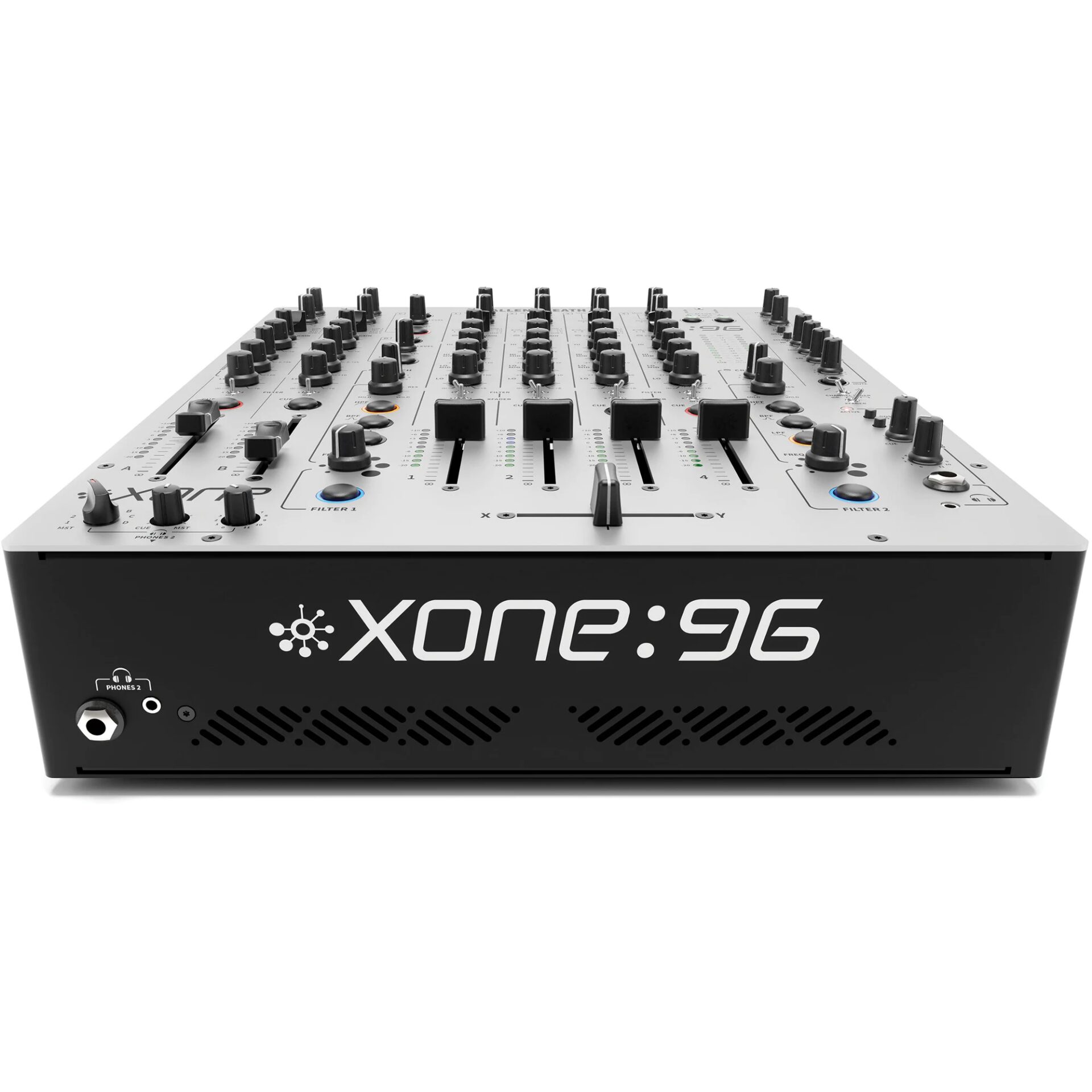

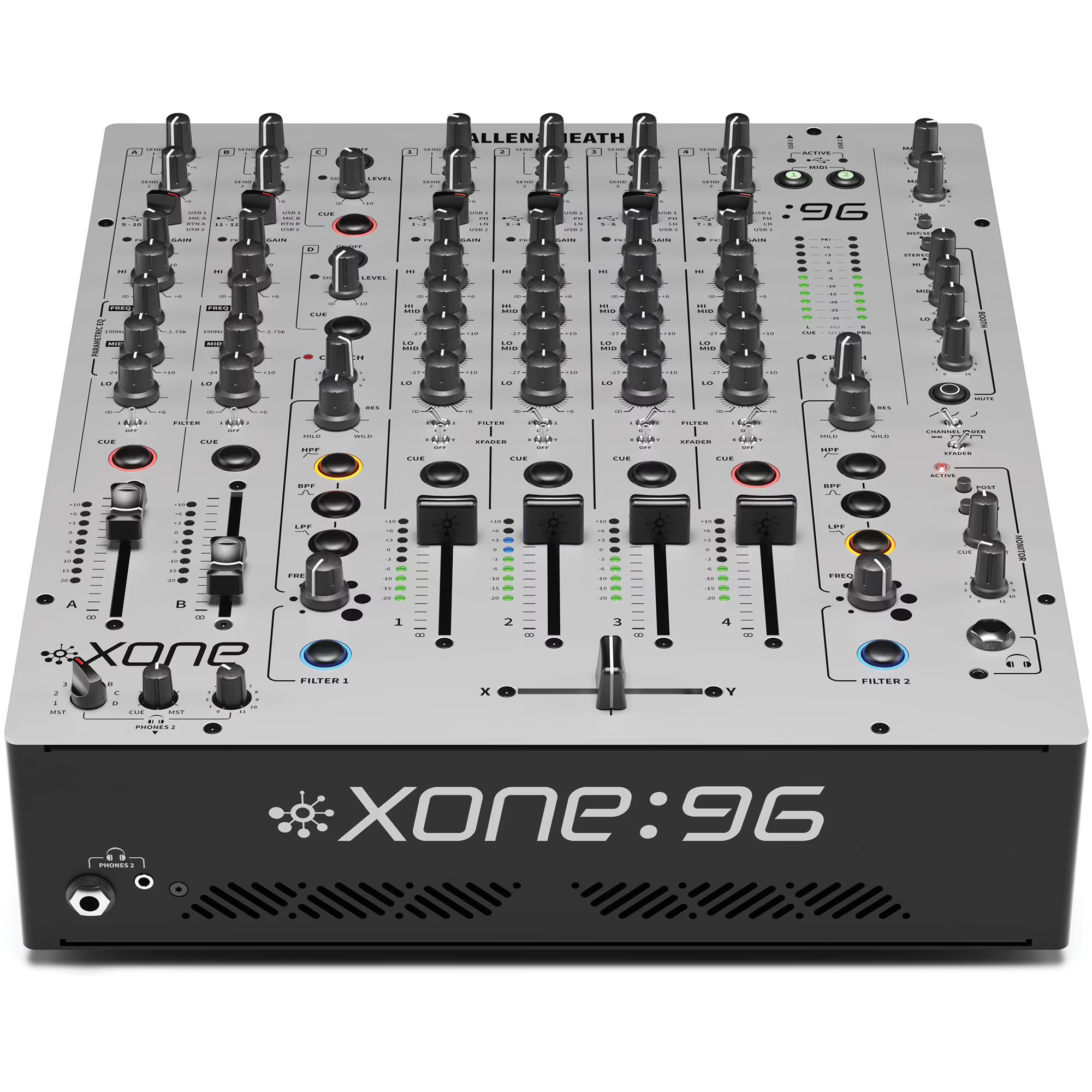

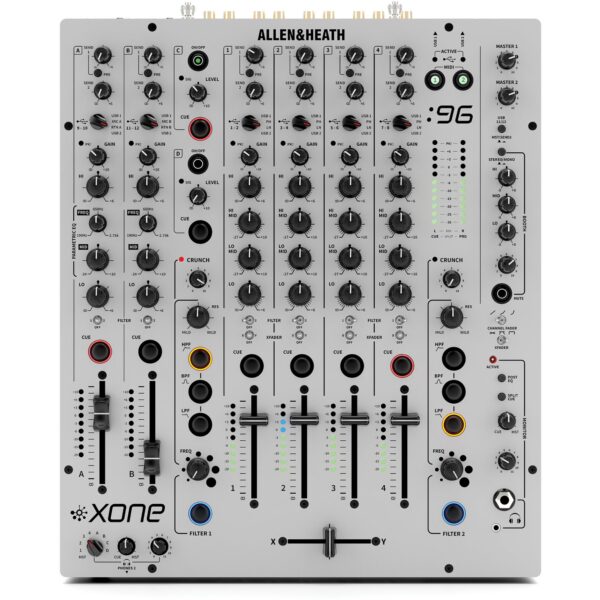

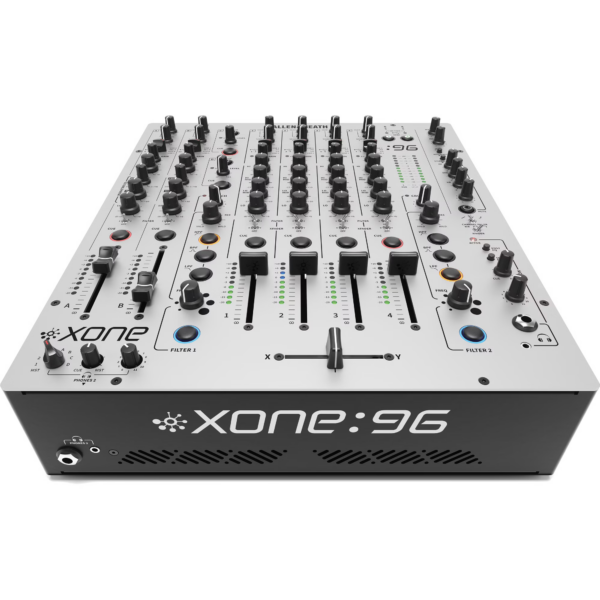

Allen & Heath Xone:96
6+2-channel DJ mixer
double audio interface (12I/12O; 24 bit/96 kHz)

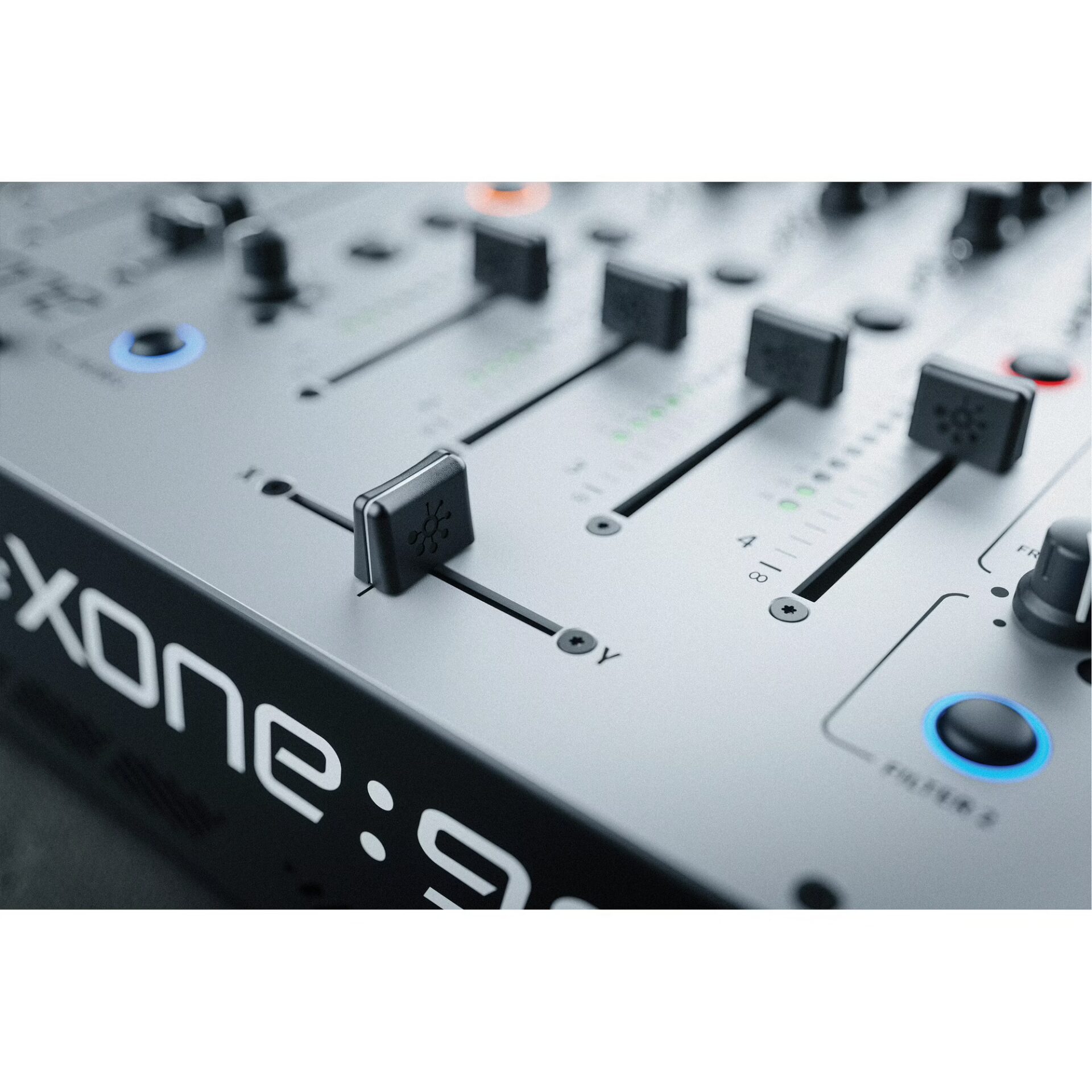

Innofader Mini crossfader

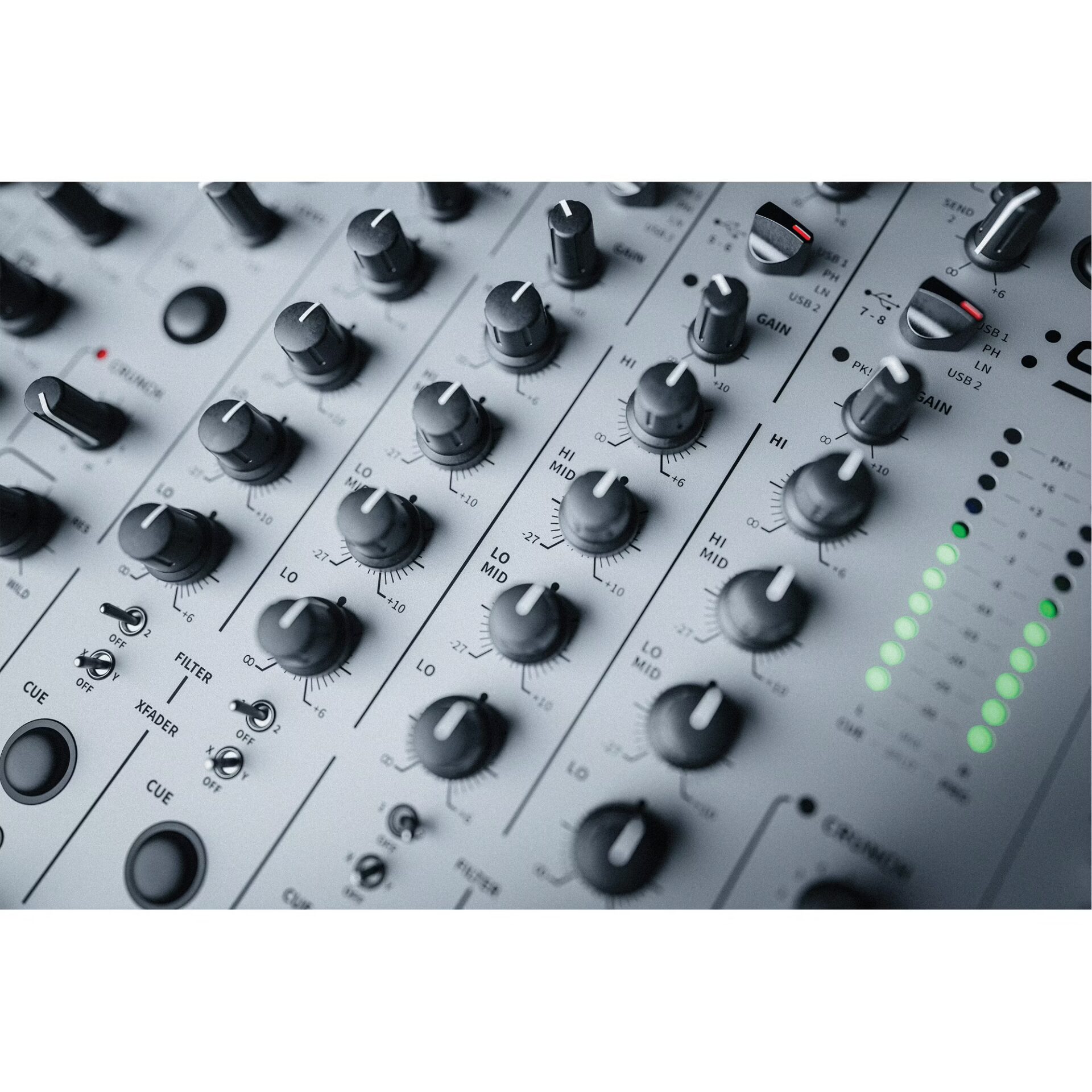

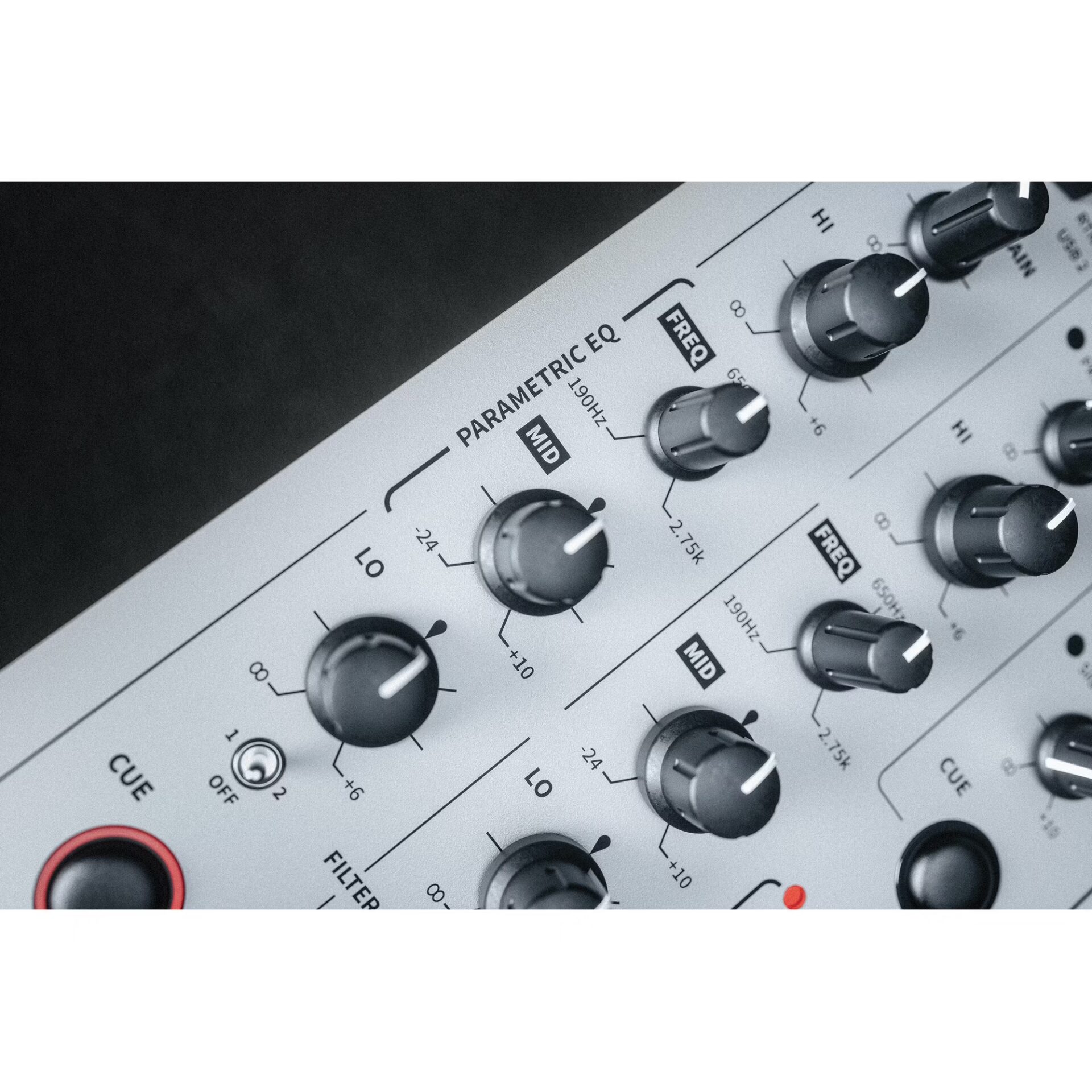

4-band EQ on channels 1 – 4, 3-band parametric EQ on channels A/B
supports Native Instruments Traktor Scratch Pro 2

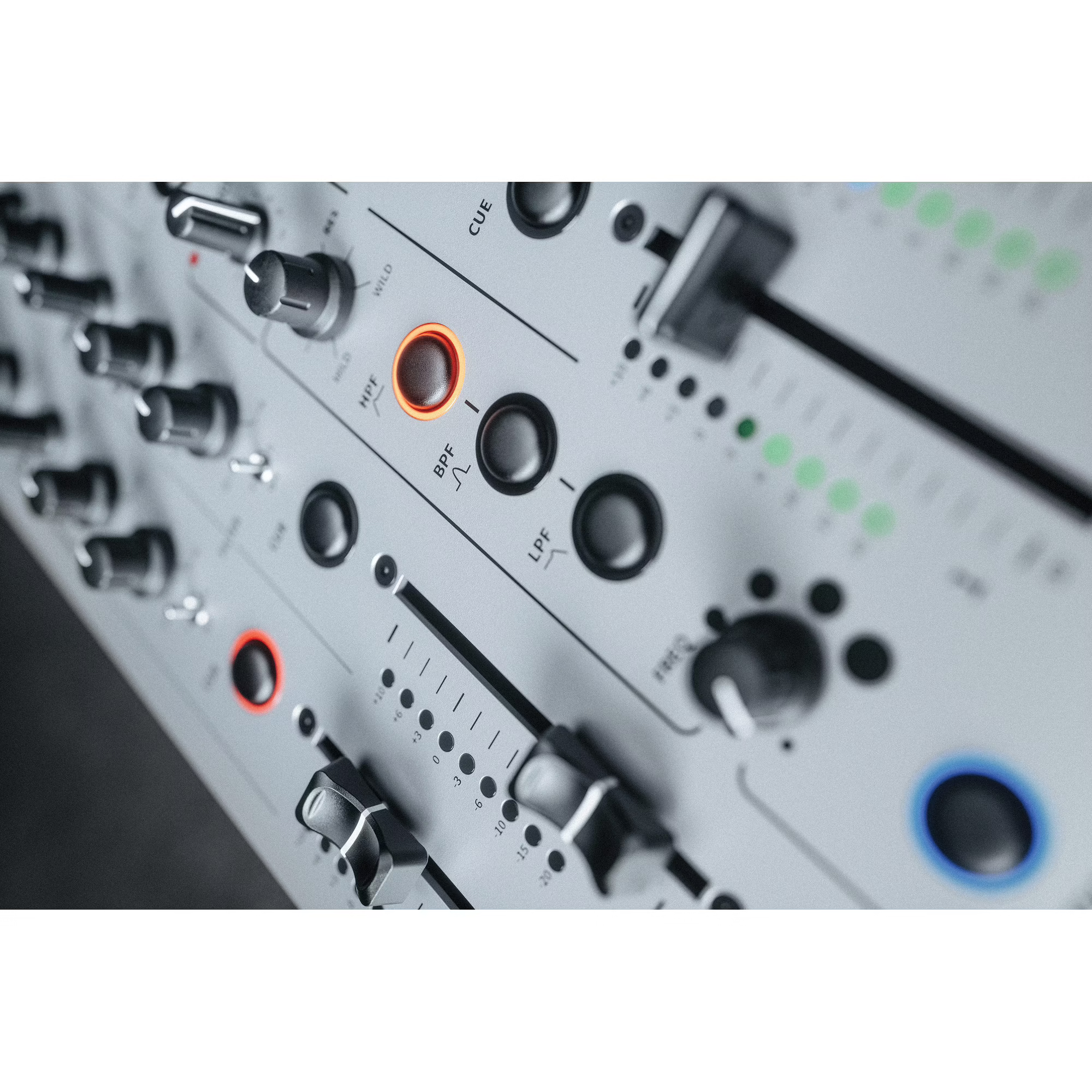

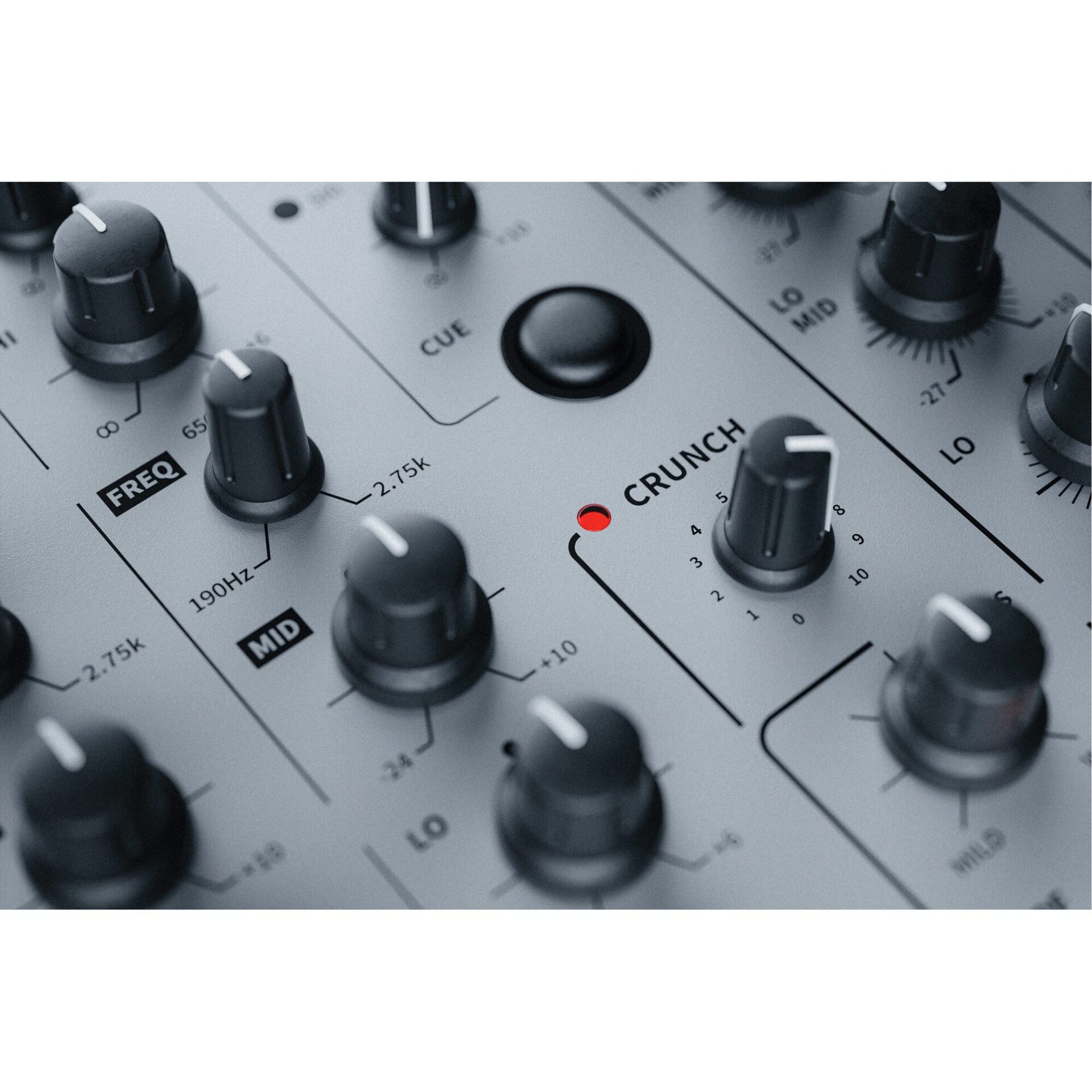

VCF filters with Crunch option (harmonic overdrive)

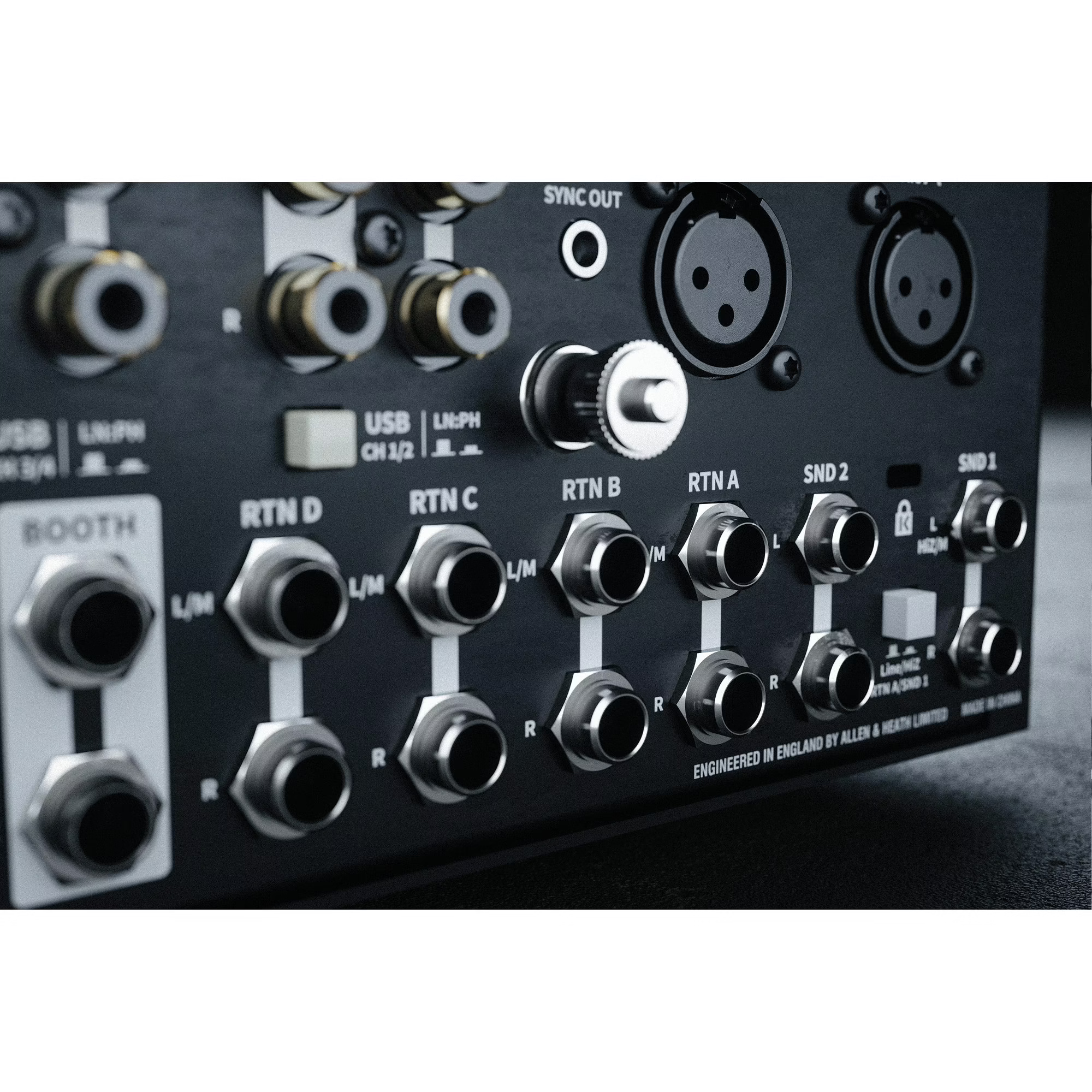

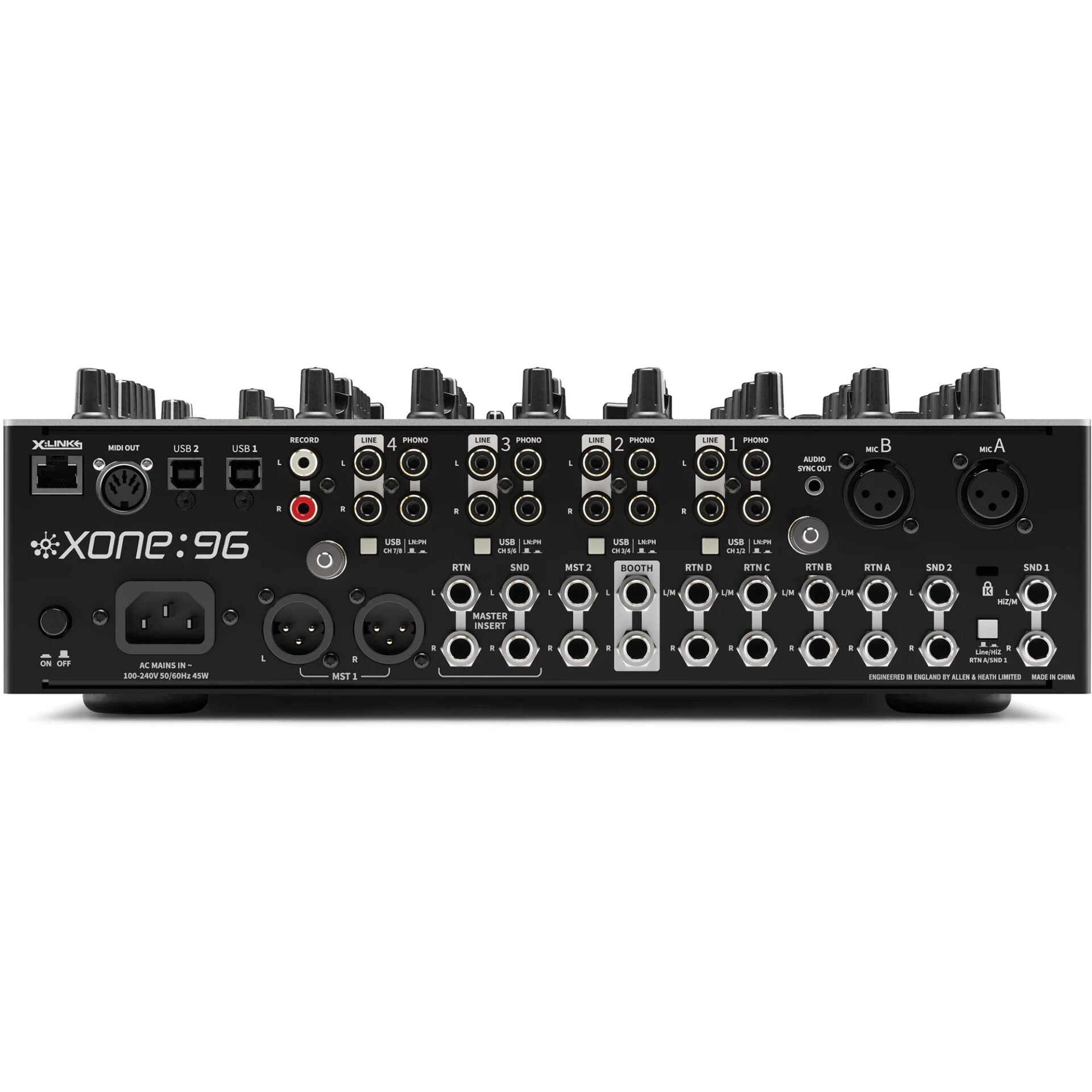

connectors:
4x phono in (RCA, channels 1 – 4, L/R)
4x line in (RCA, channels 1 – 4)
3x stereo send (TRS jack, SND1/2 and MST SND, L/R)
5x stereo return (TRS jack, RTNA-D and MST RTN, L/R)
2x mic in (XLR, MICA/B)

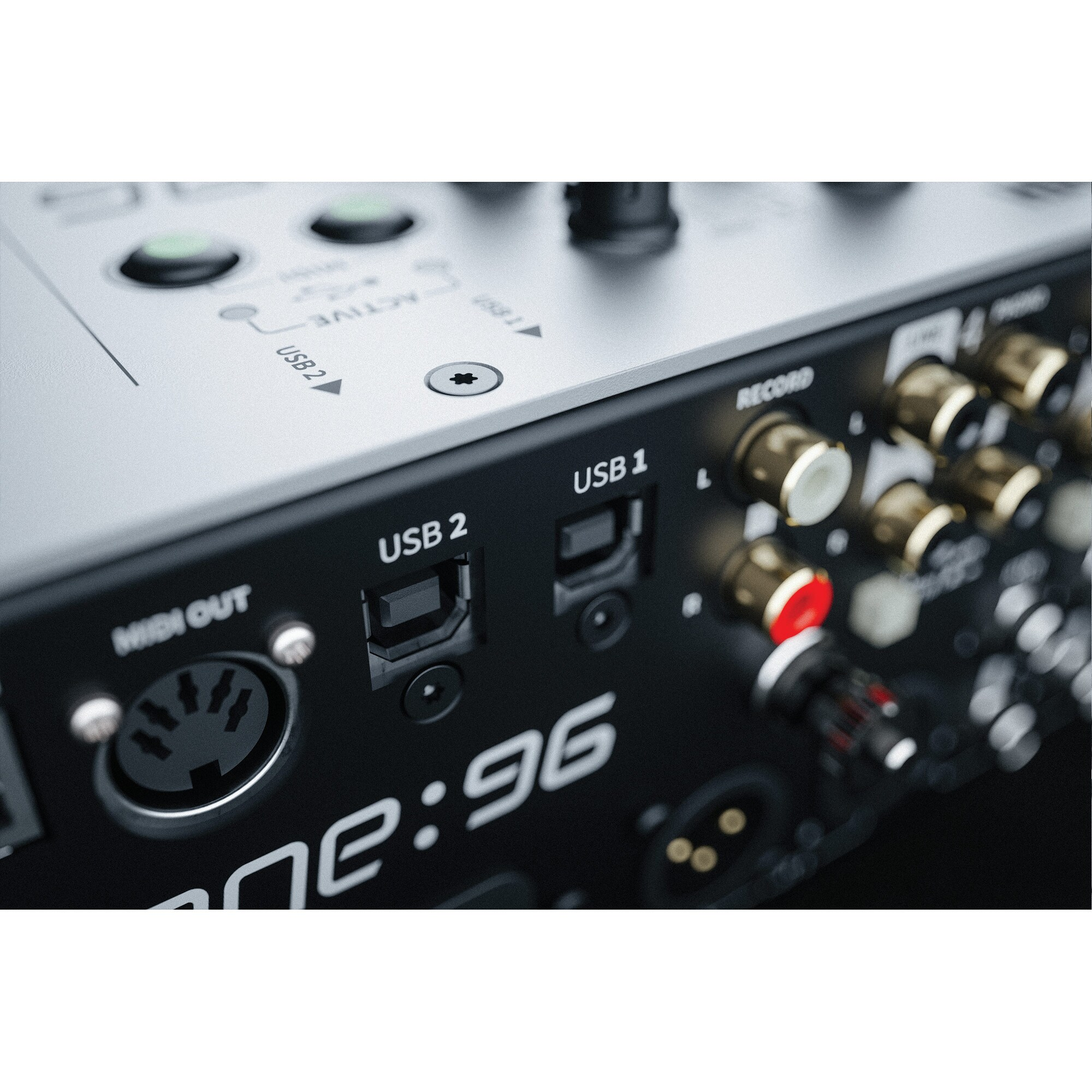

2x USB B
X:Link (RJ45)
MIDI out: 5-pin
record (RCA, L/R)
audio sync out (mini jack)
2x master out (MST1: XLR and MST2: TRS jack, L/R)
booth out (TRS jack, L/R)
power cable

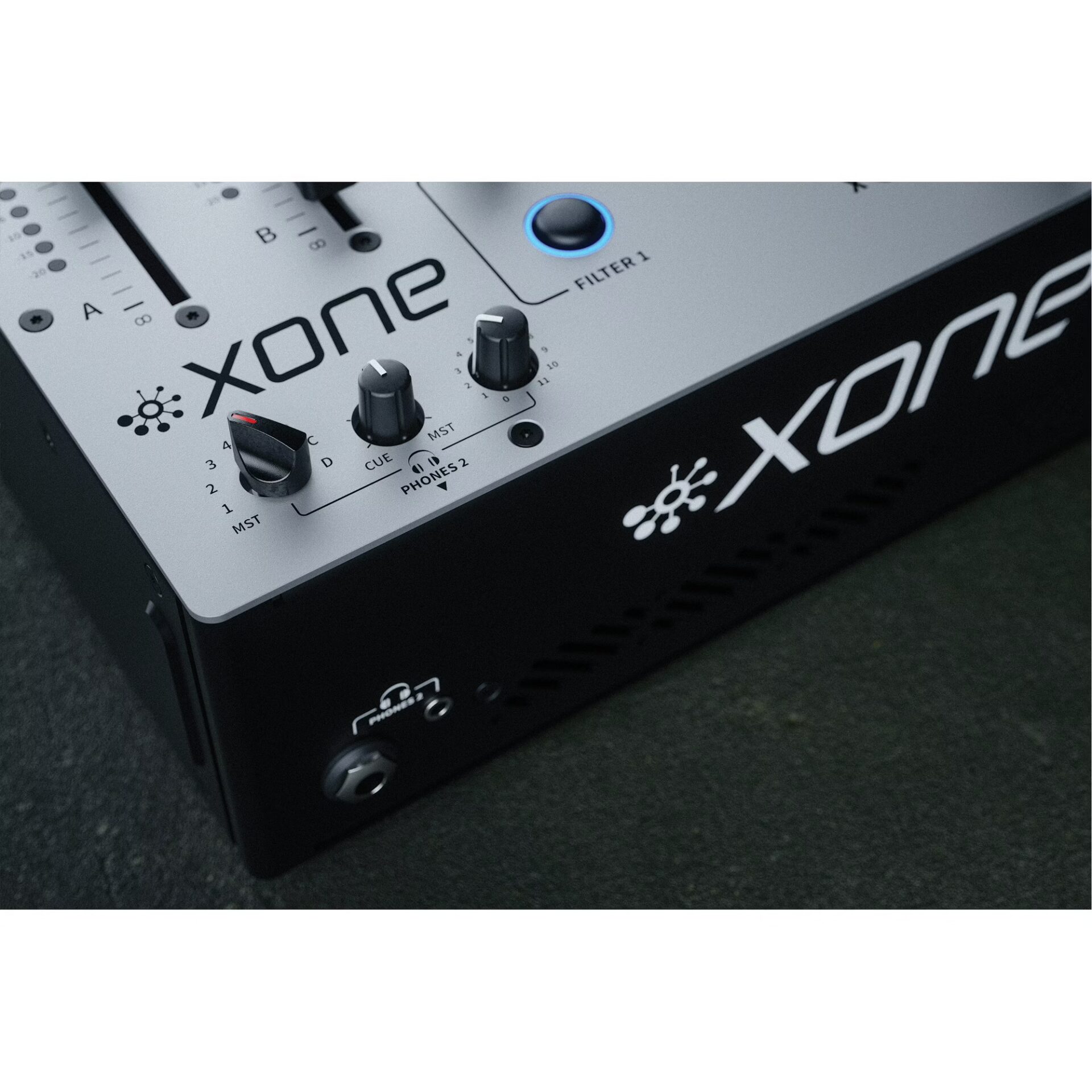

3x headphone out (2x jack, mini jack; front and top)
dimensions: 410 x 336 x 109 mm
weight: 7 kg
