Description
Specifications
Product features
Number of link channels 6
Audio over USB 2-channel
Booth output yes
Adjustable crossfader curve yes
Crossfader assignment yes
Effects yes
EQ kill function yes
EQ line channels 4-band
Fader start support yes
DJ mixer sizeother
Colour black
Master channel 1 knob
Master channel 2 not applicable
Microphone input yes
MIDI I/O in, out
Outputs RCA, XLR
Position of headphone connector top
Position of microphone connector back
Rackmount kit available no
Bluetooth outputbooth out put
Type of headphone connector 6.3mm jack
Type of microphone connector 6.3mm jack
Weight and dimensions including packaging
Weight (incl. packaging)15.0 kg
Dimensions (incl. packaging)62.3 x 52.3 x 24.0 cm
Product specifications

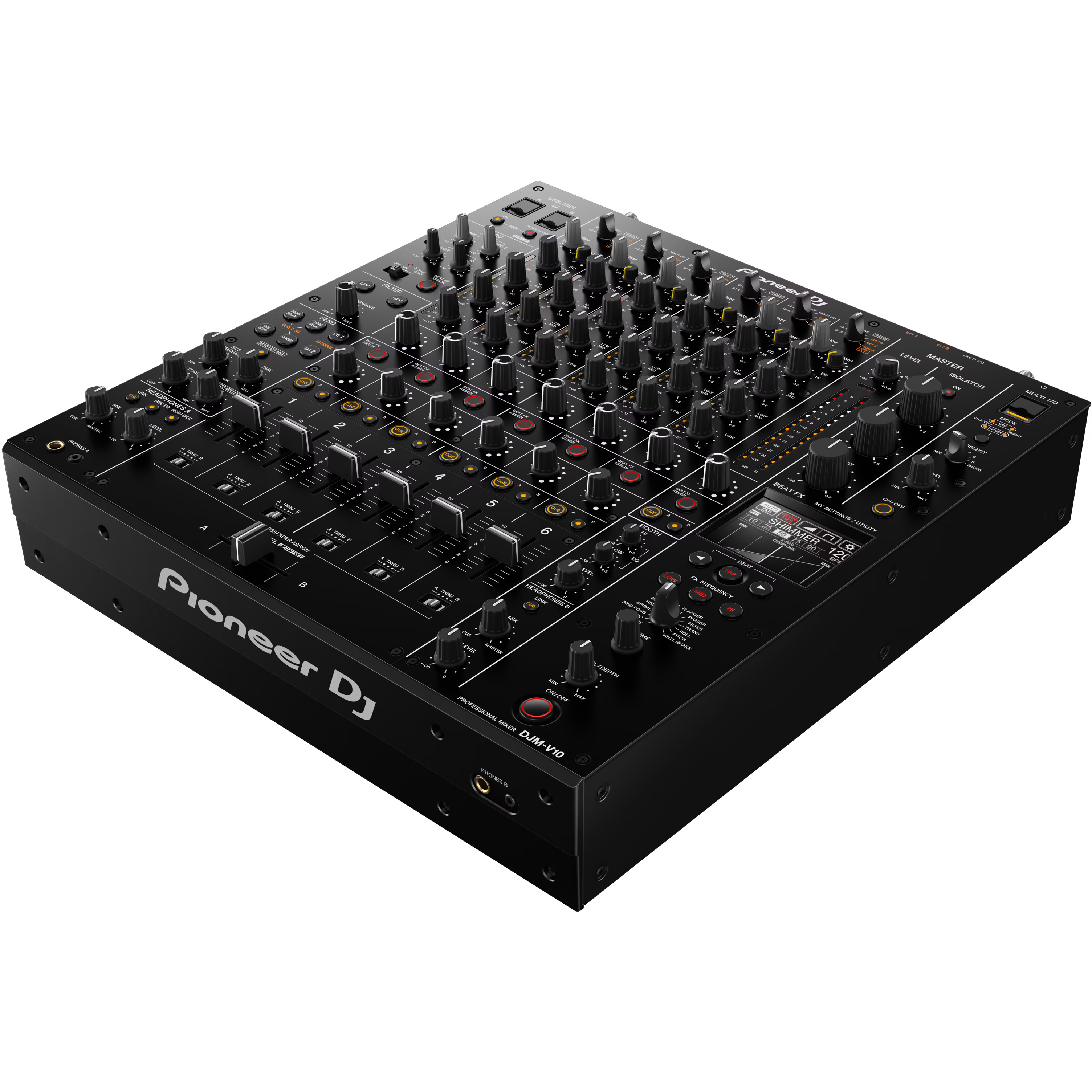

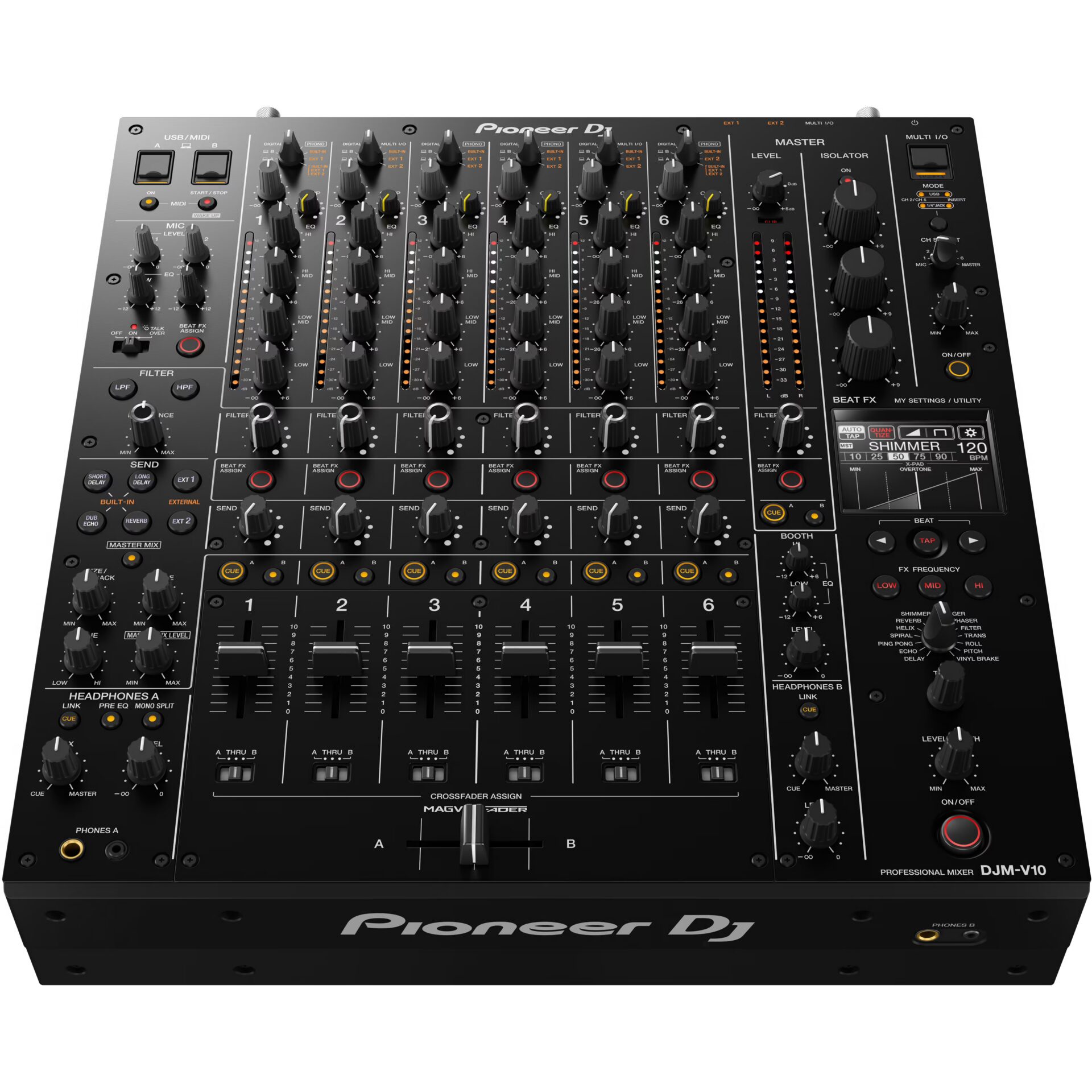

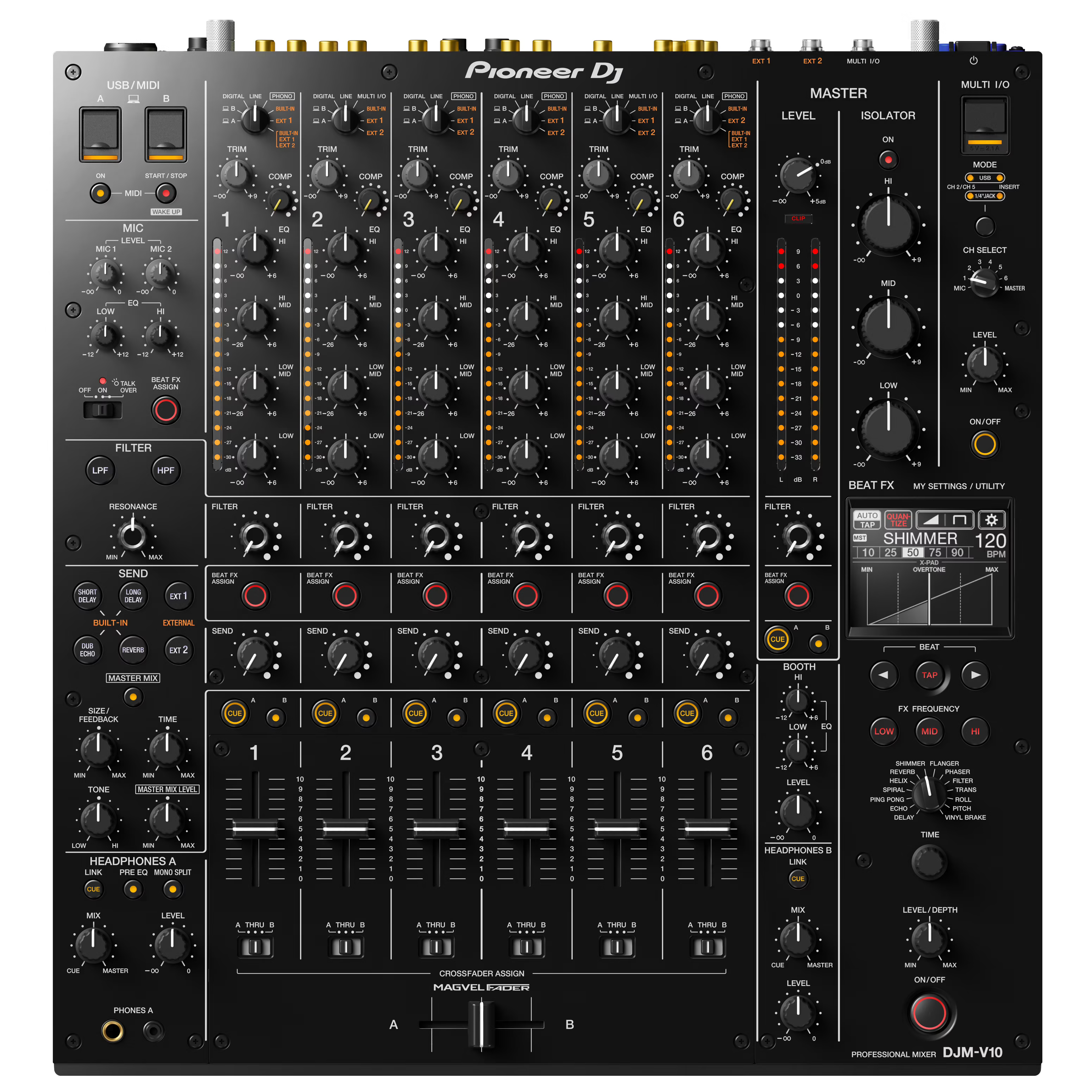

Pioneer DJM-V10 DJ-mixer
software:
rekordbox
Traktor Pro 3.3.0
ShowKontrol
frequency response: 20 Hz – 40 kHz
signal-to-noise ratio:
116 dB (USB, DIGITAL IN),
105 dB (Line)
88 dB (PHONO)
79 dB (MIC1,2)
THD: 0.005% (LINE-MASTER1)

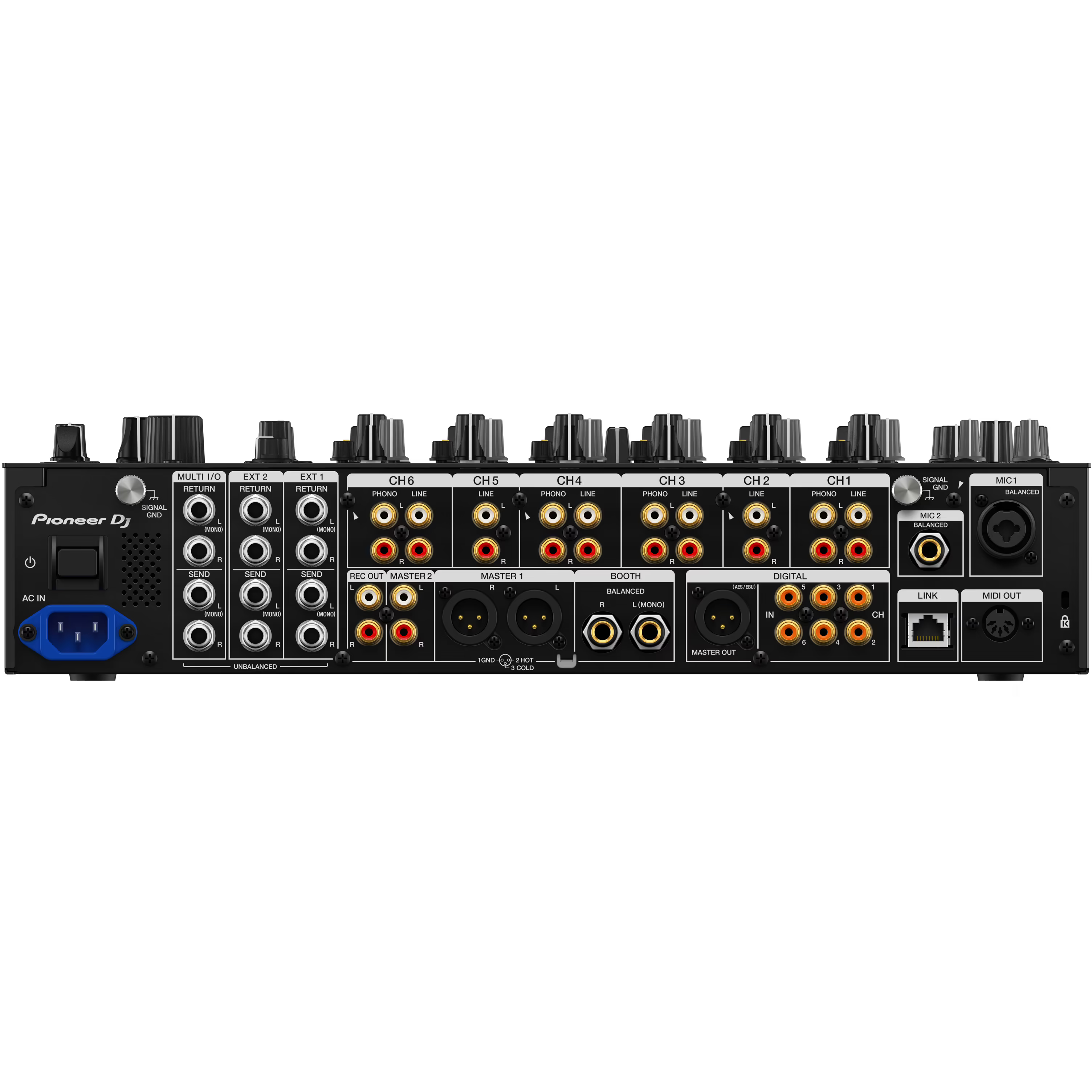

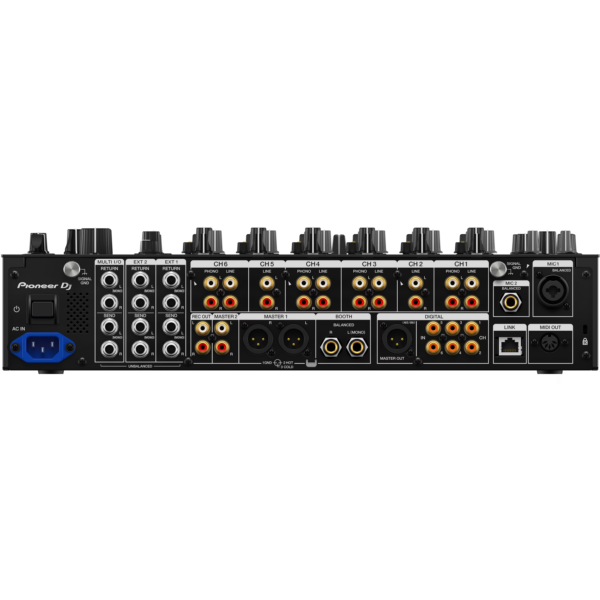

connectors:
inputs:
6x digital (coaxial)
LINE x 6 (RCA)
PHONO x 4 (RCA)
RETURN x 3 (TS jack)
MIC x 2 (XLR and TRS jack, TRS jack)
outputs:
MASTER x 2 (XLR, RCA)
AES/EBU DIGITALE MASTER x 1 (XLR)
BOOTH x 1 (1/4 inch-TRS jack)
SEND x 3 (1/4-inch-TS jack)
HEADPHONES x 4 (2x stereo jack + 2x stereo mini-jack)
REC x 1 (RCA)
USB:
1x USB (type A,
2x USB (type B)
other:
1x LINK (LAN)
MIDI (5-pin DIN) x 1
dimensions: 43.8 x 46.7 x 10.8 cm
weight: 11.9 kg
included:
lockable power cable
quick start guide
