Description
Specifications
Product features
ConnectorsExternal speaker(s), Footswitch, Headphone, Line-out, MIDI
Number of channels 3
Number of speakers 2
Amp modelling no
Effects loop yes
Weight 35 – 39.9 kg
Built-in tuner no
Built-in effects reverb (digital)
Colour white
Speaker diameter 12 inches
Power attenuator yes
Type of power amp tube 6L6
Amplifier type tube
Power in Watts 31 – 50 Watts
Can be powered by battery no
Weight and dimensions including packaging
Weight (incl. packaging)47.3 kg
Dimensions (incl. packaging)86.0 x 83.0 x 46.0 cm
Product specifications

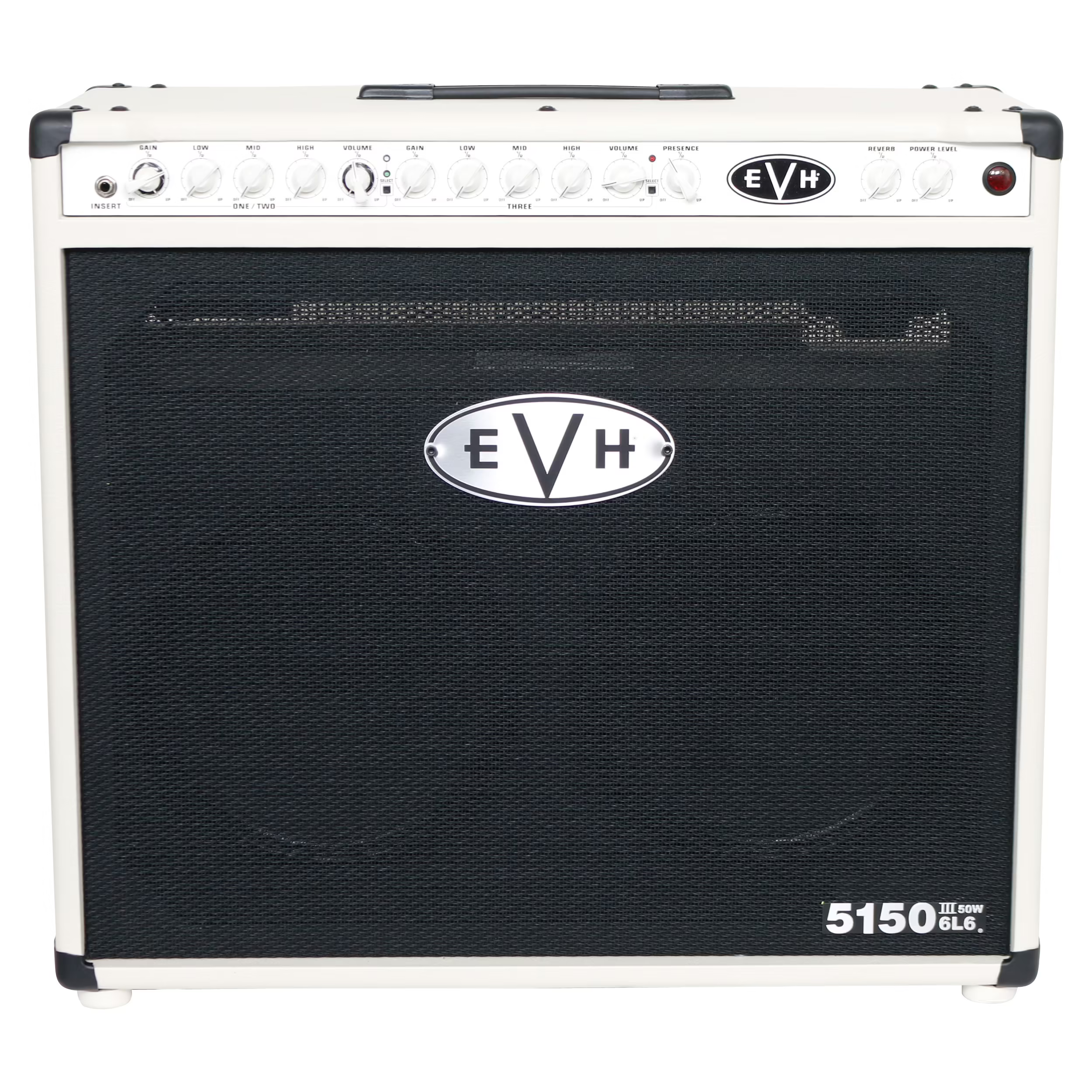

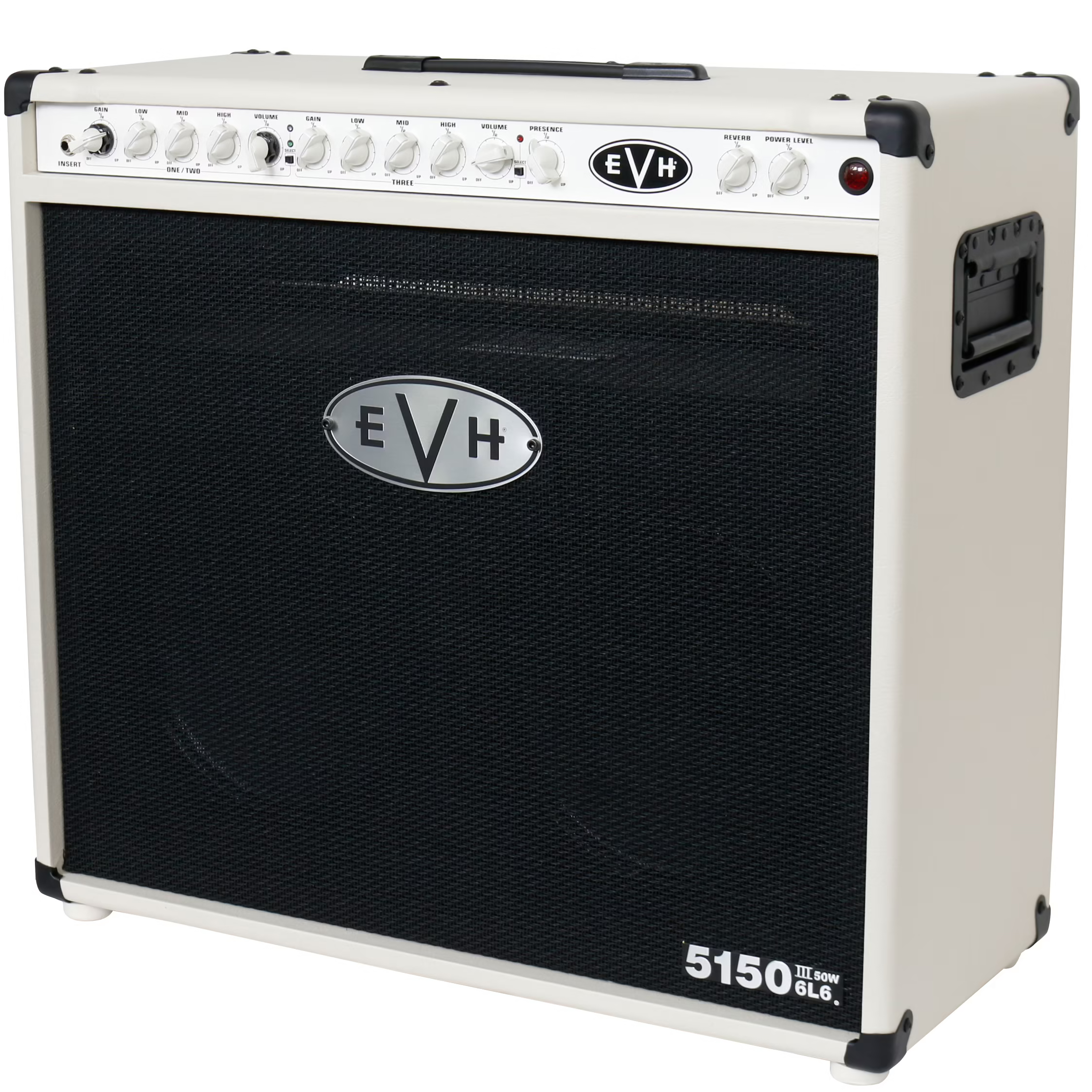

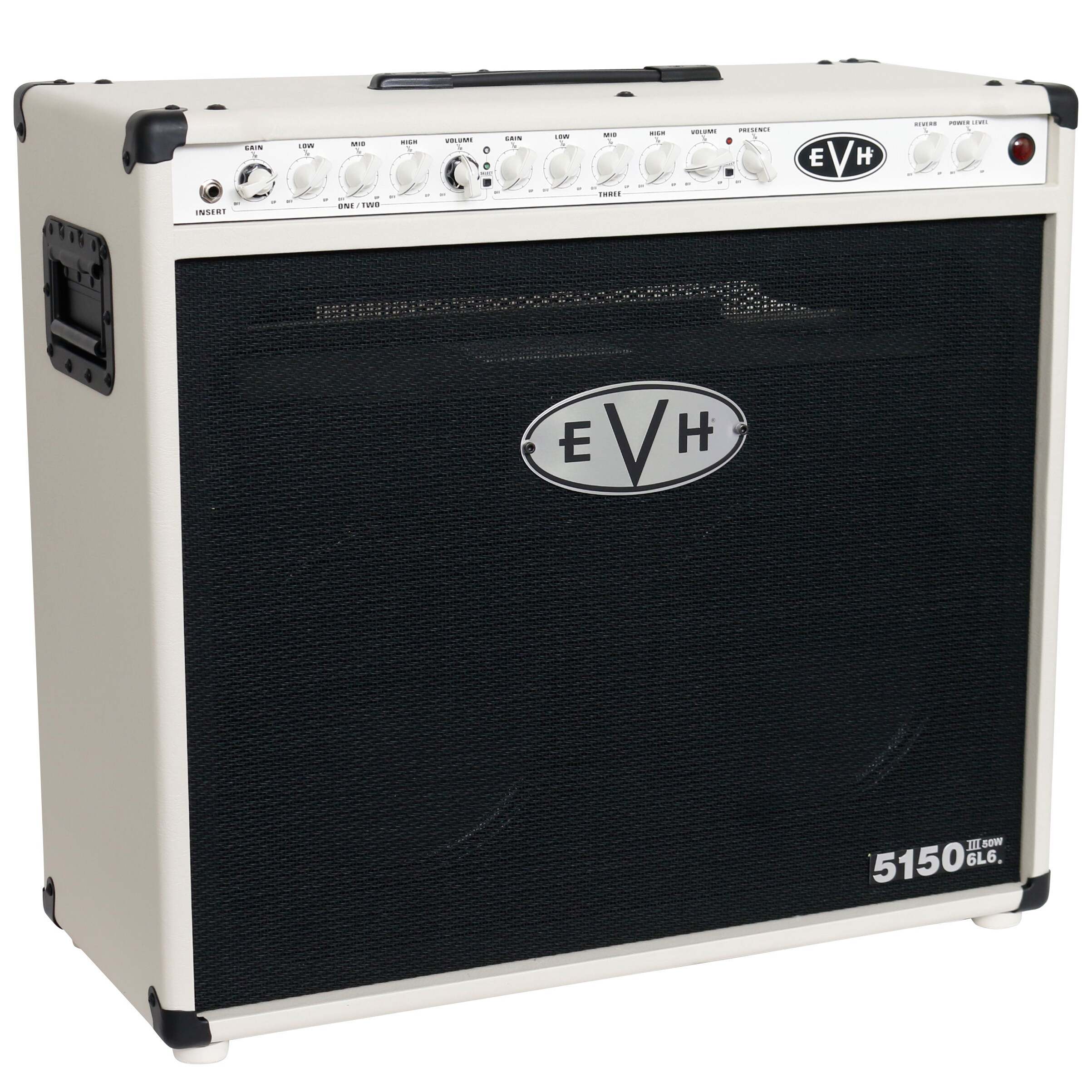

EVH guitar amplifier combo
Series: 5150 III

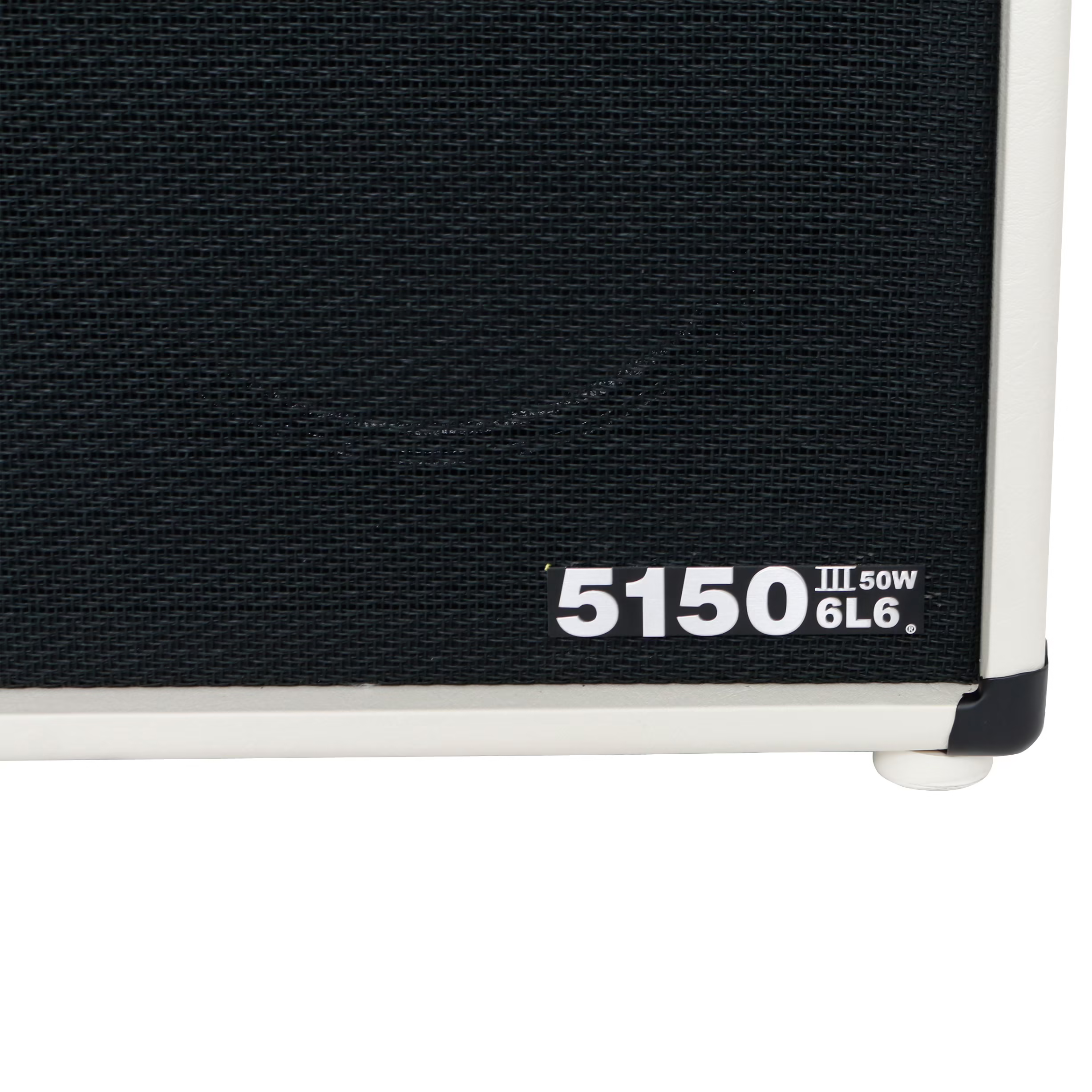

Model: 5150III 50W 6L6 212 Combo
Output power: 50 W
Speaker: 2x 12-inch Celestion EVH Custom
Number of channels: 3 (Clean / Crunch / Lead)

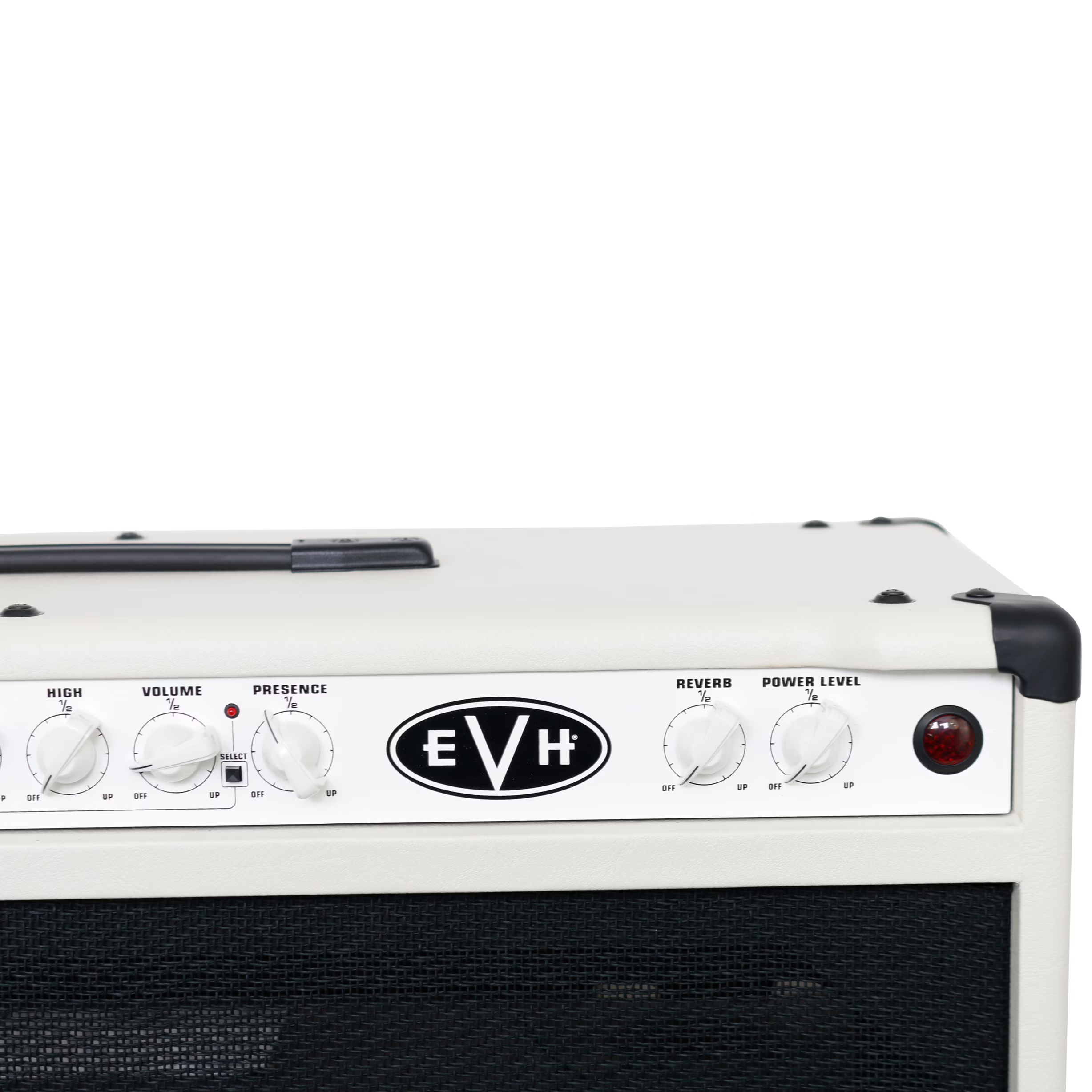

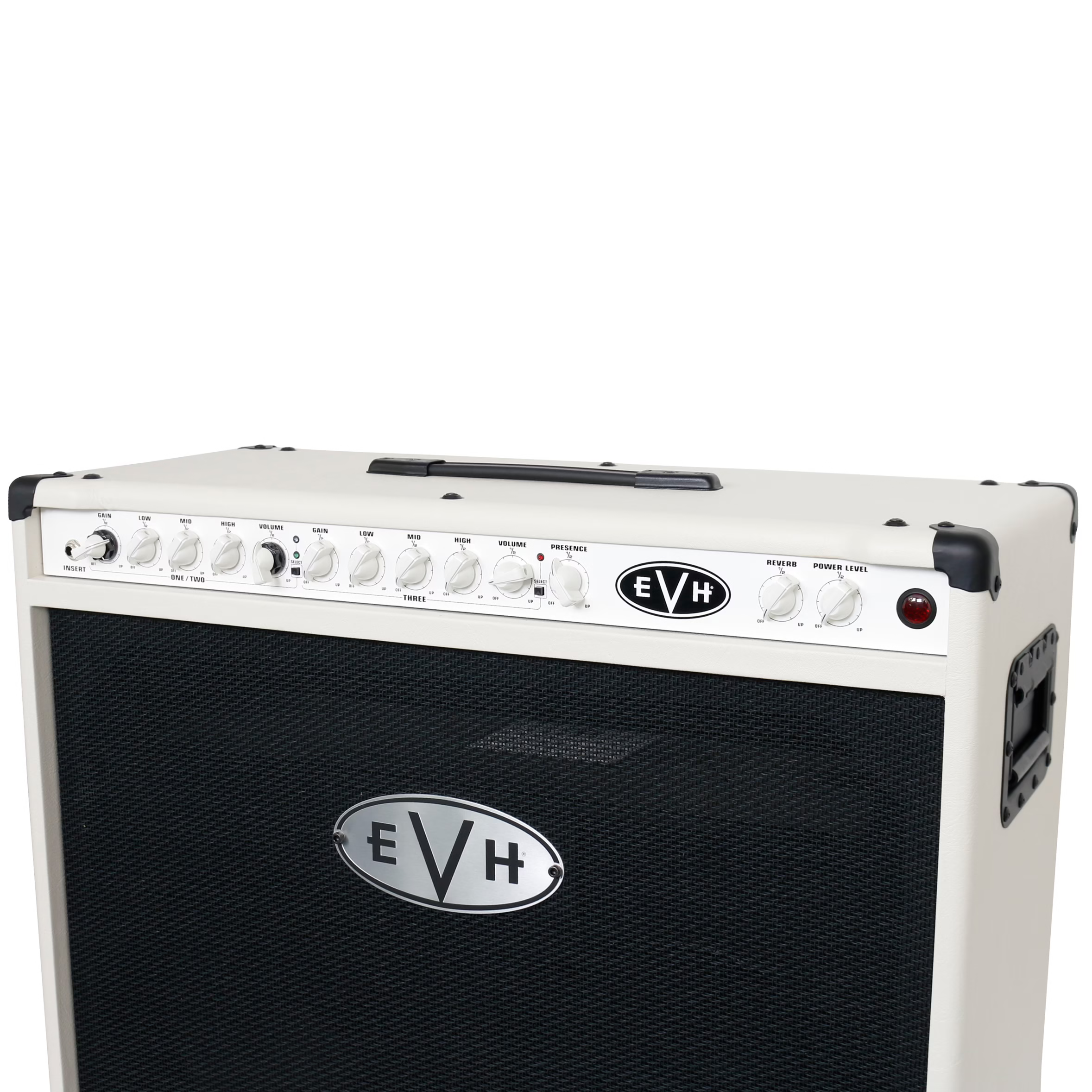

Controls:

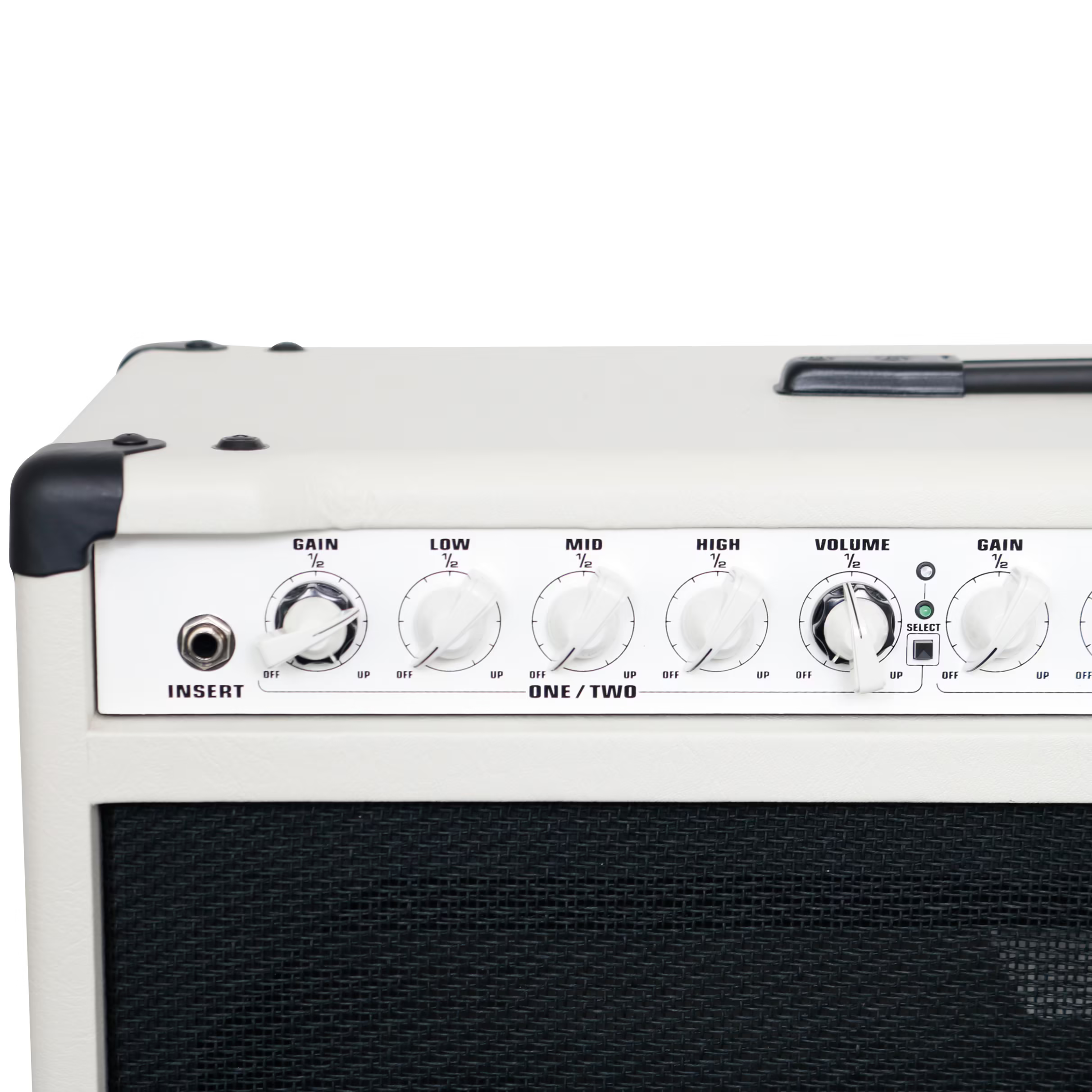

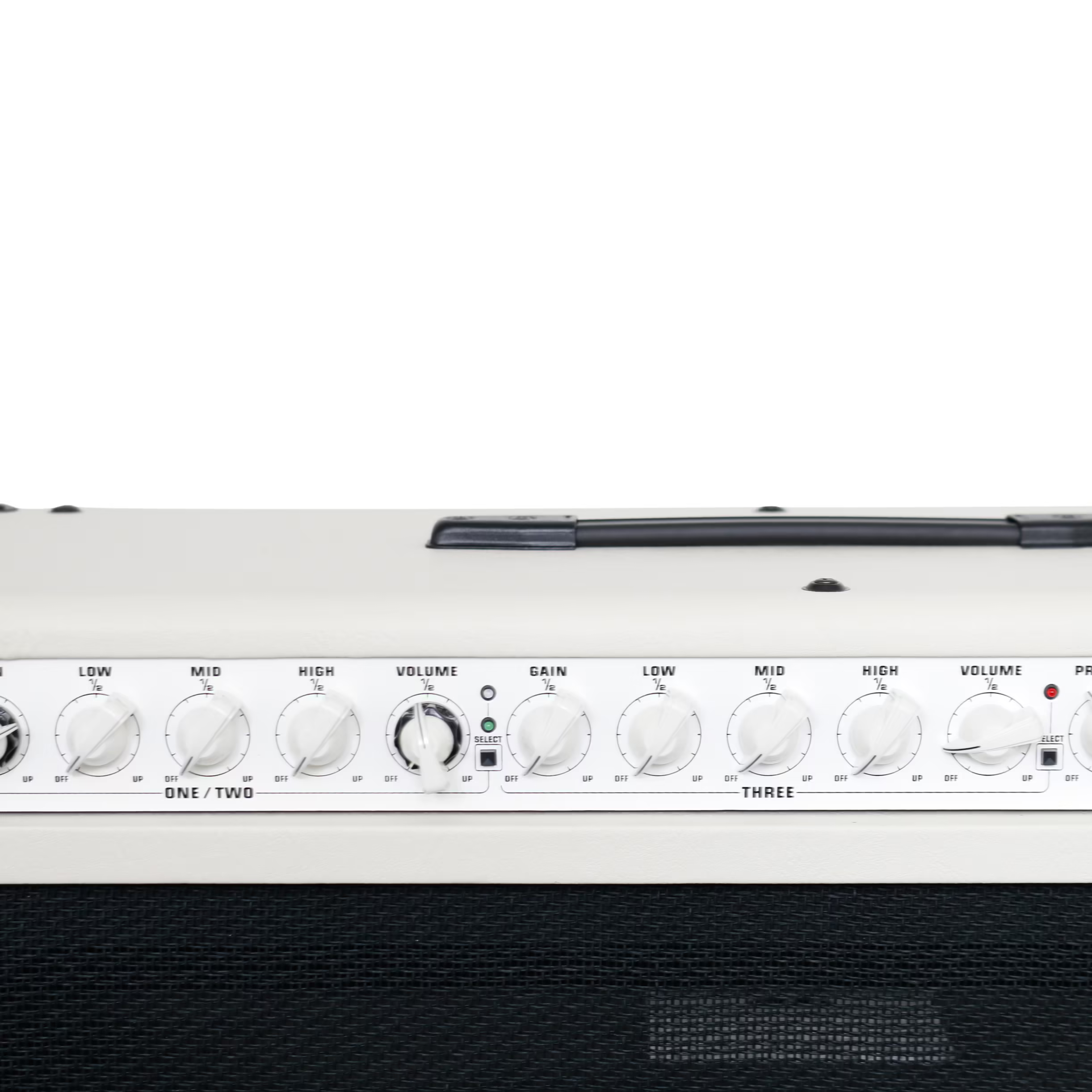

Channels 1 & 2: independent volume and gain with shared low, mid and high

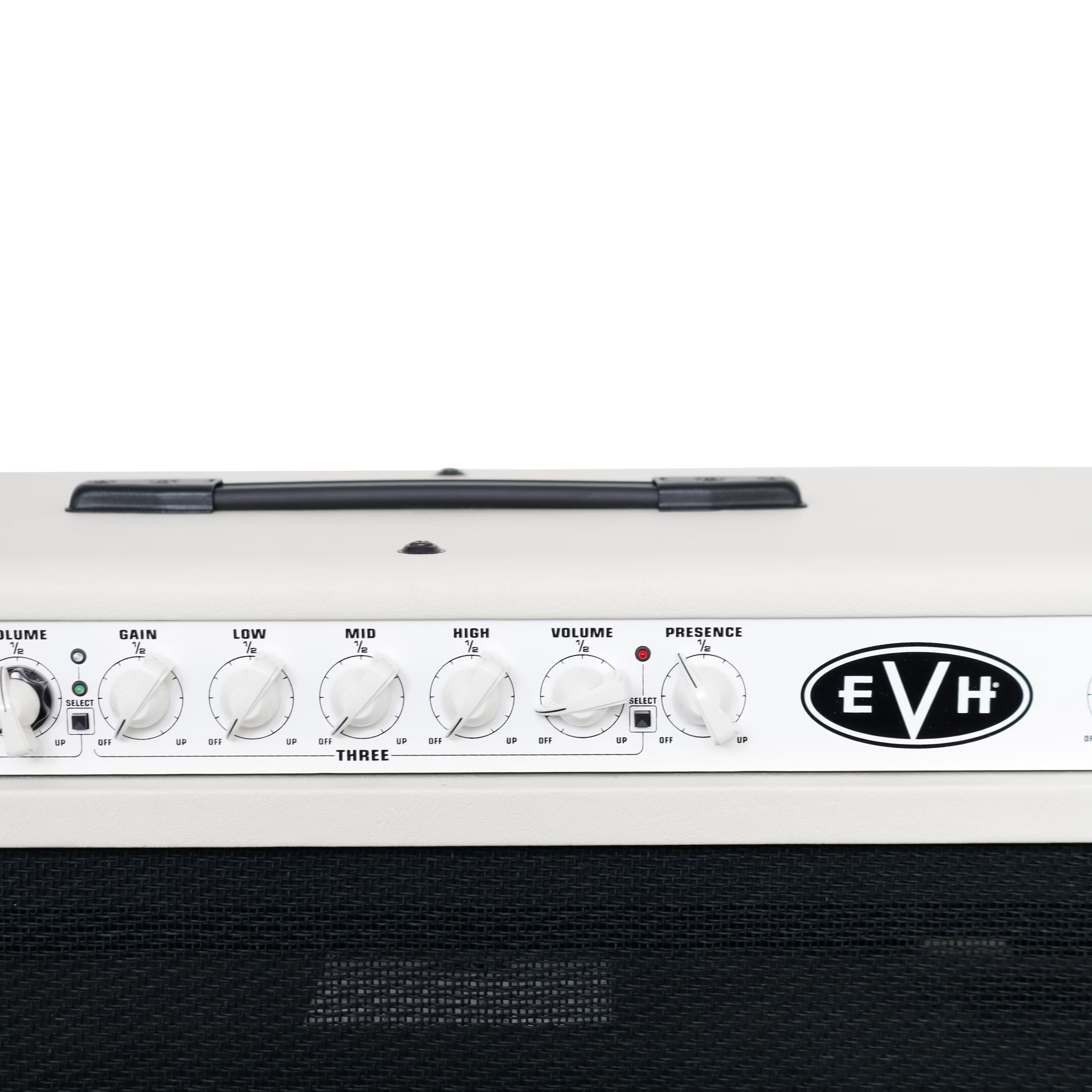

Channel 3: individual volume, gain, low, mid and high
Master presence
Master resonance (on the rear)

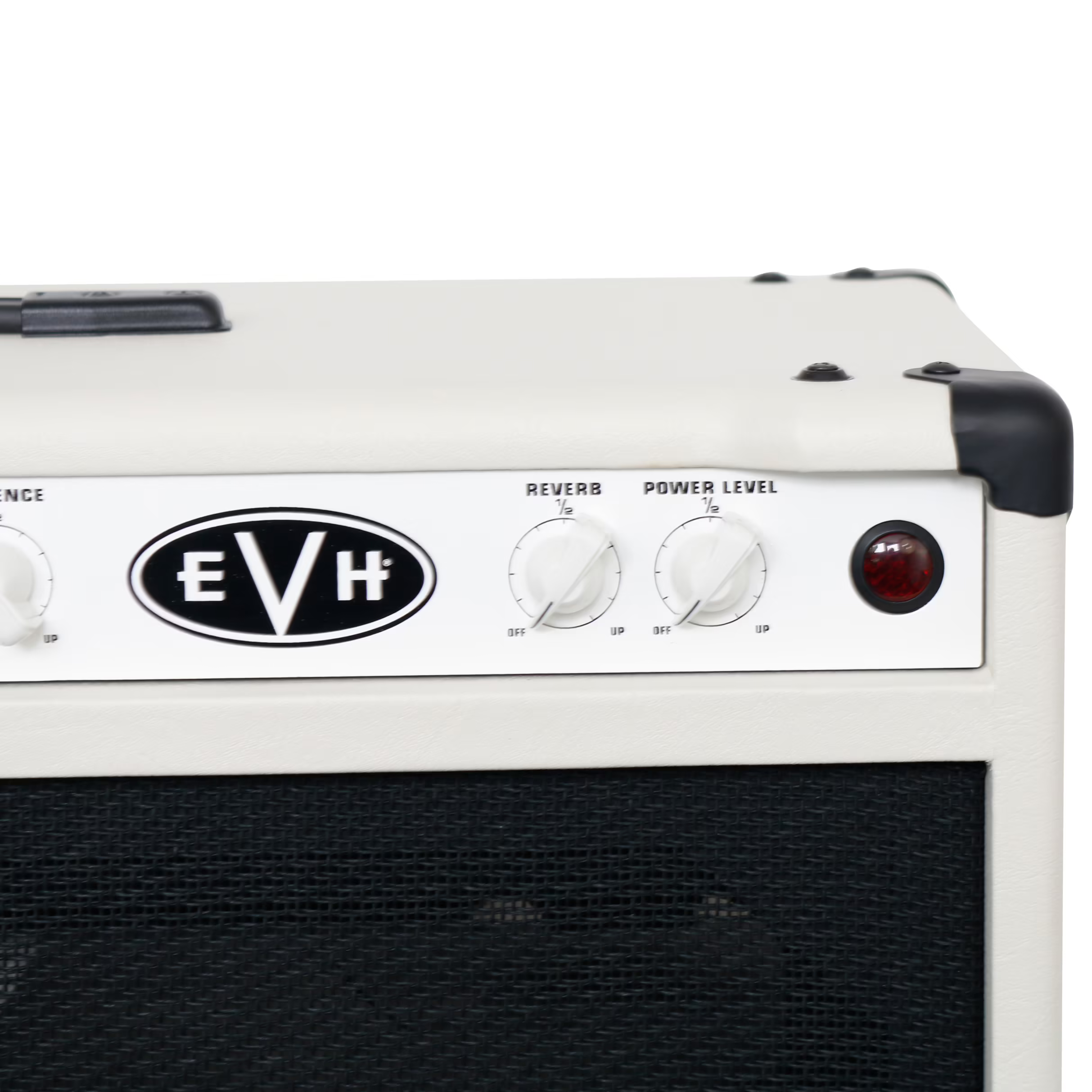

Reverb
Power level (variable from 1 W to 50 W)
Power tubes: 2x JJ 6L6
Preamp tubes: 7x JJ ECC83 (12AX7)

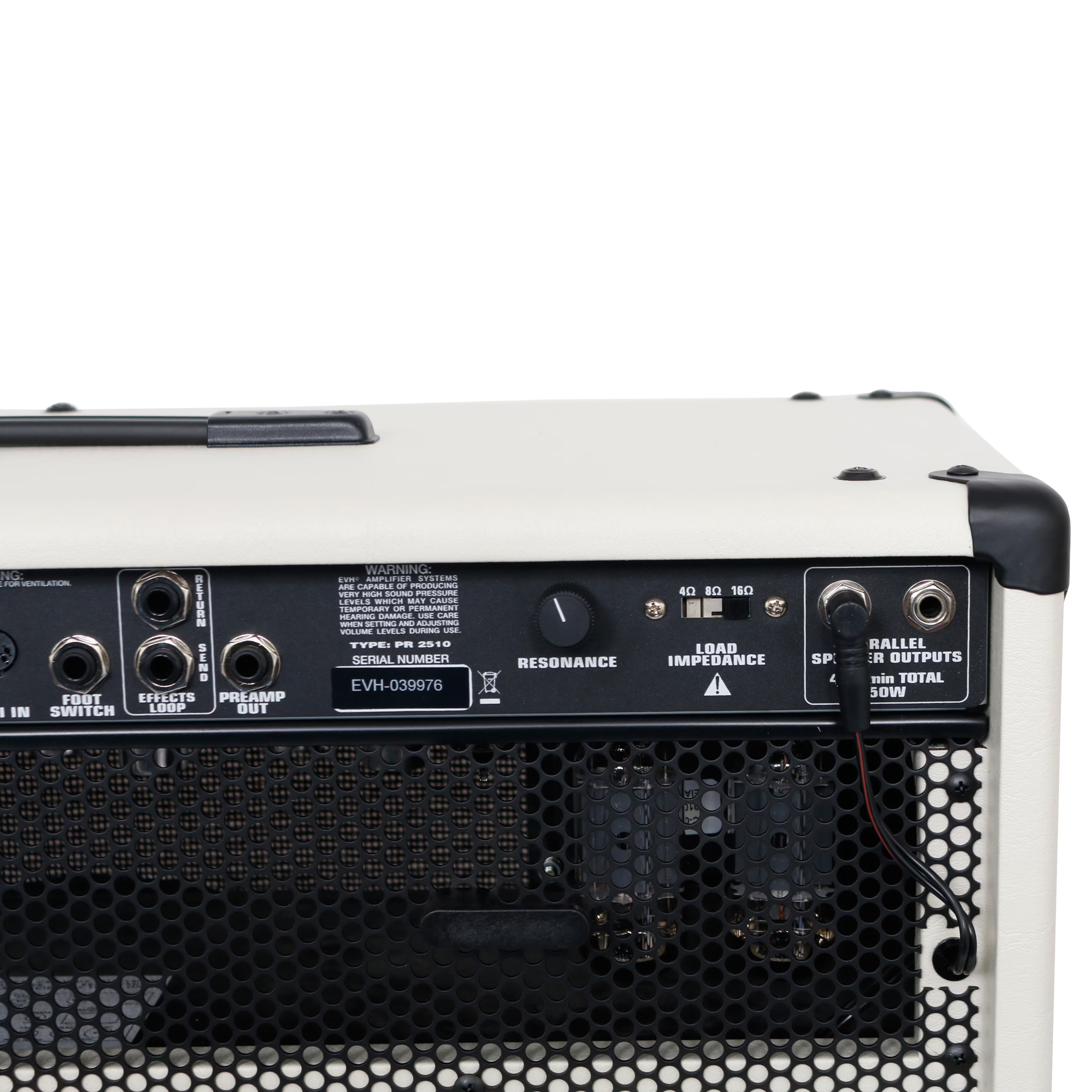

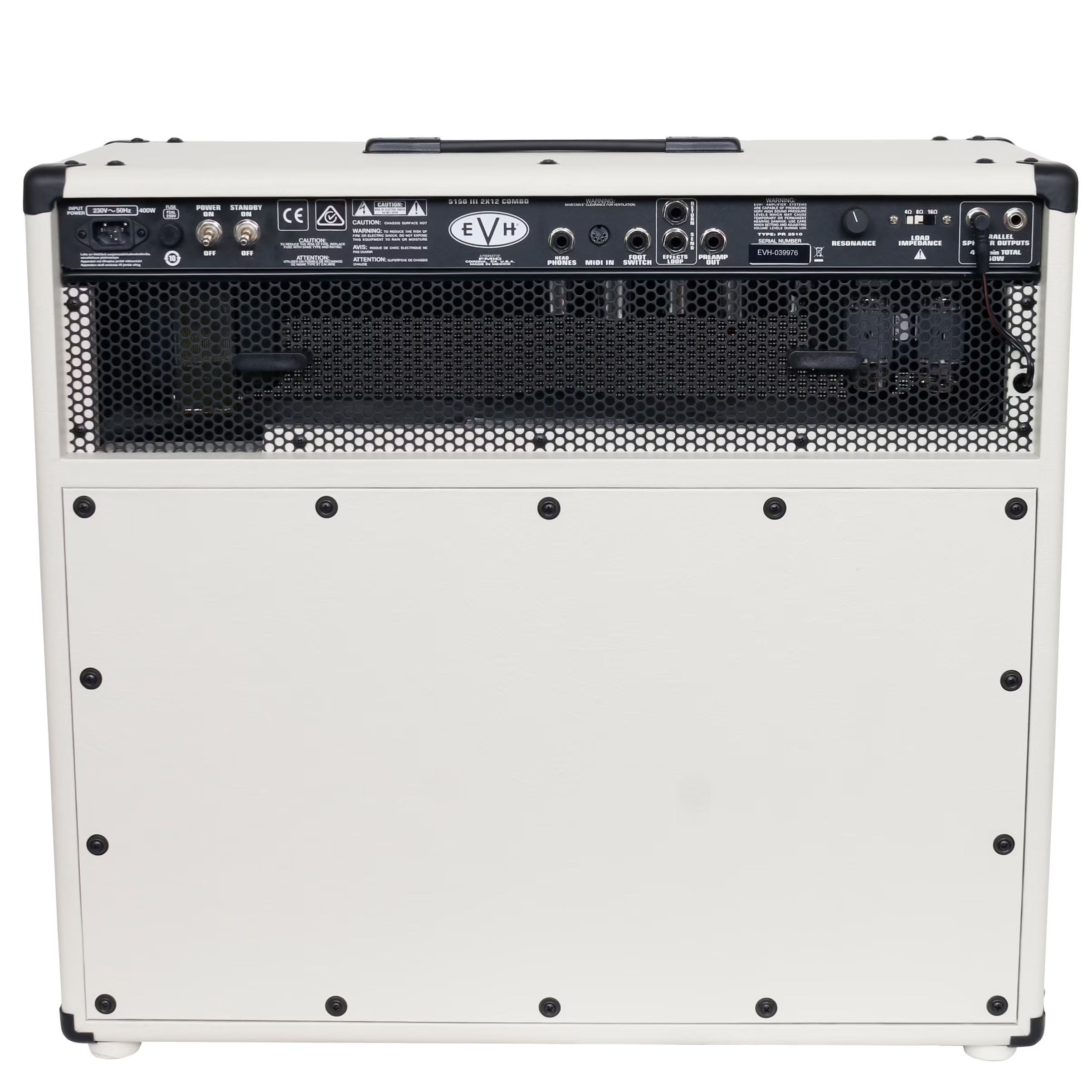

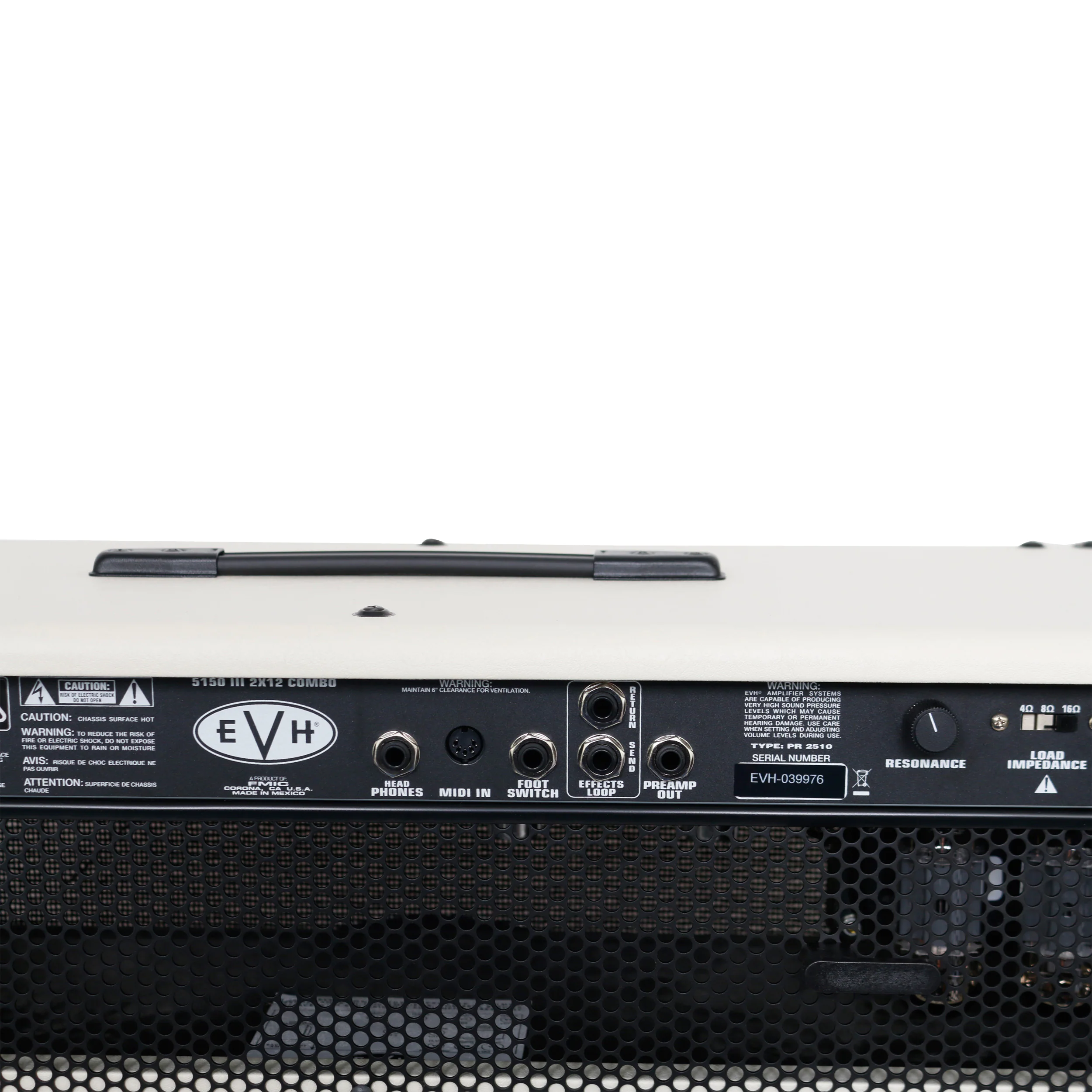

Connectors:
Instrument input: 1x mono jack
FX loop: 2x mono jack
Headphone output: 1x stereo jack
MIDI IN
Number of speaker outputs: 2x mono jack
Switchable impedance speaker output: 4, 8 or 16 ohms
Dimensions: 635 x 700 x 304 mm
Weight: 38 kg
Made in the USA
Included: 4-button footswitch, removable castors
