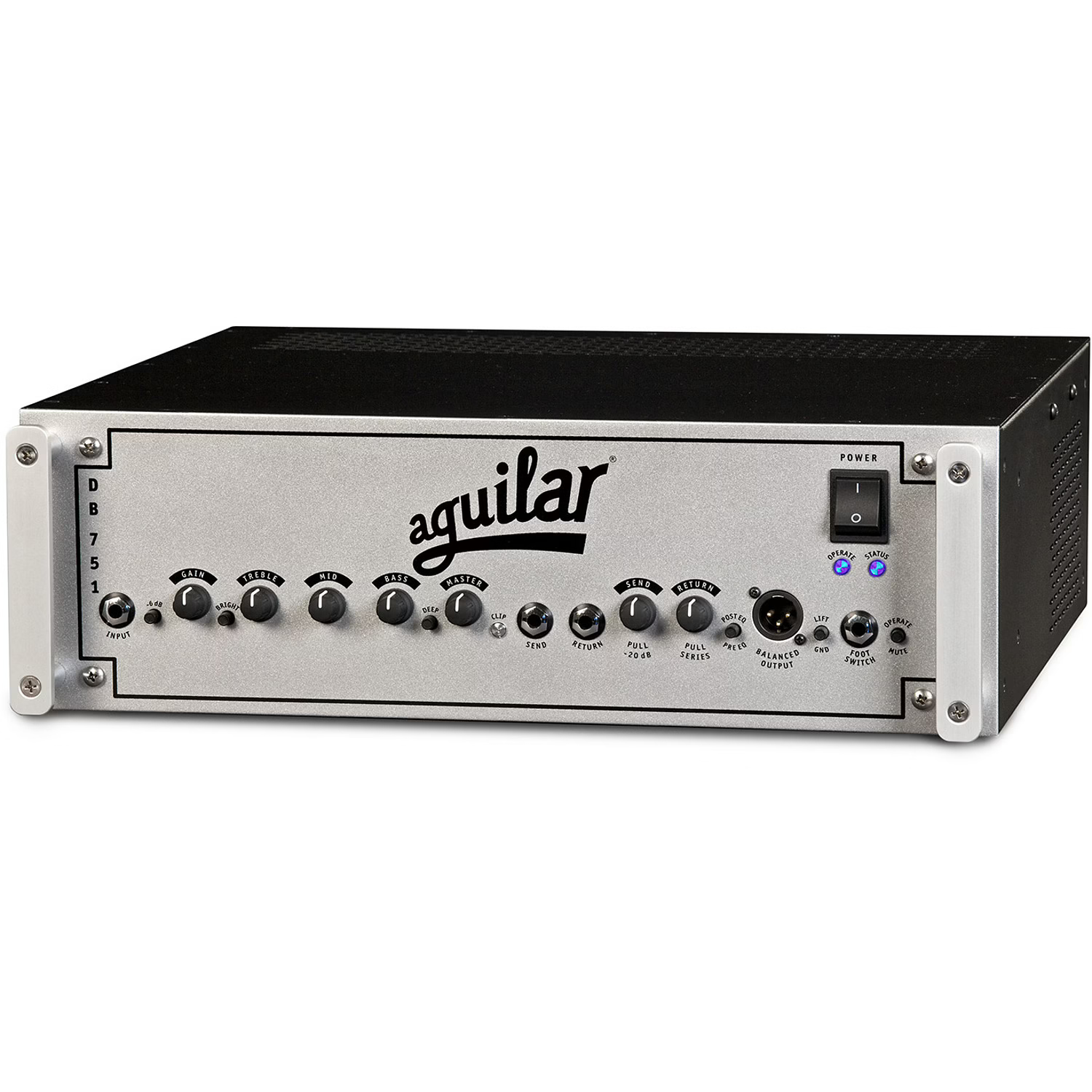

Aguilar DB 751 Hybrid Bass Amplifier Top

-23%

Aguilar DB 751 Hybrid Bass Amplifier Top

Name: Aguilar DB 751 Hybrid Bass Amplifier Top
SKU: 4029
Availability: InStock

Original price was: €3,310.Current price is: €2,550.

Building on the legacy of the renowned DB 750, Aguilar offers the DB 751 bass amplifier head as the perfect combination of brute force and a rich tone. This revolutionary hybrid amplifier carries a discreet Mosfet power amp as well as a preamp with three 12AX7 tubes. What’s more, the DB 751 features several improvements regarding its EQ section, a better layout of its controls, detachable rack ears and thermally controlled fans – all without risking the DB 750’s legendary sound.

Aguilar DB 751: Versatile Powerhouse
With 975 watts at 2 ohms (750 watts at 4 ohms) the Aguilar 751 has more than enough headroom to enliven your bass sound on any stage – regardless of the type of music you play. What’s more, this three-unit high rack amp is very easy to use. There’s a gain and a volume control with clip indicator, as well as a very effective 3-band EQ at your disposal. Also, there are bright and deep switches, just in case you’d like some more sparkle or bass. Further still, there’s a -6dB button that is perfect for bass guitars with high-output pickups.

Built-In DI and FX Loop
Additionally, the TH751 features a DI-connector for direct recording or live stage performances. It is a balanced XLR output that has a pre/post EQ switch and ground lift. Aguilar’s DB751 is also equipped with a versatile FX loop so you can add your favourite effects to the signal. You can alternate between line and instrument level (-20 dB) by pulling the send-volume knob. Retract the return-volume knob and you switch the FX loop from parallel to series. Moreover, when you use the mute button to mute the sound, the tuner output remains active.

Categories: Bass Guitar Amp Head, Bass guitar amplifiers, Bass Guitars Tag: Aguilar

Description

Description

Specifications

Product features
ConnectorsExternal speaker(s), Foots witch, Line-out
Number of channels 1
Number of speaker outputs 2
Amp modelling no
Effects loop yes
Weight 15 – 19.9 kg
Speaker output impedance 16 ohms, 4 ohms, 2 ohms
Built-in tuner no
Built-in compressor no
Built-in effects none
Colour grey
Power attenuatorno
Type of power amp tube not applicable
Amplifier type hybrid
Power in Watts 751 – 1,000 Watts
Weight and dimensions including packaging
Weight (incl. packaging)20.0 kg
Dimensions (incl. packaging)59.0 x 52.0 x 28.0 cm
Product specifications
Aguilar bass amplifier head
power: 975W @ 2 Ohm, 750W @ 4 Ohm, 400W @ 8 Ohm
type of amplifier: hybrid
preamp: tube-driven (3x 12AX7)
power amp: 12 complimentary lateral Mosfets
special Aguilar toroidal power transformer
switchable power supply: 100/120/230/240V AC, 50/60Hz
controls: gain, bright, treble, mid, bass, deep, master, send/-20dB, return/series
EQ section: passive tone control with active midrange section
Bass: +/- 12 dB @ 40 Hz
Mid: +/- 12 dB @ 750 Hz
Treble: +/- 12 dB @ 7 kHz
Deep switch: adds 5 dB of broadband boost at 30 Hz
Bright switch: adds 5 dB of broadband boost at 5-7 kHz
FX loop with volume controls for Send and Return
Send: push/pull switch for line or instrument level (-20 dB)
Return: push/pull switch for parallel or series loop
6.3mm input with -6 dB switch for active and passive bass guitars
inputs: 2x Neutrik SpeakOn
tuner output: 6.3mm jack
foot switch input for muting on/off
DI output: Jensen XLR, balanced (-32 dB), with pre/post EQ and ground lift
cooling: 2 high-quality, dead-silent fans with thermal speed control
dimensions: 432 x 356 x 133 mm (W x D x H), 3U rack height
weight: 19 kg
including detachable rack ears
